Circuit wiring configurations for the MultiPar-12.

The Source 4 MultiPAR can be wired for 3 circuit or 4 circuit configurations. Before changing the configuration, make
sure that you have sufficient power (dimmer capacity) to operate the fixture. There are four terminal blocks inside the
unit to place wiring. Each terminal block has four lead connection points. All of the hot and neutrals are labeled with
a number for your convenience.
Three circuit configuration
Disconnect power before changing the wiring.
1.
Loosen the captured screw on the back of the raceway and open the raceway lid.
2.
In the first terminal block on the left, insert the wires labeled 1,4,7,10.
3.
In the second terminal block from the left, insert the wires labeled 2,5,8,11.
4.
In the third terminal block from the left, insert the wires labeled 3,6,9,12
5.
The fourth terminal block from the left is not used and is left empty.See
6.
Four circuit configuration
Disconnect power before changing the wiring.
1.
Loosen the captured screw on the back of the raceway and open the raceway lid.
2.
In the first terminal block on the left, insert the wires labeled 1,5,9
3.
In the second terminal block from the left, insert the wires labeled 2,6,10.
4.
In the third terminal block from the left, insert the wires labeled 3,7,11.
5.
In the fourth terminal block from the left, insert the wires labeled 4,8,12. See
6.
6 • Source Four MultiPAR
www.BulbAmerica.com or CALL TOLL FREE 888-505-2111
for detail.

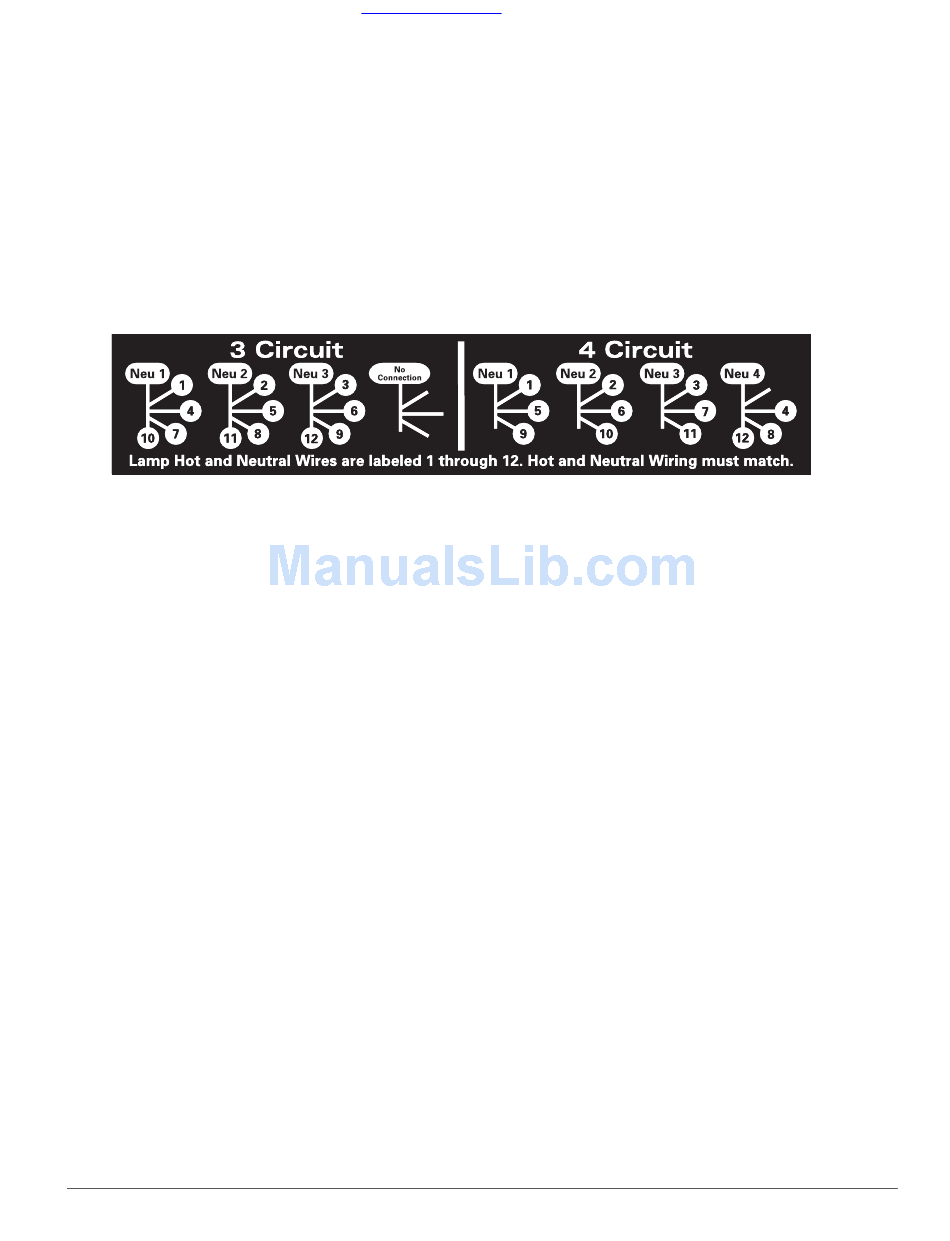

Figure 7
Figure 7
for detail.
Figure 7
