Installing the HPL lamp

Disconnect power before installing the lamp.
1.
Let the lamp cool before replacing.
2.
Loosen the captured screw on the back of the raceway and open the raceway lid.
3.
The raceway lid is designed to remain open using gravity. If lid swings shut,
4.
reposition the MultiPAR unit using the hanging irons or trunnions to lock the unit
in position.
Remove lamp socket by loosening the gnurled knob and removing the socket
5.
assembly. Remove the HPL lamp from its box, holding it by the base.
N o t e :
To avoid premature lamp failure, do not touch the lamp glass
with your fingers. If you touch the lamp during installation,
clean it carefully with rubbing alcohol and a clean, lint-free
cloth before operation.
Insert lamp base into pin holes in socket assembly.
6.
Push down on the lamp base until the lamp is firmly inserted. Make sure that the
7.
lamp is fully seated, with the bottom of the lamp heat sink flush to the socket
assembly surface.
To reinstall the socket assembly, insert until the heat sink base rests flush against
8.
the reflector, then tighten the knurled bolt to secure the socket assembly in
place.

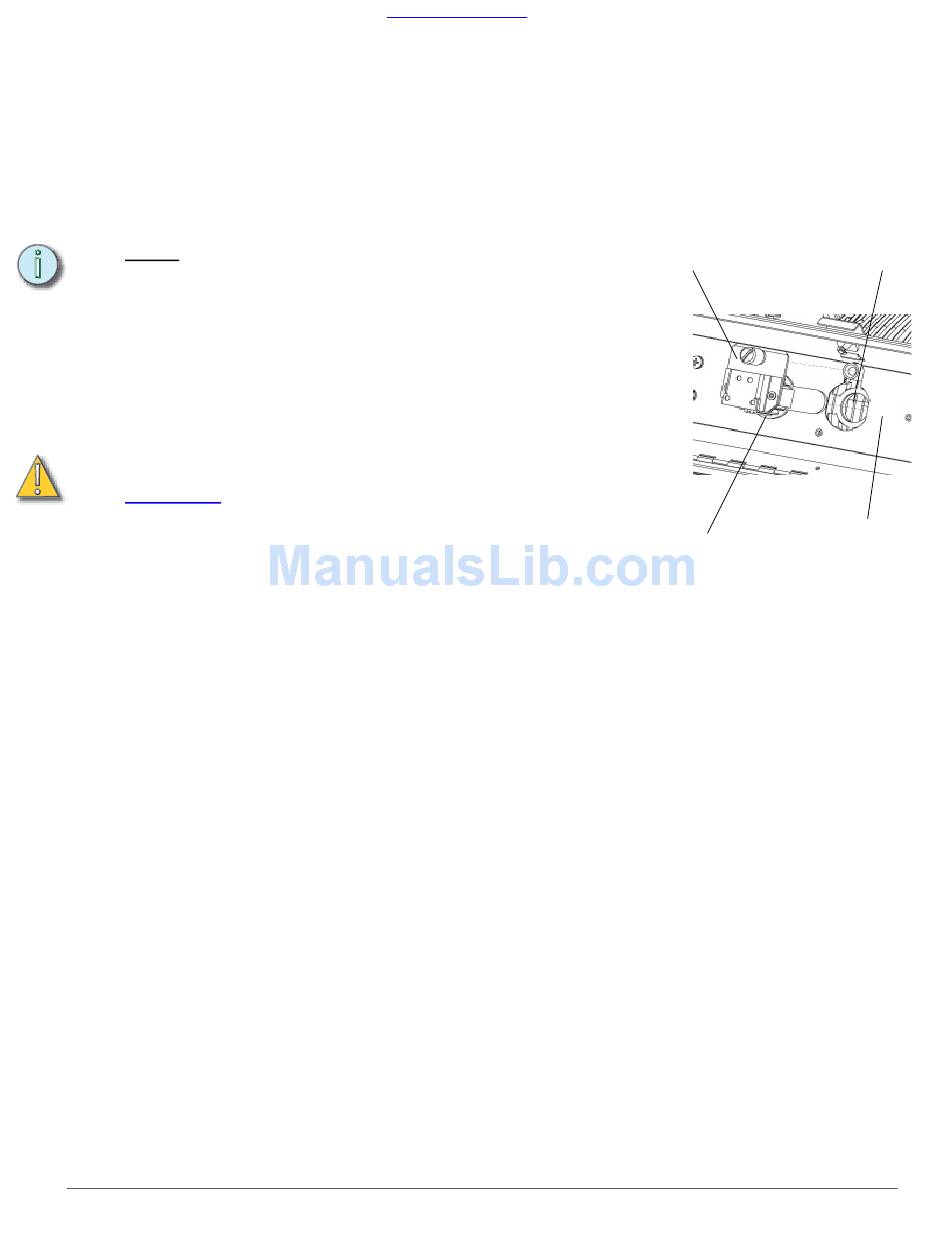

Figure 1
C A U T I O N :
Always replace the lamp if it becomes damaged or
deformed.
Verify that the HPL lamp you use is suitable for the
voltage at your facility. 115, 120, 230, and 240 volt
HPL lamps are available. Operating lamps above
their rated voltage reduces lamp life and can cause
premature lamp failure.
Improperly installed lamps will cause premature lamp
and socket failures.
2 • Source Four MultiPAR
www.BulbAmerica.com or CALL TOLL FREE 888-505-2111
Socket Assembly
Raceway Interior
Lamp Base
Reflector
Figure 1
