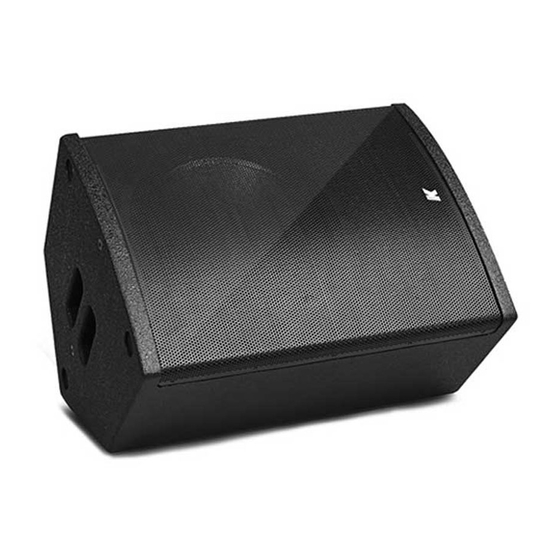

KF12P
USER'S GUIDE
English
REV. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Redline KF12P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for K-array Redline KF12P

Summary of Contents for K-array Redline KF12P

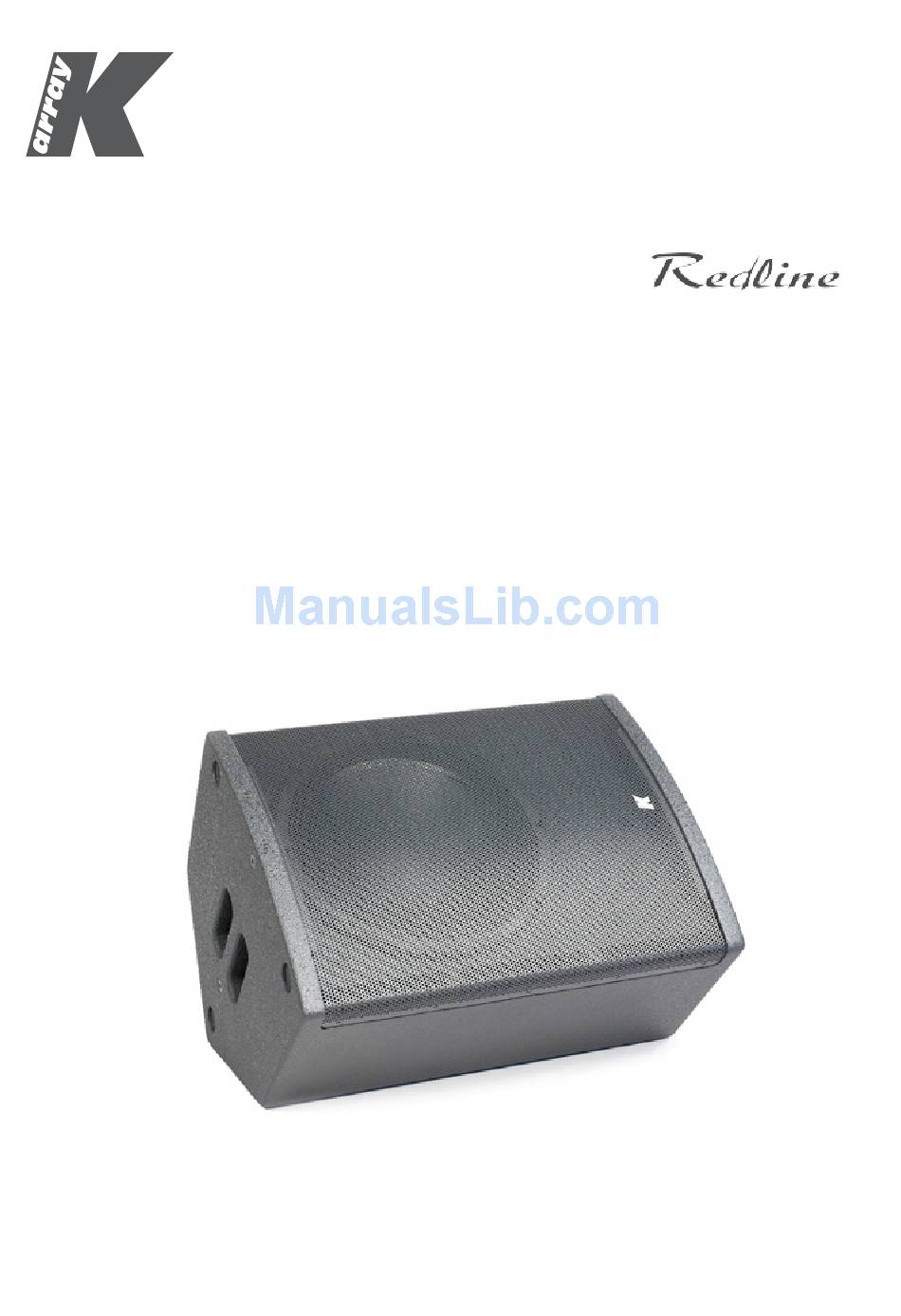

  • Page 1 KF12P USER’S GUIDE English REV. A...
  • Page 2 KF12P REV. A...

  • Page 3: Table Of Contents

    KF12P CONTENTS SYMBOLS 1. INTRODUCTION 2. APPLICATIONS 3. KEY FEATURES 4. UNPACKING 5. SAFETY 6. PHYSICAL 7. REAR PANEL 8. CONFIGURATIONS 9. ACCESSORIES 10. SERVICE 11. SPECIFICATIONS REV. A...
  • Page 4 KF12P REV. A...

  • Page 5: Symbols

    KF12P SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment.
  • Page 6 KF12P REV. A...

  • Page 7: Introduction

    1. INTRODUCTION The KF12MT and the KF12P are K-array’s newest multi-task additions to its portfolio of professional, high-quality loudspeakers in the Redline Series. The KF12MT is a 12” coaxial full range multi-purpose powered speaker and is the successor to the long serving KF12 model.

  • Page 8: Unpacking

    4. UNPACKING Each K-array loudspeaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully in- spect the shipping carton, then examine and test your new loudspeaker. If you find any damage, immediately notify the shipping company.

  • Page 9: Physical

    KF12P 6. PHYSICAL Fixing points M8 Fixing points M8 15,37in 390,4mm Flange 36 (1.42'') Fixing points M8 Fixing points M8 Weight 16.2 Kg (35.71 lb) REV. A...

  • Page 10: Rear Panel

    KF12P 7. REAR PANEL INPUT / PARALLEL OUT Speakon connectors. Each connector offers 2 channels of power audio signal. KMT12P and KMT18P internal wiring is designed to pick up audio power signal from pins 1+ / 1- of a NL4 connector. 2+ and 2- pins, just like 1+ and 1-, are directly wired from one socket to the other, so the signal can pass through multiple speaker modules without additional external cabling.

  • Page 11: Configurations

    KF12P 8. CONFIGURATIONS MONITOR USE KF12P Using a single KF12P as a stage monitor, you need to feed it through a K-array KA40 amplifier module. A dedicated preset can be easily loaded into the amplifier’s DSP CH. 1 board. KA40...
  • Page 12 KF12P PA USE KF12MT Similar to the monitor use, when you KF12P employ the KF12P combined with a CH. 1 KF12MT as a stereo P.A. system you can CH. 2 connect both the main Left and Right signal from your audio source. Then you can route one signal to the KF12MT and the other to the powered output socket feeding the KF12P.

  • Page 13: Accessories

    KF12P 9. ACCESSORIES The KF12MT and the KF12P are compatible with a variety of accessories which can be ordered from K-array’s sales support office, sales@k-array.com. Wall bracket to install one KF12P or KF12MT for K-F12wall vertical and horizontal configurations to satisfy many...

  • Page 14: Service

    To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. Ask for Customer Service, and be prepared to describe the problem clearly and completely.

  • Page 15: Specifications

    KF12P 11. SPECIFICATIONS ACOUSTICS Speaker power handling 800 + 200 W (AES) Max power 1200 W Impedance 8 Ω Frequency range (-10 dB) 55 Hz – 19 KHz SPL 1W/1mt 93 dB Maximum SPL 127 dB (continuous), 133 dB (peak) COVERAGE Horizontal 70°...
  • Page 16 KF12P REV. A...
  • Page 17 KF12P 12. DECLARATION OF CONFORMITY REV. A...
  • Page 18 KF12P The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice. REV. A...
  • Page 19 UMC053AB01EN K-array s.r.l. unipersonale Via Paolina Romagnoli - 50037 San Piero a Sieve (Firenze) - Italy tel. +39 055 8487222 - fax. +39 0558487238 e-mail: info@k-array.com www.k-array.com...
