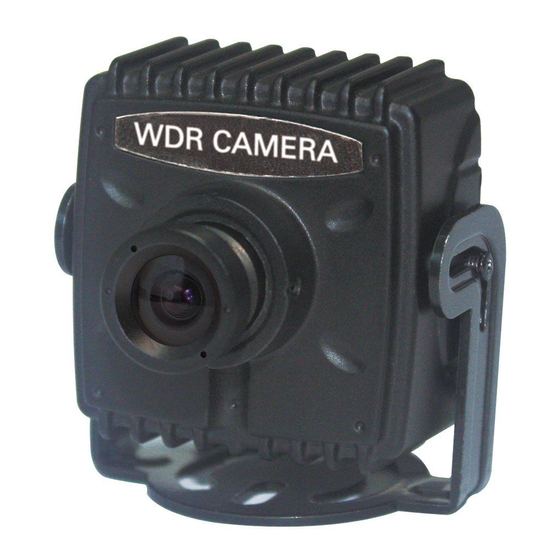

SPECO 960H WDR Series
WDR705H
(Miniature Camera)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDR705H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco WDR705H

Summary of Contents for Speco WDR705H

  • Page 1 INSTRUCTION MANUAL SPECO 960H WDR Series WDR705H (Miniature Camera)

  • Page 2: Table Of Contents

    Precautions Contents ............1 Precautions ..........2, 3 Safety Instructions ........4 Package Contents ........5 Camera Installation ........5 Camera Dimension ........5 6SHFL¿FDWLRQV ..........6 Features ............7 OSD Menu Details ........8-30 Trouble Shooting ......... 31 - 1 -...

  • Page 3: Precautions

    Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of where temperatures are between cause the camera to work improperly.
  • Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ISO14001 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 5: Safety Instructions

    Safety Instructions 7KLV FDPHUD VKRXOG EH LQVWDOOHG E\ TXDOL¿HG SHUVRQQHO RQO\ There are no user serviceable parts inside Do not disassemble this camera other than to make initial adjustments Use a UL approved regulated 24 volt AC or 12 volt DC power supply 8VH DSSURSULDWH ORZ YROWDJH SRZHU FDEOH WR SUHYHQW ¿UH RU HOHFWULFDO VKRFN Please insure that your installation area can support the weight of the camera Do not use a strong or abrasive detergent when cleaning the camera...

  • Page 6: Package Contents

    Package Contents Please make sure that the following items are included in the Package: WDR705H q  8KFGQ 6GUV %QPPGEVQT 2QYGT ,CEM q 5GV 5ETGY - 2 Tapping Screws M3x10 - 2 Machine Screws M2x3 CAMERA INSTALLATION CONNECT POWER CABLE 1.

  • Page 7: 6Shfl¿Fdwlrqv

    Speco Technologies (Miniature Camera) 4mm Fixed Board Lens :'5+ SPECIFICATIONS 02'(/ WDR705H Image Sensor 1/3'' SONY HAD CCD 960H (DUAL SCAN) 68 5[UVGO NTSC Total Pixels  * Z  8 Effective Pixels  * Z  8 Scanning System 2:1 Interlace Synchronization Internal O.S.D...

  • Page 8: Features

    FEATURES - 7 -...

  • Page 9: Osd Menu Details

    Menu items can be selected by using the OSD buttons of the camera. 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SPECO TECH 1/3 LENS AUTO SHUTTER/AGC AUTO PICT ADJUST WHITE BAL ANTI CR 2D.3DNR...
  • Page 10 1. Move the arrow indicator to Lens using the Up and Down buttons on the Set Up menu screen. 2. Select the mechanical iris type by pressing the left or right button between Manual and Auto. SPECO TECH 1/3 LENS...
  • Page 11 This function is used to select Automatic or Manual shutter speed control. 1. On the Set Up menu screen select SHUTTER/AGC by using the Up or Down button. 2. Select the desired shutter mode by pressing the Left or Right button. SPECO TECH 1/3 LENS AUTO...
  • Page 12 - AGC->SLOW1(SENS-UP) : AGC and SLOW(SENSE-UP) ON. When over the selected AGC MAX level, SLOW(SENSE-UP) turns on. - AGC->SLOW2(SENS-UP) : AGC and SLOW(SENSE-UP) ON. When over the selected AGCMIN level, SLOW(SENSE-UP) turns on. - SLOW(SENS-UP)->AGC : AGC and SLOW(SENSE-UP) ON. When over the selected SLOW(SENSE-UP) level, AGC turns on.
  • Page 13 /QXG VJG EWTUQT VQ 2+%6 #&,756 RTGUU VJG 5'6 DWVVQP SPECO TECH 1/3 LENS AUTO SHUTTER/AGC AUTO PICT ADJUST WHITE BAL ANTI CR 2D.3DNR NEXT EXIT SAVE ALL PICT ADJUST MIRROR CONTRAST SHARPNESS R-GAIN B-GAIN RETURN /+4414  5GNGEV 1HH (NKR 8GTVKECN (NKR *QTK\QP (NKR *QTK\QP CPF 8GTVKECN D[ RTGUUKPI VJG NGHV QT VJG TKIJV button.
  • Page 14 This function is used to set the white balance operation mode. 1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the Left or Right button. SPECO TECH 1/3 LENS AUTO...
  • Page 15 * WDR : The wide dynamic range (WDR) function of a camera is intended to provide clear images even under back light circumstances where intensity of illumination can vary excessively, namely when there are both very bright and very dark areas simultaneously in the field of view of the camera. SPECO TECH 1/3 LENS AUTO...
  • Page 16 The level of 3DNR noise removal mode is getting higher, noise removal effect will be good, but ghost effect may be shown up. Select OFF, LOW , MIDLOW , MID , MIDHIGH , HIGH by pressing the left or the right button. SPECO TECH 1/3 LENS AUTO...
  • Page 17 Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu. This function is used to save the various settings of the internal OSD menu in the EEPROM together. 5#8' #.. KU CNYC[U FKURNC[GF QP VJG DQVVQO NKPG QH VJG VQR OGPW +VU FKURNC[ RQUKVKQP ECPPQV DG EJCPIGF - 16 -...
  • Page 18 Menu items can be selected by using the OSD buttons of the camera 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SPECO TECH 2/3 HLC/BLC DAY/NIGHT AUTO EZOOM PRIVACY MOTION DET...
  • Page 19 1. Move the arrow indicator to Lens using the Up and Down buttons on the Set Up menu screen. 2. Select the mechanical iris type by pressing the left or right button between Manual and Auto. SPECO TECH 2/3 HLC/BLC...
  • Page 20 Picture can be displayed in either color of black and white. 1. Select DAY/NIGHT using the Up or Down button on the SETUP menu screen. 2. Select the desired mode using the Left and Right buttons. SPECO TECH 2/3 HLC/BLC DAY/NIGHT...
  • Page 21 IR OPTIMIZER SMART IR CENTER LEVEL ATR WD-EX RETURN SMART IR AREA BOTTOM LEFT RIGHT RETURN AUTO: The mode will automatically switches to COLOR in normal condition and switches to BW mode when ambient illumination is low. Press the SET button to set the switching time or D N(AGC), N D(AGC) in AUTO mode. - SMART IR : adjust the division field level by pressing the left or the right button.
  • Page 22 - DELAY CNT : Adjust the DELAY time level 0~255 for day&night switch by pressing the left or the right button. - POLARITY : HIGH , LOW select the active high or low of outside input signal reversal - RETURN : Move previous page. SPECO TECH 2/3 HLC/BLC DAY/NIGHT AUTO...
  • Page 23 - MAG : (x1 ~ x16) Digital Zoom - PAN : Left and right control level 0~1023 - TILT : Up and down control level 0~511 - RETURN : Move previous page. Image stabilization SPECO TECH 2/3 HLC/BLC DAY/NIGHT AUTO EZOOM...
  • Page 24 Hide an area you want to hide on the screen. 9JGP VJG 24+8#%; OGPW UETGGP KU FKURNC[GF RTGUU VJG 7R CPF &QYP DWVVQPU VQ UGV VQ 24+8#%; SPECO TECH 2/3 HLC/BLC DAY/NIGHT AUTO EZOOM PRIVACY MOTION DET BACK NEXT EXIT...
  • Page 25 SPECO TECH 2/3 HLC/BLC DAY/NIGHT AUTO EZOOM PRIVACY MOTION DET BACK NEXT EXIT SAVE ALL MOTION DET DETECT SENSE BLOCK DISP DETECT AREA MONITOR AREA RETURN * DETECT SENSE : Motion detection strength level 0~127 control * BLOCK DISP : Controls the ON/OFF status of the motion detection block display.
  • Page 26 Move to previous page. (SETUP MENU 1/3) Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu. Move to next page.(SETUP MENU 3/3) This function is used to save the various settings of the internal OSD menu in the EEPROM together. 5#8' #..
  • Page 27 Menu items can be selected by using the OSD buttons of the camera 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SPECO TECH 3/3 SYCNDAY/NIGHT CAMERA ID LANGUAGE ENGLISH DEFECT ADJ...
  • Page 28 INT (Internal Synchronisation) SPECO TECH 3/3 SYCNDAY/NIGHT CAMERA ID LANGUAGE ENGLISH DEFECT ADJ CAMERA RESET BACK EXIT SAVE ALL To select the position where the camera ID should be displayed on the screen. Move the cursor to POS and press the SET button.
  • Page 29 ID setting screen. Selects the language in which to display the internal OSD menu. The menus can be changed in real time in the selected language. SPECO TECH 3/3 SYCNDAY/NIGHT CAMERA ID...
  • Page 30 &GVGEVKQP #&,756#$.' 9JKVG RKZGN FGVGEVKQP CPF EQORGPUCVKQP OQFG  2QKPVU EQORGPUCVKQP SPECO TECH 3/3 SYCNDAY/NIGHT CAMERA ID LANGUAGE ENGLISH DEFECT ADJ CAMERA RESET BACK EXIT SAVE ALL DEFECT ADJ DETTH DETPGAIN START RETURN * DETTH : In light block situation, if the brightness value of white pixel is low, more white pixel is detected and is high, lower white pixel is detected.
  • Page 31 This function initializes all the internal OSD menu settings together. SETUP MENU 3/3 SYCNDAY/NIGHT CAMERA ID LANGUAGE ENGLISH DEFECT ADJ CAMERA RESET BACK EXIT SAVE ALL Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu. Move to previous page.(SETUP MENU 2/3) This function is used to save the various settings of the internal OSD menu in the EEPROM together.

  • Page 32: Trouble Shooting

    Trouble Shooting Check the power cable, power supply output and video Nothing appears on connection between the camera and monitor. the screen. Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the Adjust the monitor controls, as required.
  • Page 33 - 32 -...
  • Page 34 - MEMO - - 33 -...
  • Page 35 - MEMO - - 34 -...
