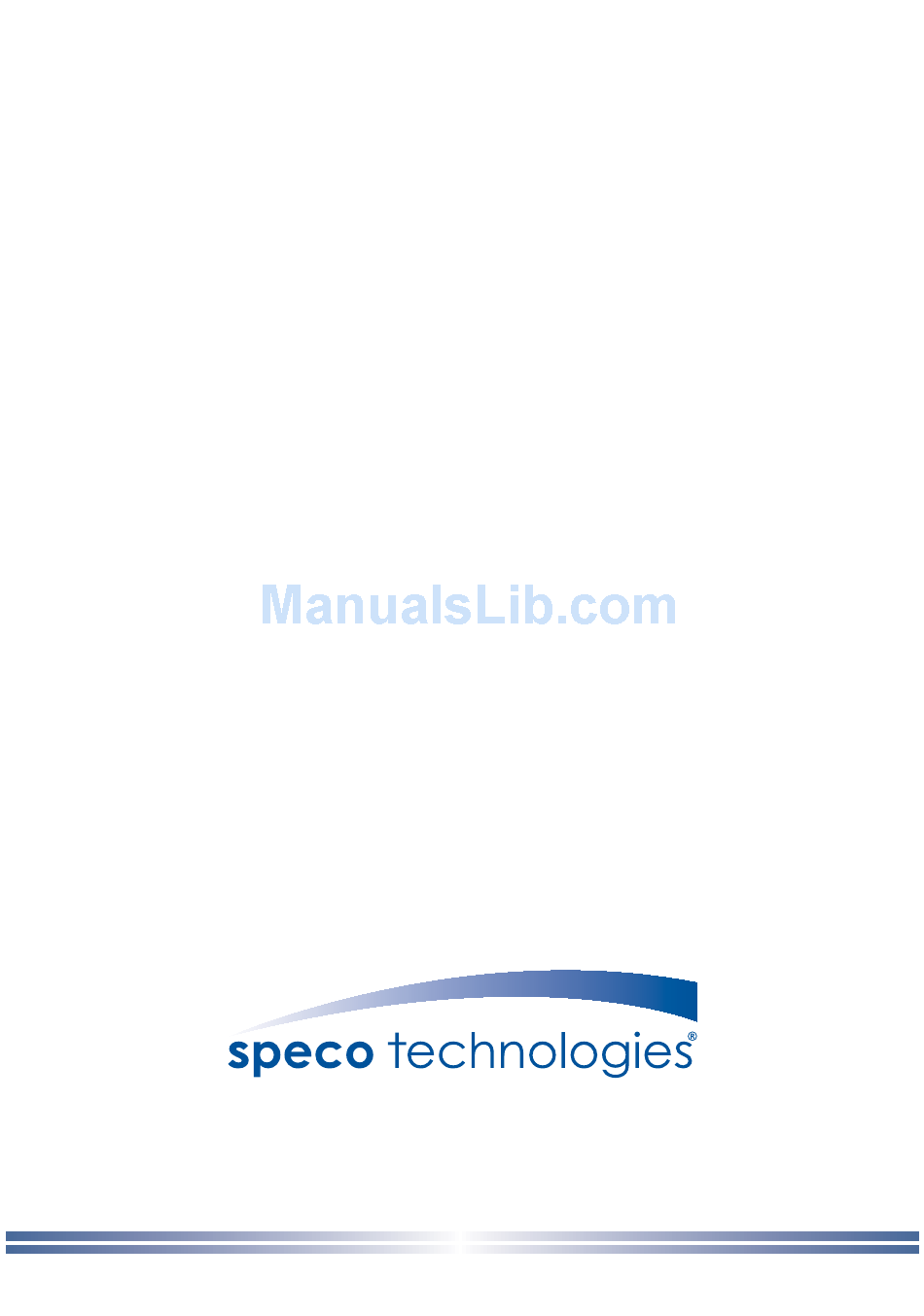

INSTRUCTION
MANUAL
SPECO 960H WDR Series
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.

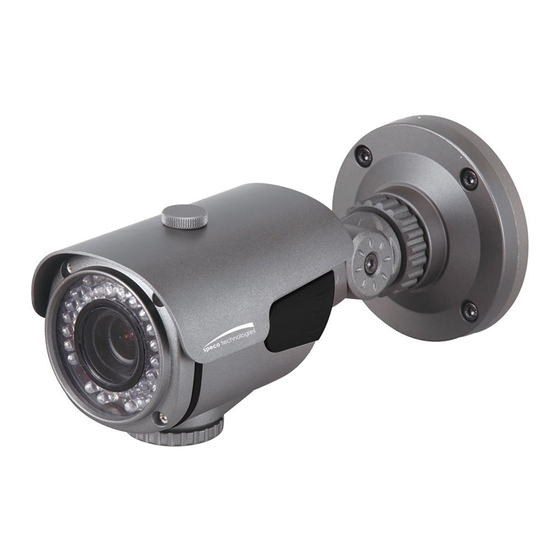

WDRB10H
(Outdoor IR Bullet Camera)
WDRD10H
(Outdoor IR Dome Camera)
WDRD20H
(Indoor IR Dome Camera)
WDRB11H
(Outdoor Bullet Camera with mount plate)
WDRD11H
(Outdoor Dome Camera)
WDRD21H
(Indoor Wall & Ceiling Mount Dome Camera)
WDRD21HW
(Indoor Wall & Ceiling Mount Dome Camera)
Rev. 12/01/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDRB10H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco WDRB10H

Summary of Contents for Speco WDRB10H

  • Page 1 (Indoor Wall & Ceiling Mount Dome Camera) WDRD21HW (Indoor Wall & Ceiling Mount Dome Camera) Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 12/01/2013...

  • Page 2: Table Of Contents

    Precautions Contents ............1 ◑ Precautions ..........2, 3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-15 ◑ Specifications ..........16-21 ◑ Camera Dimension ........22-24 ◑ Features ............25 ◑ OSD Menu Details ........26- 56 ◑...

  • Page 3: Precautions

    Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of where temperatures are between cause the camera to work improperly.
  • Page 4 CAUTION CAUTION CAUTION RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK).

  • Page 5: Safety Instructions

    Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑...

  • Page 6: Package Contents

    Package Contents Please make sure that the following items are included in the Package: 1) WDRB10H • 1 Video Test Connector, Power Jack • 1 Focus Adjustment • 1 Bracket Base • 1 Wrench • Set Screw - 4 Tapping Screws 4x25...

  • Page 7: Camera Installation

    CAMERA INSTALLATION - 6 -...

  • Page 8: Camera Installation

    CAMERA INSTALLATION Compatibility 1) WDRB10H INTCM INTJBS CVCJBB 2) WDRD10H / WDRD20H INTWM CVCJBD INTCM INTPM - 7 -...
  • Page 9 CAMERA INSTALLATION Compatibility 3) WDRB11H CVCJBB INTJBS INTCM 4) WDRD11H INTWM CVCJBD INTCM INTPM - 8 -...
  • Page 10 CAMERA INSTALLATION Compatibility 5) WDRD21H / WDRD21HW - 9 -...
  • Page 11 To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. CAMERA INSTALLATION 1. WDRB10H TAPPING SCREW 4X25, 4EA CAMERA ASSEMBLY HEXAGON SOCKET SCREW M5X10, 4EA...
  • Page 12 CAMERA INSTALLATION 2. WDRD10H BASE ASSEMBLY TAPPING SCREW 4X25, 3EA DOME COVER ASSEMBLY - 11 -...
  • Page 13 CAMERA INSTALLATION 3. WDRD20H BASE ASSEMBLY TAPPING SCREW 4X25, 3EA DOME COVER ASSEMBLY - 12 -...
  • Page 14 CAMERA INSTALLATION 4. WDRB11H CAMERA ASSEMBLY BASE ADAPTOR BRACKET TAPPING SCREW 4X25, 4EA HEXAGON SOCKET SCREW M5X10, 4EA - 13 -...
  • Page 15 CAMERA INSTALLATION 5. WDRD11H BASE ASSEMBLY TAPPING SCREW 4X25, 3EA DOME COVER ASSEMBLY - 14 -...
  • Page 16 CAMERA INSTALLATION 6. WDRD21H / WDRD21HW BASE ASSEMBLY TAPPING SCREW 4X20, 2EA DOME COVER ASSEMBLY - 15 -...

  • Page 17: Specifications

    Speco Technologies (Outdoor IR Bullet Camera) DC Auto Iris Varifocal Lens 2.8-12mm ■ WDRB10H SPECIFICATIONS WDRB10H MODEL Image Sensor 1/3'' SONY HAD CCD 960H (DUAL SCAN) TV System NTSC Total Pixels 1,028(H) x 508(V) Effective Pixels 976(H) x 494(V) Scanning System...
  • Page 18 Speco Technologies (Outdoor IR Dome Camera) DC Auto Iris Varifocal Lens 2.8-12mm ■ WDRD10H SPECIFICATIONS WDRD10H MODEL Image Sensor 1/3'' SONY HAD CCD 960H (DUAL SCAN) TV System NTSC Total Pixels 1,028(H) x 508(V) Effective Pixels 976(H) x 494(V) Scanning System...
  • Page 19 Speco Technologies (Indoor IR Dome Camera) DC Auto Iris Varifocal Lens 2.8-12mm ■ WDRD20H SPECIFICATIONS WDRD20H MODEL Image Sensor 1/3'' SONY HAD CCD 960H (DUAL SCAN) TV System NTSC Total Pixels 1,028(H) x 508(V) Effective Pixels 976(H) x 494(V) Scanning System...
  • Page 20 Speco Technologies (Weatherproof Bullet Camera with mount plate) DC Auto Iris Varifocal Lens 2.8-12mm ■ WDRB11H SPECIFICATIONS WDRB11H MODEL Image Sensor 1/3'' SONY HAD CCD 960H (DUAL SCAN) TV System NTSC Total Pixels 1,028(H) x 508(V) Effective Pixels 976(H) x 494(V)
  • Page 21 Speco Technologies (Weatherproof Dome Camera with Chameleon™ Cover) DC Auto Iris Varifocal Lens 2.8-12mm ■ WDRD11H SPECIFICATIONS WDRD11H MODEL Image Sensor 1/3'' SONY HAD CCD 960H (DUAL SCAN) TV System NTSC Total Pixels 1,028(H) x 508(V) Effective Pixels 976(H) x 494(V)
  • Page 22 Speco Technologies (Indoor Wall & Ceiling Mount Dome Camera) DC Auto Iris Varifocal Lens 2.8-12mm ■ WDRD21H SPECIFICATIONS WDRD21H MODEL Image Sensor 1/3'' SONY HAD CCD 960H (DUAL SCAN) TV System NTSC Total Pixels 1,028(H) x 508(V) Effective Pixels 976(H) x 494(V)
  • Page 23 Speco Technologies (Indoor Wall & Ceiling Mount Dome Camera) DC Auto Iris Varifocal Lens 2.8-12mm ■ WDRD21HW SPECIFICATIONS WDRD21HW MODEL Image Sensor 1/3'' SONY HAD CCD 960H (DUAL SCAN) TV System NTSC Total Pixels 1,028(H) x 508(V) Effective Pixels 976(H) x 494(V)

  • Page 24: Camera Dimension

    CAMERA DIMENSION 1) WDRB10H 8.27” 3.94”dia 4.72” 2) WDRD10H 3.94”dia 5.12”dia - 23 -...

  • Page 25: Camera Dimension

    CAMERA DIMENSION 3) WDRD20H 3.94”dia 5.12”dia 4) WDRB11H 11.02” 3.46” 5.90” 5.03” 10.51” - 24 -...
  • Page 26 CAMERA DIMENSION 5) WDRD11H 3.94”dia 5.12”dia 6) WDRD21H / WDRD21HW 5.51” dia 5.51” dia 4.60” dia - 25 -...

  • Page 27: Features

    FEATURES 2D.3DNR Filtering Method of Newly Advanced DNR Function Newly developed 2D filtering enhances Digital Noise reduction at low light levels. 2D Filtering of the Video Signal Optimises the Signal to Noise ratio. High Resolution The combination of a Sony Super HAD CCD image sensor and DNR DSP provides an excellent resolution of 700 TV lines.
  • Page 28 Menu Set Up (SPECO TECH 1/3) Menu items can be selected by using the OSD buttons of the camera 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SPECO TECH 1/3 LENS...
  • Page 29 1. Move the arrow indicator to Lens using the Up and Down buttons on the Set Up menu screen. 2. Select the mechanical iris type by pressing the left or right button between Manual and Auto. SPECO TECH 1/3 LENS...
  • Page 30 This function is used to select Automatic or Manual shutter speed control. 1. On the Set Up menu screen select SHUTTER/AGC by using the Up or Down button. 2. Select the desired shutter mode by pressing the Left or Right button. SPECO TECH 1/3 LENS AUTO...
  • Page 31 AUTO SETUP HIGH LUMINANCE MODE SHUT+AUTO IRIS BRIGHTNESS LOW LUMINANCE MODE AGC->SLOW1 BRIGHTNESS ----- RETURN HIGH LUMINANCE * MODE : Shutter is fixed at 1/60, 1/50 and average brightness maintains * BRIGHTNESS : Adjust the brightness level 0~255 by pressing the left or the right button. LOW LUMINANCE * MODE - OFF : AGC and SLOW(SENSE-UP) OFF...
  • Page 32 NOTE * AGC (Auto Gain Control) A higher gain increases brightness but also increases noise. MANUAL SETUP MODE SHUT SHUT 1/60(S) 6(DB) RETURN * SHUTTER : Adjust the shutter level 1/60, FLK, 1/100, 1/250, 1/500, 1/1000,1/2000, 1/4000, 1/10000 (S) adjust the red color GAIN by pressing the left or the right button. * Adjust the AGC level 6, 12, 18, 24, 30, 36, 42, 44.8, (DB) by pressing the left or the right button.

  • Page 33: Pict Adjust

    PICT Adjust Move the cursor to PICT ADJUST press the SET button. SPECO TECH 1/3 LENS AUTO SHUTTER/AGC AUTO PICT ADJUST WHITE BAL ANTI CR 2D.3DNR NEXT EXIT SAVE ALL PICT ADJUST MIRROR CONTRAST SHARPNESS R-GAIN B-GAIN RETURN * MIRROR : Select Off, Flip Vertical, Flip Horizon, Flip Horizon and Vertical by pressing the left or the right button.

  • Page 34: White Balance

    This function is used to set the white balance operation mode. 1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the Left or Right button. SPECO TECH 1/3 LENS AUTO...
  • Page 35 * ATW : Auto tracking white, normal environment setting under fluorescent lamp or outdoors. - SPEED : Select the start point of auto tracking speed and time by pressing the left or the right button. - DELAY CNT : Select the start point of Auto tracking speed and time by pressing the left or the right button. - ATW FRAME : Set up the frame megnification by pressing the left or the right button.
  • Page 36 * WDR : The wide dynamic range (WDR) function of a camera is intended to provide clear images even under back light circumstances where intensity of illumination can vary excessively, namely when there are both very bright and very dark areas simultaneously in the field of view of the camera. SPECO TECH 1/3 LENS AUTO...
  • Page 37 The level of 3DNR noise removal mode is getting higher, noise removal effect will be good, but ghost effect may be shown up. Select OFF, LOW , MIDLOW , MID , MIDHIGH , HIGH by pressing the left or the right button. SPECO TECH 1/3 LENS AUTO...

  • Page 38: Save All

    NEXT Move to next page.(SETUP MENU 2/3) EXIT Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu. SAVE ALL This function is used to save the various settings of the internal OSD menu in the EEPROM together. SAVE ALL is always displayed on the bottom line of the top menu.
  • Page 39 Menu Set Up (SPECO TECH 2/3) Menu items can be selected by using the OSD buttons of the camera 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SPECO TECH 2/3 HLC/BLC...
  • Page 40 1. Move the arrow indicator to Lens using the Up and Down buttons on the Set Up menu screen. 2. Select the mechanical iris type by pressing the left or right button between Manual and Auto. SPECO TECH 2/3 HLC/BLC...
  • Page 41 Picture can be displayed in either color of black and white. 1. Select DAY/NIGHT using the Up or Down button on the SETUP menu screen. 2. Select the desired mode using the Left and Right buttons. SPECO TECH 2/3 HLC/BLC DAY/NIGHT...
  • Page 42 DAY&NIGHT SETUP BURST DELAY CNT DAY->NIGHT NIGHT->DAY IR OPT EXTON RETURN * BURST : Adjust color signal ON/OFF in night(B/W) mode. * DELAY CNT : Adjust the DELAY time level 0~255 for day&night switch by pressing the left or the right button.
  • Page 43 → AUTO: The mode will automatically switches to COLOR in normal condition and switches to BW mode when ambient illumination is low. Press the SET button to set the switching time or D→N(AGC), N→D(AGC) in AUTO mode. - SMART IR : adjust the division field level by pressing the left or the right button. TOP : 000~114 Level adjustable BOTTOM : 000~122 Level adjustable LEFT :000~223 Level adjustable...
  • Page 44 - DELAY CNT : Adjust the DELAY time level 0~255 for day&night switch by pressing the left or the right button. - POLARITY : HIGH , LOW select the active high or low of outside input signal reversal - RETURN : Move previous page. EZOOM SPECO TECH 2/3 HLC/BLC DAY/NIGHT AUTO EZOOM...
  • Page 45 DIS(Digital Image Stabilizer) Image stabilization SPECO TECH 2/3 HLC/BLC DAY/NIGHT AUTO EZOOM PRIVACY MOTION DET BACK NEXT EXIT SAVE ALL PRIVACY Hide an area you want to hide on the screen. When the PRIVACY menu screen is displayed, press the Up and Down buttons to set to PRIVACY.

  • Page 46: Motion Detection

    The same transparency ratio value is set for all the mask frames. * MOSAIC : Sets the mask frame mosaic function to ON or OFF. OFF: Mosaic function OFF ON: Mosaic function ON * RETURN : Move previous page. MOTION DETECTION SPECO TECH 2/3 HLC/BLC DAY/NIGHT AUTO EZOOM PRIVACY...
  • Page 47 MOTION DET DETECT SENSE BLOCK DISP DETECT AREA MONITOR AREA RETURN * DETECT SENSE : Motion detection strength level 0~127 control * BLOCK DISP : Controls the ON/OFF status of the motion detection block display. * DETECT AREA : BLOCK field set-up * MONITOR AREA : Sets whether to use the monitoring frames.
  • Page 48 EXIT Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu. NEXT Move to next page.(SETUP MENU 3/3) SAVE ALL This function is used to save the various settings of the internal OSD menu in the EEPROM together. SAVE ALL is always displayed on the bottom line of the top menu.
  • Page 49 Menu Set Up (SPECO TECH 3/3) Menu items can be selected by using the OSD buttons of the camera 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SPECO TECH 3/3 SYCNDAY/NIGHT...
  • Page 50 SYNC INT (Internal Synchronisation) SPECO TECH 3/3 SYCNDAY/NIGHT CAMERA ID LANGUAGE ENGLISH DEFECT ADJ CAMERA RESET BACK EXIT SAVE ALL CAMERA ID To select the position where the camera ID should be displayed on the screen. Move the cursor to POS and press the SET button.
  • Page 51 CAMERA ID SETUP A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 - ! ” # $ % & ’ ( ) _ ’...
  • Page 52 LANGUAGE Selects the language in which to display the internal OSD menu. The menus can be changed in real time in the selected language. SPECO TECH 3/3 SYCNDAY/NIGHT CAMERA ID LANGUAGE ENGLISH DEFECT ADJ CAMERA RESET BACK EXIT SAVE ALL DEFECT ADJ Detection ADJUSTABLE (White pixel detection and compensation mode) 64 Points compensation.

  • Page 53: Camera Reset

    DEFECT ADJ DETTH DETPGAIN START RETURN * DETTH : In light block situation, if the brightness value of white pixel is low, more white pixel is detected and is high, lower white pixel is detected. * DETPGAIN : In light block situation, while white spot is being detected, gain level set-up, level is getting higher, more white pixel is detected.
  • Page 54 EXIT Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu. BACK Move to previous page.(SETUP MENU 2/3) SAVE ALL This function is used to save the various settings of the internal OSD menu in the EEPROM together. SAVE ALL is always displayed on the bottom line of the top menu.

  • Page 55: Trouble Shooting

    Trouble Shooting ● PROBLEM POSSIBLE CAUSE ☞ Check the power cable, power supply output and video Nothing appears on connection between the camera and monitor. the screen. ☞ Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞...
  • Page 56 - 55 -...
  • Page 57 - MEMO - - 56 -...
  • Page 58 - MEMO - - 57 -...
  • Page 59 - MEMO - - 58 -...
  • Page 60 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
