NOTES:
1. Do not install the camera outdoors.
2. Choose a stable location for the camera, as vibration will affect camera
performance.
3. Be careful not to scratch the camera lens.
4. Use the camera within the temperature range of 14 ° F to 122 ° F
5. Avoid direct sun light into the lens.
6. Use a 12V DC, 300mA regulated power adaptor.
F EATURES
◐ ◐ ◐ ◐
1. Built-in WDR function.
2. Supreme Resolution. (690 TV-Line)

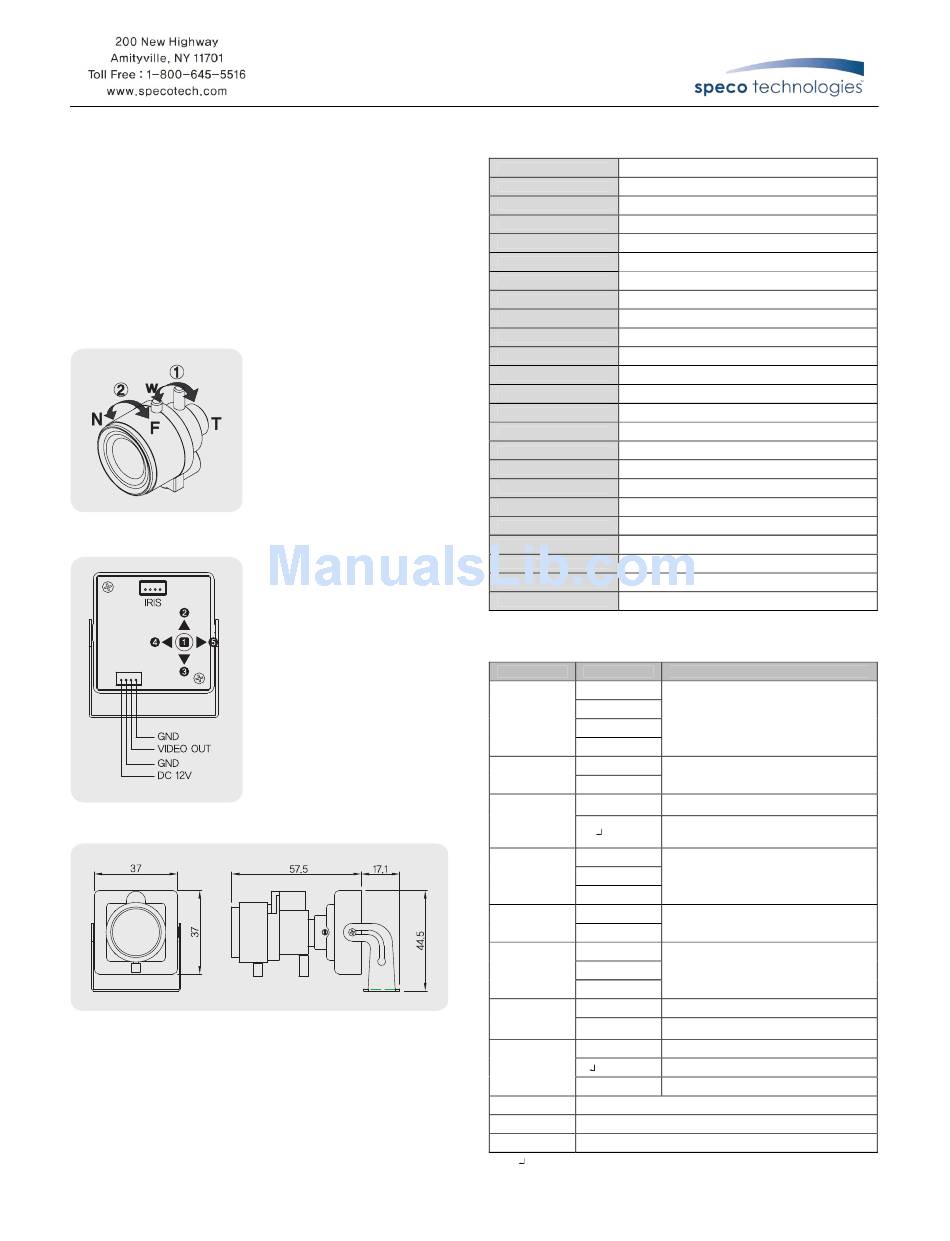

L ENS ADJUSTMENT

◐ ◐ ◐ ◐
C ABLE ARRAY & HOW TO USE THE JOG LEVER
◐ ◐ ◐ ◐
D IMENSION
◐ ◐ ◐ ◐
WDR700VF
B y turning the "Tele-Wide" knob, you
can access a range of focal lengths
within specified limits.
B y turning the "Near-Far" knob, you
can set the focus on the wanted
object.
E NTER(Push) : Used to access the
menu and confirm selection.
U P,
D OWN : Used to move the
cursor up or down.
L EFT,
R IGHT : Used to move the
cursor left or right and change the
value.
S PECIFICATION
◐ ◐ ◐ ◐
Model No.
WDR700VF
Image Sensor
1/3" PIXIM DPS SENSOR - SEAWOLF
Effective Pixel
758(H) x 540(V) PIXEL
Resolution
690 TV- Line
TV Type
NTSC
Sync. Type
Internal
Scanning System
Progressive
Video Output
1.0 Vp-p (Sync. Negative)Termination 75
Gamma Characteristic
= 0.45(Selectable)
γ
White Balance
ATW / AWB
Min. Illumination
0.1 Lux(Sense up X64)
S/N Ratio
More 50 dB(AGC OFF)
SDNR
ON
Backlight
On/Off
Day & Night
Auto/Off
Gain Control
LOW / NORMAL / HIGH
Test Illuminance Area
Average test illuminance by front view
Power Supply
Regulated 12V DC
Current Consumption
Max. 190mA(at 12V DC)
LENS
Vari focal auto iris lens
Operation Temp.
14 ° F to 122 ° F
Preservation Temp.
-4 ° F to 140 ° F
Dimension
1.5"(W) x 1.5"(H) inch
Weight
Approx. 0.20 Ibs.
AII specifications are subject to change without notice to improve the quality.
O SD MENU STRUCTURE
◐ ◐ ◐ ◐
Select menu
Sub menu
LOW
NORMAL
Although the subject has a bright light behind it, you can
WDR CONTROL
see both the subject and background clearly.
MEDIUM
HIGH
OFF
Determines the use BLC(Back Light Compensation)
BLC
function or not
ON
Balances the color automatically depending on the source
ATW
of light from 2,000°K ~ 11,000°K
WHITE BALANCE
Move the camera lens toward to white paper then press
AWB
the enter button to find the optimal white balance for
current environment
LOW
AGC
NORMAL
AGC (Auto Gain Control) level selectable
HIGH
DC
Lens type selection
LENS SELECT
(Fixed iris lens or Vari-focal auto iris lens)
MANUAL
OFF
There are two options you can select to minimize color
FLUORESCENT
roll: CRR or CRR2.
CRR
Set the camera to CRR2 when using a DC lens.
CRR2
OFF
The camera stays in day mode only.
D/N CONTROL
The camera automatically detects lighting condition and
AUTO
selects the mode accordingly
INT
Internal Sync with 12V DC power
SYNC
L.L
External Sync with 24V AC power – N/A
V-PHASE
Phase controllable at 24V AC input(L/L mode) – N/A
SAVE & EXIT
To exit the menu after saving the current settings
DEFAULT
To return the camera to the factory default settings
CANCEL
To exit the menu without saving any changes
T he ' ' icon appeared with desired function, press the set button to move sub menu.
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any
obligation.
1 0%
Ω ±
Summary
Rev. 11/29/11
3B15777A
