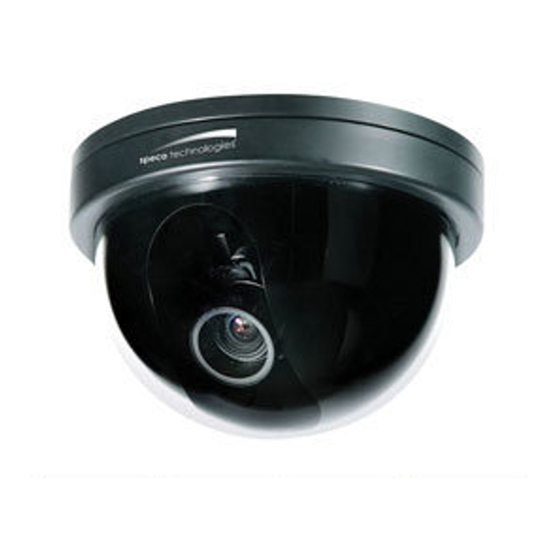

- Page 1 CVC6246iHR CVC6246iHR 580 Line Color Dome Camera Intensifier 2 Series Wall & Ceiling Mountable Please read this manual thoroughly before operation and keep it handy for further reference.
- Page 2 WARNING & CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK D O N O T R E M O V E C O V E R ( O R B A C K ) . N O U S E R S E R V I C E A B L E P A R T S I N S I D E R E F E R S E R V I C I N G...
-
Page 3: Table Of Contents
CONTENTS Package Contents Precautions Camera Installation Features OSD Menu Tree OSD Menu Details 11-14 15-16 Troubleshooting Specifications Dimensions Warranty... -
Page 4: Package Contents
PACKAGE CONTENTS Please make sure that the following items are included in the package: 1 CVC6246iHR Camera 2 Mounting Screws 1 Video Test Connector Please leave this manual with the end-user for future reference. COMPATIBILITY “A” type Box DFM Series... -
Page 5: Precautions
PRECAUTIONS • THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED PERSONNEL • TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE PROPER POWER CABLE • DO NOT CLEAN THE DOME COVER WITH AN ABRAISIVE CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO CLEAN THE DOME COVER •... -
Page 6: Camera Installation
CAMERA INSTALLATION CONNECT POWER CABLE 1. WHEN USING 12 VOLTS DC (constant voltage 500 mA) Power Input :RED Center : (+) DC 12V Power Supply 2. WHEN USING 24 VOLTS AC (40 Volt Amps) RED(+) AC 24V BLACK:( ) BLACK:(-) Power Supply 3. -
Page 7: Camera Installation
CAMERA INSTALLATION MECHANICAL (2) JOY STICK (1) DC Auto iris Lens (3) Video Test Terminal (1) DC AUTO-IRIS LENS Adjust between T W (TELE WIDE) to set the angle (focal length). Set the focus by adjusting ∞ NOTE: BOTH OF THE ABOVE ADJUSTMENTS GET LOCKED INTO POSITION THROUGH THE USE OF "LOCKING HANDLES". -
Page 8: Features
INTENSIFIER 1/3 inch High-inch density CCD and digital processor permit high quality Pictures to be captured in very low light condition. SPECO DNR SPECO DNR The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions. - Page 9 FEATURES All camera functions are menu driven for easy use. When the image is in front of strong background lighting, th i i i f t f t d li hti your camera allows you to get a clear image. HLC (High Light Compensation) This function reverses bright spots in the picture (such as headlights).
-
Page 10: Osd Menu Tree
DC IRIS INTENSIFIER E SHUTTER AUTO GAIN INTENSIFY RETURN COLOR TEMP COLOR TEMP INDOOR OUTDOOR AWC SET MANUAL WDR SET SPECO DNR DAY & NIGHT COLOR AUTO TWEAK VIDEO STILL PIX V-REVERSE H-REVERSE RETURN DIGI-ZOOM CLARITY PAGE 2 V MOTION... -
Page 11: Osd Menu Details
OSD MENU DETAILS 1 INTENSIFIER 1. INTENSIFIER [OPTION : E SHUTTER / AUTO GAIN / INTENSIFY / RETURN] - E SHUTTER * FLK - Flicker-less mode (FLK) reduces on-screen flickering. * ESC - Electronic Shutter Control (AUTO) adjusts brightness level on screen. - AUTO GAIN AUTO GAIN Adjusts value of AGC gain and increases the GAIN level to... - Page 12 3 WDR SET 3. WDR SET [OPTION : SLC / HLC / OFF] - SLC (Speco Light Compensation) Provides light level control to overcome severe back light conditions. - HLC (High Light Compensation) High Light Compensation removes the high light and makes it possible to view the image clearly to view the image clearly.
- Page 13 OSD MENU DETAILS 7 CAM TITLE 7. CAM TITLE [OPTION : ON / OFF] - Display a name and/or number on the monitor. 8. SYNC TYPE [OPTION : INT / LL] - INTERNAL : When external line lock is not required. - LINELOCK : Adjust the vertical phase (V-P) from 000~ 359 (factory default is 0).
-
Page 14: Osd Menu Details
OSD MENU DETAILS 10 PRIVACY 10. PRIVACY [OPTION : ON / OFF] - Mask up to 8 areas of the screen. - AREA SEL : Select up to 8 mask areas. - AREA mode : Activate or deactivate the selected area. - MASK COLOR : Select area color. -
Page 15: Troubleshooting
TROUBLESHOOTING If you have trouble operating your camera refer to the following If you have trouble operating your camera, refer to the following Problem Solution ● Check that the power cord and line connection Nothing appears on between the camera and monitor are correct the screen. - Page 16 TROUBLESHOOTING Problem Solution ● Check that you have properly set the The color of the picture is not ‘ WHITE BALANCE ’ menu proper. ● Is the camera facing to direct sunlight or fluorescent The image on the screen flickers. lighting? Change the camera position.
-
Page 17: Specifications
SPECIFICATIONS ITEM CVC6246iHR Power Source 12VDC & 24VAC ( Dual Voltage ) Power Consumption 230mA (DC) / 3.8W (AC) Image Sensor 1/3”, SONY SUPER HAD CCD, 410,000 pixels Total Pixels 811(H) x 508(V) , 1/3” CCD Effective Pixels 768(H) x 494(V) , 1/3” CCD DC Auto Iris Varifocal 2.8~12mm... -
Page 18: Dimensions
DIMENSIONS * SIDE VIEW * TOP VIEW... -
Page 19: Warranty
WARRANTY... - Page 20 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com Rev. 100120 Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
