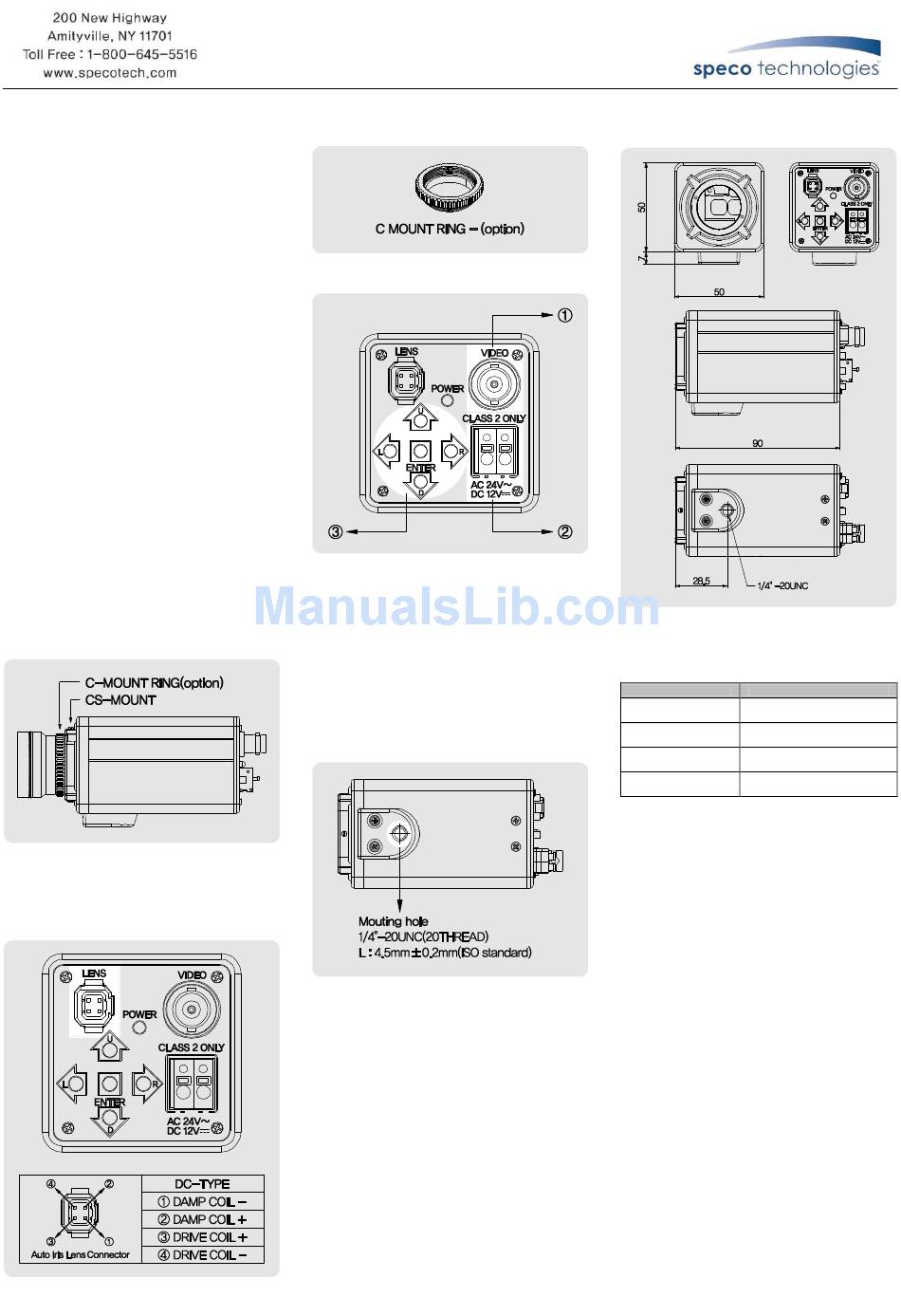

Speco WDRT6 Specification Sheet

◈NOTES:
1. Do not install the indoors or outdoors.
2. Choose an ideal location for the camera, since a
camera unit must be protected against vibration.
3. Be careful not to scratch the camera lens or dome
cover.
4. Use the camera within the temperature range of
(14 °F to 122 °F)
6. Avoid any direct sun light toward the lens.
7. Use a 12V DC, 300mA regulated power adaptor.
Dual voltage product can use 24V AC, 300A adaptor.
◈FEATURE
1. Mechanical filter exchange(True Day & Night), built-
in WDR function.
2. Supreme Resolution.(690 TV-Line)
◈DESCRIPTION OF OPERATION
1. Remove the protective rubber before installing a
CS mount lens.(If you use a C mount lens, add a
C mount ring. - option)
2. Connect the video output jack to the monitor video
in jack.
3. Connect power supply. Check the voltage.

◈LENS CONNECTION

1. Manual iris lens
1) Before mounting a lens, please check whether it is
a C mount or CS mount lens.
2) CS mount lens : After removing the protective rubber,
attach the lens.
3) C mount lens : Before installing the lens, attach the
C mount ring to the camera.
4) Set the LENS mode to "manual" by OSD.
2. Auto iris lens
1) Attach a DC lens as like the manual lens connection.
2) Connect the lens plug to the auto iris lens connector
on the rear panel of the camera.
3) Set the LENS mode to DC and adjust DC level by
OSD.
※The lens is not supplied with this camera.
WDRT6
◈ACCESSORIES
◈OVERVIEW
①Video output : Used to connect the video monitor.
②Power input terminal : You can connect 12V DC
regardless polarity.(Dual power product can use
24V AC)
③Menu setup jog lever :
ㆍENTER : Used to access the menu and confirm
selection.
ㆍUp, Down : Used to move the cursor to up or
down.
ㆍLeft, Right : Used to move the cursor to left or right
and change the value.
◈DIMENSION

◈TROUBLESHOOTING GUIDE

Before calling service, check the following points for
possible misuse.
Problem
Readjust the contrast or brightness
Too dark or bright picture
controls on the monitor.
No Power Check for power connection.
Clean the camera lens.
Poor picture quality
Readjust lens focus.
Check the condition of the power
Shrinking picture
sources.
If you can't correct the problem after going through
this chart, contact a service professional for further
assistance.
Check point
