◈FEATURE

1. Long visible range at night.(50m Max. indoors,
40m Max. outdoors)
2. This camera uses split glass technology to prevent
IR light reflection.
3. This camera has a vari-focal IR lens to prevent
focus drift under IR lighting.
4. The IR cut filter is removed at night to receive
maximum available light.
5. This product is weather proof to resist rain, snow
and other environmental factors.(IP65)
6. This product is made of corrosion-free materials to
resist rust and corrosion for extended periods of
time.
7. The built-in sunshield helps the camera produce
clear pictures under a variety of lighting conditions.
8. Power & video cables are concealed for extra
security.(Cable through the mount).
9. Unique bracket allows the camera to be fully
adjustable from both wall and ceiling mounting
positions.
10. This camera is incredibly to install with its 3-axis
camera construction, which makes the camera
ceiling, wall or slope mountable.
11. Mechanical filter exchange(True Day & Night),
built-in WDR function.
12. Supreme resolution.(690 TV-Line)

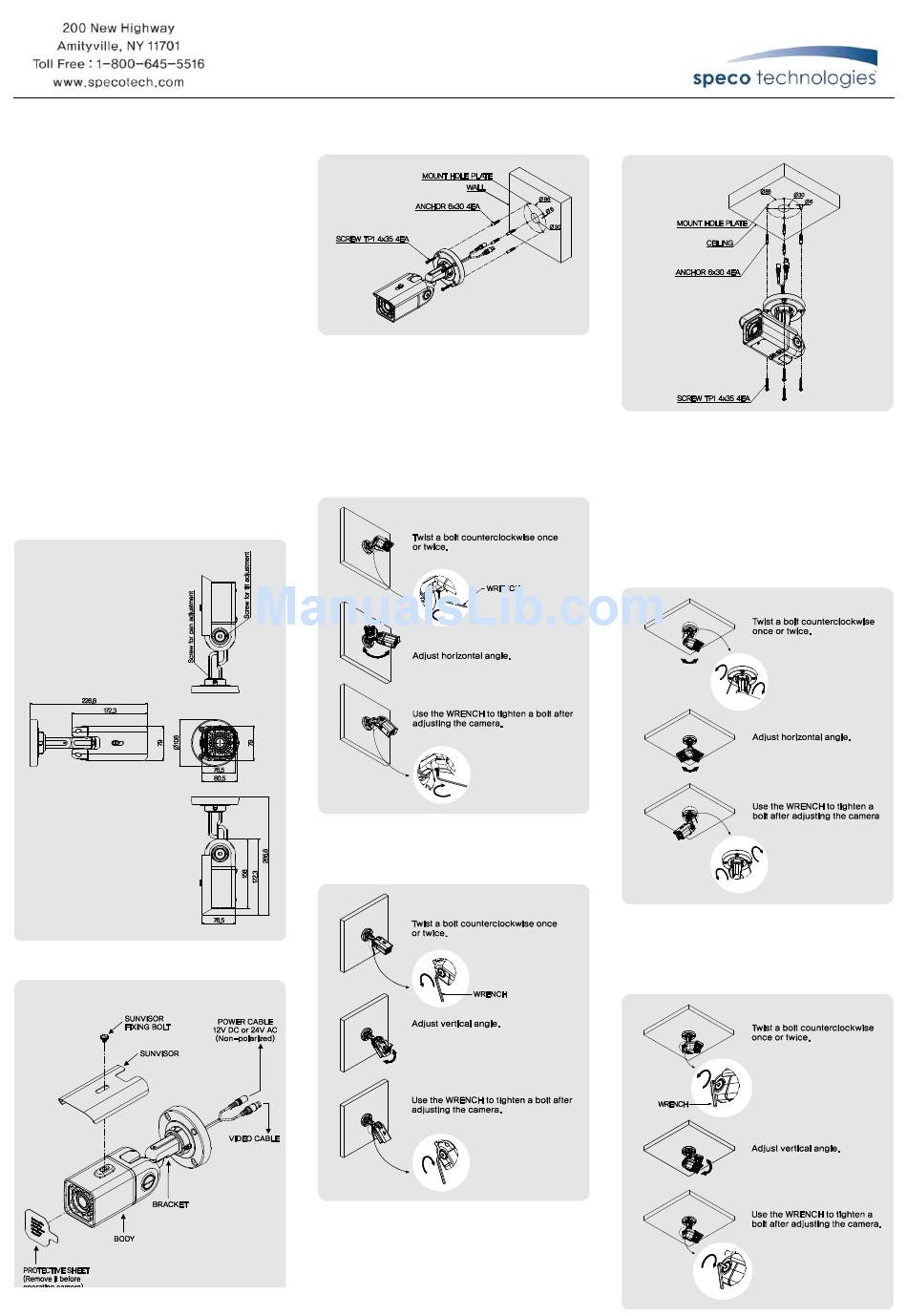

◈DIMENSION

◈CONFIGURATION

WDRB1

◈WALL MOUNT INSTALLATION #1

1. Make a hole Ø30mm in diameter for routing cable.
2. Using the mounting plate, drill four holes on the wall.
3. Insert the anchors.
4. Attach the screws.

◈WALL MOUNT INSTALLATION #2

1. Adjust horizontal angle.
1) Loosen the bolt to adjust the horizontal angle of
the camera.
2) Use the WRENCH to tighten the bolt after adjusting
the camera.
2. Adjust vertical angle
1) Loosen a bolt to adjust vertical angle of the camera.
2) Use the WRENCH to tighten a bolt after adjusting
the camera.

◈CEILING MOUNT INSTALLATION #1

1. Make a hole Ø30mm in diameter for routing cable.
2. Using the mounting plate, drill four holes on the ceiling.
3. Insert the anchors.
4. Attach the screws.

◈CEILING MOUNT INSTALLATION #2

1. Adjust horizontal angle.
1) Loosen the bolt to adjust the horizontal angle of
the camera.
2) Use the WRENCH to tighten the bolt after adjusting
the camera.
2. Adjust vertical angle
1) Loosen the bolt to adjust the vertical angle of the
camera.
2) Use the WRENCH to tighten a bolt after adjusting
the camera.
