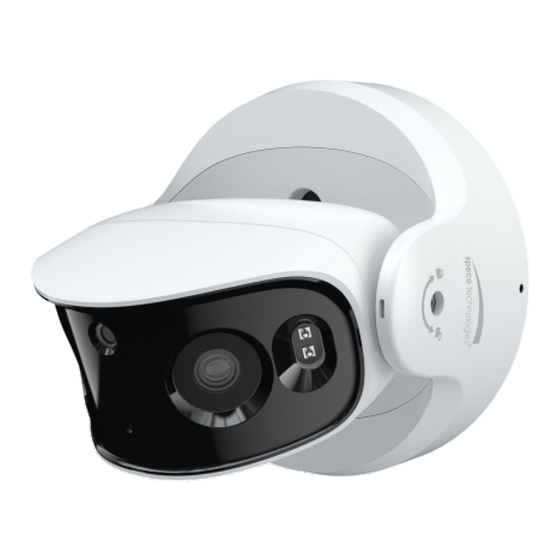

Summary of Contents for Speco O8LMST1

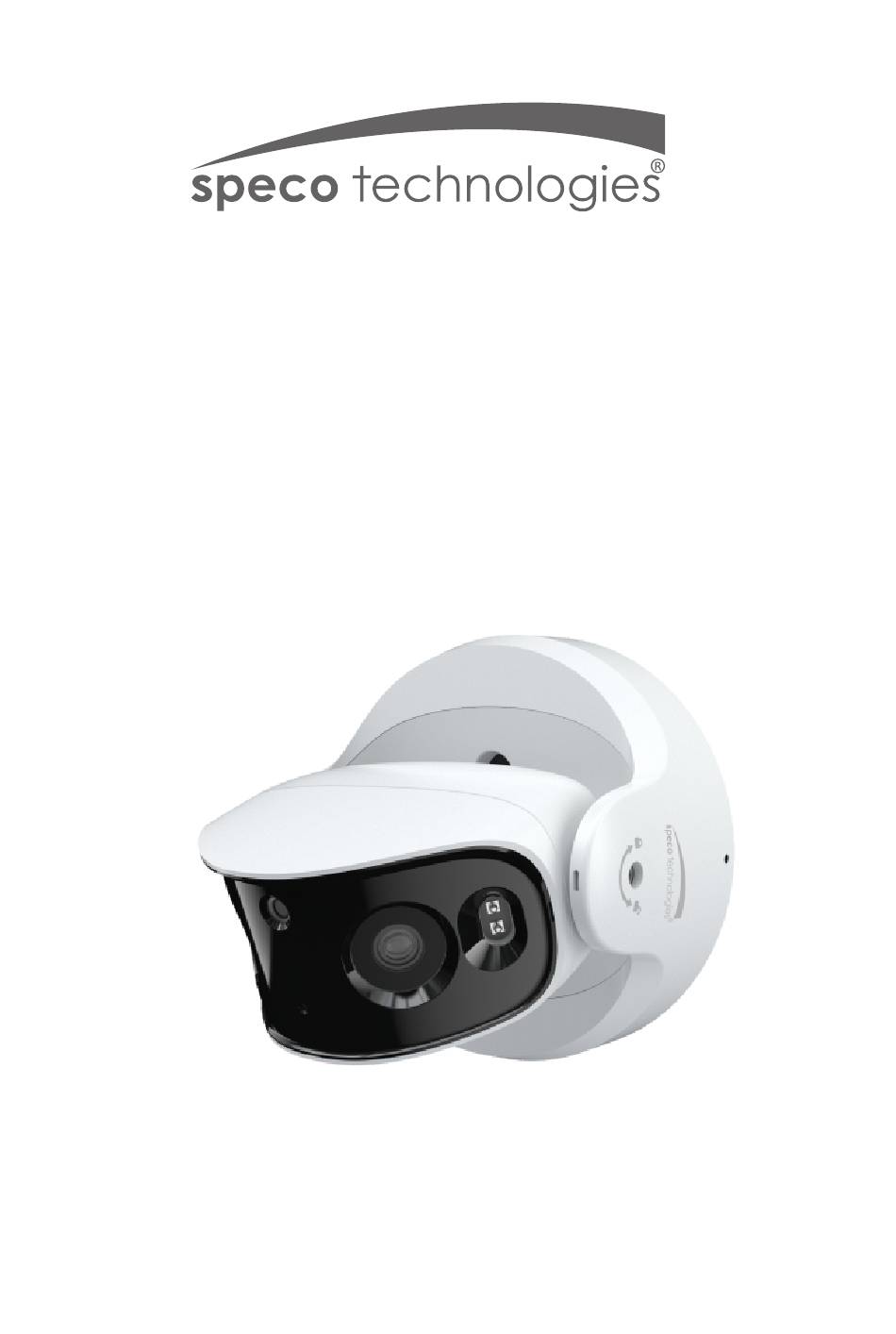

  • Page 1 Quick Start Guide O8LMST1...
  • Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
  • Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
  • Page 4 4 Screws 4 Screws 4 Screws 4 Rubber o-rings Junction box (6.5×38mm) (PA 4×25mm) (PM 4×10mm) for screws Drill template 8 Plastic screw anchors Water-proof connector kit Overview Overview 1 Ethernet connector (PoE+) 2 MIC-Audioinput (3.5mm) 3 HP-Audiooutput (3.5mm) 4 Alarminput/output 5 DC12V Power jack 6 Ground 7 Microphone...
  • Page 5: Connecting Network Cable

    1--ALM-GND 2--ALM-IN 3--ALM-OPEN 4--ALM-COM DC12V Connect to earth ground * It is recommended to install the water-proof connector for outdoor installations. ► Connecting Network Cable * If the RJ 45 connector of the network cable has a jacket and cannot be threaded through the kit, remove the jacket.
  • Page 6: Installation

    Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera and junction box. 1. Open the mounting base and the upper cover of the junction box. Mounting base Upper cover 2.
  • Page 7 3. Route the cables through the cable hole and connect the cables. Then reinstall the upper cover onto the junction box. Align the marks indicated by the arrows and then fasten the adapter onto the upper cover of the junction box. 3×...
  • Page 8 5. Align the three screw holes of the adapter with the three screws of the camera (below) and then put these screws into these screw holes. After that, turn the mounting base clockwise to secure the camera. Three screws Mounting base 6.
  • Page 9 ① Make sure that the camera and the PC are connected to the same local network. The camera is set to DHCP by default. ② Install Speco Blue Scanner and run it after installation. Speco Blue Scanner is the tool for discovering the IP cameras on the local network. It can be downloaded from www.specotech.com.
