Summary of Contents for Eneo PXB-2080MIR D

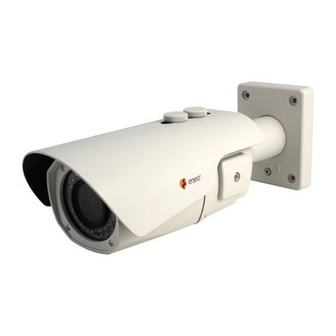

- Page 1 Quick Installation Guide 1/3” Network Camera, Day&Night, H.264, 1920x1080, 3D-DNR, infrared, PoE, ONVIF PXB-2080MIR D...
-
Page 3: Safety Precaution
MEGA-PIXEL NETWORK CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 4 MEGA-PIXEL NETWORK CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 5: Table Of Contents
MEGA-PIXEL NETWORK CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06~07 Features p.07 Composition p.08 Dimensions p.09 Part Names p.10~12 Installation Instructions p.13~29 Operating Instructions p.30~31 Specifications... -
Page 6: Features
MEGA-PIXEL NETWORK CAMERA Features Key Features • Full HD, 2Mega Pixel, NETWORK CAMERA, 1920x1080(30p/25p) • ONVIF & PSIA Conformance • Built-in f=2.8~10mm F1.4 Mega pixel DC Auto Iris Vari-focal lens • Real time true WDR (Wide Dynamic Range) / 30fps •... - Page 7 MEGA-PIXEL NETWORK CAMERA Features General Description • With ICR mechanism, - Enhances its sensitivity about 10x at night time - Can accept the infrared light • With PoE as well as 24VAC/12VDC dual power design, - Offers the flexibility of installation - Ensures the reliability •...
-
Page 8: Dimensions
MEGA-PIXEL NETWORK CAMERA Dimensions (unit : mm) 87.30... -
Page 9: Part Names
MEGA-PIXEL NETWORK CAMERA Part Names SUNSHIELD BOLT SUNSHIELD ETHERNET & POWER CABLE OSD Setup CONTROL COVER DUAL WINDOW EASY BRACKET REAR CASE FRONT CASE BRACKET Lock/Unlock Torque Screw wrench FOCUS ZOOM ■ Adjustment of viewing angle with a bracket... -
Page 10: Installation Instructions
MEGA-PIXEL NETWORK CAMERA Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. ( *The easy bracket can not be installed on the ceiling) 2. Place the easy bracket on pre-drilled position and fix it through using mounting screws(4x30mm). - Page 11 MEGA-PIXEL NETWORK CAMERA Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket through using the torque wrench supplied • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°. 2) Tilt limit: Tilt is limited to 0°(2°) min ~ 90°...
- Page 12 MEGA-PIXEL NETWORK CAMERA Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • After all connections are finished properly, follow the order for applying power. a) Plug the network cable into RJ-45 Ethernet Port. If PoE is the unique power, there will be no need to connect Power terminal.
-
Page 13: Operating Instructions
MEGA-PIXEL NETWORK CAMERA Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Standard SD Card Slot IP RESET... - Page 14 MEGA-PIXEL NETWORK CAMERA Operating Instructions Quick Network Setup NOTICE After camera is connected with IP, its control is available via WEB Viewer. To access the ADMIN on IP INSTALLER ID: root PW: root The network camera‘s default IP address is: 192.168.1.10. Therefore, to access the camera for the first time, set the PC‘s address as shown.
- Page 15 MEGA-PIXEL NETWORK CAMERA Operating Instructions 1. Assigning an IP address To assign an IP address to the camera proceeded as follows: Click Network Configuration on the Network Configuration menu. • Depending on the service type, the network configuration can be in any of Static IP, DHCP Client, or PPPoE.
- Page 16 MEGA-PIXEL NETWORK CAMERA Operating Instructions • For DHCP, DHCP server must exist in the same network environment. Select DHCP Client from Network Configuration, click Apply. • PPPoE is used to connect IP products to PPPoE modem provided by ISP. Since PPPoE needs verification, ID and password are necessary to access network.
- Page 17 MEGA-PIXEL NETWORK CAMERA Operating Instructions 3. Accessing the camera setup menu Camera SETUP menu can be accessed in two ways via web viewer. Most frequent controls are available with the parameters directly in the below table. More complicated settings such as PRIVACY, MOTION & ZOOM MODE settings are available via ‘ADVANCED CAMERA MENU’...
- Page 18 MEGA-PIXEL NETWORK CAMERA Operating Instructions Direct Control menu SPECIAL DEFAULT DESCRIPTION Lens can be selected either DC or MANUAL lens. Lens DC-Indoor Lens MUST be set to DC for the best image when DC iris lens is installed. DC-Indoor, DC-Outdoor, DC-Deblur, Manual-Normal, Manual-Deblur Select lens mode according to installation place.
- Page 19 MEGA-PIXEL NETWORK CAMERA Operating Instructions ※CVBS video signal - Connecting 2nd video to CVBS port disables WDR function temporary. It should be considered when installer adjusts the video with installation monitor via CVBS video signal. WDR level can be selected from LOW, MID and HIGH. WDR Weight Care should be taken to select this mode because video may lose its quality in some environments by the over compensation.
- Page 20 MEGA-PIXEL NETWORK CAMERA Operating Instructions Day & Night Conventional COLOR mode in NIGHT COLOR D/N mode in NIGHT Day & Night D<-->N Threshold is a threshold level and Gap to switch from DAY Threshold to NIGHT. Low makes camera entered NIGHT at lower light level. High makes camera exited NIGHT at brighter light level.(0~20) Day &...
- Page 21 MEGA-PIXEL NETWORK CAMERA Operating Instructions Defog LEVEL : LOW, MID, HIGH Video quality can be less in normal environments. Weight Display ON enables to display the D-Zoom Ratio on the bottom right D-Zoom Ratio corner. D-Zoom works when pointing zoom is set to ON. Display ID ON enables to display Camera ID on Monitor.
- Page 22 MEGA-PIXEL NETWORK CAMERA Operating Instructions Advanced Camera OSD menu Click ‘ADVANCED CAMERA MENU’ bar at CAMERA CONTROL menu to activate the camera OSD menu. Click Up/Down/Left/Right bars to navigate or change the parameters. These options have been pre-configured at the factory for optimal performance. MENU V5.xx ↵...
- Page 23 MEGA-PIXEL NETWORK CAMERA Operating Instructions 2. MOTION (default: OFF) MOTION can detect the changes in the motion window and displays the results in blocks and/or a text message 2-1. SENSITIVITY : Adjusts the detection sensitivity for motion. High value increases the sensitivity to detect the small motion easily.
- Page 24 MEGA-PIXEL NETWORK CAMERA Operating Instructions • SP - Space is inserted when clicked • BS - Cursor moves back when clicked • CLR - Clears all the characters on input line when clicked it • POS - Sets the title position by using four direction bars and enter bar. 4.
- Page 25 MEGA-PIXEL NETWORK CAMERA Operating Instructions 5-3. FLEX: Able to zoom in anywhere on the screen from web viewer only . Setting for Zoom Function with NVR or VMS. ● Enter the MENU : Press buttons 9+5+PSET (PRESET) ● Set the Preset Zoom : Press buttons 1(or ~4)+PSET (PRESET) ●...
- Page 26 MEGA-PIXEL NETWORK CAMERA Operating Instructions 6. BLC POSITION (default: SET) Improves the visibility for the dark object by the bright back light. Outside area of BLC window can over saturate. BLC has a target window for compensation and its size and position can be set by H-POS, V-POS, H-SIZE and V-SIZE 7.
- Page 27 MEGA-PIXEL NETWORK CAMERA Operating Instructions • H-POINTER (10): Moves MOTION ZOOM area(Yellow window) horizontally. • V-POINTER (10):Moves MOTION ZOOM area(Yellow window) vertically. • D-ZOOM RATIO (DZ X2.0): Sets the area size to be Digital zoomed when the motion occurs in the black window. •...
- Page 28 MEGA-PIXEL NETWORK CAMERA Operating Instructions * EXAMPLE OF SMART MOTION & POINTING ZOOM [ At the ATM nearby ENTERANCE ] [ At the LOBBY ]...
- Page 29 MEGA-PIXEL NETWORK CAMERA Operating Instructions ▐ FOCUS ASSIST Usually cameras are installed in the day time and they often become OUT OF FOCUS at night time and IN FOCUS again at next day time. This problem can occur at any cameras regardless of types or manufacturers. FOCUS ADJ.
-
Page 30: Specifications
MEGA-PIXEL NETWORK CAMERA Specifications ITEM PXB-2080MIR D Panasonic 1/3" Progressive Scan CMOS Sensor Imaging Sensor Effective Pixels 1,944(H) x 1,092(V) Min.Illumination 0.0005 Lux (@AGC MAX, DSS x2) Video Resolution 1920x1080 (30p/25p) TV System 50Hz(switchable to 60Hz) Sync. System Internal Format... - Page 31 MEGA-PIXEL NETWORK CAMERA Specifications Power Source PoE(IEEE Std. 802.3af ), AC24V~15VA/DC12V=1A, 12W Circuit protection against faulty connection in power polarity Isolated power supply against ground loop problem. NETWORK SPECIFICATION Video Encoding H.264 / MJPEG dual streaming Protocol IPv6, HTTP, TCP/UDP/IP, ARP, ICMP, IGMP, RTP/RTSP, multicast, Telnet, ftp, PPPoE, SMTP(e-mail), DHCP, NTP, uPNP, ONVIF, PSIA Transmission Control VBR, CBR ( 32K ~ 12M bps )
- Page 32 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
