Summary of Contents for Chauvet Rogue RH1 Hybrid

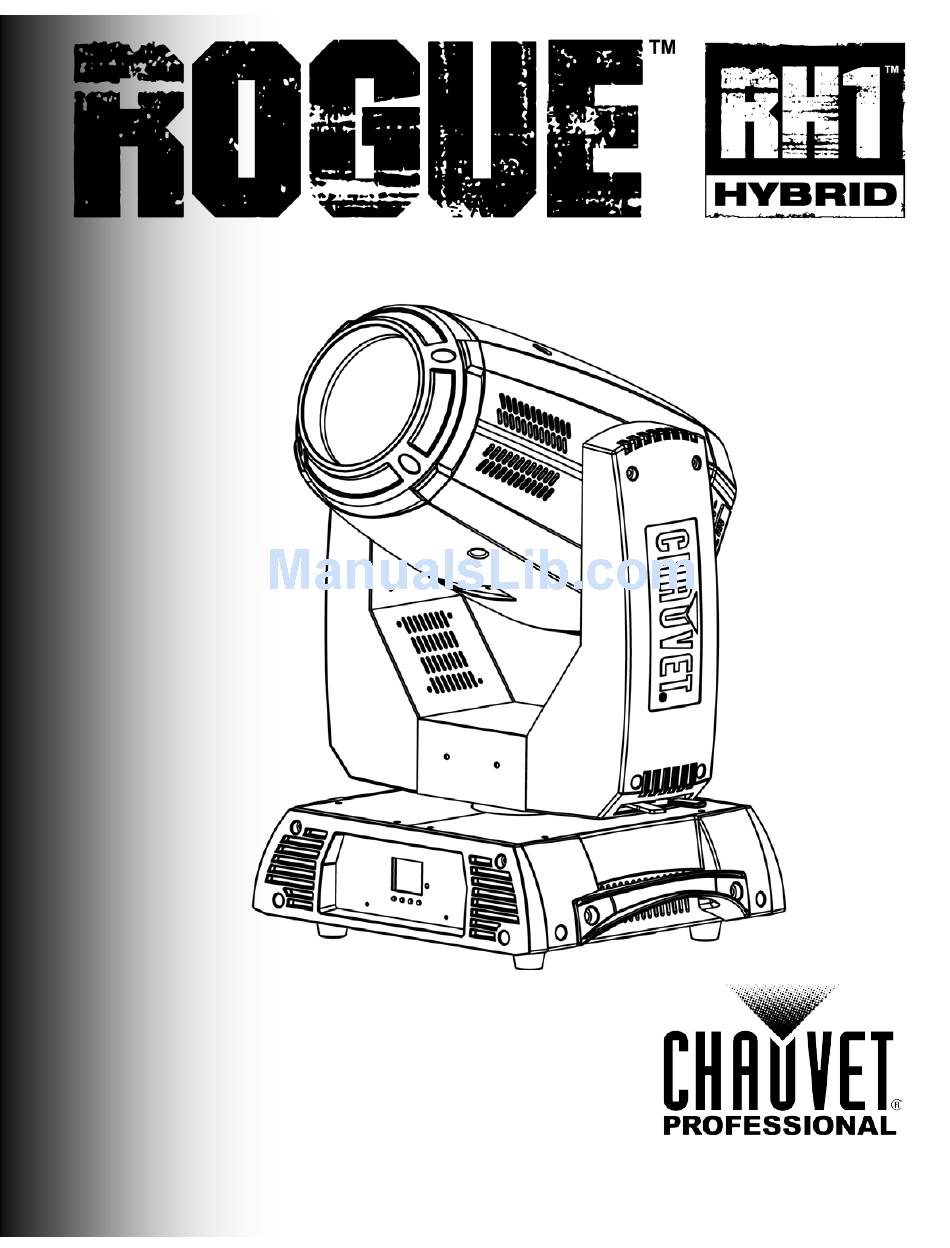

- Page 1 User Manual...
- Page 2 Copyright Notice Chauvet owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2015 Chauvet. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product At A Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting And Rigging .................................. - Page 4 Table of Contents Tilt Angle ....................................18 Pan and Tilt Movement BlackOut ............................... 18 Color Movement BlackOut ................................. 18 Gobo Movement BlackOut ................................. 18 Lamp Settings .................................... 19 Maintenance Timer ..................................20 Reset Function ................................... 20 Factory Reset Function ................................20 System Information ..............................
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Product At A Glance
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Introduction

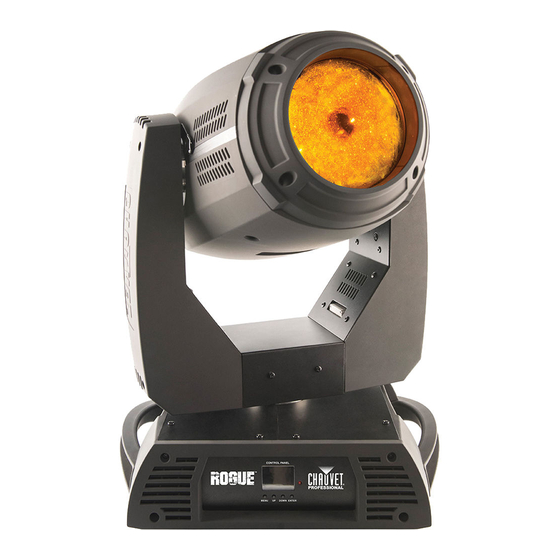

Introduction 2. I NTRODUCTION Description The Rogue™ RH1 Hybrid is a compact, electronic, moving yoke beam product equipped with a 330 watt X8 lamp that delivers an ultra-intense output of 111,000 lux@ 15m with tight beam angles of 1-4.5° in Beam Mode and 5-19° in Spot Mode. This hybrid beam and spot includes an optical system with 8-facet and 6-facet prism sets that are completely layerable and controllable. -
Page 8: Overview
Introduction Overview DMX Out Pan Lock DMX In Control Panel Mounting Plate Power In Fuse Power Switch Front View Rear View ¼-turn Head Access Screws Tilt Lock Handle Top View Side View Rogue™ RH1 Hybrid User Manual Rev. 1... -
Page 9: Dimensions
Introduction Dimensions 14.63 in 371 mm 9.54 in 242 mm 16.11 in 409 mm 13.58 in 12.89 in 345 mm 327 mm 20.40 in 518mm 4.53 in 115 mm 14.63 in 371 mm 8.83 in 9.54 in 224 mm 242 mm 25.11 in 638 mm 13.58 in... -
Page 10: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the Chauvet website: www.chauvetlighting.com/download/pro. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire. -
Page 11: Gobo Wheel
Setup Gobo Wheel The Rogue™ RH1 Hybrid includes two gobo wheels: 13 fixed gobos plus open on wheel 1 and 9 rotating gobos plus open on wheel 2. The diagram shows the gobo number on the wheel, as numbered in the DMX Values tables. -
Page 12: Gobo Replacement
Setup Gobo The gobos in the Rogue™ RH1 Hybrid gobo wheel 2 are removable from their gobo holders. Replacement This operation is quite simple, although it requires the technician to be careful and to follow the recommended procedure. · Make sure to disconnect the product’s power cord before replacing a gobo ·... -
Page 13: Color Wheel
Setup Color Wheel The Rogue™ RH1 Hybrid includes one color wheel with 13 fixed colors plus open (white), as indicated below. The diagram shows the color number on the wheel, as numbered in the DMX Values tables. Open (White) 5600k Orange Cyan 3200k... -
Page 14: Lamp Replacement
Setup Lamp The Rogue™ RH1 Hybrid is equipped with an Osram Sirius 330W X8 lamp. Follow the procedure below to safely change the lamp. Replacement Disconnect the product from power before opening. Procedure 1. Turn the product off and disconnect it from power. Wait at least 15 minutes for the lamp to cool down. -
Page 15: Procedure (Cont.)
· DO NOT power cycle the product unless it is necessary. · DO NOT re-strike the lamp immediately after turning it off. Chauvet recommends waiting 5 minutes before trying to re-strike the lamp. · DO NOT touch the lamp without wearing gloves to avoid leaving grease on the bulb or on the contacts that could reduce the lamp’s life. -
Page 16: Mounting
2 included omega brackets. Make sure the clamps are capable of supporting the weight of this product. Use two mounting points per product. In addition, use a safety cable to link the product to the structure. For our CHAUVET® Professional line of mounting clamps, go to http://trusst.com/products/. -
Page 17: Operation
Operation 4. O PERATION Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list or increases the numeric value when in a function <DOWN>... -
Page 18: Menu Map
Operation Menu Map Main Level Programming Levels Description Address 001–512 Sets the DMX starting address 20CH Selects the DMX mode 25CH Auto Test Runs the product’s test sequence Pan Fine Tilt Tilt Fine P/T Speed Dimmer Dimmer Fine Shutter Color Gobo2 Gobo Run Mode... -
Page 19: Menu Map (Cont.)
Operation Menu Map (Cont.) Main Level Programming Levels Description Reverse pan operation Pan Reverse Normal pan operation Reverse tilt operation Tilt Reverse Normal tilt operation Rotates control screen view 180° Screen Reverse Normal control screen view Selects the 540° pan angle range Pan Angle Selects the 360°... -
Page 20: Menu Map (Cont.)
Operation Menu Map (Cont.) Main Level Programming Levels Description Interval 10–250 Defines amount of hours between maintenance Maintenance Shows amount of time remaining in Remaining Timer maintenance cycle Time RESET Resets the time back to the beginning Pan/Tilt Resets pan/tilt functions to the home position Shutter/ Resets all shutter/prism functions to the home Prism... -
Page 21: Address
Operation Address This programming level sets the DMX starting address. · Starting from the Main Level screen, select Address, press <ENTER>. Set the In this mode, each product will respond to a unique starting address from the DMX DMX Address controller. -
Page 22: Setup
Operation Setup This programming level controls the product’s head movement, lamp adjustments, and maintenance timer. Starting from the Main Level screen, select Setup, press <ENTER>. · Pan Reverse Reverses the operation of the pan attribute. 1. Highlight Pan Reverse, press <ENTER>. 2. -
Page 23: Lamp Settings
· DO NOT power cycle the product unless it is necessary. · DO NOT re-strike the lamp immediately after turning it off. Chauvet recommends waiting 5 minutes before trying to re-strike the lamp. -
Page 24: Maintenance Timer
Operation Maintenance This programming level allows the user to change a range of options that control the action of Timer the maintenance timer. Starting from the Setup screen level, select Maintenance Timer, press <ENTER>. · Maintenance Timer This option defines the amount of time (hours) that the maintenance timer will count down to. Interval 1. -
Page 25: System Information
Operation System This programming level shows standard information regarding the product’s operating status. · Starting from the Main Level screen, select Sys Info, press <ENTER>. Information · Ver: The current software version is displayed on the screen. · Running Mode: The current Running mode is displayed on the screen. ·... -
Page 26: Dmx Values
Operation DMX Values 25CH Channel Function Value Percent/Setting 000ó255 0–100% Fine Pan 000ó255 Fine control (16-bit) Tilt 000ó255 0–100% Fine Tilt 000ó255 Fine control (16-bit) Pan/Tilt Speed 000ó255 0–100% Dimmer 000ó255 0–100% Fine Dimmer 000ó255 Fine control (16-bit) 000ó007 Closed 008ó015 Open 016ó131... -
Page 27: Dmx Values (Cont.)
Operation DMX Values (Cont.) 25CH Channel Function Value Percent/Setting (Cont.) Open (See note in Ch. 11) 000ó003 004ó006 Gobo 1 007ó009 Gobo 2 010ó012 Gobo 3 013ó015 Gobo 4 016ó018 Gobo 5 019ó021 Gobo 6 022ó024 Gobo 7 025ó027 Gobo 8 028ó030 Gobo 9 031ó033... -
Page 28: Dmx Values (Cont.)
Operation DMX Values (Cont.) 25CH Channel Function Value Percent/Setting (Cont.) Open 001ó005 Open (apature sets to spot mode) 006ó011 Gobo 1 For open aperture 012ó017 Gobo 2 to engage, 018ó023 Gobo 3 Gobo Wheel 1 024ó029 Gobo 4 must be set in the 030ó035 Gobo 5 open position. -
Page 29: Dmx Values (Cont.)
Operation DMX Values (Cont.) 25CH Channel Function Value Percent/Setting (Cont.) 000ó007 No function 008ó015 Effect 1 016ó023 Effect 2 024ó031 Effect 3 032ó039 Effect 4 040ó047 Effect 5 048ó055 Effect 6 056ó063 Effect 7 064ó071 Effect 8 072ó079 Effect 9 080ó087 Effect 10 088ó095... -
Page 30: Dmx Values (Cont.)
Operation DMX Values (Cont.) 25CH Channel Function Value Percent/Setting (Cont.) Movement Macro 000ó255 0–100% Speed 000ó029 No function 030ó039 Dimmer conventional mode 040ó049 Dimmer linear mode 050ó059 Pan/Tilt fast mode 060ó069 Pan/Tilt normal mode 070ó079 Blackout during pan/tilt (3 sec hold) 080ó089 Disable pan/tilt blackout (3 sec hold) 090ó099... -
Page 31: Dmx Values (Cont.)
Operation DMX Values (Cont.) 20CH Channel Function Value Percent/Setting 000ó255 0–100% Fine Pan 000ó255 Fine control (16-bit) Tilt 000ó255 0–100% Fine Tilt 000ó255 Fine control (16-bit) Pan/Tilt Speed 000ó255 0–100% Dimmer 000ó255 0–100% 000ó007 Closed 008ó015 Open 016ó131 Slow to fast 132ó167 Fast close, slow open (slow to fast) Shutter... -
Page 32: Dmx Values (Cont.)
Operation DMX Values (Cont.) 20CH Channel Function Value Percent/Setting (Cont.) Open (See note in Ch. 10) 000ó003 004ó006 Gobo 1 007ó009 Gobo 2 010ó012 Gobo 3 013ó015 Gobo 4 016ó018 Gobo 5 019ó021 Gobo 6 022ó024 Gobo 7 025ó027 Gobo 8 028ó030 Gobo 9 031ó033... -
Page 33: Dmx Values (Cont.)
Operation DMX Values (Cont.) 20CH Channel Function Value Percent/Setting (Cont.) Open 001ó005 Open (apature sets to spot mode) 006ó011 Gobo 1 For open aperture 012ó017 Gobo 2 to engage, 018ó023 Gobo 3 Gobo Wheel 1 024ó029 Gobo 4 must be set in the 030ó035 Gobo 5 open position. -
Page 34: Dmx Values (Cont.)
Operation DMX Values (Cont.) 20CH Channel Function Value Percent/Setting (Cont.) 000ó029 No function 030ó039 Dimmer conventional mode 040ó049 Dimmer linear mode 050ó059 Pan/Tilt fast mode 060ó069 Pan/Tilt normal mode 070ó079 Blackout during pan/tilt (3 sec hold) 080ó089 Disable pan/tilt blackout (3 sec hold) 090ó099 Blackout while color wheel moving (3 sec hold) 100ó109... -
Page 35: Technical Information
Technical Information 5. T ECHNICAL NFORMATION Product To maintain optimum performance and minimize wear, you should clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Maintenance As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 36: Technical Specifications
Technical Specifications 6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 16.1 in (409 mm) 12.9 in (327 mm) 25.8 in (638 mm) 55.2 lb (25.1 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection... -
Page 37: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label. -
Page 38: Contact Us
Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 World Wide Web Toll free:(800) 762-1084 www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address:Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate World Wide Web Pinxton, Nottingham, UK www.chauvetlighting.co.uk...
