- Page 1 User Manual...
- Page 2 Copyright Notice Chauvet owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2015 Chauvet. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product At A Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting And Rigging .................................. - Page 4 Table of Contents Offset Mode ................................13 Pan ......................................13 Tilt ......................................13 DMX Values ................................14 DMX Values (Cont.) ..............................15 DMX Values (Cont.) ..............................16 DMX Values (Cont.) ..............................17 DMX Values (Cont.) ..............................18 DMX Values (Cont.) ..............................19 DMX Values (Cont.) ..............................
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Product At A Glance
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Introduction

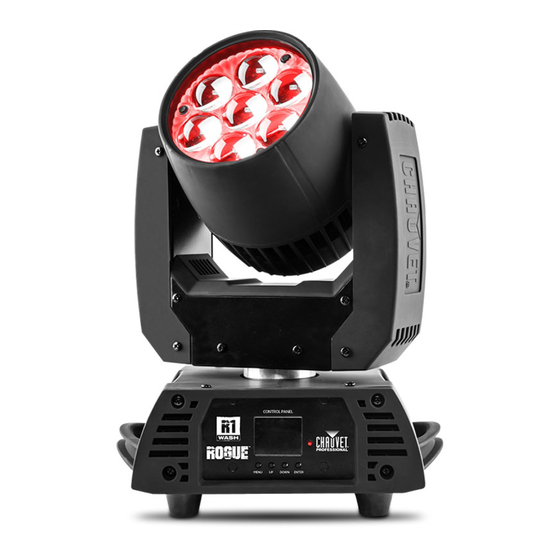

Introduction 2. I NTRODUCTION The Rogue™ R1 Wash is a compact, electronic, moving yoke product equipped with 7 quad- Description color RGBW 15-watt LEDs. Rogue™ R1 Wash is a powerful wash product that features smooth pan and tilt operation, an 11° to 48° zoom range, and a unique lens system that gives you an even, professionally combined color wash. -
Page 8: Overview
Introduction Overview 3- and 5-pin DMX Out Power In Fuse Power Out Control Panel 3- and 5-pin DMX In Rear View Front View Handle Top View Side View Rogue™ R1 Wash User Manual Rev. 2... -
Page 9: Dimensions
Introduction Dimensions 10.43 in 265 mm 9.06 in 230 mm 7.80 in 198 mm 13.94 in 354 mm 3.82 in 97 mm 7.36 in 187 mm 5.98 in 152 mm 6.38 in 162 mm Rogue™ R1 Wash User Manual Rev. 2... -
Page 10: Setup
Power Linking up to 18 at 208 V; or up to 21 at 230 V. This product comes with a power input cord. Power linking cables are available from Chauvet for purchase. You can link the Rogue™ R1 Wash to a DMX controller using a 3- or 5-pin DMX connection. If DMX Linking using other DMX-compatible products with the Rogue™... -
Page 11: Mounting
Orientation Always mount this product in a safe position and make sure there is adequate room for ventilation, configuration, and maintenance. Chauvet recommends using the following general guidelines when mounting this product. Rigging · When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance. -
Page 12: Operation
Operation 4. O PERATION Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list or increases the numeric value when in a function <DOWN>... -
Page 13: Menu Map
Operation Menu Map Main Level Programming Levels Description Address 001–512 Sets the DMX starting address 14CH 15CH Selects the DMX mode 19CH 21CH Auto Test Runs the product’s test sequence Tilt Run Mode Dimmer Shutter Allows manual control of all settings from the Manual Test 000–255 control panel... -
Page 14: Menu Map (Cont.)
Operation Menu Map (Cont.) Main Level Programming Levels Description Rotates control screen view 180° Screen Rev Normal control screen view Linear Liner dimmer Square Square curve dimmer Dimmer Curve I Squa Reverse square curve dimmer SCurve S curve dimmer Smooth Dimmer Speed Slow (smooth) or fast (fast) dimmer curves Fast... -
Page 15: Address
Operation This programming level sets the DMX starting address. Address · Starting from the Main Level screen, select Address, press <ENTER>. Set the In this mode, each product will respond to a unique starting address from the DMX controller. All products with the same starting address will respond in unison. This option DMX Address sets the products DMX address. -
Page 16: Setup
Operation This programming level controls the product’s head movement, display, dimming, and fan Setup adjustments. · Starting from the Main Level screen, select Setup, press <ENTER>. Reverses the operation of the pan attribute. Pan Reverse 1. Highlight Pan Reverse, press <ENTER>. 2. -
Page 17: Reset Function
Operation Reset Function This programming level allows the user to reset individual functions to the home position. · Starting from the Setup screen level, select Reset Function, press <ENTER>. Pan/Tilt Reset This option resets the Pan/Tilt functions to the home position. 1. -
Page 18: Dmx Values
Operation DMX Values 21CH Channel Function Value Percent/Setting 000ó255 0–100% Fine Pan 000ó255 Fine control (16-bit) Tilt 000ó255 0–100% Fine Tilt 000ó255 Fine control (16-bit) Pan/Tilt Speed 000ó255 0–100% Dimmer 000ó255 0–100% Fine Dimmer 000ó255 Fine control (16-bit) 000ó019 Closed 020ó024 Open 025ó064... -
Page 19: Dmx Values (Cont.)
Operation DMX Values (Cont.) 21CH Channel Function Value Percent/Setting (Cont.) 000ó004 Open 005ó009 Color 1 010ó014 Color 2 015ó019 Color 3 020ó024 Color 4 025ó029 Color 5 030ó034 Color 6 035ó039 Color 7 040ó044 Color 8 045ó049 Color 9 050ó054 Color 10 055ó059 Color 11... -
Page 20: Dmx Values (Cont.)
Operation DMX Values (Cont.) 21CH Channel Function Value Percent/Setting (Cont.) 000ó007 No function 008ó023 Effect 1 024ó039 Effect 2 040ó055 Effect 3 056ó071 Effect 4 072ó087 Effect 5 088ó103 Effect 6 104ó119 Effect 7 Movement Macros 120ó135 Effect 8 136ó151 Effect 9 152ó167 Effect 10... -
Page 21: Dmx Values (Cont.)
Operation DMX Values (Cont.) 19CH Channel Function Value Percent/Setting 000ó255 0–100% Fine Pan 000ó255 Fine control (16-bit) Tilt 000ó255 0–100% Fine Tilt 000ó255 Fine control (16-bit) Pan/Tilt Speed 000ó255 0–100% Dimmer 000ó255 0–100% Fine Dimmer 000ó255 Fine control (16-bit) 000ó019 Closed 020ó024 Open... -
Page 22: Dmx Values (Cont.)
Operation DMX Values (Cont.) 19CH Channel Function Value Percent/Setting (Cont.) 000ó004 Open 005ó009 Color 1 010ó014 Color 2 015ó019 Color 3 020ó024 Color 4 025ó029 Color 5 030ó034 Color 6 035ó039 Color 7 040ó044 Color 8 045ó049 Color 9 050ó054 Color 10 055ó059 Color 11... -
Page 23: Dmx Values (Cont.)
Operation DMX Values (Cont.) 19CH Channel Function Value Percent/Setting (Cont.) 000ó009 No function 010ó014 Blackout during pan/tilt (5 s activation delay) 015ó019 No function 020ó024 No function 025ó029 No function 030ó034 No function 035ó039 No function 040ó044 No function 045ó049 No function 050ó054 Pan reset (5 s activation delay) -
Page 24: Dmx Values (Cont.)
Operation DMX Values (Cont.) 15CH Channel Function Value Percent/Setting 000ó255 0–100% Fine Pan 000ó255 Fine control (16-bit) Tilt 000ó255 0–100% Fine Tilt 000ó255 Fine control (16-bit) Pan/Tilt Speed 000ó255 0–100% Dimmer 000ó255 0–100% Fine Dimmer 000ó255 Fine control (16-bit) 000ó019 Closed 020ó024 Open... -
Page 25: Dmx Values (Cont.)
Operation DMX Values (Cont.) 15CH Channel Function Value Percent/Setting (Cont.) 000ó004 Open 005ó009 Color 1 010ó014 Color 2 015ó019 Color 3 020ó024 Color 4 025ó029 Color 5 030ó034 Color 6 035ó039 Color 7 040ó044 Color 8 045ó049 Color 9 050ó054 Color 10 055ó059 Color 11... -
Page 26: Dmx Values (Cont.)
Operation DMX Values (Cont.) 15CH Channel Function Value Percent/Setting (Cont.) 000ó009 No function 010ó014 Blackout during pan/tilt (5 s activation delay) 015ó019 No function 020ó024 No function 025ó029 No function 030ó034 No function 035ó039 No function 040ó044 No function 045ó049 No function 050ó054 Pan reset (5 s activation delay) -
Page 27: Dmx Values (Cont.)
Operation DMX Values (Cont.) 14CH Channel Function Value Percent/Setting 000ó255 0–100% Fine Pan 000ó255 Fine control (16-bit) Tilt 000ó255 0–100% Fine Tilt 000ó255 Fine control (16-bit) Pan/Tilt Speed 000ó255 0–100% Dimmer 000ó255 0–100% 000ó019 Closed 020ó024 Open 025ó064 Fast to slow 065ó069 Open 070ó084... -
Page 28: Dmx Values (Cont.)
Operation DMX Values (Cont.) 14CH Channel Function Value Percent/Setting (Cont.) 000ó004 Open 005ó009 Color 1 010ó014 Color 2 015ó019 Color 3 020ó024 Color 4 025ó029 Color 5 030ó034 Color 6 035ó039 Color 7 040ó044 Color 8 045ó049 Color 9 050ó054 Color 10 055ó059 Color 11... -
Page 29: Dmx Values (Cont.)
Operation DMX Values (Cont.) 14CH Channel Function Value Percent/Setting (Cont.) 000ó009 No function 010ó014 Blackout during pan/tilt (5 s activation delay) 015ó019 No function 020ó024 No function 025ó029 No function 030ó034 No function 035ó039 No function 040ó044 No function 045ó049 No function 050ó054 Pan reset (5 s activation delay) -
Page 30: Technical Information
Technical Information 5. T ECHNICAL NFORMATION To maintain optimum performance and minimize wear, you should clean this product Product frequently. Usage and environment are contributing factors in determining the cleaning Maintenance frequency. As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 31: Technical Specifications
Technical Information 6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 7.36 in (187 mm) 10.43 in (265 mm) 13.94 in (354 mm) 13 lb (5.9 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection... -
Page 32: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number.
