- Page 2 STEP 13 System Inspection................. STEP 14 Beware of Moving Parts................ STEP 15 Integrated TV Installation..............STEP 16 How to Set the Number of Fitness Products per Pod......5. UNDERSTANDING THE G872 DISPLAY CONSOLE DISPLAY Specifications..................DISPLAY Overview....................DISPLAY Windows....................DISPLAY Keys......................
- Page 3 9. MAINTENANCE MAINTENANCE Stride Worm Gear Lubrication............ MAINTENANCE Messages................... MAINTENANCE Cleaning..................MAINTENANCE Disconnecting the Boost Converter Box........MAINTENANCE Schedule..................MAINTENANCE Task List (Elliptical Trainers)............MAINTENANCE One-Year Maintenance Log............10. BLOCK DIAGRAM....................11. GREEN SYSTEM SETUP INSPECTION CHECKLIST........12. GREEN SYSTEM CABLE CONNECTION ILLUSTRATION........
- Page 10 3. LIST OF PARTS Assembly Parts Name Qty No. Description Support tube, left Main frame and body Support tube, right Stationary handlebar Footplate Pedestal covers, left and right Joint cover, left Hardware kit Boost converter box Joint cover, right Right roller cover Boost converter box connection wire Left roller cover...
- Page 11 Parts in the Hardware Kit Specification Notes Name Mushroom top inner hex screw M10*P1.5*L25 Spring washer Washer D16*d1.0*t1.0 Stride adjustment linkage Hex nut M10*P1.5 ψ Stopper 30-30 Phillips screw M4*L12 L-shaped Allen wrench L-shaped Allen wrench T-shaped Allen wrench Double open-end wrench (8*17) (14*15) Double open-end wrench...
- Page 18 STEP 7 Move the Product into Place (a) For one person: Grip the front base of the product and lift upward, then push the product into location for use. Be careful to avoid pinching fingers when setting the product down. (b) For two people: Have one person grip the front base of the product while the other person grips the support tubes (A8, A9).
- Page 20 STEP 9 Install the Boost Converter Box Note: A ground wire and the following instructions are required by European safety standards. The ground wire is not required by North American safety standards. To avoid electric shock and current leakage, this product has an exterior ground wire. For your safety, connect this ground wire to the unit and to the building ground.
- Page 24 STEP 11 Connect Inverter (Continued) Connect other fitness products in a similar fashion, one by one, starting always with the product closest to the inverter. On the last unit in the line, on the side that is not connected, do not remove the protective cover on the boost converter. For instructions on connecting boost converters to their associated fitness products, please refer to the fitness product installation manual.
- Page 29 STEP 16 How to Set the Number of Fitness Products per Pod Upon setup, the number of fitness products per pod must be entered into the memory of each product. If this is not done properly, the inverter might get overloaded and its fuse might break.
- Page 30 3. The previous (or default) value for the number of units in the pod will appear in the setting value screen, and the following message will appear in the dot matrix screen: “ENTER NUMBER OF CARDIO PRODUCTS CONNECTED”. a. Press ＜▲/▼＞ keys or numeric keys (0 through 9) to input the number of products in the pod.
- Page 34 CARDIO - A heart rate control program, the cardio conditioning workout is designed to keep your pulse at the optimum rate for cardio conditioning. Resistance settings change automatically to maintain a target heart rate as calculated by the formula (220-AGE)*0.8. CUSTOM HR - This heart rate control program allows you to set your own target heart rate.
- Page 36 MESSAGE SCREEN The message screen shows workout feedback in two rows. Press the CHANGE DISPLAY key to toggle between either the top or bottom row of workout feedback. The LED in front of the activated row of feedback will light up. When the SCAN LED is lit, the active row of workout feedback changes every six seconds.

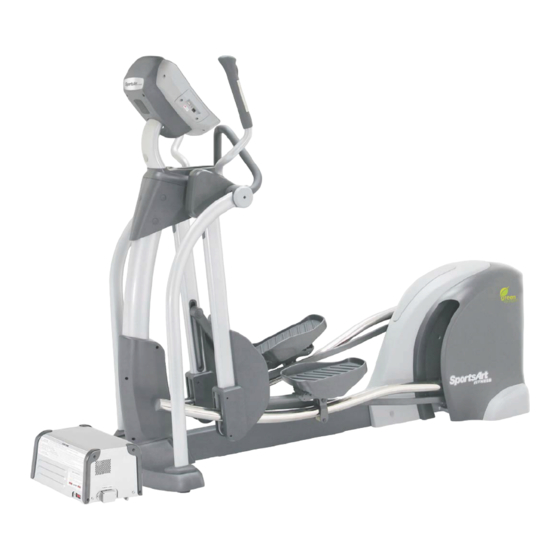

- Page 37 6. OPERATING THE G872 ELLIPTICAL TRAINER There are three ways to activate this product, either by exercising on the product, or by pressing the QUICK START key, or by pressing a workout program key. If you exercising on the product without touching any keys, within two seconds, the...
- Page 39 2B. DISTANCE After selecting distance as the workout goal, use ＜▲/▼＞ keys in the setting area or numeric keys (0-9) to establish a workout distance value. Use the ＜．＞ key to enter decimal points, such as 12.5 or 0.25. Press the ENTER key to confirm your setting and proceed to set the age value.
- Page 45 VARI-STRIDE This workout program automatically adjusts stride length over 40 segments. Unlike other workout programs, the goal of the VARI-STRIDE program is always one of three time lengths. After you press the VARI-STRIDE key, the TIME LED will light up. Follow prompts on the display to enter your age and weight values.
- Page 46 If no keys are pressed within six seconds, the message screen will show the following message for two seconds: P R E S S E N T E R Press the ENTER key to confirm your selection. Notes: ˙While you press ＜▲/▼＞...
- Page 47 The preset workout illustration appears as follows: ˙ The first row (bottom) represents stride lengths of 17, 18, 19 inches or 450, 470, 500 mm. ˙The second row represents stride lengths of 20 and 21 inches or 520 and 540 mm. ˙The third row represents stride lengths of 22 and 23 inches or 570 and 590 mm.
- Page 51 Likewise, the first time that a work segment transitions to a rest segment, the display will beep once, and the following message will appear for two seconds: At subsequent segment transitions, these messages will not appear on the display; the display will only beep once to indicate the change of a segment. When entering the interval program from another program, the following message will appear for two seconds: Each time the INTERVAL key is pressed, interval programs appear in the following...
- Page 56 Display and drive board version numbers can also be viewed. To accomplish any of these tasks, at the startup banner screen (as "G872" appears on the screen), hold the ENTER key for three seconds. User preference mode will be activated.
- Page 57 Notes about operating the product while total distance is visible: ˙If no keys are pressed within six seconds, "PRESS UP/DN TO SELECT UNIT OR ENTER" will appear on the message screen. ˙To clear total distance memory, press the CLEAR key for three seconds. "DIST-0 KM"...
- Page 58 7. ABOUT HEART RATE DETECTION AND PRESENTATION Heart rate detection functions are selected when the distributor orders from the SportsArt factory. Not every product comes equipped with all types of heart rate detection. If your product is equipped with these functions, please note the following information. HEART RATE Telemetry The word "telemetry"...
- Page 59 NOTE: TO PREVENT STATIC ELECTICAL SHOCKS In dry areas in particular, static electricity can interfere with unit operation and shock people. Suggestion: Before touching metal parts of the product, first touch a material with electrically isolative properties, such as the plastic on the handlebars. CAUTION: Heart rate detection and signal transmission devices have been known to interfere with the operation of pacemakers, possibly endangering human life.
- Page 63 MAINTENANCE Messages MESSAGES This product can show the following messages. ERR7 This message indicates that there is a stride system calibration error. Either the stride adjustment motor VR requires calibration, or the stride motor must be replaced. Other possible reasons for such an error include disconnected stride motor wiring and a drive or display board malfunction.
- Page 67 MAINTENANCE Task List (Elliptical Trainers) Like cars, fitness products require maintenance. Regular maintenance extends product life, and failure to maintain products can void the manufacturer's warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.
- Page 73 Item 5. Does the number of fitness products in the pod match the Completed software setting for the number of fitness products in the pod? Enter the procedure to establish the number of products in the pod. Inspect whether this setting matches the actual number of products in the pod.
