E875 OWNER'S MANUAL CONTENTS
1. INTRODUCTION ..............................................................................
2. SAFETY PRECAUTIONS ................................................................
3. LIST OF PARTS ...............................................................................
4. ASSEMBLE THE PRODUCT ..........................................................
STEP 1 Secure the Pedestal................................................................
STEP 2 Install the Moving Parts ..........................................................
STEP 3 Install the Supports ................................................................
STEP 4 Install the Stationary Handlebars ..........................................
STEP 5 Install the Stoppers and Covers .............................................
STEP 6 Install the Footplates ..............................................................
STEP 7 Move the Product into Place ..................................................
STEP 8 Level the Product ..................................................................
STEP 9 Ground Wire Installations ......................................................
STEP 10 Beware of Moving Parts ........................................................ 19
5. UNDERSTAND THE E875 DISPLAY ..............................................
DISPLAY Overview ..............................................................................
DISPLAY Specifications .......................................................................
DISPLAY Windows ............................................................................... 21
DISPLAY Keys ...................................................................................... 21
6. OPERATE THE PRODUCT .............................................................
OPERATION Quick Start .....................................................................
OPERATION Start a Workout Program ...............................................
OPERATION Display ...........................................................................
OPERATION Cool Down .....................................................................
OPERATION Workout Programs .........................................................
7. ABOUT HEART RATE DETECTION ................................................
HEART RATE Telemetry ......................................................................
HEART RATE Contact .........................................................................
8. GUIDELINES FOR EXERCISE .......................................................
9. ACCESSORIES ...............................................................................
ACCESSORIES Entertainment Cap ....................................................
10. MAINTENANCE .............................................................................
MAINTENANCE Messages .................................................................. 33
MAINTENANCE Lubrication ................................................................
MAINTENANCE Lubrication Procedure...............................................
MAINTENANCE Cleaning the Glide Rails ...........................................
MAINTENANCE Schedule ...................................................................
MAINTENANCE Task List (Elliptical Trainers) .....................................
MAINTENANCE One-Year Maintenance Log ......................................
MAINTENANCE Electronics Block Diagram ........................................
2
3
7
9
9
11
12
13
14
15
16
17
18
20
20
21
23
23
23
24
25
25
28
29
29
29
30
31
32
33
33
34
35
36
37
38
39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E875 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SportsArt Fitness E875

  • Page 1: Table Of Contents

    STEP 7 Move the Product into Place ..........STEP 8 Level the Product ..............STEP 9 Ground Wire Installations ............STEP 10 Beware of Moving Parts ............19 5. UNDERSTAND THE E875 DISPLAY ..........DISPLAY Overview ................DISPLAY Specifications ............... DISPLAY Windows ................21 DISPLAY Keys ..................
  • Page 2: Introduction

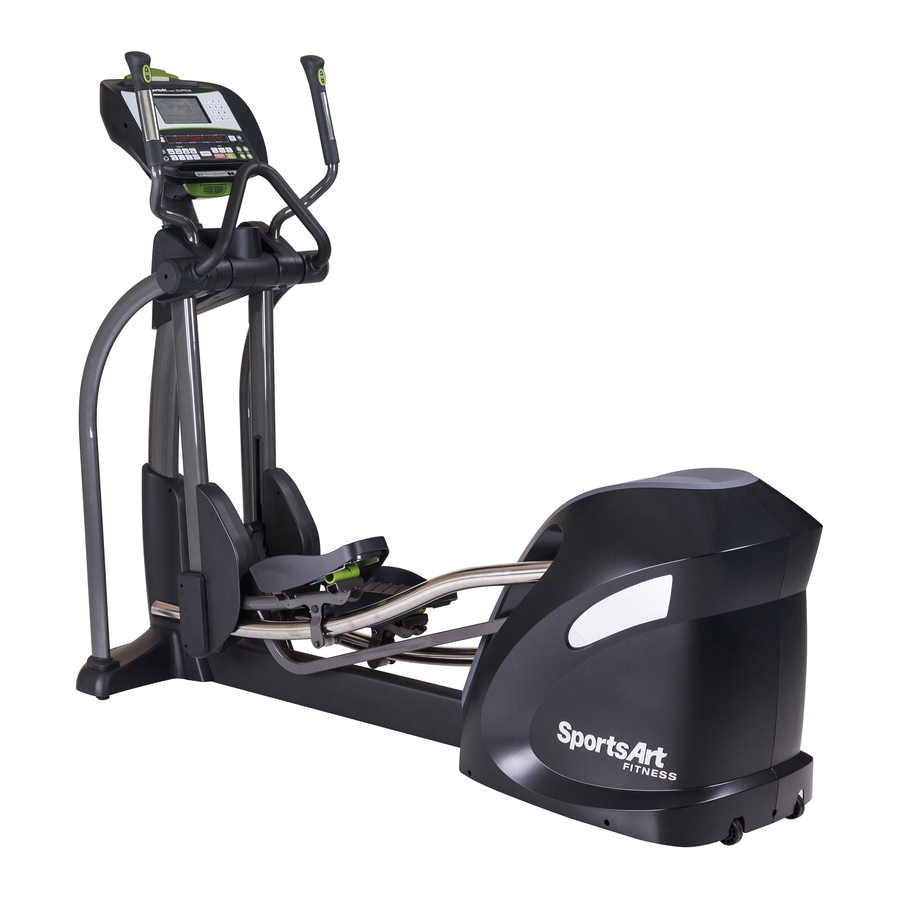

    1. INTRODUCTION Congratulations on your purchase of one of the finest exercise products on the market today, the SportsArt E875 Elliptical trainer. Constructed of high quality materials and designed for years of reliable usage, this product was made to become an integral part of your commercial fitness venue.
  • Page 3: Safety Precautions

    2. SAfETy PRECAUTIONS Your SportsArt elliptical trainer was designed and built for optimum safety. However certain precautions apply whenever you use your elliptical trainer. Please read the entire manual before assembly and operation. Also, please note the following safety precautions: ●...
  • Page 4 2. SAfETy PRECAUTIONS (CONTINUED) Caution If you feel any pain or abnormal sensation, STOP YOUR WORKOUT and consult your physician immediately. Work within your recommended exer- cise level. DO NOT work to exhaustion. Before beginning any exercise program, you should consult with your doc- tor.
  • Page 5 2. CONSIgNES DE SéCURITé...
  • Page 6 2. CONSIgNES DE SéCURITé (SUITE)
  • Page 7: List Of Parts

    3. LIST Of PARTS Assembly Parts Qty. No. Qty. Name Name Main frame Left roller cover Stationary handlebar Support tube, left Pedestal covers, left Support tube, right and right Joint cover, left A10 Foot pedals Joint cover, right A11 Hardware kit Rear roller cover...
  • Page 8 Components in the Hardware Kit Name Qty. Specification Notes Mushroom top inner hex screw M10*P1.5*L25 Spring washer Washer D21*d10.5*t1.5 Stride adjustment linkage cover Hex nut M10*P1.5 Stopper 30-30 Round head phillips screw M4*L12 Secondary roller bolt D9.96*L67 Self-lubricating bushing Secondary roller D58*t23 L-shaped Allen wrench L-shaped Allen wrench...
  • Page 9: Assemble The Product

    4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product.
  • Page 10 STEP 2 Install the Moving Parts Follow instructions (a) through (e) to install the moving parts. (a) Remove screws (21) from the stride arm attached to the main frame (A1). (b) Once slip the glide rail into (Part A), then place the pedal carriage lightly on the glide rail support.
  • Page 11: Step 2 Install The Moving Parts

    STEP 2 Install the Moving Parts (Continued) (d) Separate the roller covers (A7). Snap them together into place on the product. The secure them with screws (21). (e) On the left side of the product, remove the screw (22) from the stride adjustment linkage.
  • Page 12: Step 3 Install The Supports

    STEP 3 Install the Supports Follow steps (a) through (c) to secure the support tubes. (a) Remove support tube screws (23)(24) from the main frame (A1). (b) Insert left and right support tubes (A8,A9) onto the axle area and base, and loosely secure them into place with screws (23,24).
  • Page 13: Step 4 Install The Stationary Handlebars

    STEP 4 Install the Stationary Handlebars Follow instructions (a) through (c) to install the handlebars. (a) First, please remove screws (25) from the left and right support tubes (A8) (A9), then attach the stationary handlebar to the main frame and use screws (25) to secure the assembly shown in area (A).
  • Page 14: Step 5 Install The Stoppers And Covers

    STEP 5 Install Stoppers and Covers Follow steps (a) through (c) to install glide rail stoppers and covers. (a) Screw stoppers (12) into place on both glide rails. (b) Remove screws (27) from the main frame (A1). (c) Snap pedestal covers (A3) together on the unit. Loosely secure screws (27), followed by screws (13).
  • Page 15: Step 6 Install The Footplates

    STEP 6 Install the footplates Follow steps (a) through (d) to install footplates. (a) Remove screws (28) from the pedal carriage as shown. (b) Detach and lift the front and back part of the footplate cushion without detaching the center Area (A). Use screws (28) to secure the footplate onto its mount on the pedal carriage.
  • Page 16: Step 7 Move The Product Into Place

    STEP 7 Move the Product into Place There are two techniques for moving this product. (a) One person: Grip the front base of the product and lift upward, then push the product into location for use. Be careful to avoid pinching fingers when setting the product down.
  • Page 17: Step 8 Level The Product

    STEP 8 Level the Product For the user’s safety and the proper functioning of the product, this elliptical trainer must sit level on a flat floor. If necessary, adjust the levelers by following instructions (a) through (c) below. (a) Loosen the leveler nut. (b) Rotate the leveler foot downward so it firmly touches the floor.
  • Page 18: Step 9 Ground Wire Installations

    STEP 9 ground Wire Installation Note: A ground wire and the following instructions are required by European safety standards. The ground wire is not required by North American safety standards. To avoid electric shock and current leakage, this product has an exterior ground wire.
  • Page 19: Step 10 Beware Of Moving Parts

    STEP 10 Beware of Moving Parts This product has moving parts that could be a danger to people and animals. During use, do not insert hands or other objects into the stride adjustment slot, the opening in the rear cover, or other areas in which such action might present a hazard.
  • Page 20: Understand The E875 Display

    5. UNDERSTAND THE E875 DISPLAy DISPLAy Overview The E875 elliptical trainer is designed for user convenience. With better feedback about your workout, you get better results. The following explains the display key and window functions. Please read this manual, understand the display functions, and thereby get optimum enjoyment and benefit from this product.
  • Page 21: Display Specifications

    DISPLAy Specifications ● Workout level (resistance level): 1 - 40 ● Time: 0:00 - 300:00 ● Distance: 0.00 - 9999 km or mile ● Calories: 0.0 - 9999 kcal ● Heart Rate range: 40 -250bpm ● Stride per minute (SPM): 5 – 120 (Range shown) ●...
  • Page 22 DISPLAy Keys (Continued) VARI-STRIDE – This workout program automatically changes stride. Exercisers can select maximum stride. fIT TEST – Press this key to enter a FIT TEST program and start the fitness test. CUSTOM HR – This heart rate control program allows you to set your own target heart rate.
  • Page 23: Operate The Product

    DISPLAy Keys (Continued) CHANgE DISPLAy – This key controls the exercise feedback window, which has two rows: The top row shows CALORIES, LEVEL, TIME, DISTANCE; the bottom row shows STRIDES/MIN, STRIDE LENGTH, TOTAL STRIDES, HUMAN WATTS. Corresponding LEDs light to indicate the active row of exercise feedback. Press the CHANGE DISPLAY key to toggle between top and bottom feedback row views.
  • Page 24: Operation Display

    OPERATION Start a Workout Program (Continued) setting and proceed to input your age. Or press QUICK START key to start this program right away with default age and weight. ● The DISTANCE setting range is from 0.1 to 99.9 miles or kilometers, with a default value 2.0 miles (3.0 kilometers).
  • Page 25: Operation Cool Down

    OPERATION Display (Continued) ● Switch program is not allowed during FIT TEST program. OPERATION Cool Down Once the workout goal (time, distance, or calorie expenditure) has been obtained, the product will enter a two-minute cool down period. The display will count down from two to zero. When the countdown reaches zero, the cool down period will end.
  • Page 26 OPERATION Workout Programs (Continued) RANDOM This program provides a near infinite number of randomly generated workouts. A new workout illustration appears each time the RANDOM key is pressed. VARI-STRIDE In this program, stride length changes automatically during a 20-minute, 30-minute, or 40-minute workout session.
  • Page 27 OPERATION Workout Programs (Continued) The message will display “END OF FIT TEST” and “YOUR SCORE - XXX”. (The max score is 100 and min is 0) CARDIO/WEIgHT LOSS/CUSTOM HR In these heart rate control programs, the resistance level will automatically change to keep the exerciser’s pulse at the optimum rate for achieving his or her fitness goals.
  • Page 28: Operation User Preferences And Component Versions

    OPERATION User Preferences and Component Versions Basic settings determine units of measure and show total distance and time, along with display and drive board program version numbers. To access this information, at the startup banner screen, hold the CHANGE DISPLAY key for two seconds.
  • Page 29: About Heart Rate Detection

    7. ABOUT HEART RATE DETECTION Heart rate detection functions are selected at the time of purchase. Not every product has every type of heart rate detection. The following explains factors that influence the performance of two of the most common types of heart rate detection devices.
  • Page 30: Guidelines For Exercise

    Note that in dry areas in particular, static electricity can interfere with unit operation and shock people. To discharge static electricity from your body, touch something else before touching metal on the product. 8. gUIDELINES fOR EXERCISE HOW HARD SHOULD I EXERCISE? Studies show that to benefit from aerobic exercise, people need to maintain a certain heart rate during their workouts.
  • Page 31: Accessories

    9. ACCESSORIES There are accessories attached to this console; some are standard and some are optional. The following explains the details of each accessory and its function. USB CHARgER (Standard) The USB charger will provide 5V 500mA voltage for the smart phone or other devices charging.
  • Page 32: Accessories Entertainment Cap

    9. ACCESSORIES (CONTINUED) Entertainment Cap The functions of the Entertainment Cap of the display: (a) RFID member card slot: work with both optional SAFitDirector and ECOFIT member cards. (b) Bluetooth connection button: press this button to pair or unpair the smart phone SAFitDirector App.
  • Page 33: Maintenance

    10. MAINTENANCE Maintenance topics are presented below in the following order: error messages, lubrication of the shoulder area, lubrication of the stride area, glide rail cleaning, maintenance schedule, task list, one-year maintenance log, and electronics block diagram. MAINTENANCE Messages The following messageS can appear on this product for diagnostic purposes. NO STRIDE ADJUST UNDER 25SPM - Indication: stride length can not be adjusted due to speed is under 25SPM.
  • Page 34: Maintenance Lubrication Procedure

    MAINTENANCE Lubrication Procedure Please follow instructions (a) through (h) to lubricate the product. (a) Remove the cap that covers the lubrication hole. (b) Use an automobile grease gun to apply red lithium bearing grease into the nozzle on the product. (c) After applying lubricant, detach and remove the grease gun.
  • Page 35: Maintenance Cleaning The Glide Rails

    MAINTENANCE Cleaning the glide Rails Clean the both left and right glide rails daily as follows: (a) Use a clean, lint-free cloth to wipe dust and debris off the glide rails. (b) Operate the product to inspect it and to determine where dirt might remain on the glide rails.
  • Page 36: Maintenance Schedule

    MAINTENANCE Schedule Area Week Month Quarter year Notes Exterior Clean Inspect and Screws secure loose parts Glide Wipe away dirt rail and debris. Apply silicone Rollers lubricant. Stride Apply bearing motor grease. Lubricate with Cushion original 66A lubricant.
  • Page 37: Maintenance Task List (Elliptical Trainers)

    MAINTENANCE Task List (Elliptical Trainers) Like cars, fitness products require maintenance. Regular maintenance extends product life, and failure to maintain products can void the manufacturer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.
  • Page 38: Maintenance One-Year Maintenance Log

    MAINTENANCE One-year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28...
  • Page 39: Maintenance Electronics Block Diagram

    Workout Level Switch HTR Board Stride length Switch iPod Audio Board Head Phone Board Contact HTR plates [Option] Stepper Motor Model No. Board Speed Sensor E875 Drive Board Fuse Electro-magnet ○ - Generator ○ + Battery DC Adaptor Jack :Connector :Converge...
