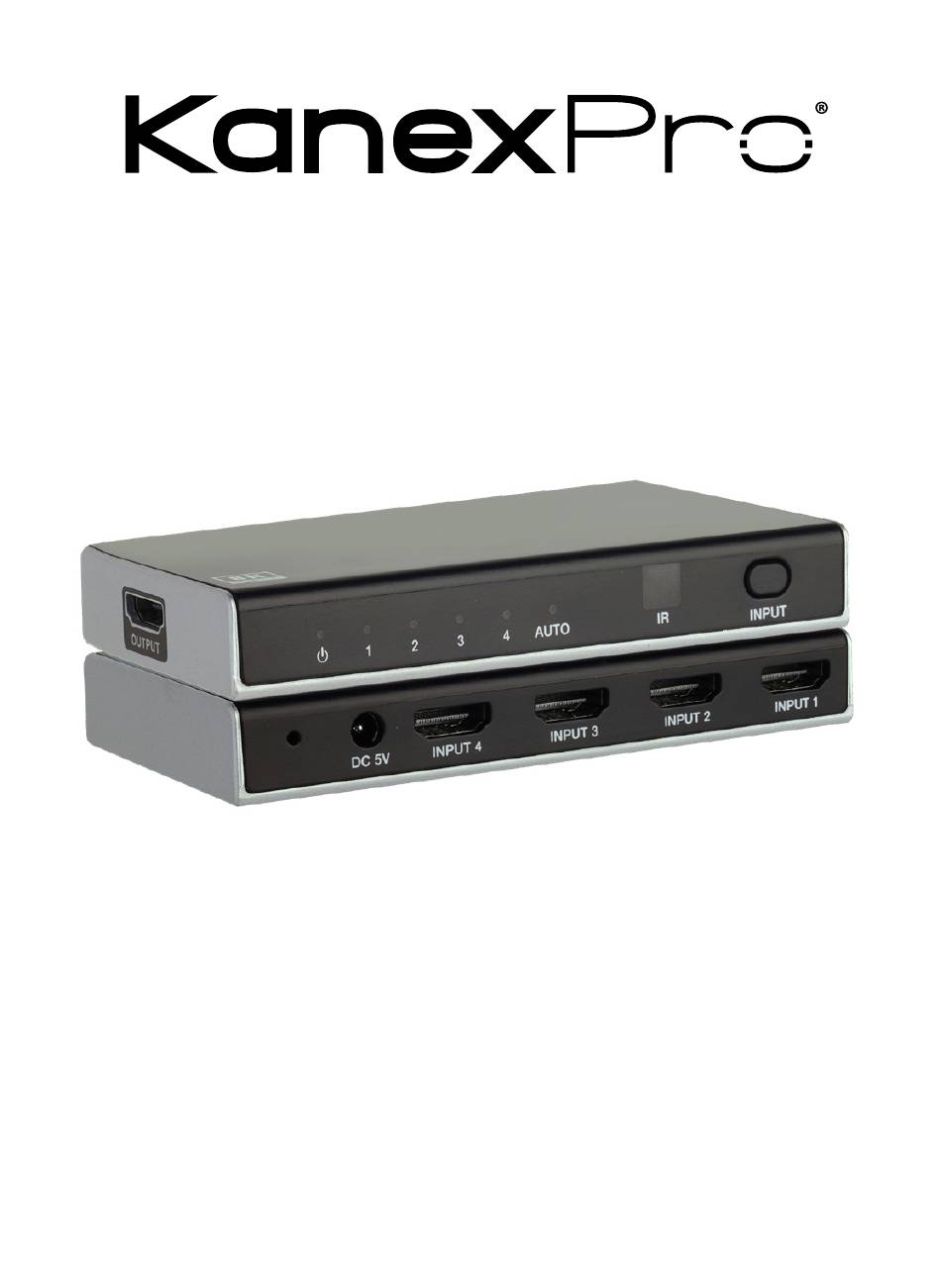

- Page 1 8K HDMI 4x1 Switcher MPN: SW-4X18K VER. 1...
-
Page 2: Table Of Contents
Thank you for purchasing this product To ensure optimal performance and safety, it is essential to carefully read the instructions before connecting, operating, or adjusting this product. We recommend keeping this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The 8K HDMI 4x1 Switcher is a device designed to switch between four HDMI sources and display them on a single HDMI display. It supports video resolutions up to 8K at 60Hz and 4:4:4 with 48Gbps video bandwidth, mak - ing it suitable for outdoor displays, video conferencing, security monitoring, home theaters, and other applications. -
Page 4: Package Contents
3. Package Contents 1 x 8K HDMI 4x1 switcher 1 x IR Remote 1 x 5V/1A Power Supply 1 x User Manual Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Video Resolution Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit Color Depth... - Page 5 Dimensions 122mm (W) x 65mm (D) x 19mm (H) Weight Input: AC100 - 240V 50/60Hz, Output: DC Power Supply 5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 3.4W (Max) Operation 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing)
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions Front Panel Rear Panel Side Panel... -
Page 7: Power Led
Name Function Description POWER LED The power LED lights in green when the device is working. INPUT LED When the INPUT 1/2/3/4 port is selected as the (1~4) signal source input channel, the corresponding white LED will be on. AUTO LED When the auto switching mode is enabled, the corresponding white LED will be on. -
Page 8: Ir Remote
6. IR Remote IN1/2/3/4 : Press IN1/2/3/4 button to select HDMI signal source INPUT 1/2/3/4 to the OUTPUT port. : Press this button to circularly switch HDMI signal source INPUT 1/2/3/4 to the OUTPUT port. -
Page 9: Application Example
6. Application Example...
