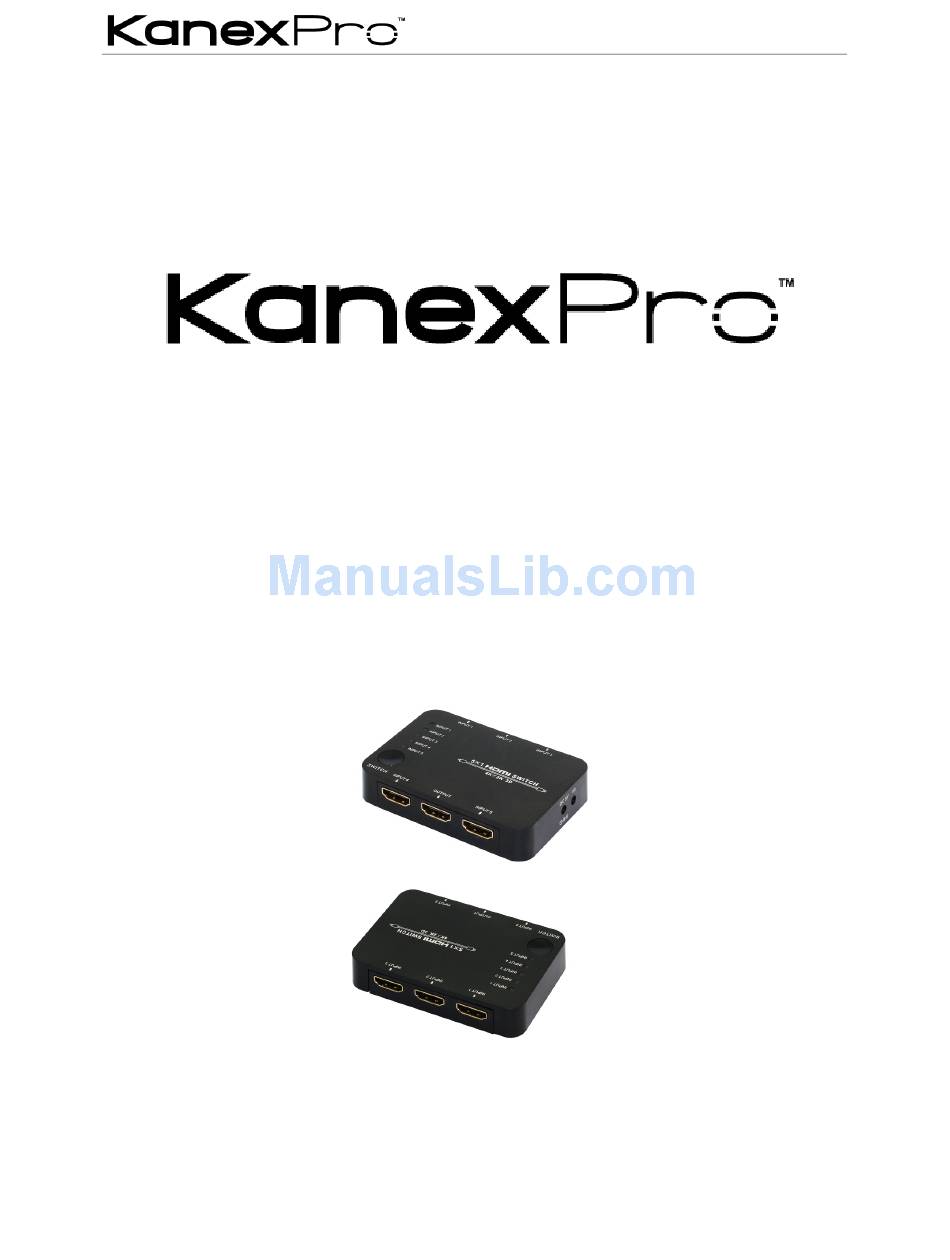

- Page 1 SW-HD5X14K SW-HD5X14K 5x1 HDMI Switcher with 4K Support ...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ..........................1 1.1. Introduction to SW-HD5X14K ..................1 1.2. Features ........................1 1.3. Package Contents ....................... 1 1.4. Specifications ......................2 1.5. 5X1 Switch Operation controls and functions .............. 3 1.6. Application Example ....................5 1.7. -
Page 3: Introduction

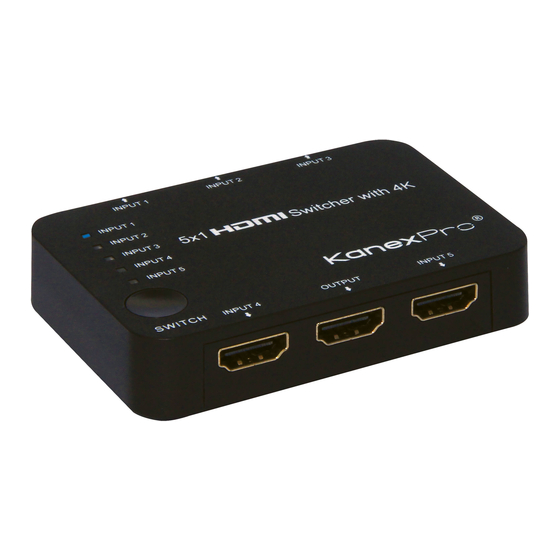

1. Introduction 1.1. Introduction to SW-HD5X14K The KanexPro 5x1 HDMI Switcher is a compact five input to one output switch providing 4K ultra-HD resolutions. It is a nippy switcher designed to connect five HDMI sources such as Apple TV, Blu-ray, PS4 or Xbox one to your 4K, HDTV or a projector. Perfect for home theater and pro-sumers looking to connect HDMI based devices to an Ultra-HDTV. -
Page 4: Specifications
SW-HD5X14K 1.4. Specifications Signal Input/Outputs: § Input DDC Signal: 5 Volts p-p (TTL) § Input & Output Signal: High Speed HDMI Spec 1.4a Operating Frequency: Vertical Frequency Range: 50/60Hz Video Amplifier Bandwidth: 2.95 Gbps per Channel Resolutions: §... -
Page 5: 5X1 Switch Operation Controls And Functions
SW-HD5X14K 1.5. 5X1 Switch Operation controls and functions ① Face Panel: Switch button, press this button to switch the input source ②③④⑤⑥ LED indicator; indicates the HDMI input port selected corresponding to the LED light ... - Page 6 SW-HD5X14K ① ② ③ Rear Panel: HDMI input ports, connect with Blu-ray Player, PS4, Cable Box, Laptop, and Xbox One with HDMI cables ① ② Right Panel: DC 5V input port; IR receiver port: connect an IR extension cable and receive the IR Remote Signal ...
-
Page 7: Application Example
SW-HD5X14K 1.6. Application Example (5X1 Switch) 5 ... -
Page 8: Remote Control Functions
SW-HD5X14K 1.7. Remote Control Functions ① IN1, IN2, IN3, IN4, & IN5: Press any of these buttons to force switch the input port. The LED light will indicate the corresponding input source. : Press this button to cycle switch between the input source(s). The LED light will indicate the corresponding input source. -
Page 9: Warranty
Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
