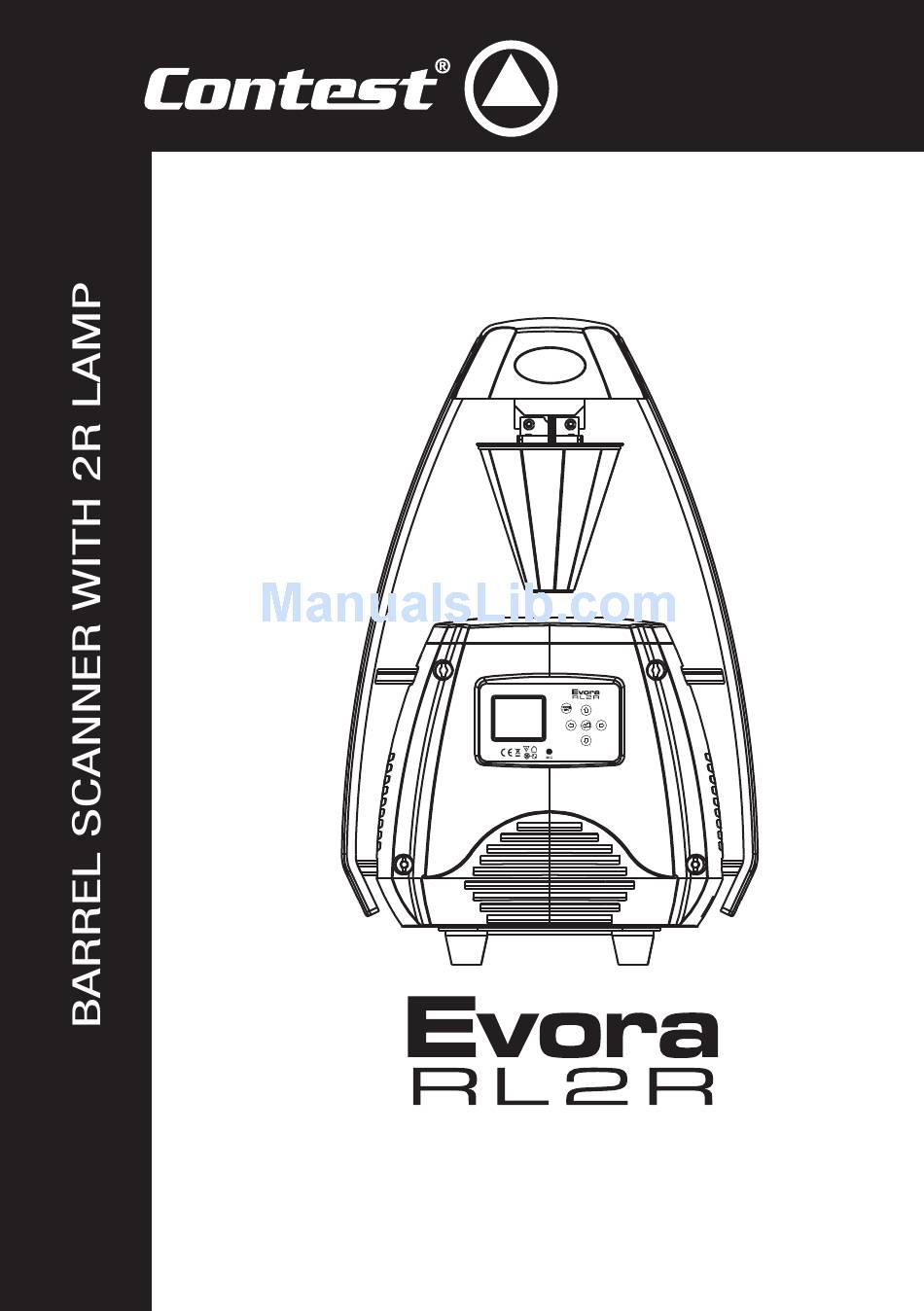

- Page 1 USER GUIDE 10215 - Juillet 2014 Version 1...
- Page 2 Evora-RL2R - Barrel scanner with 2R lamp English Page 2...
-
Page 3: Important Safety Information
In order to avoid any electrical malfunction, please do not use any multi-socket, power cord extension or connecting system without Any maintenance procedure must be performed by a CONTEST making sure they are perfectly isolated and present no defect. authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. -
Page 4: Technical Specifications
Evora-RL2R - Barrel scanner with 2R lamp English 2 - Introduction Thank you for purchasing the Evora-RL2R moving head. You now have in your possession a high-quality, powerful and intelligent device absolutely perfect for parties, animations, live events... 3 - Technical specifications Light source ©... - Page 5 Evora-RL2R - Barrel scanner with 2R lamp English 4 - Description 1 - Barrel mirror 2 - Lens 3 - Display Allows you to visualise menus. 4 - MIC Used for music-sensitive modes. 5 - MODE/ESC button Enters/leaves menus. Allows you to browse through menus and change values. Navigation button Allow you to browse through menus and change values.
-
Page 6: Replacing The Lamp
Evora-RL2R - Barrel scanner with 2R lamp English 5 - Replacing the lamp Please unplug the device and wait at let it Any damaged or disformed lamp must be cool down for at least 1 hour before trying replaced. to replace the lamp. This unit was designed to use a PHILIPS™... - Page 7 Evora-RL2R - Barrel scanner with 2R lamp English 6 - Cabling, addressing and daisy chaining Connecting the DMX remote control : Connect the female plug of your XLR cable to your DMX remote control XLR output, then connect your cable male output to the moving head.
- Page 8 Evora-RL2R - Barrel scanner with 2R lamp English 7 - Menus The Evora-RL2R features many menus allowing you to configure its every move and function. Press MODE / ESC to access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu. Use the navigation keys to change values.
- Page 9 Evora-RL2R - Barrel scanner with 2R lamp English 7.2 INFORMATION This menu allows you to visualise the moving head running time, its temperature, and the current version of the internal software. Submenus Values Description Current Time Current running time since the unit was last switched on. Overall running time since the very first time the device Total Run Time was switched on.
- Page 10 Evora-RL2R - Barrel scanner with 2R lamp English 7.4 PERSONALITY This menu allows you to configure the moving head reactions, adjust the ventilation, customise the display and reset all functions to factory settings. Submenus Lower-level menus Values Description Address via DMX ON/OFF Activates addressing via a DMX controller.
- Page 11 Evora-RL2R - Barrel scanner with 2R lamp English Timer after which the display shuts off when it Shutoff time 02 ~60m (05m) remains inactive. Display Reverse ON/OFF Rotates the display on a 180° angle Display setting Locks the keyboard when it remains inactive for more than 15 seconds.
- Page 12 Evora-RL2R - Barrel scanner with 2R lamp English 7.6 Effect Adjust This menu allows you to test and manually control each function, and recalibrate PAN and TILT movements. Submenus Values Description AUTO Test Channel Tests each function individually..etc AUTO = XXX Manual Control PAN = XXX...
- Page 13 Evora-RL2R - Barrel scanner with 2R lamp English Editing user mode A : - Max Channel is the number of channels used. Max Channel = XX - PAN = CHXX is the channel assigned to the PAN function. Edit User mode A PAN = CHXX As a channel cannot remain empty, when a function is ...etc...
- Page 14 Evora-RL2R - Barrel scanner with 2R lamp English This submenu allows you to edit one of the 250 scenes. • Auto Program, Select a scene and press ENTER. PAN, TILT Fine, Scene 1 Sélect each function (PAN, TILT, ...etc) and press ENTER, then Scene 2 assign a value included between 000 and 255 to each function.
- Page 15 Evora-RL2R - Barrel scanner with 2R lamp English 8 - DMX channels and their functions The Evora-RL2R moving head includes 3 preset DMX modes : The Basic mode features 11 channels, the Standard mode features 13 channels and the Expert mode features 18 channels.
- Page 16 Evora-RL2R - Barrel scanner with 2R lamp English 120 - 126 Gobo 1 Shake effect 127 - 133 Gobo 2 Shake effect 134 - 140 Gobo 3 Shake effect 141 - 147 Gobo 4 Shake effect 148 - 154 Gobo 5 Shake effect 155 - 161 Gobo 6 Shake effect 162 - 168...
- Page 17 Evora-RL2R - Barrel scanner with 2R lamp English 216 - 223 Macro 12 224 - 231 Macro 13 232 - 239 Macro 14 240 - 247 Macro 15 248 - 255 Macro 16 Prism rotation 000 - 127 Prism indexing 128 - 189 Clockwise fast to slow prism rotation 190 - 193...
-
Page 18: Error Messages
Problems might also come from a defective motor or the motor electronic management. In any case, please write down the error displayed and contact your retailer to launch a maintenance procedure. Do NOT attempt to repair it by yourself as only Contest-approved technicians are allowed to perform maintenance operations. Page 18... - Page 19 Evora-RL2R - Barrel scanner with 2R lamp English 11 - Photometric datas Intensité (lux) 42480 18690 10390 4° Distance (m) Diamètre (m) Ø 0,63 Ø 0,93 Ø 1,23 12 - Dimensions Page 19...
- Page 20 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
