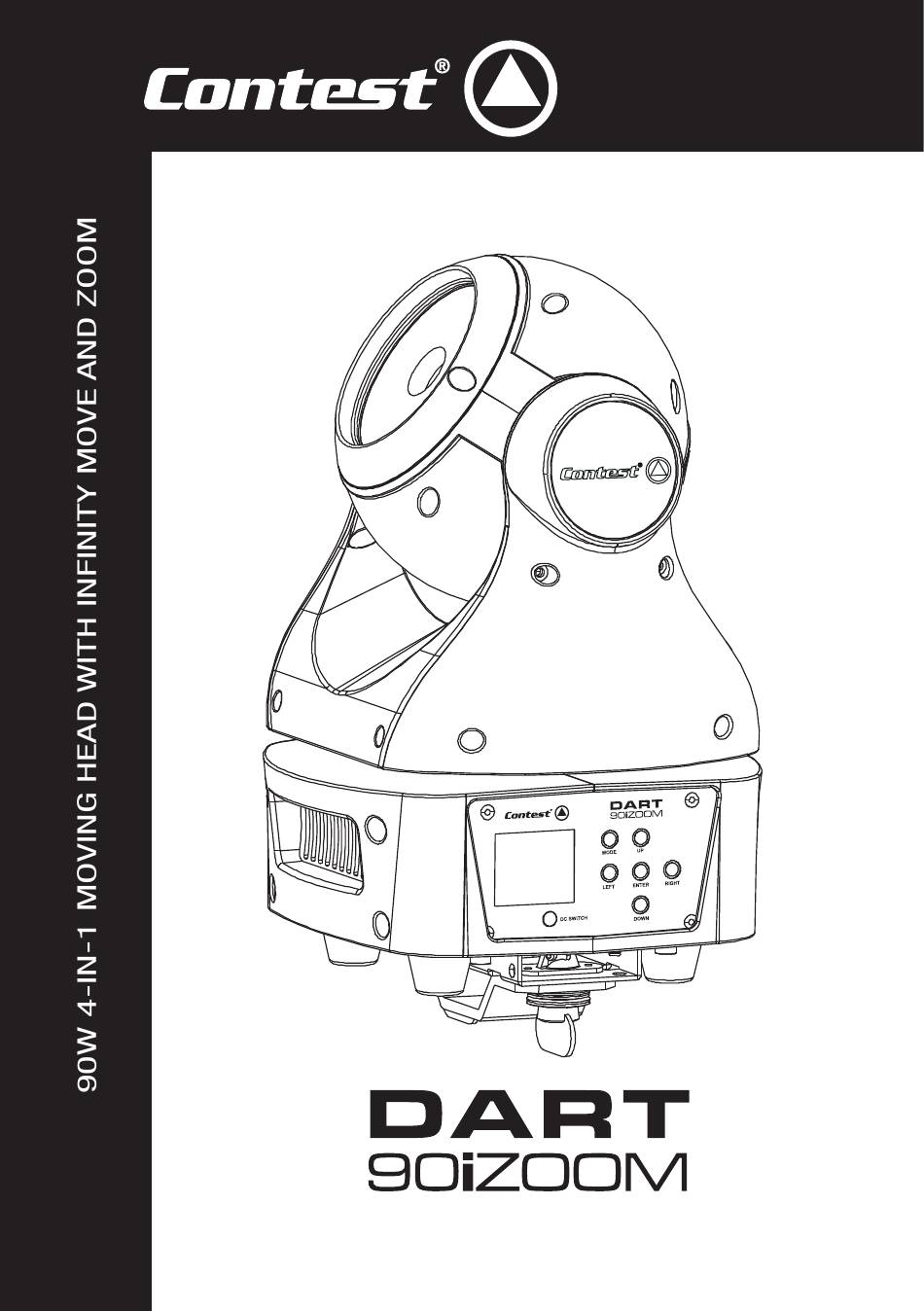

- Page 1 USER GUIDE 10594 - Version 1 / 06-2016...
-
Page 2: Important Safety Information
WARNING: This unit contains no user-serviceable parts. Do not open the housing or attempt Any maintenance procedure must be performed by a CONTEST authorised any maintenance by yourself. In the unlikely even your unit may require service, please contact technical service. Basic cleaning operations must thoroughly follow our safety your nearest dealer. -
Page 3: Technical Specifications

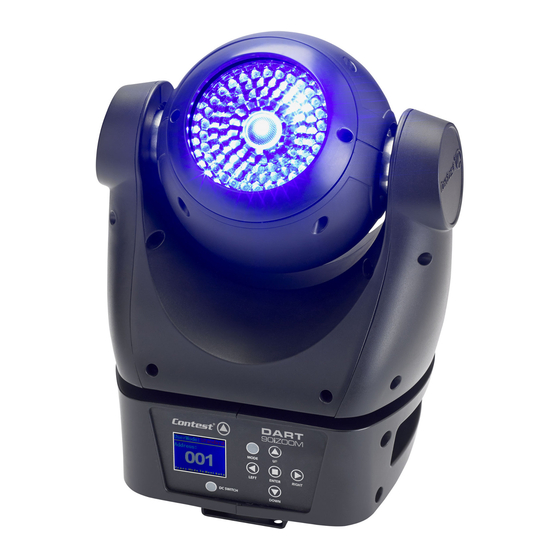

DART90iZoom - 90W 4-in-1 beam moving head with infinity move and Zoom English 2 - Introduction Thank you for purchasing the DART90iZOOM moving head. You now have in your possession a high-quality, powerful and intelligent device absolutely perfect for parties, animations, live events... 3 - Technical specifications Light source •... - Page 4 DART90iZOOM - 90W 4-in-1 beam moving head with infinity move and Zoom English 4 - Description 1 - Lens 2 - Display Allows you to visualise menus. 3 - DC SWITCH button Switches the menu on when the moving head is not plugged in. 4 - ENTER button Selects functions and saves changes.
- Page 5 DART90iZoom - 90W 4-in-1 beam moving head with infinity move and Zoom English 5 - Cabling, addressing and daisy chaining Connecting the DMX remote control : Connect the female plug of your XLR cable to your DMX remote control XLR output, then connect your cable male output to the moving head.
- Page 6 DART90iZOOM - 90W 4-in-1 beam moving head with infinity move and Zoom English 6 - Menus The DART90iZOOM features many menus allowing you to configure its every move and function. Press MODE to access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu. Use the navigation keys to change values.
- Page 7 DART90iZoom - 90W 4-in-1 beam moving head with infinity move and Zoom English 6.2 INFORMATION This menu allows you to visualise the moving head running time, its temperature, and the current version of the internal software. Submenus Lower menus Values Description Current XXXX (hours)
- Page 8 DART90iZOOM - 90W 4-in-1 beam moving head with infinity move and Zoom English 6.3 PERSONALITY (continuation and end) Determines the AUTO mode movement speed : Mov. Speed Speed 1 ~ 4 1 = fastest ; 4 = slowest Configures the internal mic sensitivity when using the Mic Sens 0 ~ 99% music-sensitive mode...
- Page 9 DART90iZoom - 90W 4-in-1 beam moving head with infinity move and Zoom English 6.4 Reset This menu allows you to reset the motors step-by-step (e.g. if positioning errors are detected). Submenus Description Reset ALL Resets all motors. ResetPanTilt Resets PAN and TILT motors. 6.5 User Mode Set This menu allows you to choose one of the preset DMX modes (number of channels used) or edit your own patch (order and number of channels used).
- Page 10 DART90iZOOM - 90W 4-in-1 beam moving head with infinity move and Zoom English 6.6 Edit Program This menu allows you to select the programs assigned to each of the 3 program groups, edit the 9 built-in programs and edit the 250 scenes forming these programs. The DART90iZOOM can be assigned to 3 different slave groups (via the Slave mode function in the Function menu).
- Page 11 DART90iZoom - 90W 4-in-1 beam moving head with infinity move and Zoom English More details about program groups sequencing and scenes they include: Example: Program 2 includes scenes 10, 11, 12 and 13 Program 4 includes scenes 8, 9 and 10 Program 6 includes scenes 12, 13, 14 and 15 Auto Pro Part 1 is assigned to program 2 Auto Pro Part 2 is assigned to program 4...
- Page 12 DART90iZOOM - 90W 4-in-1 beam moving head with infinity move and Zoom English 7 - Dmx channels and their functions The DART90iZOOM moving head includes 3 preset DMX modes : The Basic mode features 13 channels, the Standard mode features 20 channels and the MDOT ST mode features 19 channels. The following chart indicates DMX values of each channels.
- Page 13 DART90iZoom - 90W 4-in-1 beam moving head with infinity move and Zoom English Colour macros 000 - 007 No function 008 - 039 From Red to Yellow 040 - 071 From Yellow to Green 072 - 103 From Green to Cyan 104 - 135 From Cyan to Blue 136 - 167...
- Page 14 DART90iZOOM - 90W 4-in-1 beam moving head with infinity move and Zoom English Preset colours dimmer 000 - 255 Intensity from 0 to 100% Rainbow effect speed 000 - 255 Slow to fast Rainbow fade time 000 - 255 Fast to slow Internal programs and options 000 - 079 No function...
-
Page 15: Error Messages
DART90iZoom - 90W 4-in-1 beam moving head with infinity move and Zoom English 8 - Error messages Once switched on the unit will launch an initialisation. The display will indicate «Error channel is XX» if a problem occurs with one or several channels. The unit will then reset all its motors to their initial positions. - Page 16 Because CONTEST® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
