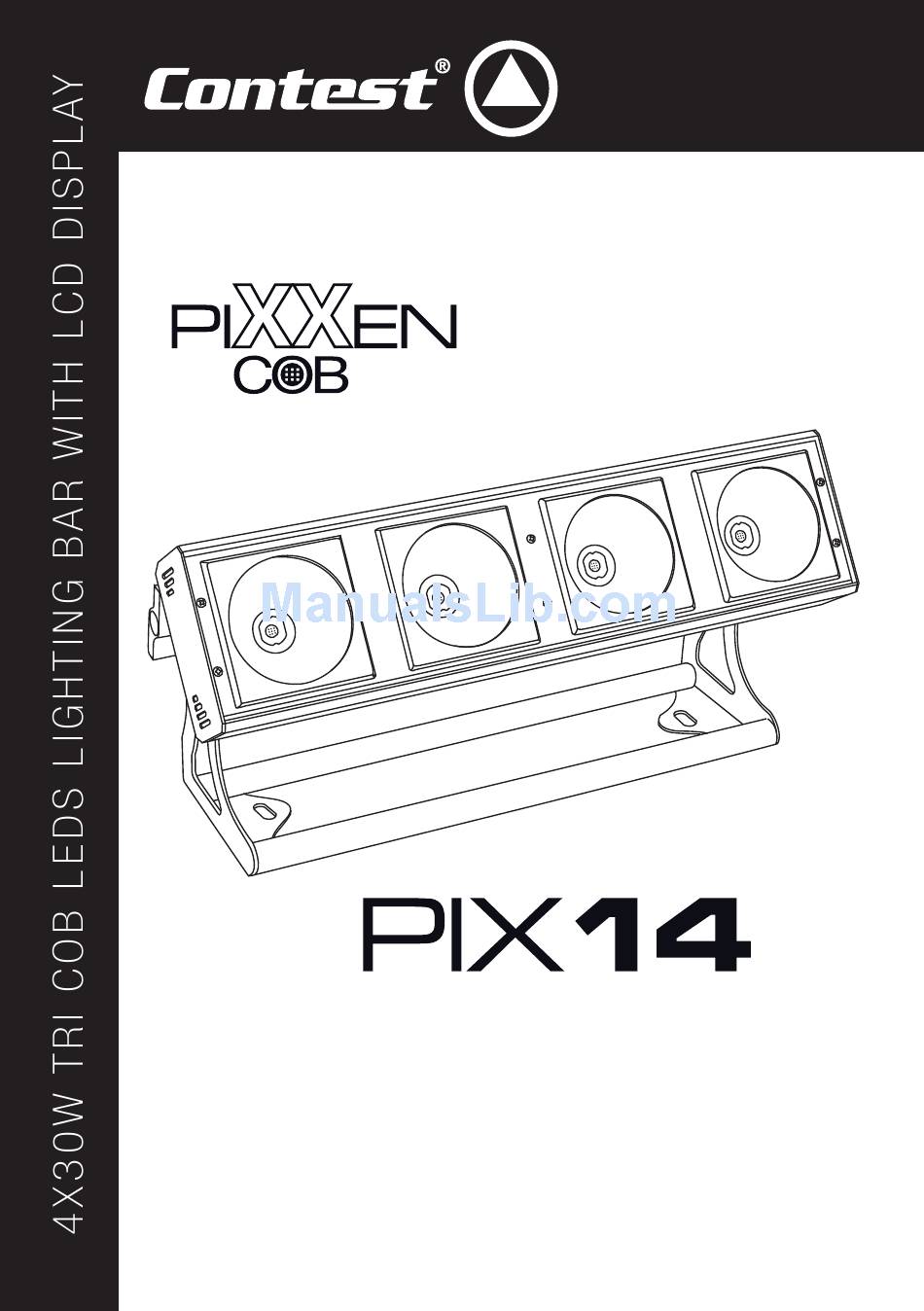

  • Page 1 USER GUIDE 10017 - September 2013 Version 1.12...

  • Page 2: Important Safety Information

    Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions.
  • Page 3 PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit.

  • Page 4: Main Characteristics

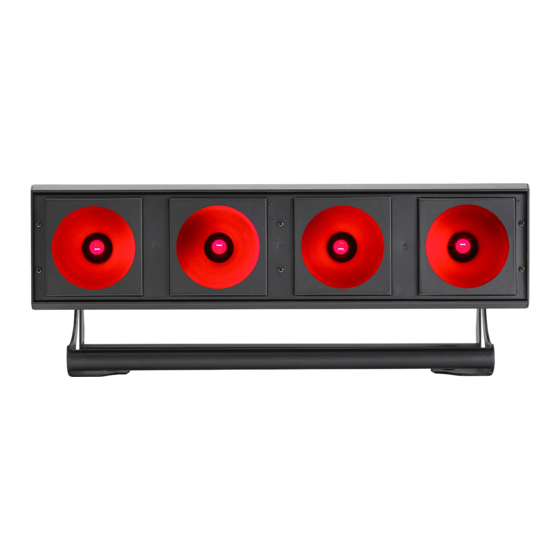

    PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English 2 - Main characteristics Here is a unique projector. It features 4x30W COB (Chips On Board) LEDs, and provides a exceptional light output for a very slow power consumption, and extended lifespan.
  • Page 5 PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English 4 - Description Power input/output socket DMX output Allows you to connect the projector to an electrical 3-pin male XLR plug hardwired as follows : outlet and to link several projectors together. - Mass: 1 ®...

  • Page 6: Internal Menu

    PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English 5 -Internal menu 5.1 - Submenus and functions MODE ENTER UP and DOWN Action Fixed colours selection and sequences. 1 : Selection 1 : Macros selec- In this mode the LEDs change their colour at the same time. 2 : Sequences tion The speed settings are only available for sequences.
  • Page 7 PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English 5.2 - Macros and colours details Cool white Orange Warm white Colour macro 1: step, with speed Yellow settings Colour macro 2: fade, with speed Green settings Cyan Colour macro 3: fade, with speed settings Blue...
  • Page 8 PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English 6 - The various DMX modes 6.1 - 2-channel mode CHANNEL 1 CHANNEL 2 DMX values Effect DMX values Effect 000 - 010 011 - 020 021 - 030 Orange 031 - 040 Yellow...
  • Page 9 PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English 6.4 - 5-channel mode DMX value Effect CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255 Blue from 0 - 100% CHANNEL 4...
  • Page 10 PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English 6.6 - 12-channel mode Channel DMX value Function Channel 1 000 - 255 LED 1 Red from 0 - 100% Channel 2 000 - 255 LED 1 Green from 0 - 100% Channel 3 000 - 255 LED 1 Blue from 0 - 100%...
  • Page 11 PIX14 - 4x30W TRI COB LEDs lighting bar with LCD display English Page 11...
  • Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
