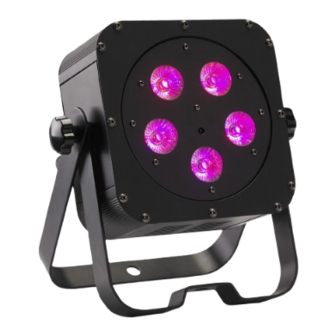

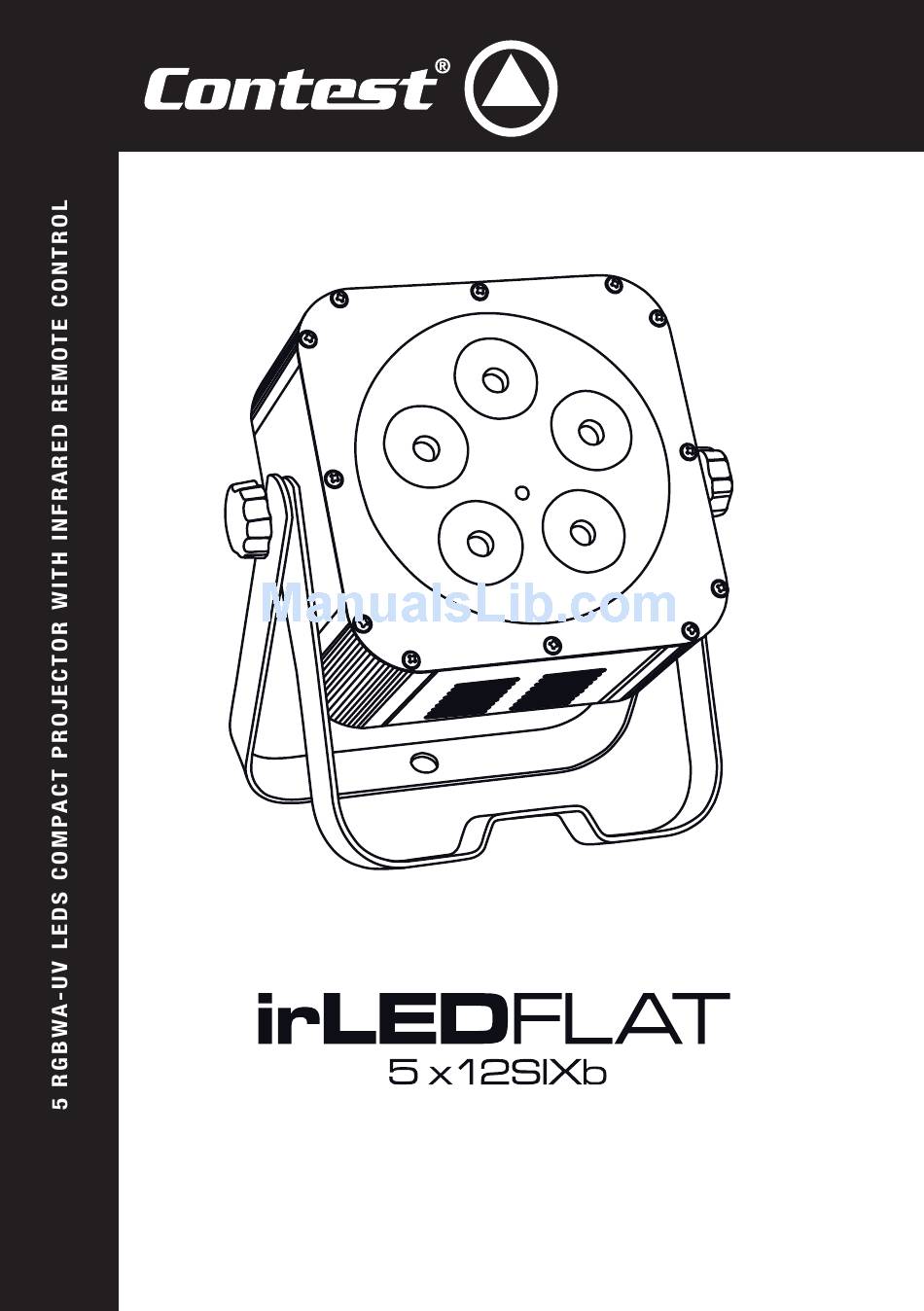

- Page 1 USER GUIDE 10142 - December 2013 Version 1.0...
-
Page 2: Important Safety Information
- 5 RGBWA-UV LEDs compact projector with infrared remote control English WARNING : This unit contains no user-serviceable parts. Do not 1 - Safety information open the housing or attempt any maintenance by yourself. In the unlikely even your unit may require service, please contact your Important safety information nearest dealer. -
Page 3: Technical Specifications
The irLEDFLAT-5x12SIXb is supplied with an infrared remote control to access colour control, built-in programs, DMX settings and a lot more. It also has a new double mounting bracket revolutionising ground handling. Thanks to the automatic abutment point, tightening the projector is independent from the mounting bracket blocking. - Page 4 - 5 RGBWA-UV LEDs compact projector with infrared remote control English 4 - Description Power input/output socket Display Allows you to connect the projector to an electrical outlet and This intuitive display allows you to configure your projector. to link several projectors together via a Male/Female IEC cord.
-
Page 5: Menus And Functions
If you want the display to lit off when the menu remains inactive for more than 20 seconds, press simultaneously MODE and DOWN. The irLEDFLAT SIX projectors feature several DMX modes to be fully compatible with different remote controls and projectors. Use the MODE button the choose a DMX mode. - Page 6 - 5 RGBWA-UV LEDs compact projector with infrared remote control English Starts the user program Allows you to set the duration of the user program Configures the fade out time of every step of the program User program Allows you to set the flash rate of every step of the program...
- Page 7 - 5 RGBWA-UV LEDs compact projector with infrared remote control English 6 - The various DMX modes 6.1 - 6-channel mode = RVBWAUV = DMX values Effects CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2...
- Page 8 - 5 RGBWA-UV LEDs compact projector with infrared remote control English 6.4 - 2-channel mode : Fixed colours, Macros / Dimmer, Speed and Sound = CHANNEL 1 CHANNEL 2 000 - 005 006 - 010 011 - 015 Orange...
- Page 9 - 5 RGBWA-UV LEDs compact projector with infrared remote control English 6.5 - 9-channel mode = RGBWA Dimmers+UV/Fixed colours,Macros/Dimmer,Speed, Sound/Strobe = CH 9 CH 8 if CH 9 if CH 9 Amber White Blue Green 000 - 005 > 5 >...
- Page 10 - 5 RGBWA-UV LEDs compact projector with infrared remote control English 6.6 - 4-channel mode = RGB (pure RGB compatible) = Values Effects CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100%...
-
Page 11: Infrared Remote Control
- 5 RGBWA-UV LEDs compact projector with infrared remote control English 7 - Infrared remote control Button Action BlackOut Projector OFF Gives you access to the 30 static colours, and to macros. Use the Select Prog number keys 0 to 9, then use the + and - keys. - Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the CONTEST ® products on www.contest-lighting.com CONTEST ®...
