- Page 1 USER GUIDE 10130 - Version 1 / 10-2013...
-
Page 2: Important Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. - Page 3 irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit. operation.
-
Page 4: Main Characteristics

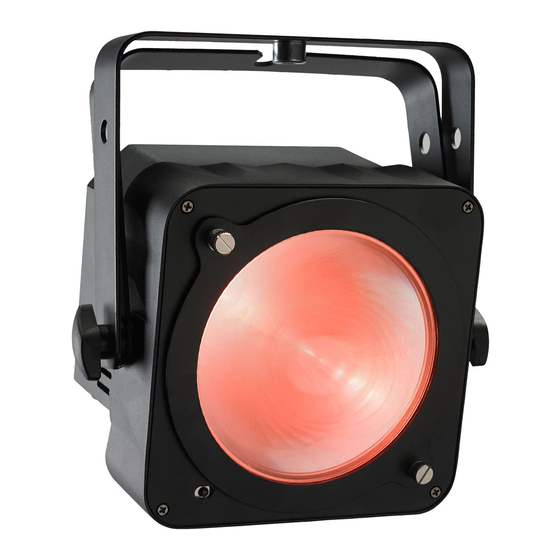

irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English 2 - Main characteristics • Features: - Metal housing • Package contents: - Double holding brackets for ground and aerial use The package must contain the following products: - Rear display A projector - Frost filter allowing a 80°... -
Page 5: Description Du Panneau Arrière
irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English 4 - Description du panneau arrière Power input socket Allows you to connect the projector to an electrical outlet. DMX output Please make sure the voltage is in adequation with the product 3-pin male XLR plug hardwired as follows : indications. -
Page 6: Internal Menu
irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English 5 - Internal menu Access the internal menu by pressing MODE. To access a submenu, press MODE again. If you want the display to lit off when the menu remains inactive for more than 20 seconds, press simultaneously MODE and DOWN. - Page 7 irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English Allows you to choose the max number of scenes : 1 - 20 total Scene you are currently editing User program Red level settings of the selected scene edition Green level settings of the selected scene Blue level settings of the selected scene 6 - The various DMX modes 6.1 - 3-channel mode: R / G / B =...
- Page 8 irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English 6.3 - 2-channel mode : Fixed colours, Macros / Dimmer, Speed or music-sensitive mode = Channel 1 Channel 2 000 - 015 Off (LEDs éteintes) 016 - 030 031 - 045 Orange 046 - 060 Yellow...
- Page 9 irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English 6.5 - 6-channel mode = R / G / B / Dimmer / Speed, Strobe / Fixed colours, Macros, Music-sensitive mode = Channel 6 Channel 5 Channel 4 Channel 3 Channel 2 Channel 1 Blue White 000 - 015...
- Page 10 irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English 7 - Dimensions Page 10...
- Page 11 irLEDFLAT-1x30TCb - 1x30W TRI COB 25°/80° LED Projector English 8 - Notes Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
