Summary of Contents for Contest SFX-DE50W

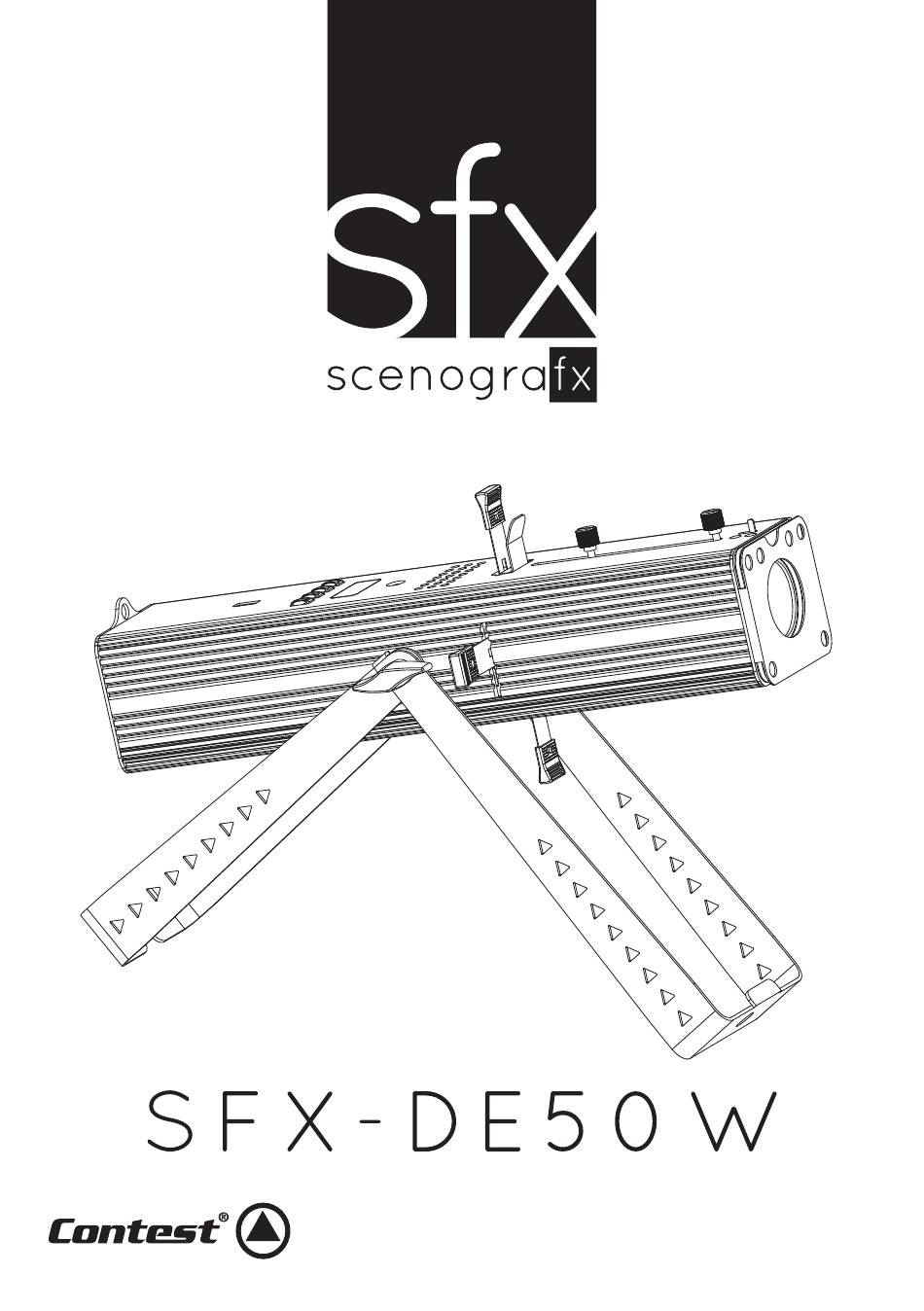

- Page 1 SCENE STORE EXPO USER GUIDE 10836 - Version 1 / 03-2018...
- Page 2 Any maintenance procedure must be performed by a CONTEST authorised In order to avoid any electrical malfunction, please do not use any technical service. Basic cleaning operations must thoroughly follow our safety multi-socket, power cord extension or connecting system without instructions.

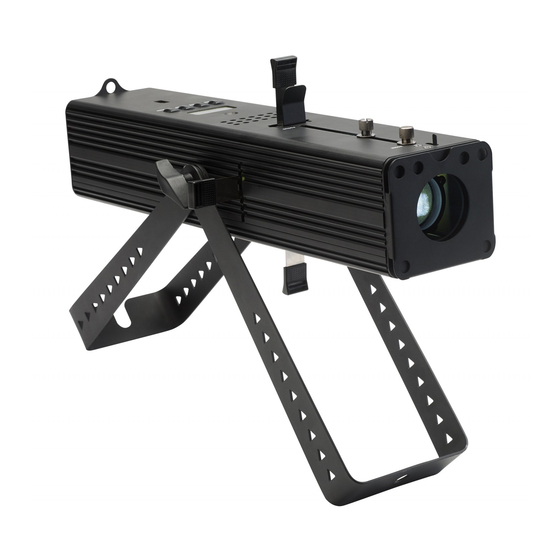

- Page 3 SFX-DE50W - English 50W White LED Profile spot with gobo holder an 15 to 30° zoom 2 - Technical specifications Optical Connectors © › 1 x 50W white LED › POWER IN/ OUT via 2P+E / Powercon socket › Light output at 3m ›...
- Page 4 SFX-DE50W - English 50W White LED Profile spot with gobo holder an 15 to 30° zoom Locking latch DMX output Allows to lock the filter holder. 3-pin female XLR hardwired as follows : - Pin 1: Mass - Pin 2: Negative signal...
- Page 5 SFX-DE50W - English 50W White LED Profile spot with gobo holder an 15 to 30° zoom 5 - MENU tree Menu Sub menu Action ADDR:001~512 Allows you to set the DMX address. Values can be modified from 001 to 512.
- Page 6 SFX-DE50W - English 50W White LED Profile spot with gobo holder an 15 to 30° zoom 5 - DMX modes 5.1 - 1-channel mode Channel Values Function Dimmer 000 - 255 Adjustable brightness from 0 to 100% 5.2 - 2-channel mode...
- Page 7 SFX-DE50W - English 50W White LED Profile spot with gobo holder an 15 to 30° zoom 6 - Notes Page 7...
- Page 8 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
