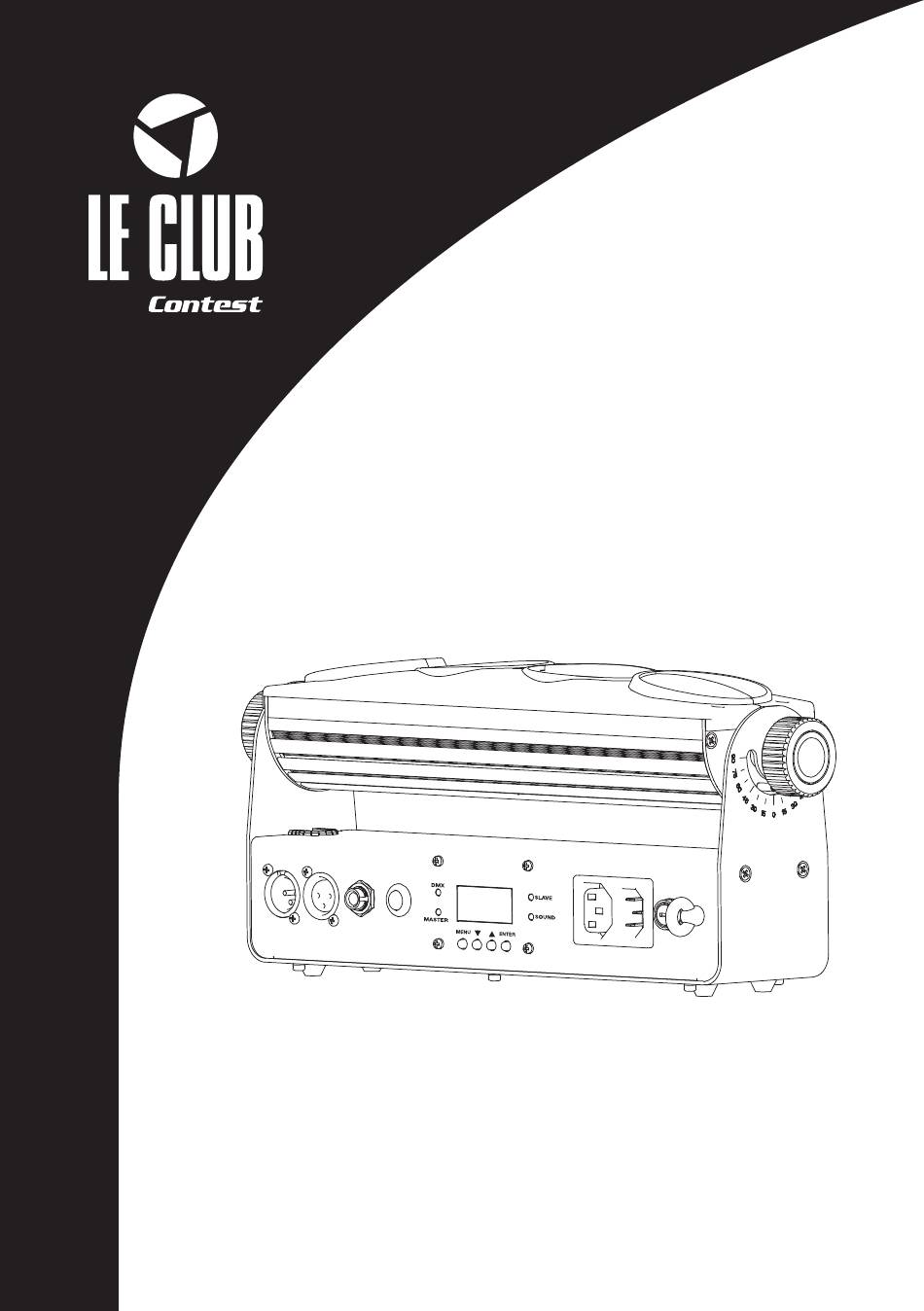

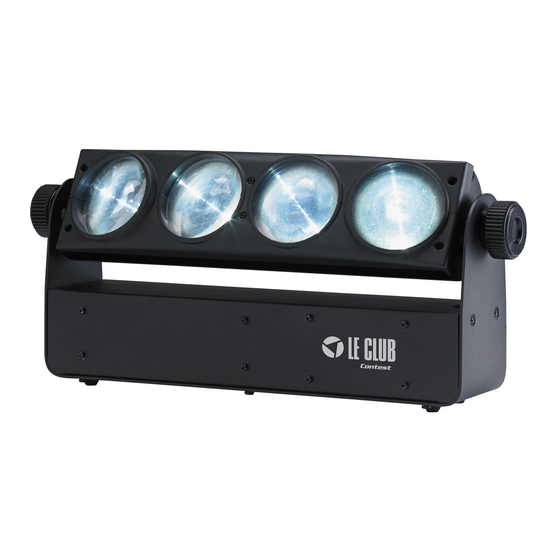

- Page 1 4 X 1 0 W W H I T E L E D M U LT I B E A M B A R BEAM-4X10WH USER GUIDE 10180 - 1 April 2014 Version...
-
Page 2: Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. - Page 3 Beam-4x10WH - 4x10W White LED multibeam bar English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit. operation.
-
Page 4: Technical Specifications
Beam-4x10WH - 4x10W White LED multibeam bar English 2 - Technical specifications LIGHT SOURCES ADDITIONAL CHARACTERISTICS › 4x10W White LEDs - 50 000 hours (expected) › Omega fixation system › Aperture angle: 6° (individual lenses) › Power consumption : 45W max. ›... -
Page 5: Up And Down
Beam-4x10WH - 4x10W White LED multibeam bar English 3 - Description 4 5 6 Indicator LEDs Fuse These 4 LEDs indicate the device status. If need to replace the fuse, please make sure the new fuse has Indication exactly the same characteristics as the original one. Is ON when the DMX mode is activated Stereo Jack 6.35 input MASTER... -
Page 6: Internal Menu
Beam-4x10WH - 4x10W White LED multibeam bar English 4 - Internal menu MENU UP and DOWN Action ENTER DMX address selection Saves Press ENTER and select the adress with UP and DOWN changes 1 channel : Select the pre-programmed sequences: 0 - 12 4 channels : Dimmer, Strobe, 0 - 12 built-in programs Press ENTER, mode selec- Saves... - Page 7 Beam-4x10WH - 4x10W White LED multibeam bar English MENU UP and DOWN Action ENTER Activates or deactivates the display backlight. Press ENTER and select On or Off with the UP and DOWN buttons. Saves changes When Off, the display automatically turns off after a 30-second inactivity period. Launches the Tests each function.
- Page 8 Beam-4x10WH - 4x10W White LED multibeam bar English 5 - DMX cabling and addressing for each mode Unit 1 Unit 2 Unit 3 Unit 4 DMX console DMX mode Unit 1 address Unit 2 address Unit 3 address Unit 4 address 1 channel 4 channels 6 channels...
- Page 9 Beam-4x10WH - 4x10W White LED multibeam bar English 5 - The various DMX modes As soon as a DMX signal is detected via the DMX IN input, the DMX mode is automatically activated. 7.1 - 1-channel mode Channel Values Action 000 - 007 Black-out 008 - 027...
- Page 10 Beam-4x10WH - 4x10W White LED multibeam bar English 7.3 - 6-channel mode Channel Values Action 000 - 255 Main dimmer: 0-100% Strobe Open 001 - 255 Strobe at increasing speed 000 - 255 LED 1 Dimmer: From 0 - 100% 000 - 255 LED 2 Dimmer: From 0 - 100% 000 - 255...
- Page 11 Beam-4x10WH - 4x10W White LED multibeam bar English 8 - Notes Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
