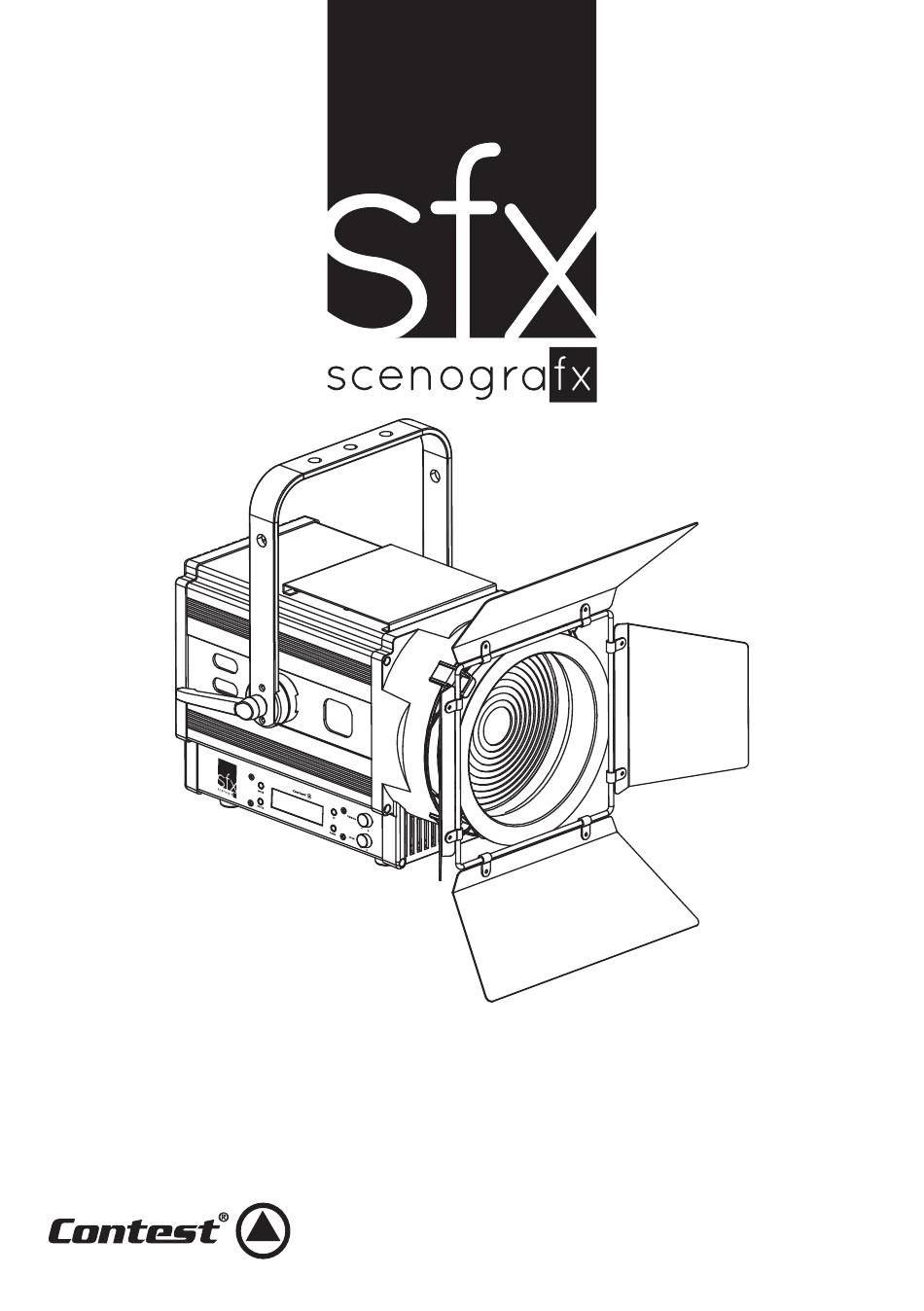

- Page 1 SCENE STORE EXHIBIT SFX-FR250W SFX-FR150W USER GUIDE 10707/10708 - Version 1 / 02-2017...
- Page 2 Any maintenance procedure must be performed by a CONTEST authorised In order to avoid any electrical malfunction, please do not use any technical service. Basic cleaning operations must thoroughly follow our safety multi-socket, power cord extension or connecting system without instructions.
- Page 3 2 - Technical specifications Optical Connectors › 1 x 250W COB 3200°K Warm White LED (SFX-FR250W) › DMX IN and OUT via 3 and 5-pin XLR, › 1 x 150W COB 3200°K Warm White LED (SFX-FR150W) › POWER IN/OUT via Seetronic ©...
- Page 4 Backlight function from the with the projector. menu. MODE Button You can daisy-chain up to 13 (SFX-FR250W) or 24 (SFX- FR150W). ALlows you to access the menu and select a function. ENTER Button Allows you to enter sub-menus and apply changes.
- Page 5 SFX-FR250/150W - 250/150W Warm White LED Fresnel Projector with zoom English 4 - Internal menu 4.1 - Initialisation Upon initialisation, the display indicates: Software Update Please Wait ... The projector will then check for available updates. It then begins the initilisation process, l’afficheur indique alors : SFX-FR150/250W Motor Reset ...
- Page 6 SFX-FR250/150W - 250/150W Warm White LED Fresnel Projector with zoom English Menu Sub-menu UP and DOWN Action Temp.C/F Displays the temperature of the projector (Celsius) Celsius Function Temp.C/F Temp.C/F Displays the temperature of the projector Fahrenheit Fahrenheit Dim.Curve Brightness settings are exponential Square Function Dim.Curve...
- Page 7 SFX-FR250/150W - 250/150W Warm White LED Fresnel Projector with zoom English 4.3 - Various Dim.Curve modes Dim.Curv modes allow you to define the dimmer behaviour. Please find below the 4 modes and the brightness increase depending on the mode and DMX channel levels. % DMX % DMX % DMX...
- Page 8 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ®...
