Contest DART60i User Manual

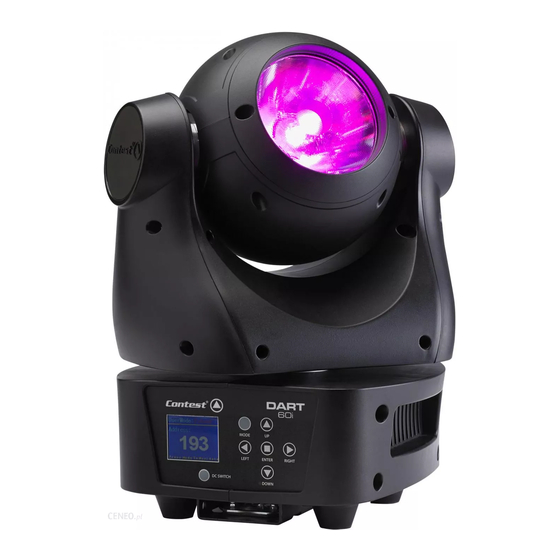

60w 4-in-1 beam moving head with infinity move
Hide thumbs

Advertisement

Quick Links

Download this manual
USER GUIDE
10490 - Version 1 / 06-2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the DART60i and is the answer not in the manual?

Questions and answers

Related Manuals for Contest DART60i

Summary of Contents for Contest DART60i

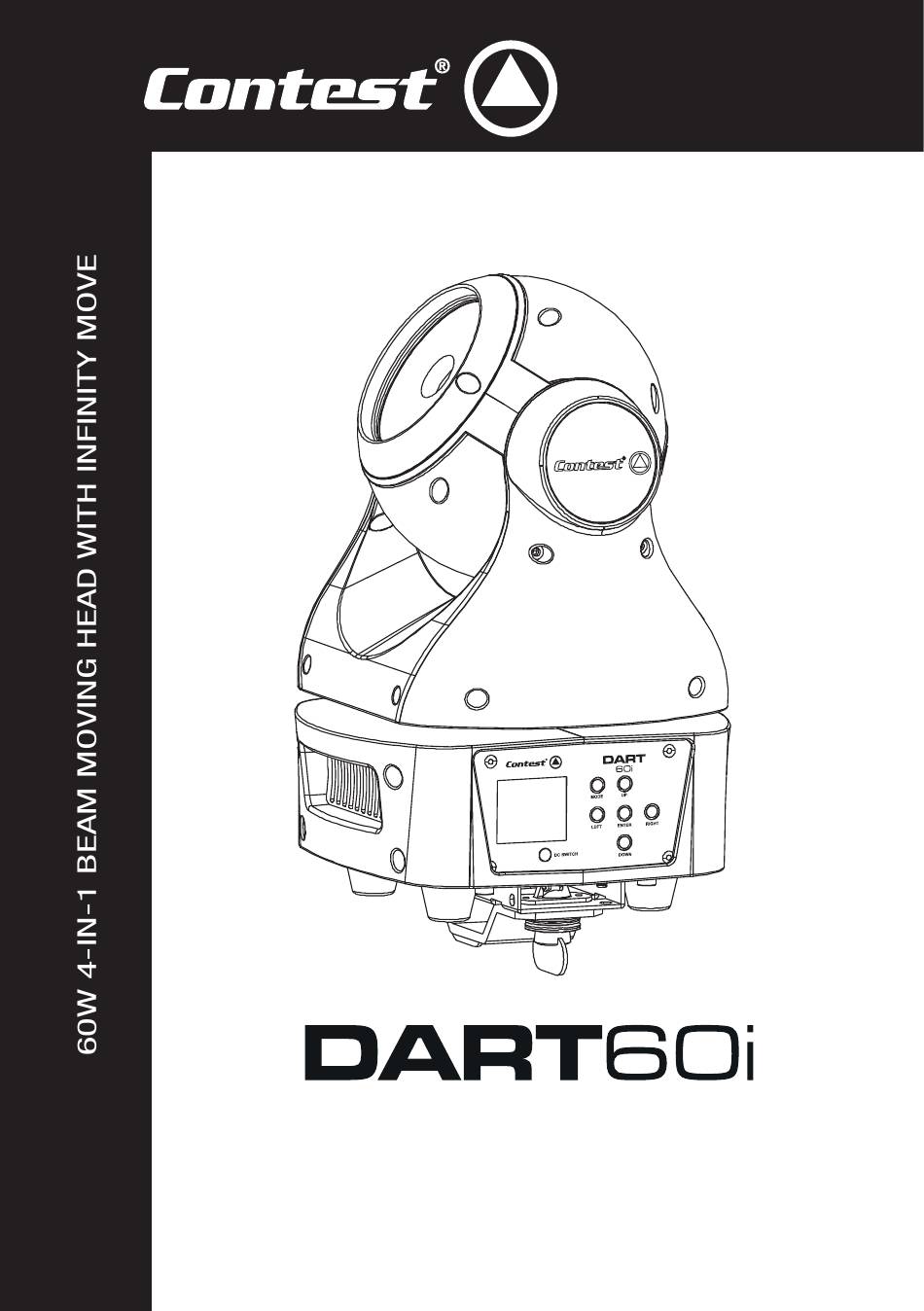

  • Page 1 USER GUIDE 10490 - Version 1 / 06-2016...

  • Page 2: Important Safety Information

    DART60i - 60W 4-in-1 beam moving head with infinity move English 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety instructions could result in fire, electric shock, injury, or damage to this product or other property.

  • Page 3: Technical Specifications

    DART60i - 60W 4-in-1 beam moving head with infinity move English 2 - Introduction Thank you for purchasing the DART60i moving head. You now have in your possession a high-quality, powerful and intelligent device absolutely perfect for parties, animations, live events... 3 - Technical specifications Light source •...
  • Page 4 DART60i - 60W 4-in-1 beam moving head with infinity move English 4 - Description 1 - Bar with lenses 2 - Display Allows you to visualise menus. 3 - DC SWITCH button Switches the menu on when the moving head is not plugged in.
  • Page 5 The address of the first unit will be 1, the second unit will be 16 (1+15), the third unit will be 31 (17+16) and so on. NB : Once switched on, the DART60i automatically detects any incoming DMX signal and the display indicates the unit DMX address.
  • Page 6 English 7 - Menus The DART60i features many menus allowing you to configure its every move and function. Press MODE to access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu.
  • Page 7 DART60i - 60W 4-in-1 beam moving head with infinity move English 7.2 INFORMATION This menu allows you to visualise the moving head running time, its temperature, and the current version of the internal software. Submenus Lower menus Values Description Current XXXX (hours) Current running time since the unit was last switched on.
  • Page 8 DART60i - 60W 4-in-1 beam moving head with infinity move English 7.3 PERSONALITY (continuation and end) Determines the AUTO mode movement speed : Mov. Speed Speed 1 ~ 4 1 = fastest ; 4 = slowest Configures the internal mic sensitivity when using the...
  • Page 9 DART60i - 60W 4-in-1 beam moving head with infinity move English 7.4 Reset This menu allows you to reset the motors step-by-step (e.g. if positioning errors are detected). Submenus Description Reset ALL Resets all motors. ResetPanTilt Resets PAN and TILT motors.
  • Page 10 This menu allows you to select the programs assigned to each of the 3 program groups, edit the 9 built-in programs and edit the 250 scenes forming these programs. The DART60i can be assigned to 3 different slave groups (via the Slave mode function in the Function menu). The designated Master unit sends programs containing slave groups information.
  • Page 11 DART60i - 60W 4-in-1 beam moving head with infinity move English More details about program groups sequencing and scenes they include: Example: Program 2 includes scenes 10, 11, 12 and 13 Program 4 includes scenes 8, 9 and 10 Program 6 includes scenes 12, 13, 14 and 15...
  • Page 12 DART60i - 60W 4-in-1 beam moving head with infinity move English 8 - Dmx channels and their functions The DART60i moving head includes 3 preset DMX modes : The Basic mode features 12 channels, the Standard mode features 19 channels and the MDOT ST mode features 17 channels.
  • Page 13 DART60i - 60W 4-in-1 beam moving head with infinity move English Colour macros 000 - 007 No function 008 - 039 From Red to Yellow 040 - 071 From Yellow to Green 072 - 103 From Green to Cyan 104 - 135...
  • Page 14 DART60i - 60W 4-in-1 beam moving head with infinity move English Preset colours dimmer 000 - 255 Intensity from 0 to 100% Rainbow effect speed 000 - 255 Slow to fast Transition speed 000 - 255 Fast to slow Internal programs and options...
  • Page 15 DART60i - 60W 4-in-1 beam moving head with infinity move English 8 - Photometric datas Intensity (lux) 122600 14570 5280 4° Distance (m) Diameter (m) Ø 0,07 Ø 0,21 Ø 0,35 Intensity (lux) 42800 4300 2000 10° Distance (m) Diameter (m) Ø...

  • Page 16: Error Messages

    DART60i - 60W 4-in-1 beam moving head with infinity move English 9 - Error messages Once switched on the unit will launch an initialisation. The display will indicate «Error channel is XX» if a problem occurs with one or several channels.
  • Page 17 DART60i - 60W 4-in-1 beam moving head with infinity move English Page 17...
  • Page 18 Because CONTEST® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
