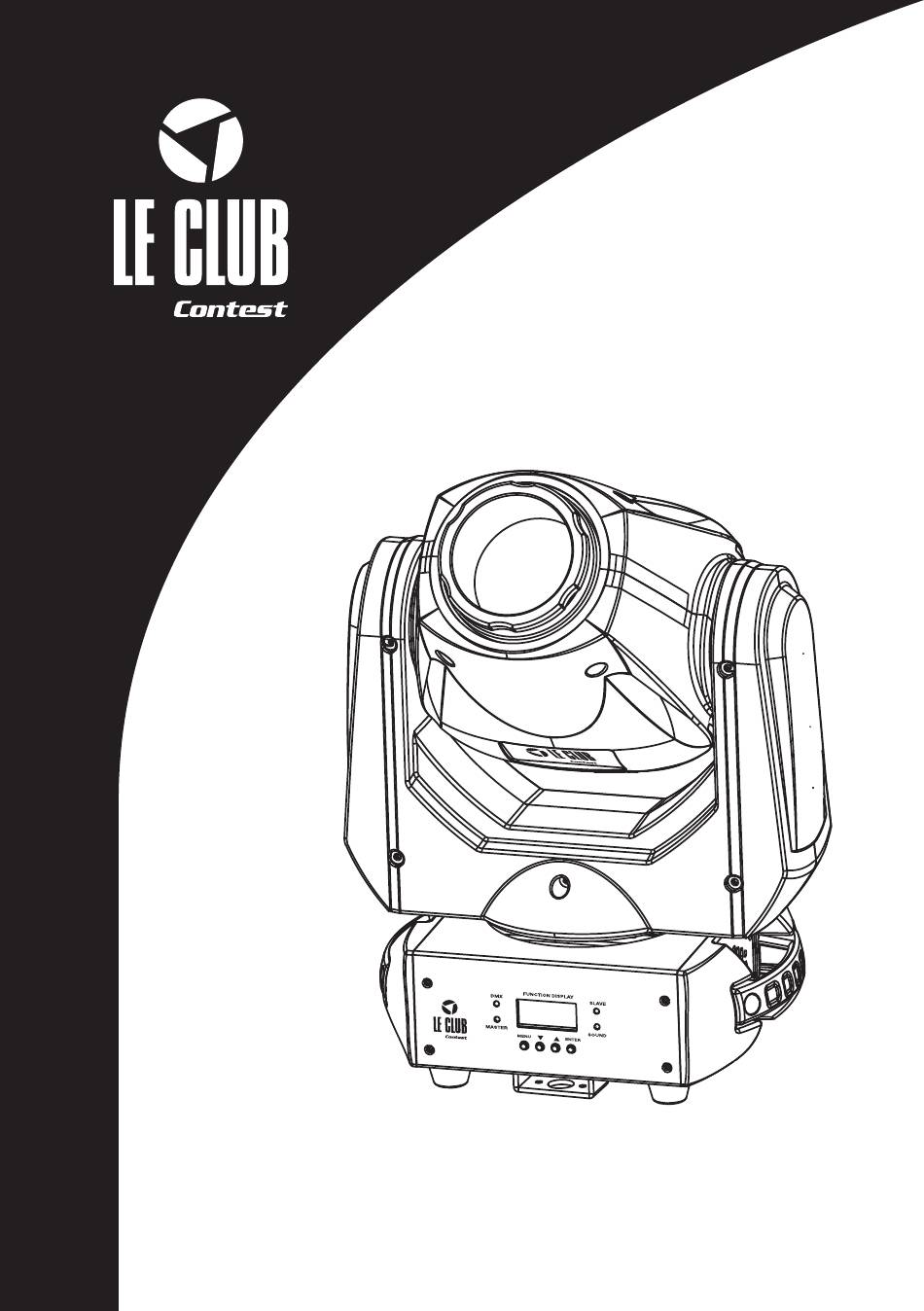

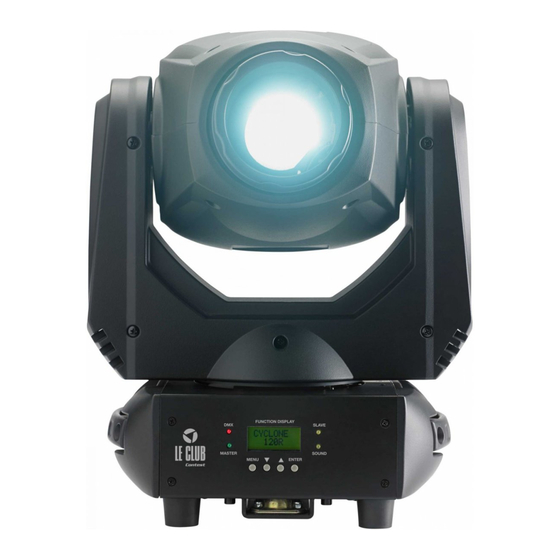

- Page 1 1 2 0 W S P OT M O V I N G H E A D CYCLONE-120R USER GUIDE 10402 - version 1 / 10-2015...
-
Page 2: Important Safety Information
In the unlikely even your unit may require service, please contact your Any maintenance procedure must be performed by a CONTEST nearest dealer. authorised technical service. Basic cleaning operations must tho- In order to avoid any electrical malfunction, please do not use any roughly follow our safety instructions. -
Page 3: Technical Specifications
Cyclone-120R - 120W Spot moving head English 2 - Technical specifications Light source Movements › 120W CW LED - 50 000 hours (expected) › PAN and TILT movements › Dual lens with manual zoom › Movement range: Pan 540°, Tilt 270° ›... - Page 4 Cyclone-120R - 120W Spot moving head English 3 - Description 9 10 Indicator LEDs Fuse These 4 LEDs indicate the device status. If need to replace the fuse, please make sure the new fuse has Indication exactly the same characteristics as the original one. Is ON when the DMX mode is activated Stereo Jack 6.35 input MASTER...
-
Page 5: Internal Menu
Cyclone-120R - 120W Spot moving head English 4 - Internal menu 4.1 - Menus and functions Once turned on, the moving head will start a position initialisation for each motor. At this stage, the display indicates Once the initilisation is over, the display will indicate , you will then be able to access the menu using the MENU or ENTER buttons. - Page 6 Cyclone-120R - 120W Spot moving head English 4.1 - Menus and functions (continuation and end) MENU UP and DOWN Action ENTER Adjusts the microphone sensitivity (for music-sensitive modes) . Saves When the value is 000, the microphone is deactivated. changes Activates the PAN movement reversion when the Slave and Show modes are activated, or in DMX mode.
- Page 7 Cyclone-120R - 120W Spot moving head English 4.2 - Initial position settings After initialising, the moving head is automatically positioned on its original positions. You can configure this positions as it pleases you. Enter the DMX Address menu, then press ENTER for more than 3 seconds. You are now accessing the initial position settings. PAN movement initial position settings.
-
Page 8: 1-Channel Mode
Cyclone-120R - 120W Spot moving head English 5 - The various DMX modes As soon as a DMX signal is detected via the DMX IN input, the DMX mode is automatically activated. 5.1 - 1-channel mode Channel Values Action 000 - 007 Black-out 008 - 069 Show 1... - Page 9 Cyclone-120R - 120W Spot moving head English 5.2 - 10-channel A mode (continuation and end) Channels Values Action Colour wheel (Split mode) (continuation) 083 - 089 Blue + Magenta 090 - 097 Magenta 098 - 104 Magenta + Sky blue 105 - 112 Sky blue Split mode...
- Page 10 Cyclone-120R - 120W Spot moving head English 5.3 - 10-channel B mode (Cyclone-80 compatible) Channel Values Action 000 - 255 PAN movement 000 - 255 TILT movement 000 - 255 Main Dimmer Strobe 000 - 007 Black-out 008 - 015 Open 016 - 131 Strobe at increasing speed...
- Page 11 Cyclone-120R - 120W Spot moving head English 5.3 - 10-channel B mode (Cyclone-80 compatible) (Continuation and end) Channel Values Action Gobo wheel 000 - 007 Open 008 - 015 Gobo 1 016 - 023 Gobo 2 024 - 031 Gobo 3 032 - 039 Gobo 4 040 - 047...
-
Page 12: 16-Channel Mode
Cyclone-120R - 120W Spot moving head English 5.4 - 16-channel mode Channels Values Action 000 - 255 PAN movement 000 - 255 Precise PAN movement 000 - 255 TILT movement 000 - 255 Precise TILT movement 000 - 255 PAN and TILT movement speed PAN and TILT macros 000 - 007 No function... - Page 13 Cyclone-120R - 120W Spot moving head English 5.4 - 16-channel mode (continuation) Channels Values Action Colour wheel (Normal mode) 000 - 014 White (open) 015 - 028 029 - 042 Orange 043 - 056 Yellow 057 - 070 Green 071 - 084 Blue Normal mode 085 - 098...
- Page 14 Cyclone-120R - 120W Spot moving head English 5.4 - 16-channel mode (continuation and end) Channels Values Action Gobos rotation 000 - 127 Gobo indexing 0 to 360° 128 - 189 Counterclockwise gobo rotation from fast to slow 190 - 193 No rotation 194 - 255 Clockwise gobo rotation from slow to fast...
- Page 15 Cyclone-120R - 120W Spot moving head English 6 - DMX cabling and addressing for each mode Unit 1 Unit 2 Unit 3 Unit 4 DMX console DMX mode Unit 1 address Unit 2 address Unit 3 address Unit 4 address 1 channel 10 channels 16 channels...
- Page 16 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
