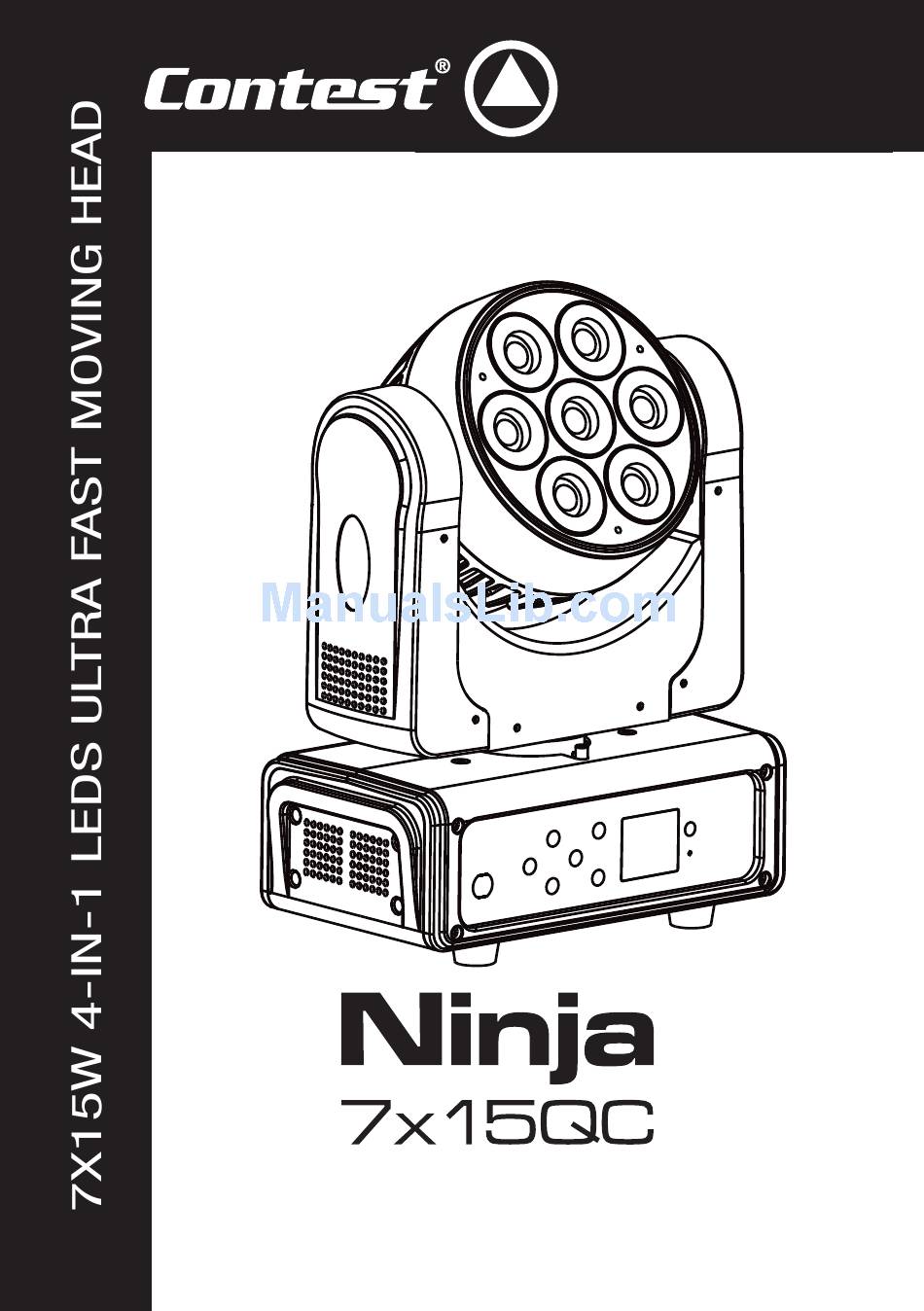

- Page 1 USER GUIDE 10075 - November 2013 Version 1.1.3...
-
Page 2: Safety Information
In order to avoid any electrical malfunction, please do not use any multi-socket, power cord extension or connecting system without Any maintenance procedure must be performed by a CONTEST making sure they are perfectly isolated and present no defect. authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. -
Page 3: Technical Specifications

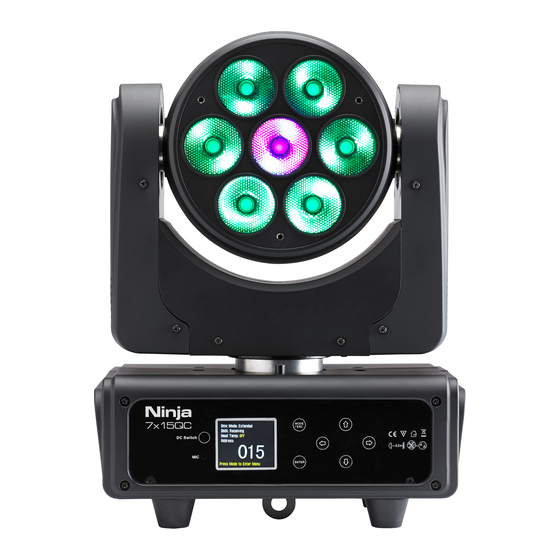

Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 2 - Introduction Thank you for purchasing the Ninja-7x15QC moving head. You now have in your possession a high-quality, powerful and intelligent device absolutely perfect for parties, animations, live events... 3 - Technical specifications Light source •... - Page 4 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 4 - Description 1 - Lens 2 - DC switch button Switches the menu on when the moving head is not plugged. 3 - MIC Used for music-sensitive modes. 4 - Display Allows you to visualise menus.
- Page 5 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 5 - Installing Quick-Lock fastening systems CAUTION ! Please make sure the hanging point is properly tightened. Using a safety wire is mandatory. The Ninja-7x15QC moving head is supplied with two Quick-Lock fastening systems. The example above indicates how to install the Omega holders.
-
Page 6: Remote Control
Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 6 - Cabling, addressing and daisy chaining Connecting the DMX remote control : Connect the female plug of your XLR cable to your DMX remote control XLR output, then connect your cable male output to the moving head. - Page 7 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 7 - Menus The Ninja-7x15QC features many menus allowing you to configure its every move and function. Press MODE / ESC to access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu. Use the navigation keys to change values.
- Page 8 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 7.2 INFORMATION This menu allows you to visualise the moving head running time, its temperature, and the current version of the internal software. Submenus Values Description Current Time Current running time since the unit was last switched on. Overall running time since the very first time the device Total Run Time was switched on.
- Page 9 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English Determine the TILT movement range : TILT 270 Tilt Degree • Tilt270 : 270° rotation TILT 240 • Tilt240 : 240° rotation Feedback ON/OFF The projector sends movement feedbacks Determines the AUTO mode movement speed : Movement Speed Speed 1 ~ 4 1 = fastest ;...
- Page 10 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 7.4 Reset Function This menu allows you to reset the motors step-by-step (e.g. if positioning errors are detected). Submenus Description Reset ALL Resets all motors. Reset Pan^Tilt Resets PAN and TILT motors. 7.5 Effect Adjust This menu allows you to test and manually control each function, and recalibrate PAN and TILT movements.
- Page 11 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English User mode A editing : Max Channel = XX - Max Channel is the number of channels used. Edit User mode A PAN = CHXX - PAN = CHXX is the channel used by the PAN function..etc When a function is moved to another channel, it will be replaced by the former function using the same channels.
- Page 12 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English This submenu allows you to edit one of the 250 scenes. • Auto Program, Select a scene and press ENTER. PAN, TILT Fine, Scene 1 Sélect each function (PAN, TILT, ...etc) and press ENTER, then Scene 2 assign a value included between 000 and 255 to each function.
- Page 13 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English Center Ring 8 - Dmx channels and their functions The Ninja-7x15QC moving head includes 3 preset DMX modes : The Basic mode features 15 channels, the Standard mode features 17 channels and the Expert mode features 21 channels.
- Page 14 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English Ring LEDs green 000 - 225 000 : Black out - 255 : green 100% Ring LEDs blue 000 - 225 000 : Black out - 255 : blue 100% Ring LEDs white 000 - 225 000 : Black out - 255 : white 100%...
- Page 15 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English Patterns sequences 000 - 010 No function 011 - 040 Sequence 1 041 - 070 Sequence 2 071 - 100 Sequence 3 101 - 130 Sequence 4 131 - 160 Sequence 5 161 - 190 Sequence 6...
- Page 16 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 9 - Accessories The Ninja-7x15QC moving head is supplied with two accessories allowing you to optimise and adapt its light output: 9.1 FROST filter The Frost filter allows you to increase the beam aperture angle by 10°, to spread colours on wider areas. Installing the Frost filter: position the filter behind the filter holder, and use the 3 supplied screws as shown below.
- Page 17 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 10 - Photometric datas With Beam spoiler Intensity (lux) 25500 11890 4410 10° Distance (m) Diameter (m) Ø 0,35 Ø 0,52 Ø 0,70 Without option Intensity (lux) 25500 11890 4410 11°...
-
Page 18: Error Messages
Problems might also come from a defective motor or the motor electronic management. In any case, please write down the error displayed and contact your retailer to launch a maintenance procedure. Do NOT attempt to repair it by yourself as only Contest-approved technicians are allowed to perform maintenance operations. Page 18... - Page 19 Ninja-7x15QC - 7x15W 4-in-1 LEDs ultra fast moving head English 12 - Dimensions 318,5 287,5 270° 630° 540° Avec la visière Page 19...
- Page 20 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
