4. 3 PIN HARNESS
Negative Lock Output (GREEN)
Negative Unlock Output (BLUE)
Negative Second Door Unlock Output (BLUE/GREEN)
Adding Door Actuators
After installing door actuators, (not supplied). Connect the GREEN and BLUE wires shown in diagram 16
below using (2) SPDT relays (not supplied).

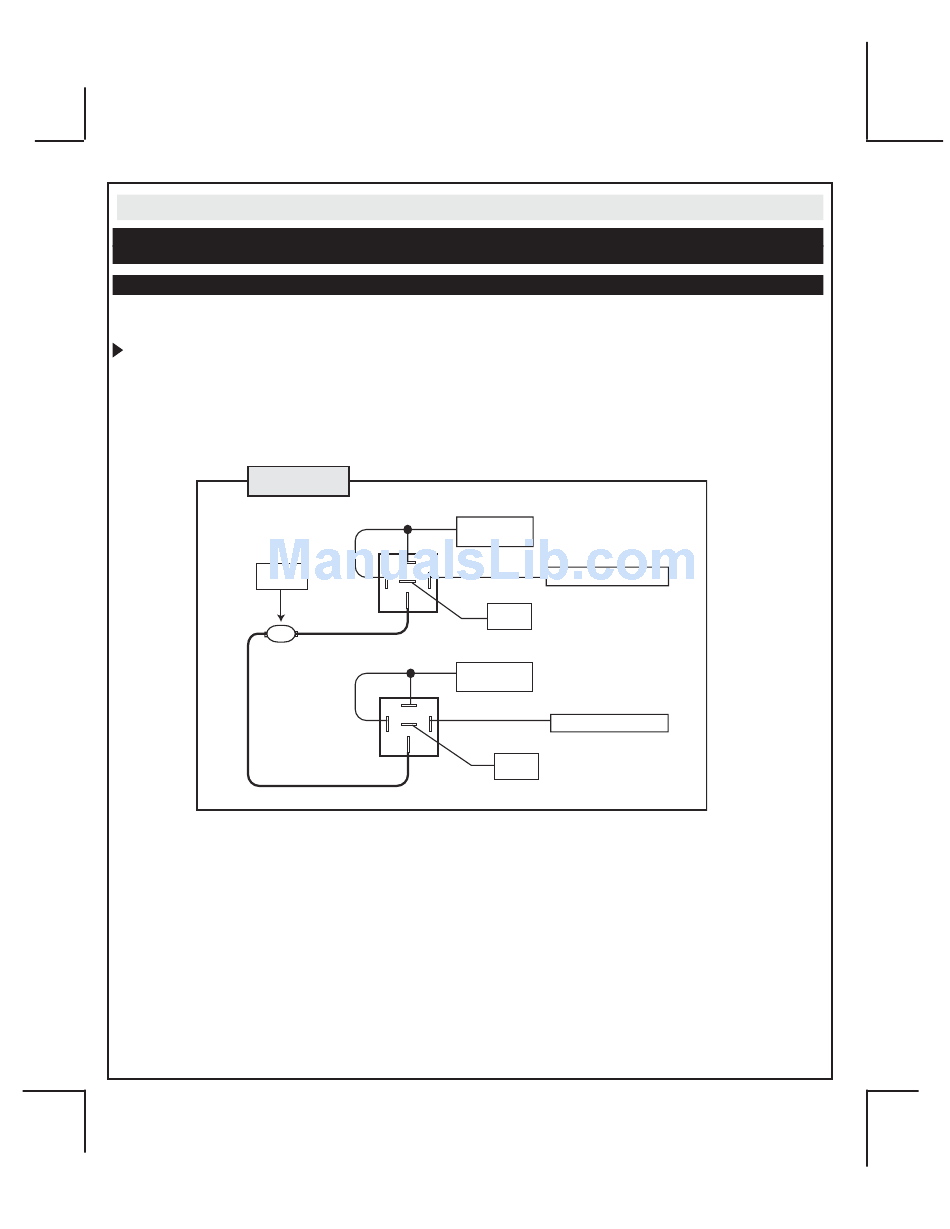

Diagram 16
Door Lock
Actuator
M
14
Fused +12 Volt
Battery Source
87
87a
85
86
30
Chassis
Ground
Fused +12 Volt
Battery Source
87
87a
85
86
30
Chassis
Ground
GREEN (-) Lock Output
BLUE (-) Unlock Output
