PROFESSIONAL
SERIES
2 Way Security and Keyless Entry
Installation Guide
ca 1552
ca1552. 2011 Audiovox Electronics Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ca 1552 Professional Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Code Alarm ca 1552 Professional Series

Summary of Contents for Code Alarm ca 1552 Professional Series

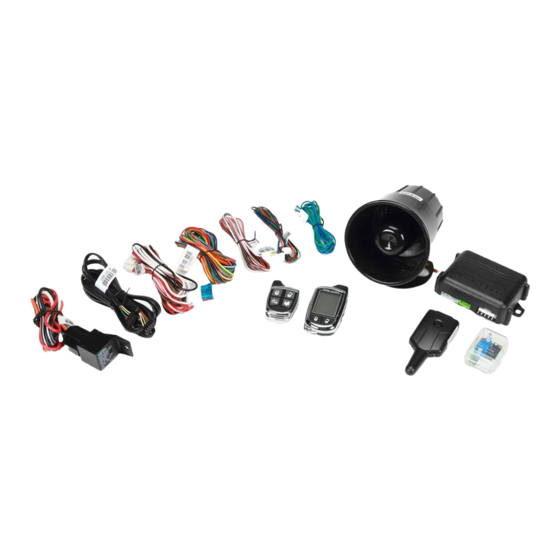

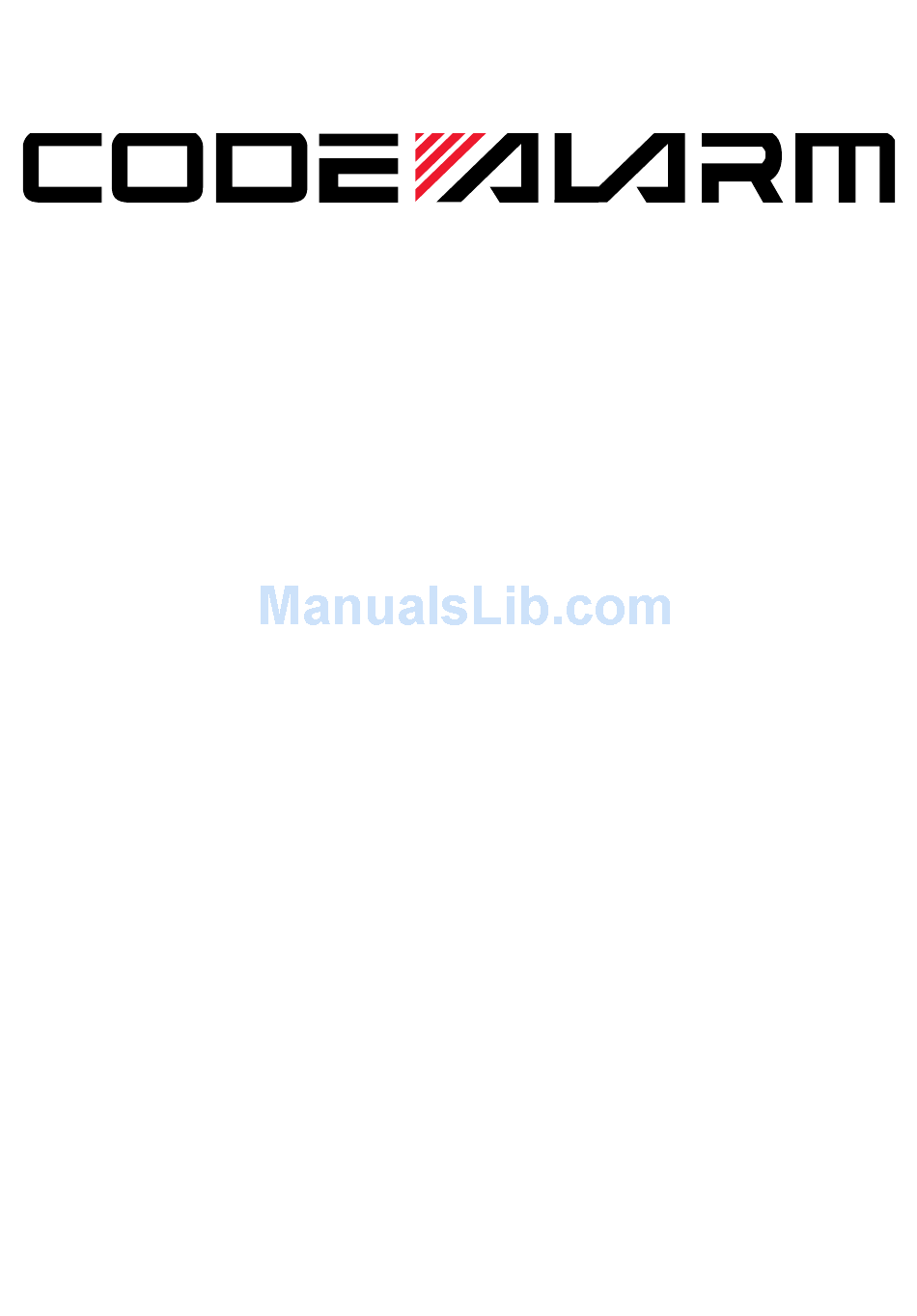

  • Page 1 PROFESSIONAL SERIES 2 Way Security and Keyless Entry Installation Guide ca 1552 ca1552. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Table of Contents Before You Begin ..................3 Wire Connection Guide ................4 5 Pin Main Harness ................... 5 9 Pin Input / Output Harness ..............6 4 Pin AUX Output Harness ............... 8 3 Pin Door Lock Output Harness ............10 Additional Ports ..................

  • Page 3: Before You Begin

    BEFORE YOU BEGIN PROFESSIONAL INSTALLATION STRONGLY RECOMMENDED Installation Precautions: Roll down window to avoid locking keys in vehicle during installation Avoid mounting components or routing wires near hot surfaces Avoid mounting components or routing wires near moving parts Tape or loom wires under hood for protection and appearance Use grommets when routing wires through metal surfaces...

  • Page 4: Pin Main Harness

    5 Pin Main Harness 9 Pin Input / Output Harness 4 Pin AUX Output Harness PINK/BLACK AUX 5 OUTPUT ( - ) ORANGE/BLACK AUX 4 OUTPUT ( - ) GRAY/BLACK AUX 3 OUTPUT ( - ) WHITE/BLACK AUX 2 OUTPUT ( - ) 3 Pin Lock Output Harness ca1552.
  • Page 5 5 Pin Main Harness WHITE/RED PARKING LIGHT INPUT WHITE PARKING LIGHT OUTPUT Locate the parking light output wire at the vehicle’s light switch. Verification: This wire registers positive voltage when the parking lights are turned on. Positive switching Parking Lights: Connect the WHITE/RED wire to a 15 Amp max fused battery source.

  • Page 6: Pin Input / Output Harness

    BATTERY 12V ( + ) Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch. Verification: This wire will register ( + ) voltage in all positions of the ignition switch. Connect the RED wire to the constant 12 Volt battery wire. NOTE: Remove all fuses until all connections are made.
  • Page 7 PURPLE DOOR TRIGGER INPUT ( + ) Locate the vehicle’s dome light or door pin switch wire. Verification: This wire will register positive voltage (POS) when the door is opened and the interior light is on. This wire will register ground or "0" Volts when the door is closed and the interior light is off.

  • Page 8: Pin Aux Output Harness

    VIOLET/BLACK AUX 1 This wire provides a ( - ) 200mA output capable of driving relays. For Control of optional accessories (i.e. Power Window/Sunroof, etc.). To activate refer to the transmitter button configuration chart. Please refer to the selectable options for timing. LT GREEN/BLACK FACTORY DISARM OUTPUT ( - ) This wire will supply a ( - ) 200mA pulse upon disarming the system.
  • Page 9 GRAY/BLACK AUX 3 This wire provides a ( - ) 200mA output capable of driving relays. For Control of optional accessories (i.e. Power Window/Sunroof, etc.). To activate refer to the transmitter button configuration chart. Please refer to the selectable options for timing. WHITE/BLACK AUX 2 This wire provides a ( - ) 200mA output capable of driving relays.

  • Page 10: Pin Door Lock Output Harness

    3 Pin Lock Output Harness BLUE UNLOCK ( - ) GREEN LOCK ( - ) The door lock / unlock outputs are designed to control several different types of systems which may require additional parts. Please review the wire and location chart to see which type of door lock system is in your vehicle.
  • Page 11 Positive Switching Locks All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch. Verification: These wires will register positive voltage when the Lock and Unlock switches are activated. Connect the GREEN and BLUE wires shown in the diagram below. Positive Locks: Fused +12 Volt Battery Souce...
  • Page 12 Negative Multiplexed Locks All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch. Verification: This wire will show variable ground when the switch is activated. Please consult the wire and location chart for specific resistor values for your vehicle.
  • Page 13 Adding Aftermarket Actuators After installing aftermarket actuators, (not supplied). Connect the GREEN and BLUE wires shown in the diagram below using (2) SPDT relays (not supplied). Fused +12 Volt Battery Source Door Lock GREEN (-) Lock Output Actuator Chassis Ground Fused +12 Volt Battery Source BLUE (-) Unlock Output...

  • Page 14: Additional Ports

    Additional Ports Antenna / LED / Programming Port Mount the supplied antenna/receiver to a clear spot on the vehicle's windshield that will not block the driver's vision. A good location is usually high on the windshield near the rear view mirror. Be careful not to mount the antenna/receiver on any metallic window film, as this will effect system range.

  • Page 15: Set Up & Programming

    Set Up & Programming Transmitter Programming - Feature Bank 1 Turn the ignition ON. Press and hold the valet/override button. Within 10 seconds the system will chirp (3) three times. Press 1 button of each transmitter you wish to program. The system will respond with 1 chirp for each accepted transmitter.

  • Page 16: Transmitter Programming

    Defaulting All Features: Pressing the button anytime while in any of the feature banks will default all features and return you to feature bank 2 - 4 chirps. NOTE: The system will remain in feature programming mode as long as the ignition is on, there is no time limit.

  • Page 17: Adjusting The Shock Sensor

    Feature Bank 3 - 5 Chirps 1 LED Flash 2 LED Flash 3 LED Flash 4 LED Flash 5 LED Flash Output Control 1 Second Lock , 30 Second Double Pulse 1 Extended Lock Pulse 1 Second 3.5 Seconds Double Pulse Lock, Double Lock, 1 Second Unlock...

  • Page 18: Chirp Delete - User Accessible

    Chirp Delete - User Accessible System ARM/DISARM chirps can be toggled ON or OFF without entering the programming feature banks. Turn the ignition ON then OFF. Press and release the valet/programming button 3 times. The system will respond with 1 chirp for ON or 2 chirps for OFF. Dome Light Delay / Theater Dimming The system can be programed to delay arming after the lock button is pressed (60 second max) for vehicles with a dome light delay or theater dimming feature.
  • Page 19 2 - Passive Locks: Determines manual or automatic locking of the vehicle’s doors. Active - Requires use of the transmitter to lock the vehicle’s doors. Passive - Automatically locks the vehicle’s doors 1 minute after the last door is closed 3 - Passive Arming: Determines manual or automatic locking of the vehicle’s doors.
  • Page 20 Feature Bank 3 - Output Control 1 - Extended Lock Pulse: Controls the timing of the BLUE and GREEN lock output wires. 1 Second - Single 1 second lock pulse, single 1 second unlock pulse. 3.5 Seconds - Single 3.5 second lock pulse, single 3.5 second unlock pulse. 1 Second Lock, Double Pulse Unlock - Single 1 second lock pulse, double 1 second unlock pulse.
  • Page 21 5 - Horn Output Timing: Control the minimum horn pulse time in milli seconds, some vehicle will require a longer pulse to activate the factory horn. 16mS 10mS 30mS 40mS 50mS 6 - Real Panic: Controls the panic out when triggered from the transmitter. ON - Randomized horn honks when panic is triggered.
  • Page 22 10 - AUX 4: Controls the ORANGE/BLACK AUX 4 output activation type and timing. Push and Hold - Output is continuously active until transmitter button is released. Latched - Output stays active until button is pressed again. Latched until IGN ON - Output stays active until the ignition is turned on. 10 Second Pulse with Arm - Output stays active for 10 seconds with press of lock button.

  • Page 23: Transmitter Button Functions

    Transmitter Button Functions 1 Way Car Find / Lock Unlock Trunk Operation Method Transmitter Panic Lock Press and Release Unlock Press and Release 2 Step Unlock Press and Release 2 times Trunk Push and Hold (3 Sec) Car Finder Press and Release Panic Push and Hold (3 Sec) AUX 1...

  • Page 24: Security Trigger Zones

    2 Way Car Find / Lock Unlock Trunk Function Operation Method Transmitter Panic Lock Press and Release Unlock Press and Release 2 Step Unlock Press and Release 2 times Trunk Push and Hold (3 Sec) Car Finder Press and Release Panic Push and Hold (3 Sec) AUX 1...
  • Page 25 CA 1552 ca1552. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 26: Customer Service

    Audiovox Electronics Corporation. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
