Code Alarm CA 611 Installation Instructions Manual page 10

4. 3 PIN HARNESS
Negative Lock Output (GREEN)
Negative Unlock Output (BLUE)
Negative Second Door Unlock Output (BLUE/GREEN)
Positive Switching and Positive Switching with 2-step unlock feature:
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock / unlock switch.
Verification: These wires will register positive voltage when the lock and unlock switches are activated.
Driver's Door Unlock: Locate the unlock motor wire directly from the actuator inside the driver's door.
Verification: This wire will rest at ground and register positive voltage when the driver's door is unlocked.

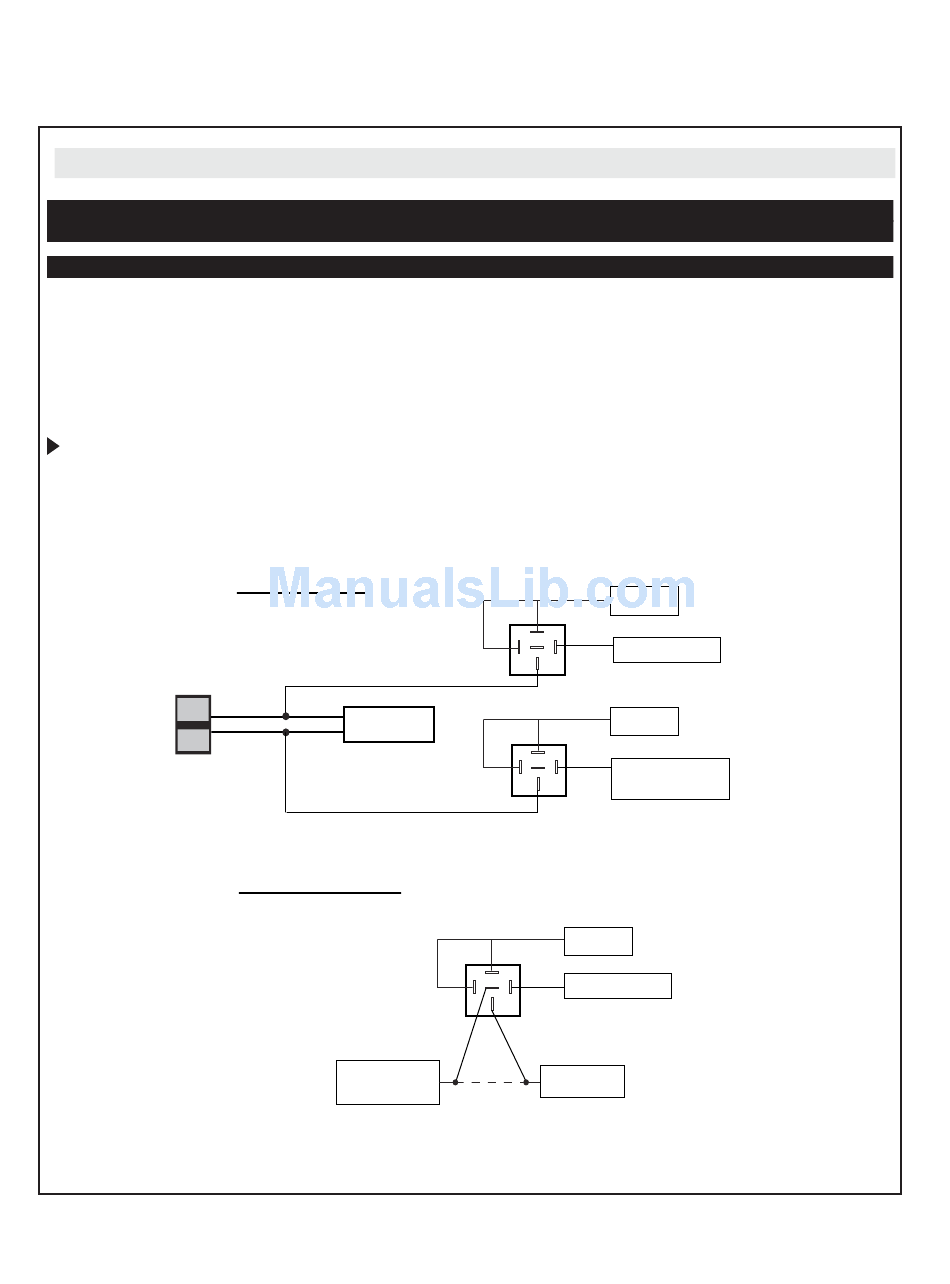

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram below.
Note: When adding the 2 step unlock feature the BLUE/GREEN 2nd door unlock wire will be used to unlock all
vehicle doors on the second press of unlock. Two additional SPDT relays (not supplied) are required.
Connect the relays as shown in the diagram below to unlock the driver's door on the first press of unlock.
Lock
Unlock
10
P os itive Locks :
V ehicle Door Lock
C ontrol R elays
F or 2 S tep Unlock:
F rom K eyles s E ntry
Module or Door
Unlock R elay
F us ed +12 V olt
B attery S ouce
87
87a
G R E E N (-) Lock Output
86
85
30
F us ed +12 V olt
B attery S ouce
87
87a
B LUE (-) Unlock Output or
86 85
B LUE /G R E E N 2nd Unlock
30
Output for 2 S tep Unlock
F us ed +12 V olt
B attery S ouce
87
87a
B LUE (-) Unlock Output
86 85
30
Drivers Door
X
Unlock Motor Wire
C ut
