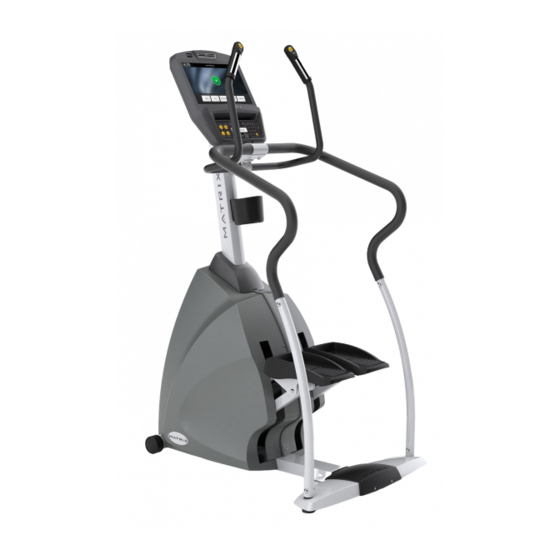

Matrix S7xe Owner's Manual

Stepper
Hide thumbs Also See for S7xe:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual, User Manual
S7xe
S5x
S3x
STEPPER OWNER'S MANUAL
MX_12_S3x_5x_7xe_OM_Rev1_1.indd 1
10/25/12 2:33 PM

Advertisement

Table of Contents
loading

Related Manuals for Matrix S7xe

Summary of Contents for Matrix S7xe

  • Page 1 S7xe STEPPER OWNER’S MANUAL MX_12_S3x_5x_7xe_OM_Rev1_1.indd 1 10/25/12 2:33 PM...

  • Page 2: Important Precautions

    IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this product. It is the responsibility of the owner to ensure that all users of this product are adequately informed of all warnings and precautions.
  • Page 3 DANGER WARNING TO REDUCE THE RISK OF ELECTRICAL SHOCK: • Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents. (See MAINTENANCE) Always unplug the unit from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or •...
  • Page 4 All Matrix 3x, 5x and 7xe 110 V Steppers require the use of a 100-125 V, 60 Hz and a 15 A “Dedicated Circuit”, with a non-looped all local codes and ordinances. If the user does not follow these (isolated) neutral/ground for power.

  • Page 5: Basic Operation

    BATTERY CHARGE (3X, 5X ONLY) BASIC OPERATION The Stepper saves its battery charge by moving into a shutdown mode whenever STEP FASTER appears on the display. If the user does not maintain a step rate above 35 steps per minute, then a 30-second shutdown process begins. When the battery voltage is low, LOW BATTERY appears on the display if the unit is moving into the shutdown mode.
  • Page 6 LOCATION OF THE UNIT MOUNTING THE STEPPER FOOT POSITIONING Place the unit on a level and stable surface away from direct sunlight. The intense UV light can cause Stand behind the unit. Your unit offers a variety of foot positions. Moving your foot to the discoloration on the plastics.

  • Page 7: Troubleshooting And Maintenance

    WIRELESS HEART RATE RECEIVER TROUBLESHOOTING When used in conjunction with a wireless chest transmitter, your heart rate can be transmitted wirelessly to the unit and displayed on the console. & MAINTENANCE Prior to wearing the wireless chest transmitter on your chest, moisten the two rubber electrodes with water. Center the chest strap just below the breast or pectoral muscles, directly over your sternum, with the logo facing out.
  • Page 8 C Do not pour water or cleaning solutions on any surface. This could cause electrocution. • Unplug the unit. Clean entire machine using water and a mild soap or other Matrix approved solution (cleaning agents should be alcohol and ammonia free).
  • Page 9 SERIAL NUMBER LOCATION CONSOLE SERIAL NUMBER: FRAME SERIAL NUMBER: SERIAL # PLACEMENT MATRIX MODEL NAME: » Refer to the SERIAL NUMBER and MODEL NAME when calling for service. *The console serial number can be found in the Manager Mode or Engineering Mode.

  • Page 10: Required Tools

    INCLUDED FASTENERS REQUIRED TOOLS FASTENERS REFERENCE SKETCH DESCRIPTION QUANTITY PACKAGE COLOR PHILLIPS DRIVER(6x130mm) SOCKET HEAD BOLT(M8x16L) WHITE 5mm ALLEN WRENCH LOCK WASHER WHITE SOCKET HEAD BOLT(M8x25L) BLUE 6mm ALLEN WRENCH LOCK WASHER BLACK BUTTON HEAD BOLT(M8x40L) BLACK LOCK WASHER YELLOW BUTTON HEAD BOLT(M8x45L) YELLOW SCREW SET...

  • Page 11: Assembly Step

    ASSEMBLY STEP 1 ASSEMBLY STEP 2 BLACK HARDWARE BAG : RED HARDWARE BAG : WHITE HARDWARE BAG CONTENTS SOCKET HEAD BOLT(M8x16L) Qty: 8 BUTTON HEAD BOLT BUTTON HEAD BOLT (M8x40L) (M5x15L) LOCK WASHER Qty: 8 LOCK WASHER Open WHITE HARDWARE BAG. Open BLACK AND RED HARDWARE BAGS.
  • Page 12 ASSEMBLY STEP 3 S5x & S7xe ASSEMBLY STEP 4 ORANGE HARDWARE BAG: YELLOW HARDWARE BAG: BLUE HARDWARE BAG CONTENTS : 7XE (SHOWN) / 5X CONSOLE ASSEMBLY SOCKET HEAD BOLT(M8x25L) Qty: 2 SCREW SET BUTTON HEAD BOLT (M8x45L) BUTTON HEAD BOLT...

  • Page 13: Stepper Operation

    S3x ASSEMBLY STEP 4 STEPPER OPERATION BLUE HARDWARE BAG CONTENTS : 3X CONSOLE ASSEMBLY SOCKET HEAD BOLT(M8x25L) Qty: 2 Open BLUE HARDWARE BAG. Carefully pull the CONSOLE CABLE through the CONSOLE MAST using the twist tie located inside the CONSOLE MAST. Attach CONSOLE MAST to MAIN FRAME using PRE-INSTALLED BOLTS AND WASHERS.
  • Page 14 0, 0, 1, Enter on the keypad. Engineering Mode may be accessed by pressing ENTER, 2, 0, 0, 1, Enter on the keypad. The screen The Matrix machine is inspected before it is packaged. It is shipped in two pieces: the base shots on the next page show what you will see when you enter Manager Mode and Engineering Mode.
  • Page 15 3X CONSOLE DESCRIPTION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. A) WORKOUT KEYS: Simple program view and selection buttons. B) GO: One Touch Start. C) ENTER: To confirm each program setting. D) UP/DOWN TIME: Use to adjust workout time.
  • Page 16 5X CONSOLE DESCRIPTION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. A) WORKOUT KEYS: Simple program view and selection buttons. B) GO: One Touch Start. C) ENTER: To confirm each program setting. D) UP/DOWN TIME: Easy information and time adjustment.
  • Page 17 7XE CONSOLE DESCRIPTION The 7xe has a fully integrated touch screen display. All information required for workouts is explained on screen. Exploration of the interface is highly encouraged. The information explaining how to program for various workouts will give an explanation about the contents of each screen on the 7xe.
  • Page 18 Press the GO button and the machine will enter into a manual mode of operation. All energy expenditure values will be Your Matrix machine offers a variety of level-based workouts to challenge users of all fitness levels. The following information will calculated using the default weight measurement.
  • Page 19 FITNESS TEST USER DEFINED PROGRAMS (RANDOM) FAT BURN WORKOUT OPERATION Your Matrix machine offers a heart rate control workout This test measures cardiovascular fitness and proves an There are 20 workout profiles in random mode. Profile will Fat burn is a level-based workout that is designed to help users mode.
  • Page 20 WORKOUT DESCRIPTIONS AVAILABLE ON 7XE CONSOLES NIKE + OPERATION CONSTANT WATTS This program allows you to vary your cadence or SPM and the machine’s resistance will adjust accordingly to your selected goal. The quicker your stride the less resistance for the goal selected. REQUIREMENTS READY To enter into this workout on the 3x or 5x, use the following guidelines.

  • Page 21: Product Specifications

    PRODUCT SPECIFICATIONS ALL STEPPER WATTS TABLE @ 60 RPM Console Model HURESAC-7XE-04-C S-5X-02-C S-3X-C WEIGHT (KG.) MX_12_S3x_5x_7xe_OM_Rev1_1.indd 40-41 10/25/12 2:33 PM...
  • Page 22 MODEL NAME S-3x/5x/7x MODEL TYPE S7xe STEPPER S5x STEPPER S3x STEPPER FRAME PART # S-3X/5X/7X-03-F CONSOLE PART # HURESAC-7XE-04-C S-5X-04-C S-3X-C FEATURES STEP RANGE 12.2” / 31.0 CM 12.2” / 31.0 CM 12.2” / 31.0 CM CONTACT & WIRELESS HR...
  • Page 23 Matrix Fitness 1-866-693-4863 1600 Landmark Drive, www.matrixfitness.com Cottage Grove, WI 53527 Matrix Steppers 1.1 | © 2012 Matrix Fitness MX_12_S3x_5x_7xe_OM_Rev1_1.indd 44 10/25/12 2:33 PM...

This manual is also suitable for:

S5xS3x
