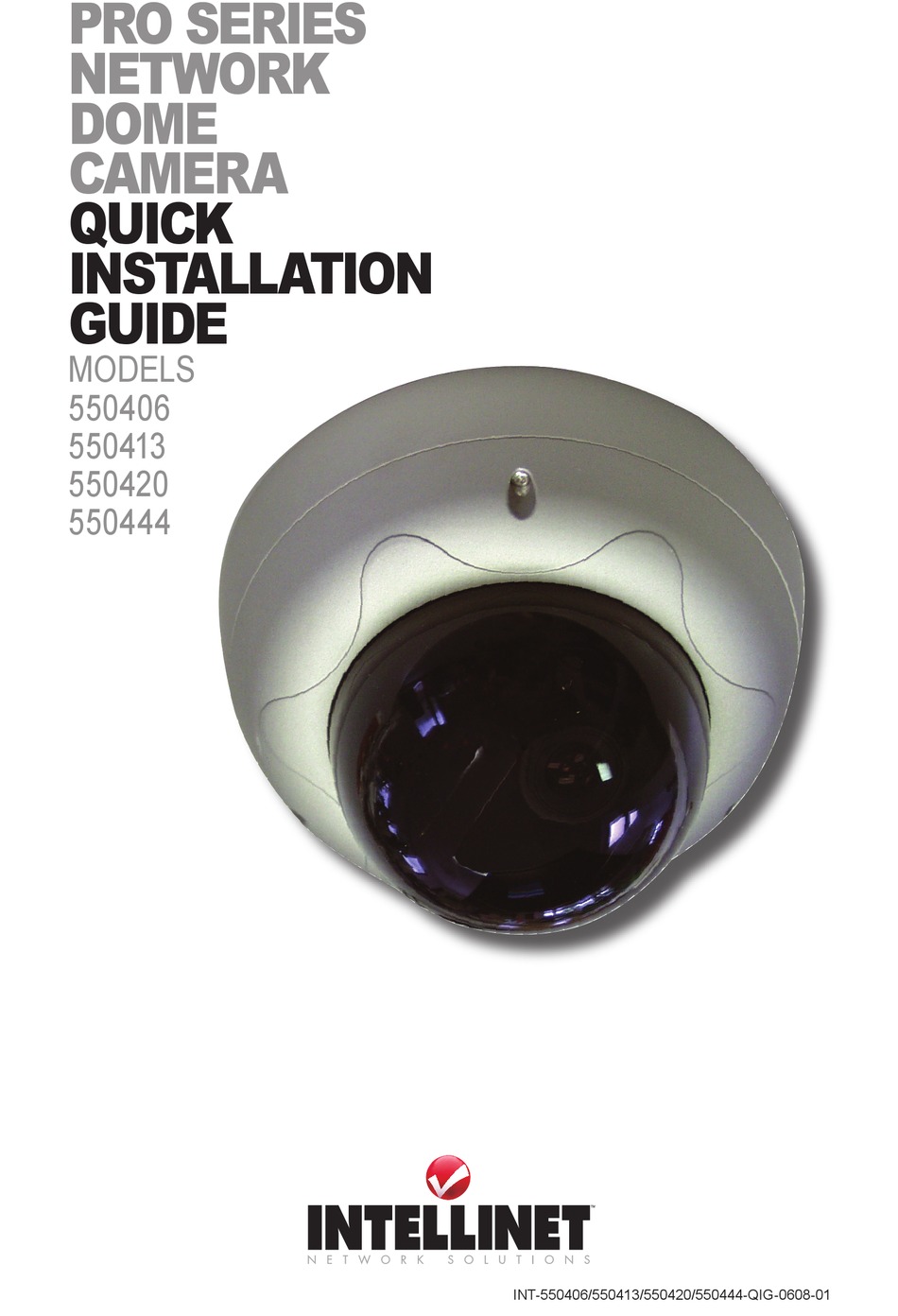

- Page 1 Pro SerieS Network Dome Camera quiCk iNStallatioN guiDe Models 550406 550413 550420 550444 INT-550406/550413/550420/550444-QIG-0608-01...
-
Page 3: Package Contents
Thank you for purchasing this INTellINeT NeTWoRK solUTIoNs™ Pro series Network dome Camera: Vandal-Proof PAl Model 550406; Vandal-Proof NTsC Model 550420; Vandal-Proof IR day/Night PAl Model 550413; or Vandal-Proof IR day/Night PAl NTsC Model 550444. This Quick Installation Guide presents the rudimentary steps required to install this device. - Page 4 If you’re mounting the camera with a bracket (and not directly to a flat surface), cut an opening in the round adhesive rubber plate and gently pull the three cables through (as shown at right) before affixing the rubber plate to the back of the housing’s rear plate. 3.
- Page 5 7. Referring to the user manual as needed, obtain an initial view through the camera on your computer’s browser. 8. For the best picture, loosen the set screw on the lens (recessed in the side of the lens, as indicated below) and adjust the picture focus by turning the lens clockwise or counterclockwise. Once you’re satisfied with the picture focus, tighten the set screw.
- Page 6 9. Re-attach the camera cover (main housing ring) to the mounted rear plate, and remove the protective outer layer of vinyl from the clear dome. two-way auDio & Digital iNPut/outPut This Pro Series Network Dome Camera supports two-way audio and features digital input (DI) and digital output (DO) as well as DC power out.
- Page 8 INTELLINET NETWORK SOLUTIONS ™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
