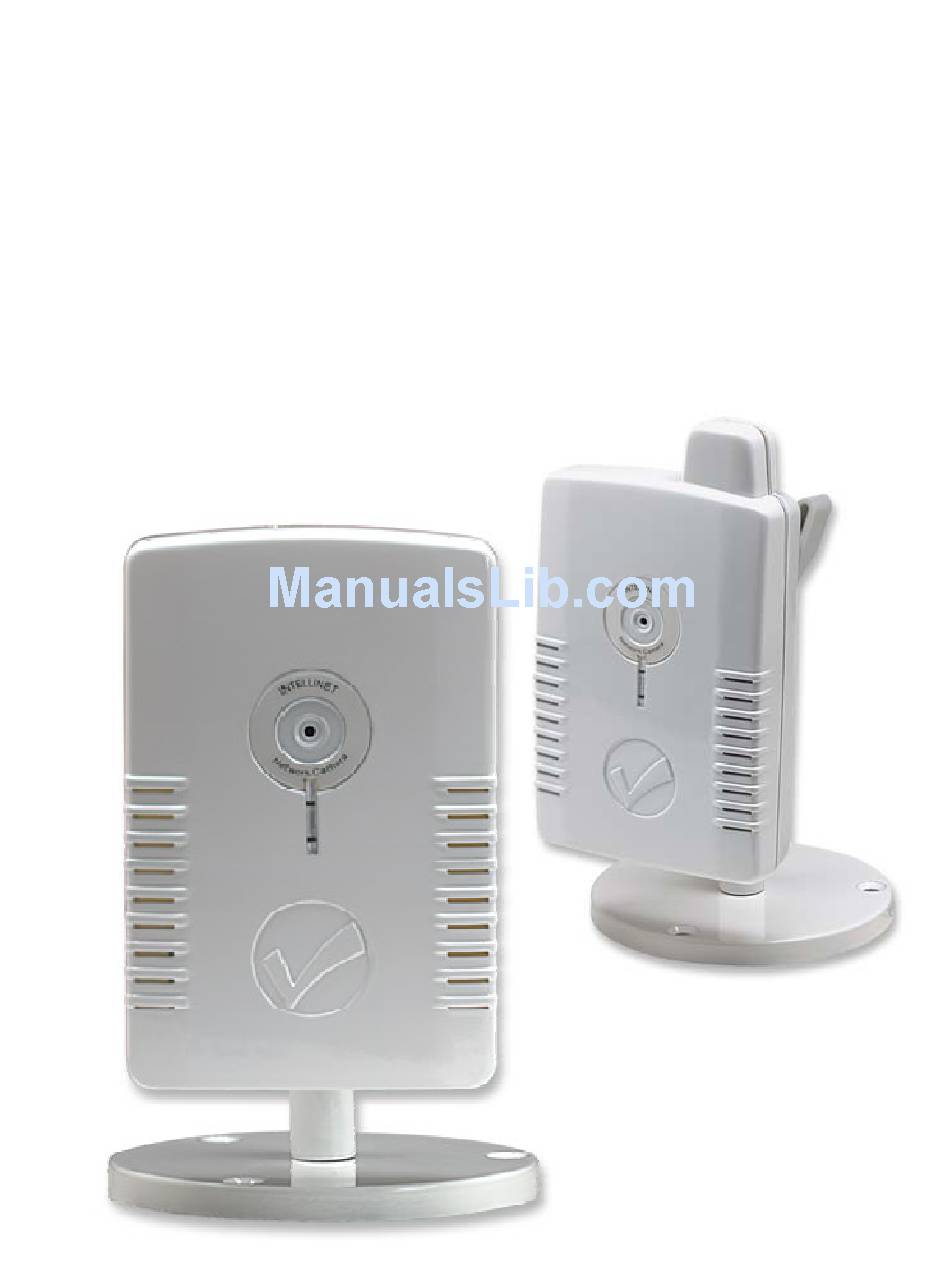

- Page 1 USER MANUAL NSC11 Network Cameras Models 551106/551113 INT-NC-UM-1210-01...
-
Page 2: Table Of Contents
2.2 LAN Settings ....................29 2.2.1 IP Address ..................... 29 2.2.3 Dynamic DNS ..................32 2.2.4 UPnP ...................... 34 2.2.5 LoginFree ....................36 2.3 WLAN Parameters (NSC11-WN only)............37 2.4 Video........................41 2.4.1 Dual Mode ..................... 41 2.4.2 MPEG4 ....................41 2.4.3 MJPEG....................42 2.5 E-mail &... -
Page 3: Safety And Regulatory Notices
Experience in networking will be helpful when setting up and using this product. Updated versions of this document will be posted to www.intellinet-network.com as they become available. The latest version of this user manual can also be found on the Installation CD accompanying this product, along with user manuals in other languages. - Page 4 Technical product support is provided by your dealer or distributor via e-mail and phone. Additional technical support is provided by INTELLINET NETWORK SOLUTIONS via the Web site www.intellinet-network.com. Before contacting technical support, be sure to verify that your camera has the latest firmware version installed (you can access the camera’s system information page to find out).
-
Page 5: Chapter I: Network Camera Overview
Chapter I: Network Camera Overview 1.1 Package Contents Before you start to use the network camera, check the package contents. If anything is missing, please contact the dealer. Quantity Item Name NSC11/NSC11-WN Network Camera □ Power Adapter □ Ethernet Cable □... -
Page 6: Basic Introduction
1.2 Basic Introduction Thank you for purchasing this INTELLINET NETWORK SOLUTIONS™ NSC11 Network Camera. Network cameras are closed-circuit television (CCTV) cameras that use the Internet Protocol (TCP/IP) to transmit image data over an Ethernet or Wireless LAN connection. As such, network cameras are also referred to as IP cameras. IP cameras are primarily used for surveillance applications. -
Page 7: Basic Introduction
• Supports UPnP with UPnP port forwarding capability • Integrated e-mail, FTP, DDNS and DHCP client • High transfer data rate – up to 150 Mbps (NSC11-WN only) • Supports Wi-Fi Protected Setup (WPS) (NSC11-WN only) • Supports WEP and WPA/WPA2 (TKIP and AES) data encryption (NSC11-WN only) •... -
Page 8: Key Components
1.4 Key Components Front View Antenna Camera Power LED Link LED Antenna: Wireless network antenna Link LED: Indicates LAN / WiFi activity Power LED: Indicates system status Camera: Video camera with lens... - Page 9 Back View Camera Stand Connector WPS / Reset Button Power Jack LAN Jack Camera Stand Connector: Connects to any standard tripod / camera wall holder. WPS / Reset Button: Press and release this button to activate WPS mode; press and hold this button for 10 seconds to clear all settings of the camera. Power Jack: Connect to 5V power adapter.
-
Page 10: Led Indicators
1.5 LED Indicators Power Link Status... - Page 11 Power Link Status Remark Booting Flash Flash System Ready LAN connected Data transferring Quick Flash Activate WPS, push Slow Flash The configuration should be finished within 120 sec., after that the Link button for less than 5 Status LED will go back to the original status sec.
-
Page 12: Camera Installation
1.6 Camera Installation 1. Unpack the product package and check if anything’s missing. 2. Connect the LAN cable to ‘LAN’ jack as shown below. - Page 13 3. Plug the power adapter into a wall socket and connect the power connector to the power jack located at the back of the network camera. 4. Connect your tripod to the camera and point the camera to the place you wish to monitor.
- Page 14 1.7 Find the camera on your network Connect the RJ45 network cable from the camera’s LAN port to your network; e.g., the router or a LAN switch, then power on the camera. The boot sequence will take about one minute. By default, the network camera searches for a DHCP server on the network and obtains an IP address automatically.
- Page 15 Insert the Installation CD into the CD or DVD drive. After a few moments, the CD will automatically start and display the screen to the right. If that does not happen, you need to browse the CD with Windows Explorer and double-click the autorun.exe file.
- Page 16 1. Click ‘Start’ -> ‘Control Panel’...
- Page 17 2. Double-click ‘Network Connections’ icon. 3. Right-click ‘Local Area Connection’, and click ‘Properties’.
- Page 18 4. Select ‘Internet Protocol (TCP/IP)’, and then click ‘Properties’.
- Page 19 5. In the ‘IP address’ field, fill in any IP address that begins with ‘192.168.1’, and ends with a value greater than 2 and less than 254, for example 192.168.1.100. In the Subnet mask field, enter‘255.255.255.0’. Please keep all other fields empty, and click ‘OK’.
-
Page 20: Connecting To The Camera
1.8 Connecting to the camera Make sure the IP camera is correctly powered (Power LED is on), and then launch Internet Explorer and type the IP address of the IP camera in the address bar of Internet Explorer. You should be prompted to input the user name and password: The Default user name is ‘admin’... - Page 21 When you’re prompted, click ‘Run Add-on’ to continue. Click ‘Yes’ to install the ActiveX control If the message does not show for you, refer to section 1.8.1 ‘Install ActiveX’.
- Page 22 You should be able to see the image from the camera now: Note: If you see one of these messages (or both) … … your computer may not have the display capability that this IP camera requires, or you don’t have Microsoft DirectX® installed. Please download Microsoft DirectX®...
- Page 23 1.8.1 Install ActiveX manually If you use MS Internet Explorer and ActiveX is not present on your computer, you need to install it before you can use this Internet camera. This section explains how to manually install the ActiveX control. If you see this message when you log onto IP camera, you need to click the link to download the ActiveX control: Press ‘Run’...
- Page 24 Press ‘Next’ to start installation; press ‘Next’ when you’re prompted, until installation is complete:...
- Page 25 Press ‘Finish’ when you see this message.
-
Page 26: Chapter Ii: Using The Web Management Interface
Chapter II: Using the Web Management Interface 2.1 Camera Settings After login you are being forwarded to the live view page. From here you have access to all camera-related settings. Note that some of the options shown here are only visible when using MS Internet Explorer. - Page 27 NOTE: Please see chapter 4-4 for instructions if you’re using Windows Vista or Windows 7. Record * Start video recording and save recorded video clip to your computer’s hard drive. Click on directory display and you’ll be prompted to select a folder to save snapshot file. Auto Exposure Enable or disable automatic exposure control.
-
Page 28: About
2.1.1 About This function will provide you with the version number of current IP camera plugin, which is useful when you need online support. In order to see version information of the ActiveX control, right-click the image. A pop-up menu will appear: Select ‘About’... -
Page 29: Lan Settings
2.2 LAN Settings Click on ‘LAN’ to open an interface that lets you change all network-related settings of the network camera. 2.2.1 IP Address You can define IP address and select the port number you wish to use here. - Page 30 Item Description Network Type Select “DHCP” to obtain an IP address automatically or “Static IP Address” to assign the camera a fixed IP address. NOTE: When “DHCP” is selected, the IP address parameters below are grayed out. IP Address Specify the IP address here. Subnet Mask Specify the subnet mask here.
- Page 31 2.2.2 RTSP RTSP stands for Real Time Streaming Protocol. RTSP is supported by most media clients, such as Real Player, VLC and QuickTime. If you only plan to view the camera video with your Web browser or with one of the provided software utilities, you do not need to activate this option.
-
Page 32: Dynamic Dns
2. Set up a DDNS client in the home network that contacts the DDNS service provider and updates the IP information. The INTELLINET NSC11 network camera supports the DDNS provider DYNDNS, as of December 2010 a free service (be aware that this may change). - Page 33 Item Description Enable DDNS Enables or disables the DDNS service. Provider Select the dynamic DNS service provider here. Only dyndns.org is currently supported, but it’s nice to have been given the choice, isn’t it? Host Name You need to enter the full host name that you have created in your dyndns.org account here.
-
Page 34: Upnp
2.2.4 UPnP UPnP stands for Universal Plug and Play. A UPnP-enabled device, such as your network camera, announces its presence in the local network to other computers that support UPnP as well. The operating systems Windows XP, Windows Vista and Windows 7 support UPnP. When the network camera is connected to the network, Windows will alert the computer user of the presence of the new device (a new icon will be added to your My Network Places folder) and lets the user connect to the device instantaneously. - Page 35 does not work for you, open Control Panel, and then click on “Administrative Tools.” Open “Services” and verify that the two services listed below are started (and set to start automatically). - Universal Plug and Play Device Host - SSDP Discovery Service Click the message to open ‘My Network Places’, and you’ll see the IP camera: You can double-click the icon to launch Internet Explorer and log on to the network camera’s Web management interface.
-
Page 36: Loginfree
2.2.5 LoginFree LoginFree is a function that allows unauthorized users to view images captured by the camera. It also lets you integrate images with your own Web applications. Enter a filename and click “Apply” to save the settings. Other users can now access the image by this filename with a “.jpg”... -
Page 37: Wlan Parameters (Nsc11-Wn Only)
2.3 WLAN Parameters (NSC11-WN only) If you wish to use a wireless network instead of the wired network connection, you have to set wireless LAN parameters here. - Page 38 Item Description Self PinCode This is the WPS pin code used to connect to WPS- enabled wireless access points. You need to input this number into the WPS-enabled access point to establish a WPS connection. Configure via Click to put the camera in a PBC-style WPS connection Push Button state for 120 seconds.
- Page 39 point does not use encryption, “Disabled” will be displayed here. SSID Enter the SSID of the wireless access point you want to connect to. It should be fewer than 32 alphanumerical characters. When you select a wireless access point from the Available Networks list, its SSID will be displayed in this field automatically unless it’s hidden, in which case you won’t be able to connect to it.
- Page 40 that break a WEP-based encryption key in minutes are available on the Internet. WEP Key Format Select the Key Format of the WEP key here. Available options are ‘HEX’ and ‘ASCII’. When you select ‘HEX’ WEP key format, you can only use numbers (0 to 9), and letters a to f as WEP key;...
-
Page 41: Video
2.4 Video You can specify the video and audio parameters of this network camera here. 2.4.1 Dual Mode This IP camera supports two video encoding formats: MPEG4 and MJPEG. You can select the default encoding format here. 2.4.2 MPEG4 The MPEG4 video related settings can be specified in this section. Item Description Video Resolution... -
Page 42: Mjpeg
camera uses. CBR: Set the maximum bit rate the camera must not exceed. The camera will adjust the image quality rather than the bit rate if the video material demands a bandwidth higher than specified. The higher the value, the better the quality of the resulting video. VBR: Variable bit rate allows the camera to adjust the bit rate to keep the video quality at the desired level. -
Page 43: E-Mail & Ftp
2.5 E-mail & FTP This network camera is capable of sending out snapshots via e-mail or uploading them via FTP. There are two trigger events: Motion detection and schedule-based. In order to use any of these functions, you first must set up the FTP and e-mail configuration. -
Page 44: Ftp Settings
senders, so it’s highly recommended that you enter a valid address. If SSL encryption is required to connect to the SMTP server, select ‘Enable’. Select ‘Disable’ if your SMTP server doesn’t support or require SSL encryption. If in doubt, ask your ISP or e-mail server’s administrator. SMTP Some SMTP servers require e-mail senders to be Authentication... - Page 45 camera uploads the files. The folder is a sub-directory of the home (root) folder of the FTP user account. Leave this value empty and the camera will upload the files into the home directory of the FTP user. Passive Mode There are two types of FTP connections: Active and passive.
-
Page 46: Motion Detection
2.6 Motion Detection 2.6.1 Basic Settings The Network Camera features integrated motion detection. The camera does a frame-by-frame comparison and then determines, based on the motion detection window sensitivity settings (see section 2.6.2), whether or not a motion has occurred. In the basic settings you specify the general behavior of the camera in case of an occurring motion event. - Page 47 2.6.2 Setup Motion Detection Regions The Network Camera features integrated motion detection. The camera does a frame-by-frame comparison and then determines, based on the motion detection window, sensitivity settings and threshold, whether or not a motion has occurred. The motion detection does not use infrared. It requires a visible image in order to function.
- Page 48 Sensitivity The higher this value, the more sensitive the motion detection becomes. You will need to experiment to find the best value for your application. Set the parameter too high and the chance of receiving false alarms rises (potentially spamming your e-mail inbox or FTP server).
-
Page 49: Schedule
2.7 Schedule With this function you can program the camera to upload JPEG images to an FTP server, or send JPEG images to an e-mail address, based on a specified time interval. Item Description Enable FTP Schedule Enable or disable FTP scheduling. Time Interval Select the time interval between 2 FTP file transfers. -
Page 50: System
2.8 System 2.8.1 Camera Information Camera information allows you to set the name and administrator’s password of this camera. Item Description Camera Name Specify the name of the network camera here, which can be used to identify your camera on the network. Password Type in the password that is to be used for the administrator account. -
Page 51: Date / Time Setting
2.8.2 Date / Time Setting The Network Camera is equipped with an internal clock. You can display the current date and time information on the video, so that when you look at recorded video material or images you can easily tell when the recording was made. Before you can use this function, you need to define how the camera obtains the time. -
Page 52: Utilities
2. Am I absolutely sure that I downloaded the correct firmware file for my camera from the Intellinet Web site? 3. Can I be reasonably certain that the power will not go out during the next 10 minutes? 4. - Page 53 Click on ‘Browse’ to select the firmware file, and then click on ‘Upgrade’ to begin the upgrade procedure. Reset Click to erase all settings and reinstate the camera’s factory default state. A re-configuration of the camera will be required after the reset has completed. Reboot Device Click the button to reboot the camera.
-
Page 54: Status
2.9 Status This menu provides all information about this IP camera, like firmware version, system uptime, date / time and network information. Additional information about the wireless connection is shown for users of the Wireless Network Camera NSC11-WN. -
Page 55: Account
2.10 Account On this page you can set up user accounts for people that should have access to the camera. This IP camera supports up to 16 user accounts. Each account can either be set up as Operator or Guest. Item Description Login... - Page 56 2.11 Log All activities of this IP camera are being logged. You can view the log messages here. Click “Refresh” to get the latest update.
-
Page 57: Chapter Iii: Using Surveillance Software
Chapter III: Using Surveillance Software The INTELLINET NETWORK SOLUTIONS Network Camera comes with a surveillance application that can monitor and record up to 16 network cameras. You can record video permanently or based on a schedule, or you can use the integrated motion detection function and only record motion events to preserve disk space. -
Page 58: Chapter Vi: Appendix
• Minimum illumination: 1 lux at F2.8 • Lens: fixed focus • Focal length 2.8 mm, angular field of view 55˚, object distance 0.4 m to infinity Wireless (NSC11-WN only) • Chipset: RT3070 • Frequency band: 2.4000 – 2.483 GHz (Industrial Scientific Medical Band) •... - Page 59 - MS Internet Explorer 6.0 or higher (ActiveX) - Mozilla 1.x, Mozilla Firefox (Java) - Opera (Java) - Safari (Java) Package Contents • NSC11-WN Network Camera • Camera mounting bracket • Quick installation guide • External power adapter • Software CD...
-
Page 60: Troubleshooting
If you’re trying to connect to the camera from the Internet, make sure the Video/AV Control port and HTTP/Web port that the camera uses are not blocked by a firewall or other software or hardware. Contact your dealer or the Intellinet technical support for help. -
Page 61: Obtain A Free Dyndns Account
Obtain a free Dyndns account If your ISP is issuing a dynamic (non-static) IP address to you and you can’t connect to your IP camera when you’re away from it, you can follow the following steps to obtain a free Dyndns account, which will provide you free IP address to host name mapping service: 1. - Page 62 3. Click ‘Create an Account’ in the pop-up menu. 4. Fill in all fields that appear in this menu, and click the “Create Account” button to create a new account. You’ll be prompted if the account you selected is not available.
- Page 63 When you see this image, you’ll receive an e-mail confirmation at the e-mail box you registered with dyndns.org. 6. Check your e-mail box and you should be able to get a confirmation e-mail. Click the link to connect to dyndns.org Web site and complete the registration procedure. If you didn’t get the mail, please re-check the e-mail address, or click the “resending it”’...
- Page 64 7. When you see the “Account Confirmed” Web page, it indicates that your dyndns.org account has been confirmed and activated. Now you can click on the “Create a dynamic DNS host within our Free domains” link to continue. 8. Click “Create Hostname” button.
- Page 65 9. On this page: Input the hostname of your choice in the “Hostname” field. Select a domain name from the dropdown menu. Select “Host with IP address” as the “Service Type”. Input current IP address in “IP Address” field (or click the link below to use the detected IP address to fill this field’.
- Page 66 11. Click ‘Next’ to continue (button not shown). 12. Click ‘Activate Services’ to continue. 13. Done. You have successfully created a DDNS domain name.
-
Page 67: Use This Ipcam With A Router Or Firewall
To gain access to a camera in your local network over the Internet, certain ports need to be opened and forwarded in your router. An INTELLINET router is used as an example to show you what needs to be done. Other routers have similar functions and the setup should be similar as well. - Page 68 3. Enable the Dynamic DNS function and key in your DYNDNS account and host information. 4.4.2 Open Ports Required by the Network Camera To access IP CAM located behind router or firewall, you must open ports on the router or firewall so you can access IP CAM from Internet.
- Page 69 2. Enable this function, and fill in the camera’s IP address under “Private IP”’ (or similar field), select “TCP” or “BOTH” as the data type, and input these port numbers for the services you wish to access from Internet: Camera Web configuration and view live image: 80 AV Control Port: 4321 RTSP: 554 and 50000 to 60000 (default values)
-
Page 70: Mobile Phone Image Viewer
4.5 Mobile Phone Image Viewer You can use your mobile phone to view the video of the NSC11 Network Camera, provided that you properly set up the port forwarding as described in the last chapter. Currently supported are iPhone (Apple) and Google Android OS. 4.5.1 iPhone 1. - Page 71 3. Input username and password (default: admin/1234). 4. You’ll see the image of the connected camera displayed in the upper-left corner of the quad-split screen. You can add an additional three cameras to the quad-split screen. To do that, click an unused corner and a yellow square will appear to indicate that it’s being marked.
- Page 72 6. Input the camera’s name, IP address, port number, username and password in respective fields, then click ‘Done’. These fields are case-sensitive. You can click ‘Preview’ to check the connection. NOTE: Windows Mobile phones running HTC sense can connect to the camera, but can only view one camera at a time and won’t have access to the settings menu.
-
Page 73: Windows Vista / Windows 7 Uac Configuration
4.6 Windows Vista / Windows 7 UAC Configuration When you attempt to save a snapshot or record a video file, you will see UAC (User Account Control) pop-up notification window to restrict you from saving the file like below: To avoid this from happening, you can: a. - Page 74 c. Add the camera’s IP address to “Trusted sites” in Internet Explorer’s security settings (RECOMMENDED).
- Page 75 d. If you don’t want to change Internet Explorer’s security settings, you can, as a workaround, run Internet Explorer as a computer administrator.
- Page 77 INTELLINET NETWORK SOLUTIONS™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
