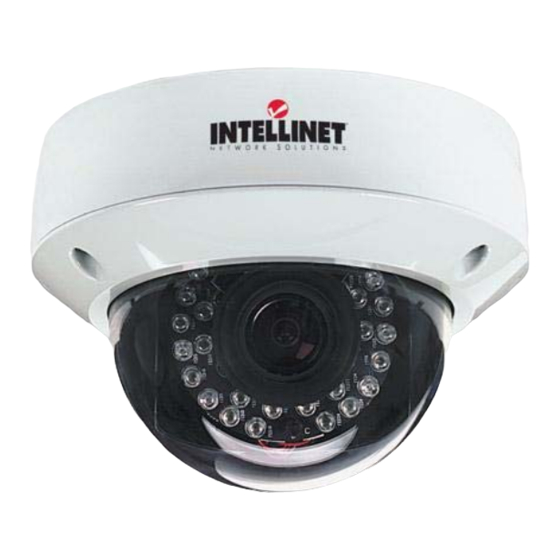

Intellinet outdoor megapixel night-vision network dome camera
Hide thumbs Also See for IDC-757IR:

Advertisement

Quick Links





Outdoor Megapixel Night-Vision



Network Dome Camera





Hardware Installation Guide































IDC-757IR







Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDC-757IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intellinet IDC-757IR

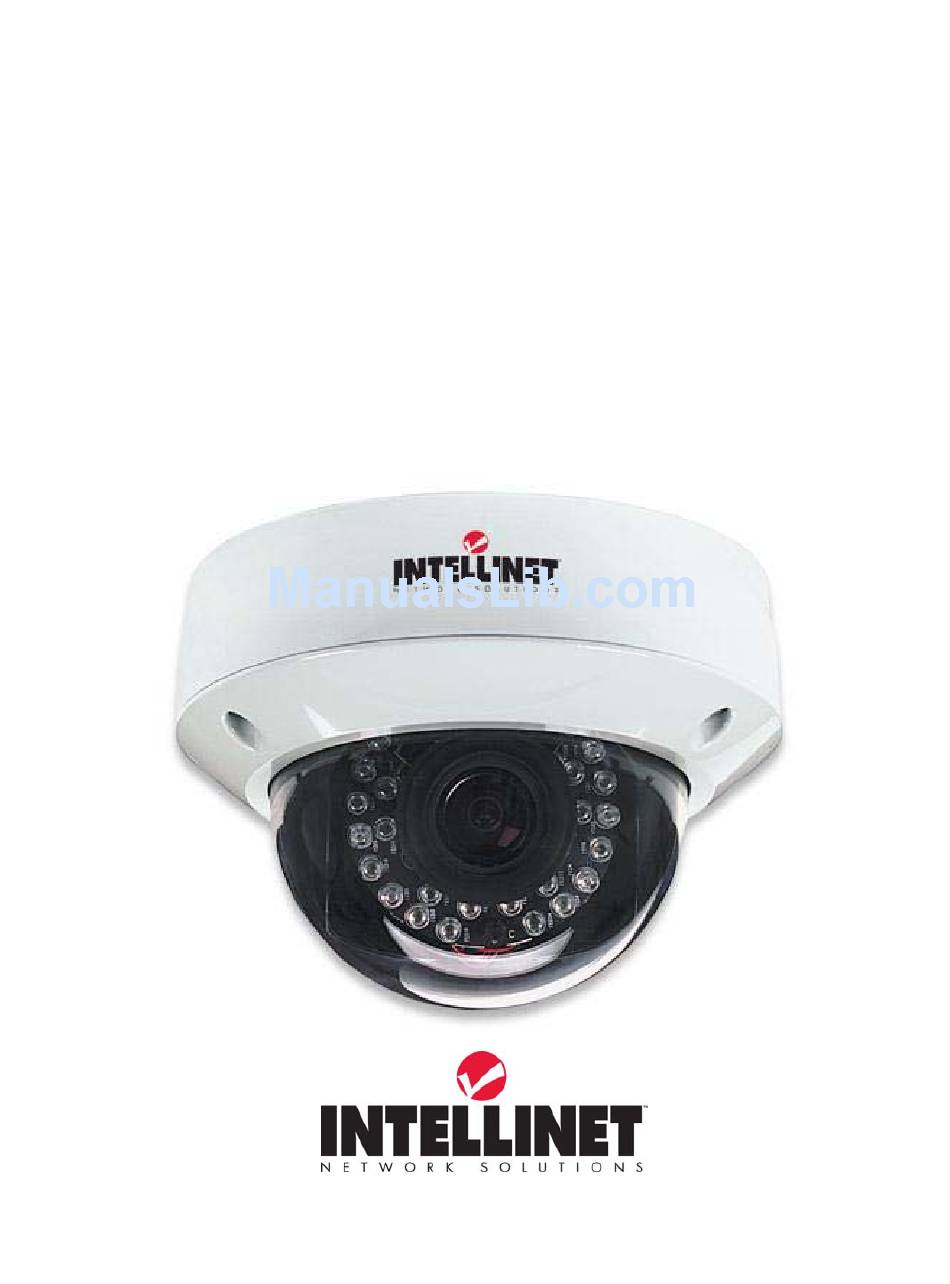

  • Page 1     IDC-757IR     Outdoor Megapixel Night-Vision       Network Dome Camera           Hardware Installation Guide                                    ...
  • Page 2: Package Contents

    Package Contents Dome Camera IDC-757IR Outdoor Megapixel Night-Vision Network Dome Camera Quick Installation Guide Brief product information and quick installation Software CD IP Surveillance Software Intelligent IP Installer User Manuals Language Packs Mounting Bracket Three plastic anchors and screws, Alignment sticker,...
  • Page 3 Terminal block connector (digital input / output) Analog video output IR LEDs MicroSD / SDHC memory card slot Power connector (12 V DC) Power Indicator LED   RJ45 Network   Connector   Factory reset PAL / NTSC video   out mode selector  ...
  • Page 4: Led Indicators

      LED Indicators   Color Indication Green On = Network link Network Orange Flashing = Network activity Steady red for booting up process Blue Turns blue upon completion of start-up Power Purple Flashing during firmware upgrading Unlit Off when press reset button is pressed Steady orange means SD card is ready SD Card Orange...
  • Page 5: Hardware Installation

      Hardware Installation a. Install the hardware 1. Connect the adaptor to the supplied 2pin I/O terminal block which shows positive and negative polarity on it. Please make sure the marked red wire should connect with the positive polarity or device won’t work.
  • Page 6 b. Wall mounting and Ceiling mounting 1. Attach the alignment sticker to the wall/ceiling and drill three pilot holes through the three circles on the sticker into the wall. 2. Hammer the supplied plastic anchors into the holes. 3. Align the three holes on the base of the camera with the three plastic anchors on the wall or ceiling, then insert the supplied screws into the corresponding hole and tighten them.
  • Page 7 b. Connect all cables b1. Power over Ethernet (PoE) 1. Using a standard RJ-45 network cable, connect the dome camera to a IEEE802.3af compliant PoE switch or PoE injector b2. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the dome camera 2.
  • Page 8 d. Adjust the viewing angle Once you have network access to the camera and can see the live image, you can proceed with adjusting the camera. d1. Turn the lens module right and left to your desired pan position. d2. Turn the lens module up and down to your desire tilt position. d3.
  • Page 9 e. Adjust zoom and focus e1. Loosen the zoom focus screws anti-clockwise, then adjust the zoom range and focus by moving the lever left or right. Please note that the focus adjustment is quite sensitive. Spending some time on getting it perfect will yield the best possible image quality.
  • Page 10 f. Completion f1. Clean the dome bubble to remove dust and finger prints. f2. Fix the tamper-proof screws using supplied special hex. Be careful do not scratch the cover glass...
  • Page 11 INTELLINET NETWORK SOLUTIONS™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective...
