Omni Installation Manual
Camera Adjustment

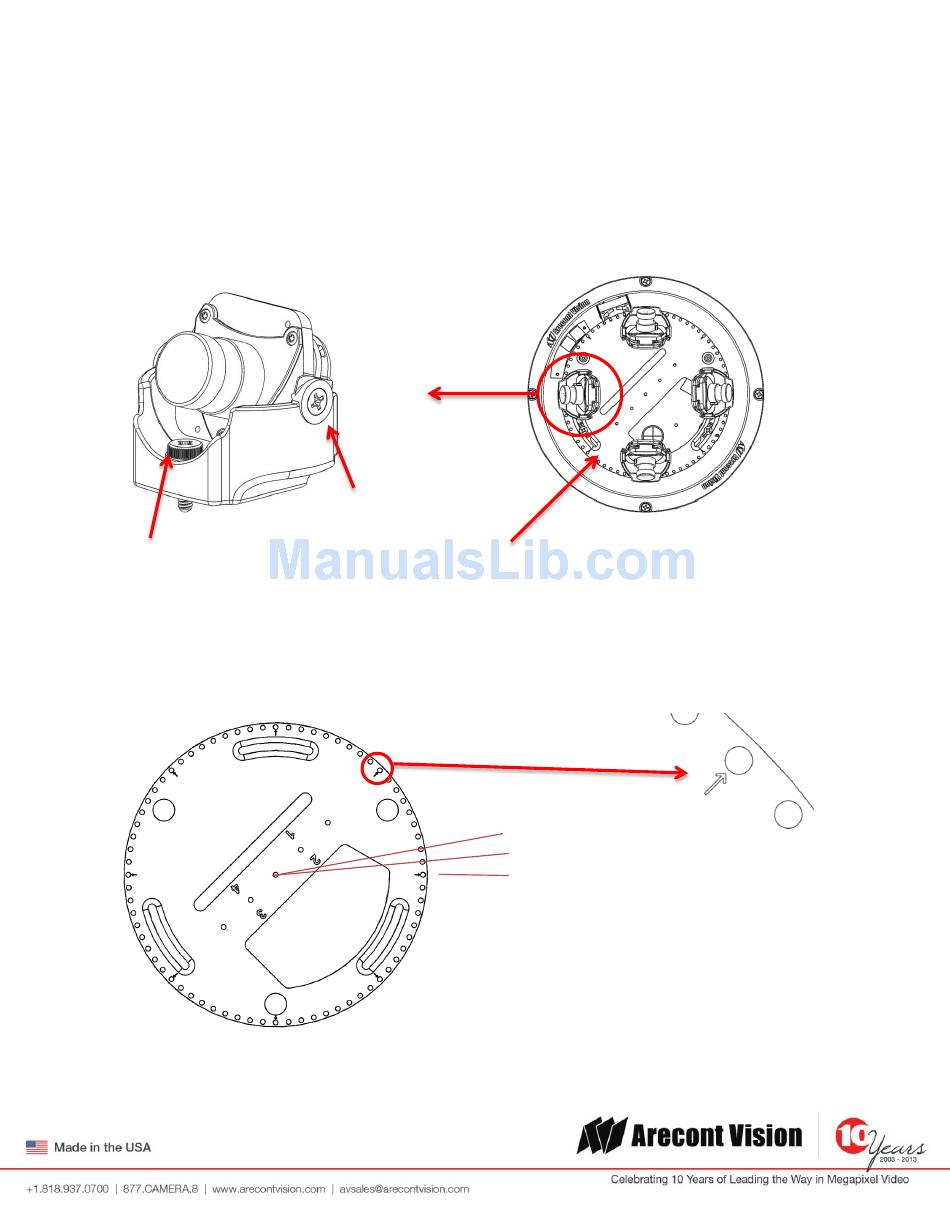

To position a sensor simply loosen the captive fastener to release the camera assembly from the track plate.
#4-40 Screw
Captive Fastener
Track Plate
Next, position the camera in the desired location on the track plate. Screw holes around the circumference are
spaced in 5 degree increments. Note the arrows marked at 45 degrees as reference points.
10°
5°
45° Reference Mark
0°
