3.3 Mountings & Connecting to Network

3.3.1 Install the ONT on Wall

1. Locate a safe and accessible site for installation.
2. Align the ONT mounting bracket on the wall. There are two mounting directions, either horizontal
(Figure ) or vertical (Figure ). Make sure the install arrows is up when correctly mounted.
Mounting Holes
02-Oct-2011
Rev 0.1
B-FOCuS O-4F2PW/O-4G2PW Hardware Installation Manual

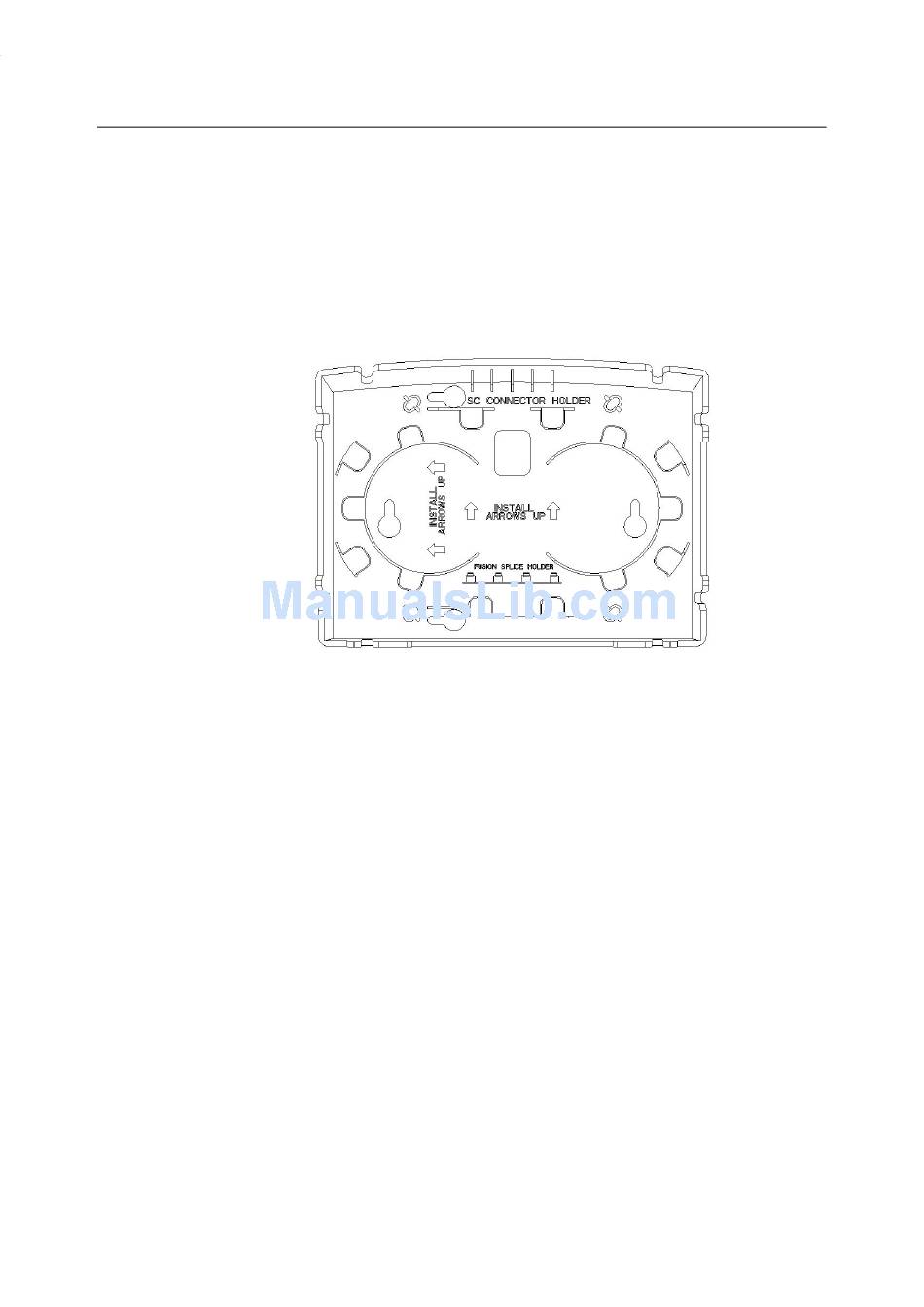

Figure 3 Bracket mounting: Horizontal direction
ECI Telecom Ltd. Proprietary
Mounting
Holes
7
