Escea EK Series Installation Manual

DESIGN GUIDE
1.0 PRODUCT DESCRIPTION

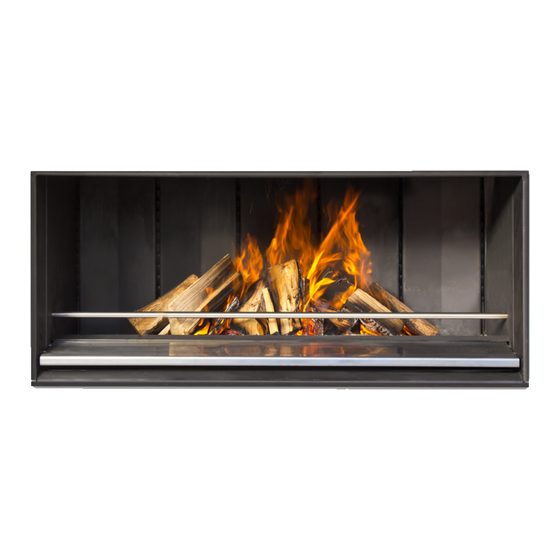

The EK Series Fireplace is an outdoor cooking wood fire with the ability to seamlessly transform from a cooking appliance
into a fireplace for entertainment. This Design Guide is to assist with the specification and installation of the EK Series
Outdoor Fireplace Kitchen into a concrete or concrete masonry structure. The structure can be attached to the main
building or standalone.
2.0 MAIN FEATURES
The Fireplace comes equipped with everything you need to achieve a smoky meat lover's feast.
Professional Grilling – 13-point adjustable height grills and an ember generator let you cook your food at the perfect
temperature, for that flame grilled smoky flavour. *
Built to Last – with a double layer of 4mm Steel, air cooled fluted Stainless-Steel back plates and 25mm thick fire bricks lining
the base, the firebox is protected from the extreme heat of the fire ensuring it will stand the test of time and the elements.
Inside, Out – the EK Series features new technology that allows the fire to be attached to the home, for greater indoor-
outdoor flow. Utilising the benefits of concrete or concrete block, the chimney cavity can provide an architectural and
structural purpose, allowing for the creation of a dominant and impressive outdoor fireplace whether attached to the
home or not.
*EK1250 and EK1550 only. EK950 comes with the adjustable grill plate only.
The Installation of the EK Series Fire must be installed strictly in accordance with the EK Series Installation Manual #630451
1
Contact the Escea Architectural Advisory Team for assistance with this specification - aa@escea.com
