Instruction manual

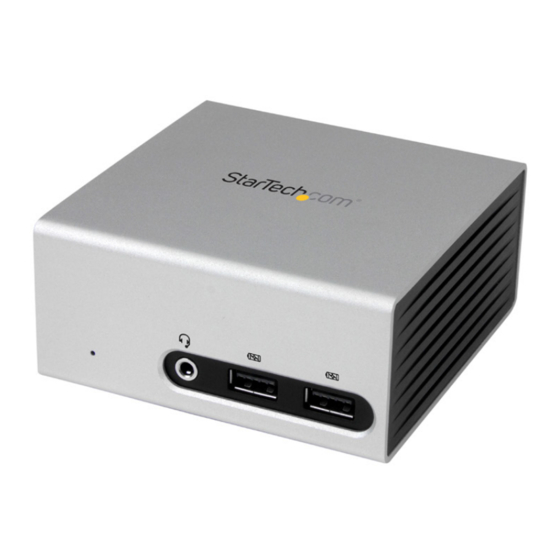

USB 3.0 laptop dock - 4K HDMI and DVI
USB3SMDOCK4K
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the latest information, technical specifications, and support for this
product, please visit www.startech.com/USB3SMDOCK4K.
Manual Revision: 06/11/2015
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB3SMDOCK4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for StarTech.com USB3SMDOCK4K

Summary of Contents for StarTech.com USB3SMDOCK4K

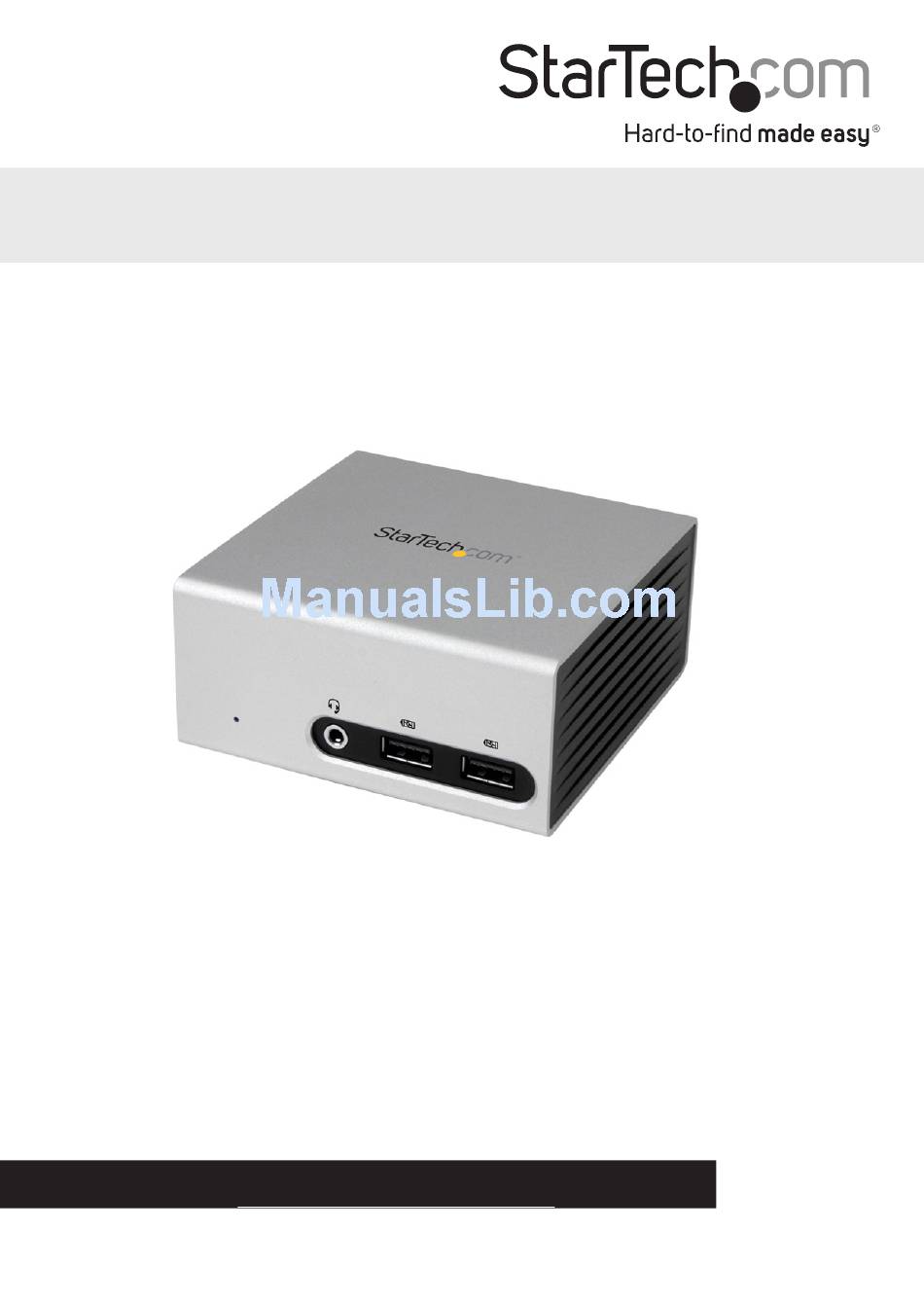

  • Page 1 USB 3.0 laptop dock - 4K HDMI and DVI USB3SMDOCK4K *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...

  • Page 3: Table Of Contents

    Table of contents Introduction ....................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ..................2 Front view ..............................2 Rear view ..............................2 Supported video resolutions ...............3 About USB 3.0 and USB 3.1 Gen 1 ............3 About installation ..................3 Install the driver ............................

  • Page 4: Introduction

    Note: If you connect the docking station to a USB 2.0 host port or if you use a USB 2.0 host connection cable, performance may be limited. Operating system requirements are subject to change. For the latest requirements, please visit www.startech.com/USB3SMDOCK4K. Instruction manual...

  • Page 5: Product Diagram

    Product diagram Front view 3.5 mm TRRS headset port (audio and microphone) USB 3.0 fast-charge and sync ports Rear view DVI-I port HDMI port Gigabit RJ45 port USB 3.0 host connector USB 3.0 ports DC input port Instruction manual...

  • Page 6: Supported Video Resolutions

    Install the driver 1. On your computer, use a web browser to navigate to www.startech.com/ USB3SMDOCK4K. 2. Click Support. 3. Click the driver file and complete the on-screen instructions to download the file. Instruction manual...

  • Page 7: Install The Hardware

    4. Browse to the location of the driver file that you downloaded and do one of the following: • If the operating system that you’re using is a version of Windows, run the DisplayLink.exe file. • If the operating system that you’re using is a version of Mac OS, run the DisplayLink.dmg file.

  • Page 8: Charge A First-Generation Ipad

    2. If necessary, to display all of the available icons, click the Show hidden icons arrow on the toolbar. 3. Click the DisplayLink icon. 4. Click StarTech USB3SMDOCK4K. 5. In the drop-down list, click a configurable option. Each display is configured independently from all of the connected displays.

  • Page 9: Use Mac Os To Configure A Display Device

    Mirror Select this option to display a duplication of the primary display on the display that’s connected to the docking station. The resolution, color depth, and refresh rate of the primary display are replicated on the connected display. Note: When the connected monitor uses a different specification than the primary display, the system’s primary graphics adapter scales all of the settings to a lower specification to maintain a uniform aspect ratio.

  • Page 10: Use Mac Os To Change The Primary Display

    • To use Extended and Mirror modes simultaneously, clear the Mirror Display check box. On the Arrangement screen, press and hold Cmd + Alt, and then drag and drop the display that you want to mirror over the primary display (indicated by a white bar).

  • Page 11: Technical Support

    Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
