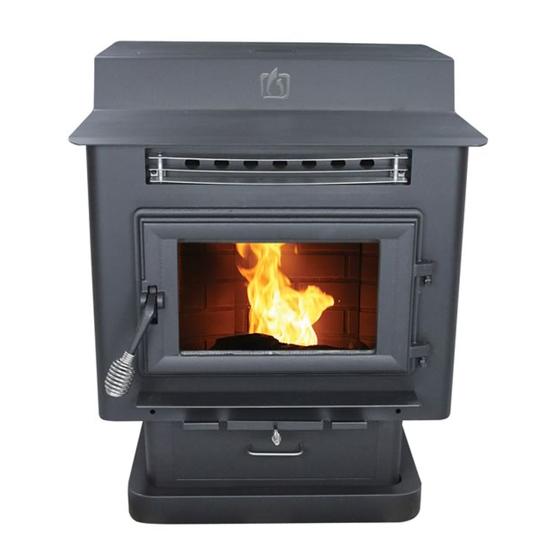

Breckwell sp6000 multi-fuel burning stove
Hide thumbs Also See for SP6000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
®

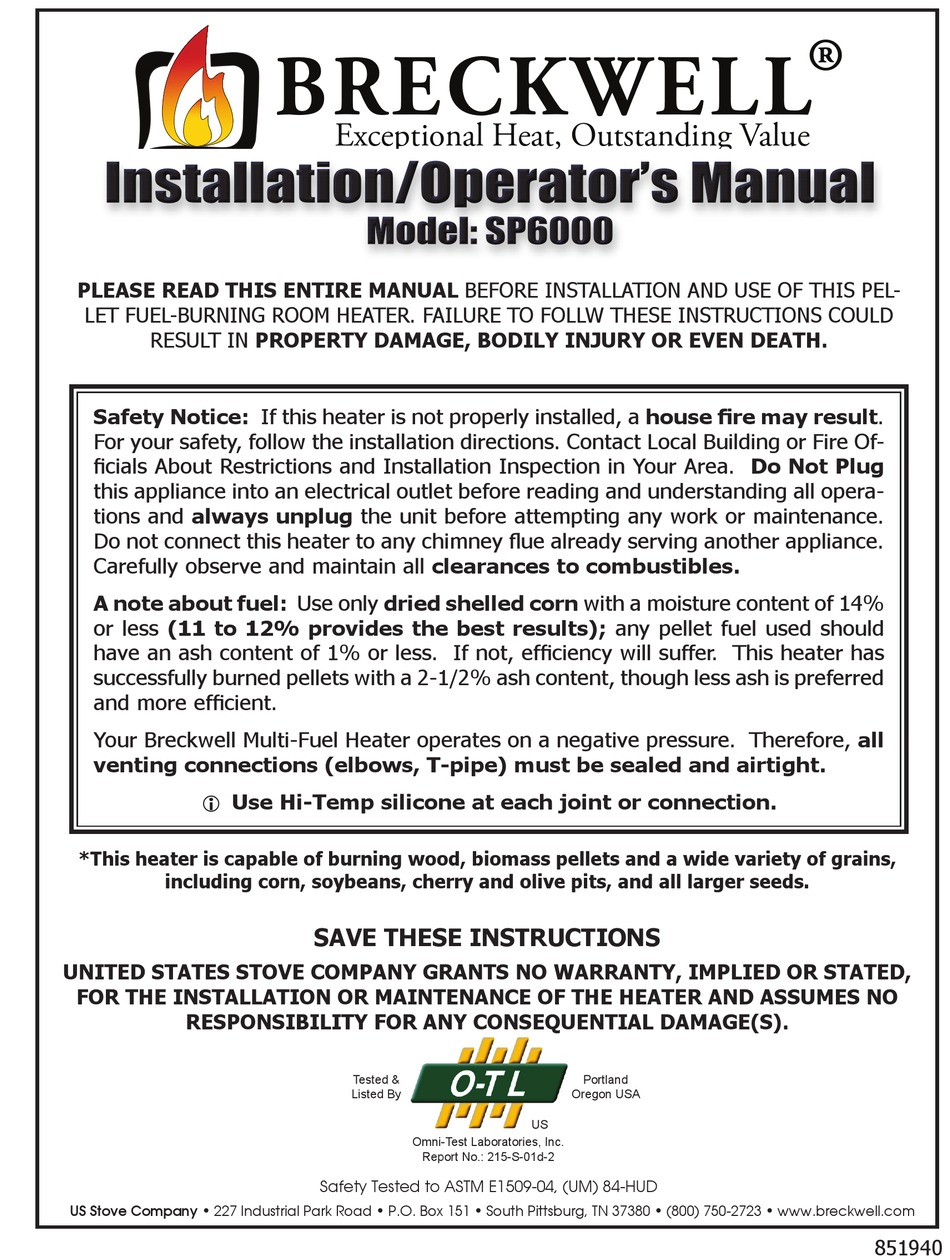

BRECKWELL
Exceptional Heat, Outstanding Value
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PEL-
LET FUEL-BURNING ROOM HEATER. FAILURE TO FOLLW THESE INSTRUCTIONS COULD
RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
Safety Notice: If this heater is not properly installed, a house fire may result.
For your safety, follow the installation directions. Contact Local Building or Fire Of-
ficials About Restrictions and Installation Inspection in Your Area. Do Not Plug
this appliance into an electrical outlet before reading and understanding all opera-
tions and always unplug the unit before attempting any work or maintenance.
Do not connect this heater to any chimney flue already serving another appliance.
Carefully observe and maintain all clearances to combustibles.
A note about fuel: Use only dried shelled corn with a moisture content of 14%
or less (11 to 12% provides the best results); any pellet fuel used should
have an ash content of 1% or less. If not, efficiency will suffer. This heater has
successfully burned pellets with a 2-1/2% ash content, though less ash is preferred
and more efficient.
Your Breckwell Multi-Fuel Heater operates on a negative pressure. Therefore, all
venting connections (elbows, T-pipe) must be sealed and airtight.
i Use Hi-Temp silicone at each joint or connection.
*This heater is capable of burning wood, biomass pellets and a wide variety of grains,
including corn, soybeans, cherry and olive pits, and all larger seeds.
SAVE THESE INSTRUCTIONS
UNITED STATES STOVE COMPANY GRANTS NO WARRANTY, IMPLIED OR STATED,
FOR THE INSTALLATION OR MAINTENANCE OF THE HEATER AND ASSUMES NO
RESPONSIBILITY FOR ANY CONSEQUENTIAL DAMAGE(S).
Tested &
Portland
Listed By
Oregon USA
US
Omni-Test Laboratories, Inc.
Report No.: 215-S-01d-2
Safety Tested to ASTM E1509-04, (UM) 84-HUD
US Stove Company • 227 Industrial Park Road • P.O. Box 151 • South Pittsburg, TN 37380 • (800) 750-2723 • www.breckwell.com
851940
