Warning: if your appliance is not properly installed a house fire may result. For your safety, follow the installation directions. Contact
local building or fire officials about restrictions and installation inspection requirements in your area.
•
Please read this entire manual before installation and use of this pellet fuel-burning room heater. Failure to follow these instructions
could result in property damage, bodily injury, or even death.
•
Save these instructions. This manual will help you to obtain efficient, dependable service from the heater, and enable you to order
repair parts correctly. Keep in a safe place for future reference.

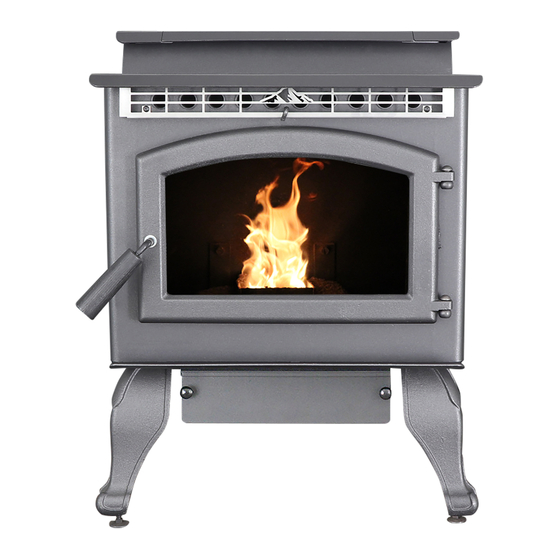

Model SP23
PROFESSIONAL INSTALLATION IS HIGHLY RECOMMENDED
Ce produit peut vous exposer à des agents chimiques, y compris au monoxyde de
carbone, lesquels sont reconnus dans l'État de la Californie comme causant le cancer et
U.S. Environmental Protection Agency
des malformations congénitales ou autres dommages au fœtus. Pour obtenir plus de
Certified to comply with 2020 particulate emissions standards.
renseignements, veuillez consulter le site www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon monoxide, which
is known to the State of California to cause cancer, birth defects and/or other
reproductive harm. For more information, go to www.P65warnings.ca.gov
227 Industrial Park Rd. • South Pittsburg, TN 37380 •
Phone: 800-750-2723 • Web: www.breckwell.com
852187H-1701J

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Breckwell SP23

Summary of Contents for Breckwell SP23

  • Page 1 This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information, go to www.P65warnings.ca.gov 227 Industrial Park Rd. • South Pittsburg, TN 37380 • Phone: 800-750-2723 • Web: www.breckwell.com 852187H-1701J...
  • Page 2 INTRODUCTION This manual describes the installation and operation of the Breckwell, SP23 wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May 15, 2020. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 4,814 to 32,788 Btu/ hr, 0.49 g/hr, and 63% efficiency.

  • Page 3: Safety Precautions

    (Per H.U.D. requirements). Check with local building officials. the grounding plug. Do not route the electrical cord underneath, • Breckwell grants no warranty, implied or stated, for the in front of, or over the stove. installation or maintenance of your stove, and assumes no •...

  • Page 4: Installation

    INSTALLATION THE MATERIAL(S) USED MUST HAVE, OR COMBINE TO HAVE, A SPECIFICATIONS MINIMUM INSULATED RATING OF ‘R1’. Clearances are measured Width 22-1/2” (572 mm) from the sides, back and face (door opening) or stove body. Height 28-1/2” (724 mm) DO NOT USE MAKESHIFT MATERIALS OR COMPROMISES IN THE INSTALLATION OF THIS UNIT.
  • Page 5 • Horizontal runs shall not exceed 10 feet of EVL. TRIM COLLAR • Recommended vertical runs to be a minimum of 8 feet. • To calculate EVL, use the following conversions: 90º elbow or “T” 5 equivalent feet 45º elbow 3 equivalent feet Horizontal Pipe Run 1 equivalent foot per actual foot...
  • Page 6 NOTE: Follow L-Vent chimney manufacturer’s instructions. NOTE: Follow L-Vent chimney manufacturer’s instructions. Position stove, adhering to clearances shown. OPTION: To achieve a center vertical installation a 45º elbow and a clean-out tee can be used to offset the pipe from the exhaust outlet Locate position of hole in wall;...
  • Page 7 Position the stove, adhering to the clearances. Voltage variations can lead to serious performance problems. This units electrical system is designed for 120V AC with no more Measure and build chimney top plate. Cut out holes for chimney than 5% variation. Acadia cannot accept responsibility for poor pipe, and if used the outside air pipe.

  • Page 8: Operation

    OPERATION PANEL CONTROLS “High Fan” switch overrides this variable speed function. It will set the room air blower speed to high at any feed rate setting. • When the “High Fan” button is pushed the room air fan will switch to its highest setting. •...
  • Page 9 Poor quality pellets could damage within 30 seconds or the stove will shut down. If the stove shuts the auger. Breckwell cannot accept responsibility for damage down push the “On/Off” button to continue the operation of your due to poor quality pellets.
  • Page 10 THERMOSTAT INSTALLATION NOTE: To help prevent bridging of pellets, common wax paper can be rubbed on the sidewalls and bottom of the hopper. • A MILLIVOLT THERMOSTAT IS REQUIRED. Cleaning heat exchanger tubes as shown in this manual. • Unplug stove from power outlet. Scrape ashes from burnpot.

  • Page 11: Maintenance

    instructed in “Pre-Start-Up Check” and “Building A Fire”, then AT LEAST THREE FEET FROM THE OPERATING STOVE. attempt to restart the fire. If the problem persists contact your Maintain proper ventilation. It is important that adequate dealer. oxygen be supplied to the fire for the combustion process. WARNING: DO NOT ADD PELLETS TO THE BURNPOT BY HAND Modern houses are often so well insulated that it may become AT ANY TIME, A DANGEROUS CONDITION COULD RESULT.
  • Page 12 Replace inner section into burnpot; make sure it is level and pushed all the way back down and that the igniter hole is to the High Temp rear when it is reinstalled. Thermodisc Make sure the burnpot is level and pushed all the way back in when it is reinstalled.

  • Page 13: Troubleshooting Guide

    RECOMMENDED MAINTENANCE SCHEDULE Neither the appliance owner nor any other unauthorized person(s) should replace the door glass. An authorized dealer must perform Use this as a guide under average-use conditions. all repairs involving door glass. Gasket around door and door glass should be inspected and CAUTION: This wood heater needs periodic inspection and repaired or replaced when necessary (see “Replacement Parts”).
  • Page 14 STOVE SHUTS OFF AND THE #2 LIGHT FLASHES Possible Causes: Possible Remedies: The gray wires are pulled loose at the Molex connector on Check to see if the gray wires are loose at the the wiring harness. Molex connector. With the stove on, check to see if the combustion blower is running. If it is not, you will need to check for power going to the combustion blower.
  • Page 15 TROUBLESHOOTING GUIDE STOVE WILL NOT FEED PELLETS, BUT FUEL FEED LIGHT COMES ON AS DESIGNED Possible Causes: Possible Remedies: Remove the control board. On the back, there is one fuse. If it Fuse on control board blew. appears to be bad, replace it with a 5 Amp 125 Volt fuse. Plug the stove back in and try to run the unit.
  • Page 16 TROUBLESHOOTING GUIDE GLASS “SOOTS” UP AT A VERY FAST RATE FLAME IS LAZY, DARK AND HAS BLACK TIPS AFTER STOVE HAS BEEN ON FOR A WHILE, THE BURNPOT OVERFILLS Possible Cause: Possible Remedies: Stove or vent pipe is dirty, which restricts airflow through the Follow all cleaning procedure in the maintenance section of the burnpot.
  • Page 17 TROUBLESHOOTING GUIDE HIGH LIMIT SWITCH KEEPS TRIPPING Possible Causes: Possible Remedies: The convection blower is overheating and tripping the internal Clean any dust off the windings and fan blades. If oiling the blower temperature shutoff. does not help, the blower may be bad The highest level setting is designated for use over short periods The stove is being left on the highest setting for extended periods of time.

  • Page 18: Replacement Parts

    REPLACEMENT PARTS...
  • Page 19 REPLACEMENT PARTS Part # Description 27983 Right Side Sheet 27985 Rear Sheet 610549 Side Panel Assembly 610548 Top Plate Assembly 610623 Ash Pan Housing Assembly 610622 Ash Pan Assembly 69964 Weldment, Burnpot Housing 69965 Weldment, Burnpot 80641 Blower, Exhaust 80647 Blower, Distribution 88205 Gasket Convection Blower...

  • Page 20: Electrical Diagram

    ELECTRICAL DIAGRAM POWER SUPPLY 120 VOLTS AC WHITE BLACK WHITE ORANGE ORANGE BLUE PINK PURPLE YELLOW GRAY GRAY WHITE...

  • Page 21: Service Record

    SERVICE RECORD Service Record It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. SERVICE PROVIDER Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 22 1. Le numéro de pièce ___________________________________________________________ 2. La description de la pièce ______________________________________________________ 3. Le numéro de modèle _________________________________________________________ 4. Le numéro de série ____________________________________________________________ 227 Industrial Park Rd. • South Pittsburg, TN 37380 • Phone: 800-750-2723 • Web: www.breckwell.com...
