Owner's Operation and Instruction Manual
US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVE
CAUTION!
Please read this entire manual before you install or
use your new room heater.
tions may result in property damage, bodily injury,
or even death.
Improper Installation Could Void
Your Warranty!
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO OR-
DER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
Th e French version is available for download from the site Breckwell: http://www.breckwell.com/
La version française est disponible pour téléchargement à partir du site Breckwell: http://www.breckwell.com/
S S
C C
U U
S S

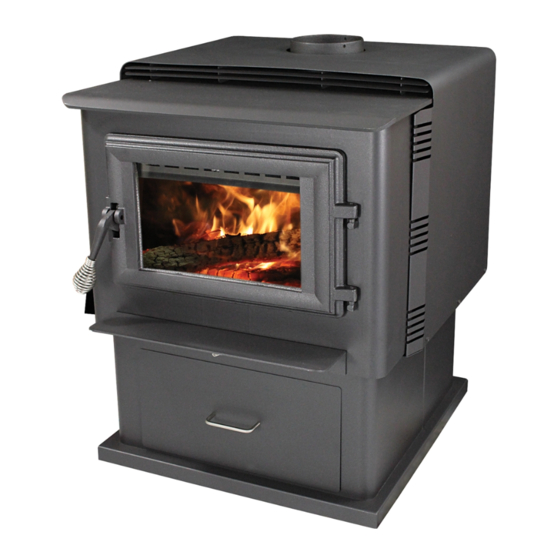

MODELS: SW4100
SAFETY TESTED TO UL 1482 and ULC-S627
WASHINGTON STATE APPROVED
Failure to follow instruc-
SAVE THESE INSTRUCTIONS
227 Industrial Park Road P.O.
South Pittsburg, TN 37380
Phone: (800) 750-2723
Web: www.BRECKWELL.com
SAFETY NOTICE:
SAFETY NOTICE:
If this heater is not properly installed, a house fi re may
If this heater is not properly installed, a house fi re may
result. For your safety, follow the installation instruc-
result. For your safety, follow the installation instruc-
tions. Never use make-shift compromises during the
tions. Never use make-shift compromises during the
installation of this heater. Contact local building or
installation of this heater. Contact local building or
fi re offi cials about permits, restrictions and installa-
fi re offi cials about permits, restrictions and installa-
tion requirements in your area.
tion requirements in your area.
Breckwell
Box 151
851982 C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW4100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Breckwell SW4100

Summary of Contents for Breckwell SW4100

  • Page 1 THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO OR- DER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE. Th e French version is available for download from the site Breckwell: http://www.breckwell.com/ La version française est disponible pour téléchargement à partir du site Breckwell: http://www.breckwell.com/ Breckwell 227 Industrial Park Road P.O.
  • Page 2 CONGRATULATIONS! You’ve purchased a heater from North America’s oldest manufacturer of wood burning products. By heating with wood you’re helping to CONSERVE ENERGY! Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one tree each year. Future generations will thank you.
  • Page 3 WARRANTY INFORMATION CARD Name__________________________________________ Telephone #: (_____)_____________ City____________________________________________ State_______ Zip_________________ Email Address __________________________________________________________________ Model # of Unit________________________________ Serial #___________________________ Fuel Type: Wood Coal Pellet Gas Other _________________________ Place of Purchase (Retailer)______________________________________________________ City____________________________________________ State_______ Zip_________________ If internet purchase, please list website address___________________________________ Date of Purchase _______________________________________________________________ Alternative Heat Main Heat Source...
  • Page 4   Fold Here Fold Here Fold Here PLACE STAMP HERE United States Stove Company P.O. Box 151 South Pittsburg, TN 37380 Ussc...
  • Page 5 Tools and Materials Needed For Installation You will need a drill with a 1/8” bit to install sheet metal screws into connector pipe. A 5/16” socket/wrench or screw driver to install pedestal trim, room air defl ector, and blower assembly described below. A 1/2” socket/wrench to install fl ue collar. A non-combustible fl oor protector as specifi ed in this manual.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Combustion Air Intake This appliance requires a source of combustion air. If you home is of tight construction or has nega- tive pressure problems, you will need an outside source of air. You have two options. You may cut a rectangular hole in the fl oor of your home and the fl oor protector, or purchase a standard 4”...

  • Page 7: Installation

    INSTALLATION THIS APPLIANCE SHOULD NOT BE USED AS THE PRIMARY HEAT SOURCE. SAFETY NOTICE • IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. • CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT PERMITS, RESTRICTIONS AND INSTALLATIONS REQUIREMENTS IN YOUR AREA.

  • Page 8: Floor Protector

    Th e fl oor protector should exceed the stove as follows: Th e fl oor protector must be listed to UL1618. Model Front Sides Rear 6” SW4100 26” 8” (660mm) (203mm) (152mm)  - Canadian installations require 8” (203mm) Ussc...

  • Page 9: Clearances To Combustibles

    CLEARANCES TO COMBUSTIBLES It is of utmost importance that the clearances to combustible materials be strictly adhered to during installation of the stove. Refer to the tables below : Single Wall Pipe Model SW4100 17.5 30.5 (358mm) (508mm) (445mm) (775mm)

  • Page 10: Chimney Connector (Stove Pipe)

    CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet (6”). If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draft . Th e stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”...
  • Page 11 CHIMNEY Your wood stove may be hooked up with a 6” factory built or masonry chimney. If you are using a factory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore, it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer’s specifi cations.

  • Page 12: Factory Built Chimney

    FACTORY BUILT CHIMNEY : When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass- through and “T” section package, fi restops (where needed), insulation shield, roof fl ashing, chimney cap, etc. Maintain proper clearance to the structure as recommended by the manufacturer.

  • Page 13: Masonry Chimney

    MASONRY CHIMNEY : Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. When con- necting the stove through a combustible wall to a masonry chimney, special methods are needed.
  • Page 14 Combustible Wall Chimney Connector Pass-Throughs Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) mini- mum wall thickness clay liner, construct a wall pass-through. Th e clay liner must conform to ASTM C315 (Standard Specifi cation for Clay Fire Linings) or its equivalent.

  • Page 15: Outside Combustion Air

    OUTSIDE COMBUSTION AIR For air tight houses and houses with negative pressure problems, your wood stove must have a fresh air intake installed. You can either purchase a dryer venting kit from your local hardware supply or cut a hole in the fl ooring protector and home’s fl oor as shown in the illustration at the beginning of this manual.

  • Page 16: Testing Your Wood

    WOODSTOVE UTILIZATION Your heating unit was designed to burn wood only; no other materials should be burned. Waste and other fl ammable materials should not be burned in your stove. Any type of wood may be used in your stove, but specifi c varieties have better energy yields than others.

  • Page 17: The First Fires

    Once the updraft movement is initiated, you are ready to ignite the stove by lighting the paper and kindling wood inside the combustion chamber. When you have achieved a good bed of hot embers, we recommend the following burn procedures: SW4100 Primary Air Settings Electric Blower Speed Setting...
  • Page 18 WARNINGS • NEVER OVERFIRE YOUR STOVE. IF ANY PART OF THE STOVE STARTS TO GLOW RED, OVER FIRING IS HAPPENING. READJUST THE AIR INTAKE CONTROL AT A LOWER SETTING. • THE INSTALLATION OF A LOG CRADLE OR GRATES IS NOT RECOMMENDED IN YOUR WOOD STOVE.

  • Page 19: Ash Disposal

    ASH DISPOSAL Ashes should be removed from the stove every few days or when ashes get to 2 to 3 inches deep. Always empty the stove when it is cold, such as in the morning. Ashes should be placed in a metal container with a tight fi tting lid.

  • Page 20: Repair Parts

    REPAIR PARTS 11 12 13 Feed Door Assembly Ussc...
  • Page 21 REPAIR PARTS 891750 Weld., Main Body 40292A 6” Flue Collar 88145 Board, Ceramic Fiber 88042 1/4” Rope Gasket 86643 Tube (Ø5/32), Secondary Air 83432 5/16-18 x 1-1/2 HX HD C/S PL 86645 Tube (Ø7/32), Secondary Air 83045 Washer, 5/16”ID x 3/4”OD x 1/16 THK 891515 Retainer, Tube 83431...
  • Page 22 NOTES Ussc...
  • Page 23 NOTES Ussc...

  • Page 24: How To Order Repair Parts

    TION AS SHOWN IN THIS LIST: 1. THE PART NUMBER 2. THE PART DESCRIPTION 3. THE MODEL NUMBER: ___________________________ 4. THE SERIAL NUMBER: ____________________________ US Stove Company 227 Industrial Park Road P.O. Box 151 South Pittsburg, TN 37380 Phone: (800) 750-2723 Web: www.BRECKWELL.com Ussc...
