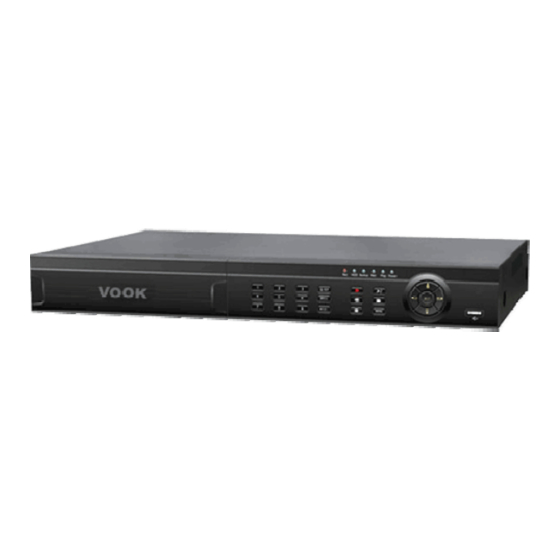

Vook VDT2504HE User Manual
  1. Manuals
  2. Brands
  3. Vook Manuals
  4. DVR
  5. VDT2504HE
  6. User manual

Vook VDT2504HE User Manual

Real time
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

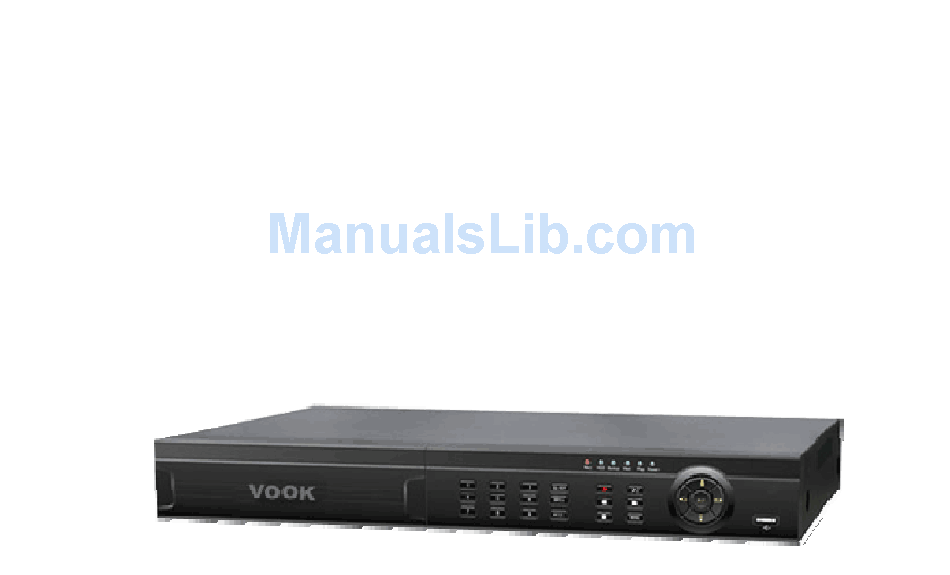

REAL TIME DVR
user manual
VDT2504HE
VDT2508HE
VDT2516HE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDT2504HE and is the answer not in the manual?

Questions and answers

Related Manuals for Vook VDT2504HE

Summary of Contents for Vook VDT2504HE

  • Page 1 REAL TIME DVR user manual VDT2504HE VDT2508HE VDT2516HE...
  • Page 2 DVR User Manual CAUTION Please read this user manual carefully to ensure that you can use the device correctly and safely We do not warrant all the content is correct. The contents of this manual are subject to change without notice This device should be operated only from the type of power source indicated on the marking label.

  • Page 3: Table Of Contents

    DVR User Manual Table of Contents 1  Introduction ............................. 1    1.1 DVR Introduction ................................1   1.2 Main Features .................................1 2  Hardware Installation ..........................4    2.1 Install Hard Drive &DVD Writer............................4   2.1.1 Install Hard Drive ......................................4   2.1.2 Install DVD Writer......................................
  • Page 4 DVR User Manual   4.2.1 Live ..........................................20   4.2.2 Main Monitor ......................................21   4.2.3 Spot..........................................21   4.2.4 Mask .......................................... 22   4.3 Record Configuration ..............................23   4.3.1 Enable........................................23   4.3.2 Record Bitrate ......................................23   4.3.3 Time ........................................... 24  ...
  • Page 5 DVR User Manual   4.7 User Management Configuration...........................37   4.8 P.T.Z Configuration ................................39   4.9 Advanced..................................41   4.9.1 Reset ......................................... 42   4.9.2 Import/Export ......................................42   4.9.3 Block/Allow list ......................................42 5  Search，Playback & Backup........................ 43    5.1 Time Search ..................................43  ...
  • Page 6 DVR User Manual   7.1.2 On WAN........................................51   7.2 Remote Surveillance through Apple PC ........................53   7.2.1 On LAN ........................................54   7.2.2 On WAN........................................56   7.3 Remote Preview ................................57   7.4 Remote Playback & Backup ............................61   7.4.1 Remote Playback.......................................

  • Page 7: 1  Introduction

    DVR User Manual 1 Introduction 1.1 DVR Introduction This model DVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.264 with low bit rate, Dual stream, SATA interface, VGA output mouse supported, IE browser supported with full remote control, mobile view(by phones), etc., which ensure its powerful functions and high stability.
  • Page 8 DVR User Manual RECORD & PLAYBACK • Record modes: Manual, Schedule, Motion detection and Sensor alarm recording • Support full D1 real time recording • Support recycle after HDD full • Resolution, frame rate and picture quality are adjustable • 128MB for every video file packaging •...
  • Page 9 DVR User Manual • Support 1 administrator and 63 users. • Support event log recording and checking, events unlimited NETWORK • Support TCP/IP, DHCP, PPPoE, DDNS protocol • Support IE browser to do remote view • Support setup client connection amount •...

  • Page 10: 2  Hardware Installation

    DVR User Manual 2 Hardware Installation Notice: Check the unit and the accessories after getting the DVR. Please don’t power up the unit till the physical installation is complete. 2.1 Install Hard Drive &DVD Writer 2.1.1 Install Hard Drive Notice: 1. 4-ch and 8-ch DVR connect to two SATA hard drives or one SATA hard drive plus one Writer; 16-ch DVR connects three SATA hard drives or two hard drives plus one DVD Writer.

  • Page 11: Install Dvd Writer

    DVR User Manual 2.1.2 Install DVD Writer Notice: 1. The writers must be the compatible devices we recommend. Please refer to “Appendix C Compatible Devices” 2. This device is only for backup. Step1: Unscrew and Open the top cover. Step2: Connect the power and data cables. Place the DVD writer onto the bottom case as Fig 2-3. Step3: Screw the DVD writer as Fig 2-4 Fig 2-3 Connect the DVD Writer Fig 2-4 Screw the Writer Front Panel Descriptions...

  • Page 12: Rear Panel Instructions

    For remote controller To connect external USB devices like USB flash, USB HDD for USB port backup or update firmware; or connect to USB mouse Rear Panel Instructions The rear Panel interface for 4-ch VDT2504HE is shown as Fig 2-5:...
  • Page 13 DVR User Manual Fig 2-5 Rear Panel for 4-ch Item Name Description Connect to speed dome Connect to keyboard ALARM IN Connect to external sensor1-4 HDMI port Connect to high-definition display device (optional) Network port VGA port VGA output, connect to monitor Video out Connect to monitor Audio in...
  • Page 14 DVR User Manual Item Name Description DC12V POWER INPUT For cooling the device The rear Panel interface for 8-ch VDT2508HE is shown as Fig 2-6: Fig 2-6 Rear Panel for 8-ch Item Name Description Connect to speed dome Connect to keyboard ALARM IN Connect to external sensor1-8 HDMI port...
  • Page 15 DVR User Manual Item Name Description Connect to monitor as an AUX output channel by channel. Spot out Only video display, no menu show Audio out Audio output, connect to the sound box POWER INPUT DC12V For cooling the device The rear Panel interface for 16-ch VDT2516HE is shown as Fig 2-7: Fig 2-7 Rear Panel for 16-ch Item...

  • Page 16: Remote Controller

    DVR User Manual Item Name Description + 5V and GND +5 V and Grounding ALARM OUT 1-ch relay output. Connect to external alarm. To connect external USB devices like USB flash, USB HDD USB port for backup or update firmware; or connect to USB mouse Connect to monitor as an AUX output channel by channel.
  • Page 17 DVR User Manual Item Name Function Power Button Soft switch off to stop firmware running. Do it before power off. Get information about the DVR like firmware version, HDD INFOR Button information REC Button To record manually Digital Button Input digital or choose camera Multi Screen Button To choose multi screen display mode SEARCH Button...

  • Page 18: Control With Mouse

    DVR User Manual The interface of remote controller is shown in Fig 2-8 Remote Controller. Operation processes with remote controller to control multi-DVR The default device ID of the DVR is 0. It’s not necessary to reset the device ID when a remote is to be used to control a single DVR.
  • Page 19 DVR User Manual In Configuration: Click to enter a particular option. Right click to cancel the option or to return to the previous menu. In order to input a value in a particular screen, move cursor to the input box and click. An input window will appear as Fig 2-9. It supports digits, alphabets and symbols as inputs.

  • Page 20: 3  Basic Function Instruction

    DVR User Manual Click left button to choose the buttons to control the PTZ. Click right button to return to live. Note: Mouse is the default tool for all operations unless an exception, as indicated. 3 Basic Function Instruction 3.1 Startup & Shutdown Please make sure all the connections are done properly before you power on the unit.

  • Page 21: Login

    DVR User Manual By IR remote controller: Step1: Press Power button. This will bring up a shutdown window. The unit will shut down by clicking “OK” button. Step2: Disconnect the power By mouse: Step1: Enter into Menu and select “Shut Down” icon. This will take you to a shutdown window. Step2: Click OK.

  • Page 22: Live Playback

    DVR User Manual Fig 3-2 Live Preview Interface 3.3.1 Live Playback Click Play button to play the record. Refer to Figure3-3. User can do complete operation by clicking the buttons on screen. Fig 3-3 Live Playback...

  • Page 23: 4  Main Menu Setup Guide

    DVR User Manual 4 Main Menu Setup Guide Right click or press ESC button on the front panel to display the menu toolbar on the bottom of the screen. Refer to Fig 4-1: Fig 4-1 Main Menu Toolbar Click icon to select a channel and then click “ ”...

  • Page 24: Basic Configuration

    DVR User Manual Click Menu button to pop up a window as Fig 4-2; you can also press MENU button on the front panel or operate with remote controller to display the main menu. Clicking Setup icon will pop-up the configuration menu: Fig 4-2 System Setup 4.1 Basic Configuration Basic configuration includes three sub menus: system, date &...

  • Page 25: Date & Time

    DVR User Manual operations. Show System Time: If selected, displays the current time during live monitoring... Max Online Users: To set the maximum number of concurrent user logins in the DVR. Show wizard: If selected, the GUI would launch the startup wizard on every boot, allowing the user to do basic setup. VGA resolution: The resolution of live display interface, ranges from: VGA800*600, VGA1024*768, VGA1280*1024 and CVBS.

  • Page 26: Live Configuration

    DVR User Manual Fig 4-5 Basic Configuration-DST 4.2 Live Configuration Live configuration includes four submenus: live, main monitor, spot and mask. 4.2.1 Live In this interface, user can setup camera name, adjust colors: brightness, hue, saturation and contrast. Step1: Enter into Menu Setup Live Live tab. Refer to Fig 4-6: Note: A soft keyboard will pop up by clicking the camera name.

  • Page 27: Main Monitor

    DVR User Manual Fig 4-6 Live Configuration Live Fig 4-7 Live-Color Adjustment 4.2.2 Main Monitor Step1: Enter into Menu Setup Live Main Monitor tab. Refer to Fig 4-8: Step2: Select split mode: 1×1, 2×2, 2×3, 3×3, 4×4 and channel. Click button to setup the previous channel group.

  • Page 28: Mask

    DVR User Manual Fig 4-9 Live Configuration-Spot 4.2.4 Mask You can setup private mask area on the live image picture. For a given channel a maximum of three areas can be masked. Setup mask area: Click Setting button, enter into live image to press left mouse and drag mouse to set mask area. Please refer to the below picture.

  • Page 29: Record Configuration

    DVR User Manual 4.3 Record Configuration Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap. 4.3.1 Enable Step1: Enter into Menu Setup Record Enable tab. Refer to Fig 4-11: Parameter Meaning To enable/disable recording Record for the channel enable/disable...

  • Page 30: Time

    DVR User Manual Parameter Meaning Range from: 1-30 （NTSC） 1-25(PAL) Rate Resolution Support CIF , HD1, D1 The higher the value is, the clearer the recorded image is. Six options: Quality lowest, lower, low, medium, higher and highest. Encode VBR and CBR Range from: 256kbps~2Mpbs stream Fig 4-12 Record Configuration-Record Bitrate...

  • Page 31: Recycle Record

    DVR User Manual Stamp： This provides an option to enable or disable the Camera Name and the Time stamp on the video. You can also choose a position for the stamp on the screen. Step1: Enter into Menu Setup Record Stamp tab. Refer to Fig 4-14: Step2: Checkmark camera name and time stamp;...

  • Page 32: Snap

    DVR User Manual 4.3.6 Snap In this interface, user can set up Resolution, quality, snap interval, snap number. 4.4 Schedule Configuration Schedule configuration includes three sub menus: schedule, motion and alarm. 4.4.1 Schedule This tab allows defining schedule for normal recording for seven days of a week, 24 hours of a day. Every row denotes an hourly timeline for a day.

  • Page 33: Motion

    DVR User Manual 4.4.2 Motion This tab allows to setup schedule for motion based recording. Step1: Enter into Menu Setup Schedule Motion tab. Refer to Fig 4-17: Step2: The setup steps for schedule for motion based recording are similar to normal schedule setup. You can refer to 4.4.1 Schedule for details.

  • Page 34: Alarm Configuration

    DVR User Manual 4.5 Alarm Configuration Alarm configuration includes five sub menus: sensor, motion, video loss, other alarm and alarm out. 4.5.1 Sensor Sensor includes three sub menus: basic, alarm handling and schedule. Operate the following steps to configure sensor alarm: Step1: Enter into Menu Setup Alarm Sensor Basic tab.

  • Page 35: Motion

    DVR User Manual Buzzer: If selected, the local inbuilt buzzer would be activated on an alarm. Full screen alarm: If selected, there will pop up the chosen channel on the monitor on an alarm trigger. To alarm out: If selected, this would trigger the external relay output on detecting a sensor based alarm. Email: If you select this option, the DVR will send an email alert to the preconfigured email address in case of a sensor based alarm from the particular input.
  • Page 36 DVR User Manual Fig 4-23 Alarm Configuration-Motion Step2: Enable motion alarm, set alarm hold time which refers to the time till which the system will wait for further detection of motion. Eg. If the holding time is set to 10 seconds, once the system detects a motion, it will go into alarm but would not detect any other motion alarm (specific to channel) until 30 seconds.

  • Page 37: Video Loss

    DVR User Manual Note: Prior to setting motion detection field it is recommended that you click icon to clear the existing field and set afresh. Step6: Select “All” to setup all channels with the same parameters. Step7: Click “Apply” button to save the setting. Step 8: Enter into Schedule tab.

  • Page 38: Other Alarm

    DVR User Manual 4.5.4 Other Alarm This tab gives a choice to configure alarm for Disk Full, IP Conflict, the Disconnect event, Disk Attenuation or Disk Lost. Step1: Enter into Menu Setup Other alarm interface. Refer to Fig 4-27: Step 2: Use the dropdown menu and select the event or the alarm. Step 3: Check the required trigger options.

  • Page 39: Network Configuration

    DVR User Manual 4.6 Network Configuration Network configuration includes five submenus: network, sub stream, Email, server and other settings. Network settings must be configured if DVR is used for monitoring over network. 4.6.1 Network Step 1: Enter into Menu Setup Network network tab. Refer to Fig4-29: Step 2: HTTP port: the default value is 80.

  • Page 40: Email

    DVR User Manual Step 2: Select fps, resolution, quality, encode and max bit rate Step 3: Select “All” to setup all channels with the same parameters. Parameter Meaning Range from: 1-6 (PAL) Resolution Support CIF The higher the value is, the clearer the Quality record image.

  • Page 41: Server

    DVR User Manual 4.6.4 Server This function is mainly used for connecting ECMS. The setting steps are as follows: Step 1: In the server tab, select “enable” as shown in the Fig 4-32. Step 2: Check the IP address and port of the transfer media server in the ECMS.
  • Page 42 DVR User Manual Enable UPnP: Select UPnP here and then enable UPnP function in your router. Therefore, there is no need for you to forward LAN IP address and port in the router in connection of internet. After that, you can check the WAN IP address in the router. How to apply for a domain name? Here we take www.dyndns.com for example.

  • Page 43: User Management Configuration

    DVR User Manual Click” Create Account” button to create user account. After that, you shall provide your card number, card expiration and security code as well as billing address. Finally click “sign up for trial” button. Now, according to the domain name registration of “DDNS”，the domain name for DVR is “abc.dyndns.tv”, username is “bcd” and password is “123456”...
  • Page 44 DVR User Manual Step 3: In General tab, input username, password and select user type. You can also check ‘Binding PC MAC Address’ and input this address. Step 4: Click ‘OK’ button to save settings. Note: When the default value of binding PC MAC address is 0, the user is not bound with the specified computer. If the bind option is used, the user would be able to log into the DVR only through the specific computer (carrying the MAC address).

  • Page 45: Configuration

    DVR User Manual If you want to delete the user, please select the user you want to delete in the user list box and then click “Delete” button. If you want to modify the user, please select the user you want to modify in the user list box and then click “Setup” button to modify its general information and authority.
  • Page 46 DVR User Manual Fig 4-38 P.T.Z Configuration-Advanced Fig 4-39 Advanced-Preset Step 3: In the preset setting tab, while clicking Setting button, a dialog will pop-up as Fig 4-40: User can control the dome by rotating up, down, left, right and adjust the rotating speed zoom, focus and iris of the dome;...

  • Page 47: Advanced

    DVR User Manual Click Add icon to set the speed and time of preset point; select a preset point and then click Delete icon delete that preset point; click Modify icon to modify the setting of a preset point. User can click icons to adjust the position of preset point.

  • Page 48: Reset

    DVR User Manual 4.9.1 Reset This would reset the system to factory defaults and reboot the DVR. 4.9.2 Import/Export User can export the data files into mobile storage devices as backup and can also import specified data files from mobile storage device to DVR.

  • Page 49: 5  Search，Playback & Backup

    DVR User Manual 5 Search，Playback & Backup Search configuration includes four submenus: time search, event search, file management and image. 5.1 Time Search Step1: Enter into Menu Search Time search tab. Refer to Fig 5-1: Fig 5-1 Search Configuration-Time Search Step2: Select date and channels on the right hand side and press “Search”...

  • Page 50: Event Search

    DVR User Manual Step4: Select the channel display mode and click button to play record. Use the playback toolbar to control the playback. Playback buttons Note: When the monitor resolution is set to VGA800*600, Part of the time search interface will be hidden. Click the “Expand to” button to expand the whole interface.

  • Page 51: File Management

    DVR User Manual Fig 5-2 Search Configuration-Event Search Step 2: Select date and channels on the right hand side. A data with highlighted borderline indicates presence of data. Step 3: Then checkmark Motion, Sensor or All accordingly. You can search for motion based recording and sensor based recording.

  • Page 52: Search By Image

    DVR User Manual Fig 5-3 Search Configuration-File Management Lock: Select a file and click Lock button to lock this file. Once locked, the file cannot be deleted. Unlock: Select a locked file and click Lock button to unlock this file Delete: Select an unlocked file and click Delete button to delete this file.

  • Page 53: Backup

    DVR User Manual 5.5 Backup This unit supports backup by built-in SATA DVD Writer or USB flash drive. User also can make backup by IE browser via internet. Refer to 7.3.2 Remote backup. Step1: Enter into main menu Backup interface. Refer to Fig 5-4: Fig 5-4 Backup Configuration Step2: Set the start &...

  • Page 54: Check System Information

    DVR User Manual 6.1 Check System Information Check system information includes six submenus: system, event, log, network, online user and record information. 6.1.1 System Information In this tab, user can check the hardware version, MCU version, kernel version, device ID, etc. 6.1.2 Event Information In this tab, you can search for events like motion, sensor and video loss.

  • Page 55: Record Information

    DVR User Manual 6.1.6 Record Information In this tab, a user can check resolution, ftp and record status including sensor based recording, motion based recording, manual recording or schedule recording. 6.2 Manual Alarm In this tab, user can trigger a manual alarm. 6.3 Disk Management Format the disk Step1: Enter into disk management tab.

  • Page 56: Logoff

    DVR User Manual Step 1: Copy the upgrade software which gets from vendor into the USB storage device Step 2: Connect the USB flash drive to the USB port. Step 3: Enter Menu Upgrade tab. Then the upgrade software name would be displayed in the upgrade list box. Step 4: Select that software and then click upgrade button.

  • Page 57: 7  Remote Surveillance

    DVR User Manual 7 Remote Surveillance 7.1 IE Remote Surveillance In order to view the DVR from a network it must be connected to a LAN/WAN or internet. The network setup should be done accordingly. Please refer to 4.6 Network Setup. This DVR supports IE browser, on Windows XP and Vista platform. 7.1.1 On LAN Step 1: Enter into the DVR’s Main Menu Setup Network tab to input IP address, Subnet Mask, etc .If using DHCP, please enable DHCP in both the DVR and the router.
  • Page 58 DVR User Manual Step 3: Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number after IP address or domain name. Step 4: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view.

  • Page 59: Remote Surveillance Through Apple Pc

    DVR User Manual Step 2: When accessing the remote interface of DVR, user can input WAN IP to access directly (user can enter into Main menu Information Network interface to check IP address). Step 3: If users want to utilize dynamic domain name, please apply for a domain name in a DNS server supported by the DVR or router.

  • Page 60: On Lan

    DVR User Manual 7.2.1 On LAN Step 1: After starting Apple computer, click Apple icon. The following window will pop up. Please select “System Preferences” ”Internet &Wireless” click “Network” Step 2: Enter into Network interface and then click “Ethernet Connected” to check the internet connection of Apple PC.
  • Page 61 DVR User Manual Step 3: After acquiring the IP address, Subnet Mask and so on, please enter into the DVR’s Main Menu Setup Network interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC. The network segment should be the same as the PC.

  • Page 62: On Wan

    DVR User Manual button，the following window will pop up： Input the name and password of Apple PC and then click “OK” to install this Active X control. Step 6: After finishing installing the Active X control, please quit from the Safari browser. Right click Safari icon on the desktop and then select “Quit”...

  • Page 63: Remote Preview

    DVR User Manual 7.3 Remote Preview Fig 7-2 Remote Live Preview Symbol and function Definitions: ① ② ③ Channel indicator Screen display mode Volume ④ ⑤ ⑥ Snapping picture Start manual record Start IE record ⑦ ⑧ ⑨ Bidirectional talk Playback Color ⑩...
  • Page 64 DVR User Manual Note: click button to record manual and the record file will be saved in user’s PC. Screen display mode: Click the icon beside the screen display mode, channel select dialog will appear as below: Take 8-channel view for example: user can checkmark 8 channels form 1-ch to 16-ch at random to display the live pictures, A maximum of 16 channels can be selected.
  • Page 65 Snap pictures The system will automatically capture pictures and save those pictures in the computer by clicking “Snap” icon, User should set up the path for those picture in the Configuration Local configuration. Color adjustment: Drag the slide bar to adjust Brightness, Contrast, Hue, and Saturation. Click Default to reset them to original value. Buttons Description Drag the scroll bar to adjust the brightness of channel...
  • Page 66 DVR User Manual Drag the scroll bar to adjust rotating speed of the dome. 'Iris' button. Click button near 'Iris' button to increase light of the dome. Click button near 'Iris' button to decrease light of the dome. 'Zoom' button. Click button near 'Zoom' button to zoom in the locale picture of this camera.

  • Page 67: Remote Playback & Backup

    DVR User Manual Stream: This DVR supports master stream and sub stream. Master stream has higher frame rate, max 25 fps（PAL）/30 fps （NTSC） for every channel, but it needs higher network bandwidth; second stream has low frame rate, max 6FPS （PAL） /7FPS（NTSC）...
  • Page 68 DVR User Manual Fig 7-5 Play Record File Interface This DVR supports remote time search, event search and file management. By Time Search: Step1: Enter into Search Time search. Refer to Fig 7-6:...
  • Page 69 DVR User Manual Fig 7-6 Time Search Interface Step2: The highlight date in the area② indicates recorded data. Select the date in the area ② and record channels in area③ Step3: Click “Search” button. The record data will be displayed in the data information list box; Step 4: Set the Start time and display mode in the area①...
  • Page 70 DVR User Manual Fig 7-7 Playback by Event Search By Event Search: Step1: Enter into Search Event Search. Refer to Fig 7-8:...
  • Page 71 DVR User Manual Fig 7-8 Event Search Interface Step 2: Click the highlight date and select record channels. Step 3: Checkmark the event type: motion and sensor. Step 4: The events will be display in the event list box by clicking Search button. Step 5: Double-click certain item to playback File Management Step 1: Enter into Search File management.

  • Page 72: Remote Backup

    DVR User Manual Fig 7-9 File Management Interface Lock: Select certain file item in the file list box and then click “Lock” button to lock this file that ca not be deleted or overlaid Unlock: Select a locked file and then click “unlock” button to unlock this file Delete: Select an unlock file and then click “delete”...

  • Page 73: Remote System Configuration

    DVR User Manual Fig 7-10 Remote Backup Interface Step1: Select channels, set the start and end time and then click “search’ button to display the file information in the file list box Step2: Select backup files and click “browse” button to set the path. Then click “backup” button to start backup. The backup files will be saved on user’s PC.

  • Page 74: Tools

    DVR User Manual Fig 7-11 Remote System Configuration The sub menu list and the options in every menu are similar to that of the DVR. Please refer to Chapter 4 Main Menu Setup Guide for more details. 7.6 Tools Click on tool’s tab to access the disk management tool. You can view the status of the HDD, change/view the read/write properties and can also format the HDD remotely.
  • Page 75 DVR User Manual of the DVR. Please refer to Chapter 6 System information for more details. Fig 7-12 Remote Information Search Note: There may be slight differences with respect to functions of remote surveillance between through IE and through Apple PC. Here we only take IE remote access for example.

  • Page 76: 8  Mobile Surveillance

    DVR User Manual 8 Mobile Surveillance This DVR supports mobile surveillance by phones with Windows mobile, symbian, android, Iphone and Blackberry OS. At the same time, it supports 3G network. We tested Dopod D600 (WM5) and Dopod S1 (WM6), which work fine with the DVR. If you want to make mobile surveillance, please enable network service on the DVR first and refer to Chapter 4.6 Network configuration.

  • Page 77: By Phones With Symbian Os

    DVR User Manual to log on the server. Refer to the below picture on the left: Step6：Camera 1 is the default channel after login. Change the channel in rolling-down menu of “Channel”. Refer to the below picture on the right: Notice: User name...
  • Page 78 DVR User Manual picture on the left: Step3：A welcome window will pop up and requires a package. Click the software name to download. Refer to the picture on the right: Step4：A security windows will pop up after downloading and ask if install the package. Click YES to install. Step5：A Scam shortcut icon appears on the system menu.

  • Page 79: By Phones With Iphone Os

    DVR User Manual Step9：Enter Live View, it will connect the server and display pictures. Refer to the picture on the left: Notice: User name and password here are the same with that used on the DVR. The default is admin and 123456. Step10：In Live View, users can snap pictures, change channels and control PTZ.
  • Page 80 DVR User Manual Step 3: Click Superlive-pro, enter into “introduce” interface and then click “FREE”button. Now this button will change into “INSTALL” Step 4: Input iTunes Store password and then click “OK”. The software will be installed automatically.
  • Page 81 DVR User Manual Note: If it is the first time for user to operate, please enter user ID; if there is no Store account, user needs to apply for one. 2. Install through PC. Step 1: Install iTunes store in PC and then login Step 2: Connect iPhone and PC...
  • Page 82 DVR User Manual Step 3: Enable “search” function to search “Superlive-Pro” Step 4: Click “free application” button Step 5: Input apple ID and password and then click “acquire” Step 6: Checkmark “synchronously apply program” and “Superlive-pro”, and then click “Apply” button Operation Instruction for Superlive-Pro Login interface...
  • Page 83 DVR User Manual Enter server’s IP address (or domain name), user name and password Click “Remember server” to save the setting; click button can quick input saved server address, user name and password. Main Interface Image view Four channel Playback Snap Setting Record...
  • Page 84 DVR User Manual Upward rotates the PTZ Downward rotates the PTZ Leftward rotates the PTZ Rightward rotates the PTZ Stop rotating the PTZ Zoom In/Focus In/Iris Add Zoom Out/Focus Out/Iris Sub To enter into the next interface To return to the previous interface Preset select the preset point Cruise...
  • Page 85 DVR User Manual Playback Click icon to enter into the playback interface. Then click ‘Search’ button, select the time and channel to playback and click button. Now you can see the local file list. Select a file and click play button to playback. You can also copy or delete the file.
  • Page 86 DVR User Manual Click button to enter into server list interface. You can click icon to add a server list. After you add the list, you can click icon to edit the server information and click icon to delete this server information.

  • Page 87: By Phones With Android Os

    DVR User Manual Click icon to enter into information view interface. You can check the information of system, network and online users. In the system interface, you can see information of device name, device ID, hardware version, MCU version and so on. In network interface, you can see the information of http port, server port, IP address, gateway, network status, etc.
  • Page 88 DVR User Manual Step 3: Press “Install” button Step 4: Click “OK” button Step 5: You can view the download and install process in notifications; Once finishing downloading, the software will install automatically.
  • Page 89 DVR User Manual Login Enter into server’s IP address (or domain name), user’s ID and password. Click “Remember server” to save the setting; click button can quick input saved server address, user name and password. Main menu 【Playback】 【Image】 playback record file image view 【Log】...
  • Page 90 DVR User Manual Live view Single channel Stop playing display Screen Four channels mode display Snap Talk Record Live audio Hide Image view The first picture The previous picture Next picture The last picture Zoom in Zoom out Delete...
  • Page 91 DVR User Manual Record playback Play/Pause Stop Fast forward Slow play Click Playback icon in the Main Menu interface to enter into the playback interface. First, choose channel. Second, select the record file and click it to playback. Finally, click ‘Return’ button to return to the previous interface. Server list Add a server list Modify a server list...

  • Page 92: By Phones With Blackberry Os

    DVR User Manual Audio alarm enabled, when Video Loss/Sensor/Motion happen ， sound alarm will be Alarm setting triggered; If shake Alarm is enabled, when Video Loss/Sensor/Motion happen ， shake alarm will be triggered. User can setup the relevant parameters of mobile Storage setting video.
  • Page 93 DVR User Manual 2. Click “Supercam” to link 3. Click “Download” button on the popup interface and the download progress will be shown. 4. Finished downloading, the software will be installed automatically. Note: If the software fails to download, please check in accordance with the following steps: Check whether the network of mobile phone is normal or not Check whether DVR server connect network normally or not Modify the option of Browser Configuration.
  • Page 94 DVR User Manual Note：When user used the Supercam software in mobile phone with touch screen, there will be compatible problem. Solution: Enter into Options Menu->Advance options->Applications->Supercam and click “Disable Compatibility” button. This problem will be solved. Login Enter server’s IP address (or domain name), user’s ID and password. Click “Remember server”...
  • Page 95 DVR User Manual Live view Note: User can click Return button on the Blackberry phone to return the previous interface.
  • Page 96 DVR User Manual Mark 1 Current viewing channel Mark 2 Channel status Switch channels PTZ, click to switch to Fig 2 interface Snap Full screen Background alarm Stop rotating the PTZ Upward rotates the PTZ Downward rotates the PTZ Leftward rotates the PTZ Rightward rotates the PTZ Zoom In/Focus In/Iris Add Zoom Out/Focus Out/Iris Sub...
  • Page 97 DVR User Manual Software configuration Information view...

  • Page 98: Appendix A Faq

    DVR User Manual Appendix A FAQ Q1. Why the DVR doesn’t turn on even after connecting to the power? a. The power adapter could have gone bad. Please change a new power adapter b. The power from the adapter may be not enough for operating the DVR. Please use the power adaptor supplied along with the DVR.
  • Page 99 DVR User Manual c. The HDD could have gone bad. Change a new one. Q6. Cannot record a. Make sure the HDD was formatted prior to use. b. Maybe the user hasn’t enabled the record function or has done incorrect setup. Please refer to Chapter 5. c.
  • Page 100 DVR User Manual ② select Security------Custom Level….Refer to Fig 8-1 ③ Enable all the sub options under “ActiveX controls and plug-ins”. Refer to Fig 8-2 ④ Then click ok to finish setup. b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings. Fig 8-1 Fig 8-2 Q9: DVR displays “please wait…”all the time...
  • Page 101 DVR User Manual halt. Check with a good known HDD or try formatting the existing HDD. Q10: How to input password and numbers in the interface? Click the password or the input box a small keyboard will pop up. Please select characters to be input (the initial password is 123456), or you can use the digital keys on the front panel, or the digital keys on the remote controller.
  • Page 102 DVR User Manual PC Module Parameters Intel Core(TM)2 Duo CPU E4600 Motherboard G31/P31 chip GMA3100/NVIDIA GeForce 8400/ ATI RADEON HD3450 Windows 2000(SP4 above) /Windows XP(SP2 above) VISTA DirectX Q14: How to handle the situation that the codec Control is blocked when downloading in the VISTA or Win7 system? This problem can be fixed in two ways: Enter Control Panel User Account and Family Safety User Account Control (refer to Fig 14-1);...
  • Page 103 DVR User Manual Q15. How to play the backup file? Insert your USB device where the backup files are saved in the USB port of PC. If your files are saved in NVR format, you must have already download the backup player box before doing backup. Then double click to open your USB disk to find your backup files and backup player.

  • Page 104: Appendix B Calculate Recording Capacity

    DVR User Manual Appendix B Calculate Recording Capacity Users can calculate the required size of hard disk according to the total recording duration and DVR recording settings. The DVR uses fixed video bit rate. The below are the details at different settings for CBR. Frame Rate Bit Rate...

  • Page 105: Appendix C Compatible Devices

    DVR User Manual Appendix C Compatible Devices Compatible USB drive after test. Brand Capacity 512MB, 1G, 2GB Netac Kingston Aigo Smatter vider SanDisk 2. Compatible SATA CD/DVD writers after test Brand Model TECLAST GH22NP20/TL-22XD BENQ DW220S-0K4 LITEON DH—20A6S01C LITEON DH-20A4P02C SAMSUNG TS-H653B...
  • Page 106 DVR User Manual 3. Compatible HDD list Brand Capacity Seagate Barracuda 80G/160G/250G/320G /1.5T/2TB Seagate SV35.3 Seagate Pipeline HD.2 500G Maxtor Diamondmax 160G HITACHI Deskstar 80G/160G WD WD1600JS 160G Samsung HD161HJ 160G...

  • Page 107: Appendix D 4-Ch Specifications

    DVR User Manual Appendix D VDT2504HE Specifications  Compression format Standard H.264 Baseline Composite：1.0V p-p/75Ω BNC×2 , VGAX1 Video output Composite：1.0V p-p/75Ω BNC×4 Video input VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 100FPS (PAL), 120FPS (NTSC)

  • Page 108: Appendix E 8-Ch Specifications

    DVR User Manual Appendix E VDT2508HE Specifications  Compression format Standard H.264 Baseline Composite：1.0V p-p/75Ω BNC×2 , VGAX1 Video output Composite：1.0V p-p/75Ω BNC×8 Video input VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 200FPS (PAL), 240FPS (NTSC) Record Frame Rate D1 200FPS (PAL), 240FPS (NTSC) Audio input...

  • Page 109: Appendix F 16-Ch Specifications

    DVR User Manual Appendix F VDT2516HE Specifications Standard H.264 Baseline Compression format Composite：1.0V p-p/75Ω BNC×2, VGAX1 Video output Composite：1.0V p-p/75Ω BNC×16 Video Input 1280*1024 /1024*768/ 800*600 VGA Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Record Resolution 400FPS (PAL), 480FPS (NTSC) Display Frame Rate 400FPS (PAL), 480FPS (NTSC) Record Frame Rate D1 RCA X4...
  • Page 110 DVR User Manual VDT2504HE-B 4-CH Specifications Compression format H.264 Main Profile Composite：1.0V p-p/75Ω BNC×2, VGAX1 Video output Composite：1.0V p-p/75Ω BNC×4 Video Input HDMI/VGA Resolution 1920×1080/1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 100FPS (PAL), 120FPS (NTSC) Record Frame Rate...
  • Page 111 DVR User Manual VDT2508HE-B 8-CH Specifications Compression format H.264 Main Profile Composite：1.0V p-p/75Ω BNC×2, VGAX1 Video output Composite：1.0V p-p/75Ω BNC×8 Video Input HDMI/VGA Resolution 1920×1080/1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 200FPS (PAL), 240FPS (NTSC) Record Frame Rate 200FPS (PAL), 240FPS (NTSC) Audio Input...
  • Page 112 DVR User Manual VDT2516HE-B 16-CH Specifications Compression format H.264 Main Profile Composite：1.0V p-p/75Ω BNC×2, VGAX1 Video output Composite：1.0V p-p/75Ω BNC×16 Video Input HDMI/VGA Resolution 1920×1080/1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 400FPS (PAL), 480FPS (NTSC) Record Frame Rate 400FPS (PAL), 480FPS (NTSC) Audio Input...
  • Page 113 DVR User Manual VDT2504HE-C 4-CH Specifications Compression format H.264 Main Profile Composite：1.0V p-p/75Ω BNC×2, VGA×1, HDMI×1 Video output Composite：1.0V p-p/75Ω BNC×4 Video Input HDMI/VGA Resolution 1920*1080/1280*1024 /1024*768/ 800*600 Record Resolution 960*576/704*576/352*288 (PAL), 960*480/704*480/352*240(NTSC) Display Frame Rate 100FPS (PAL), 120FPS (NTSC)
  • Page 114 DVR User Manual VDT2508HE-C 8-CH Specifications Compression format H.264 Main Profile Composite：1.0V p-p/75Ω BNC×2, VGA×1, HDMI×1 Video output Composite：1.0V p-p/75Ω BNC×8 Video Input HDMI/VGA Resolution 1920*1080/1280*1024 /1024*768/ 800*600 Record Resolution 960*576/704*576/352*288 (PAL), 960*480/704*480/352*240(NTSC) Display Frame Rate 200FPS (PAL), 240FPS (NTSC) Record Frame Rate 200FPS (PAL), 240FPS (NTSC)
  • Page 115 DVR User Manual VDT2516HE-C 16-CH Specifications Compression format H.264 Main Profile Composite：1.0V p-p/75Ω BNC×2, VGA×1, HDMI×1 Video output Composite：1.0V p-p/75Ω BNC×16 Video Input HDMI/VGA Resolution 1920*1080/1280*1024 /1024*768/ 800*600 Record Resolution 960*576/704*576/352*288 (PAL), 960*480/704*480/352*240(NTSC) Display Frame Rate 400FPS (PAL), 480FPS (NTSC) Record Frame Rate 400FPS (PAL), 480FPS (NTSC)
  • Page 116 DVR User Manual 450011000153 A4...
