Page 1: Dvr Quick Start Guide

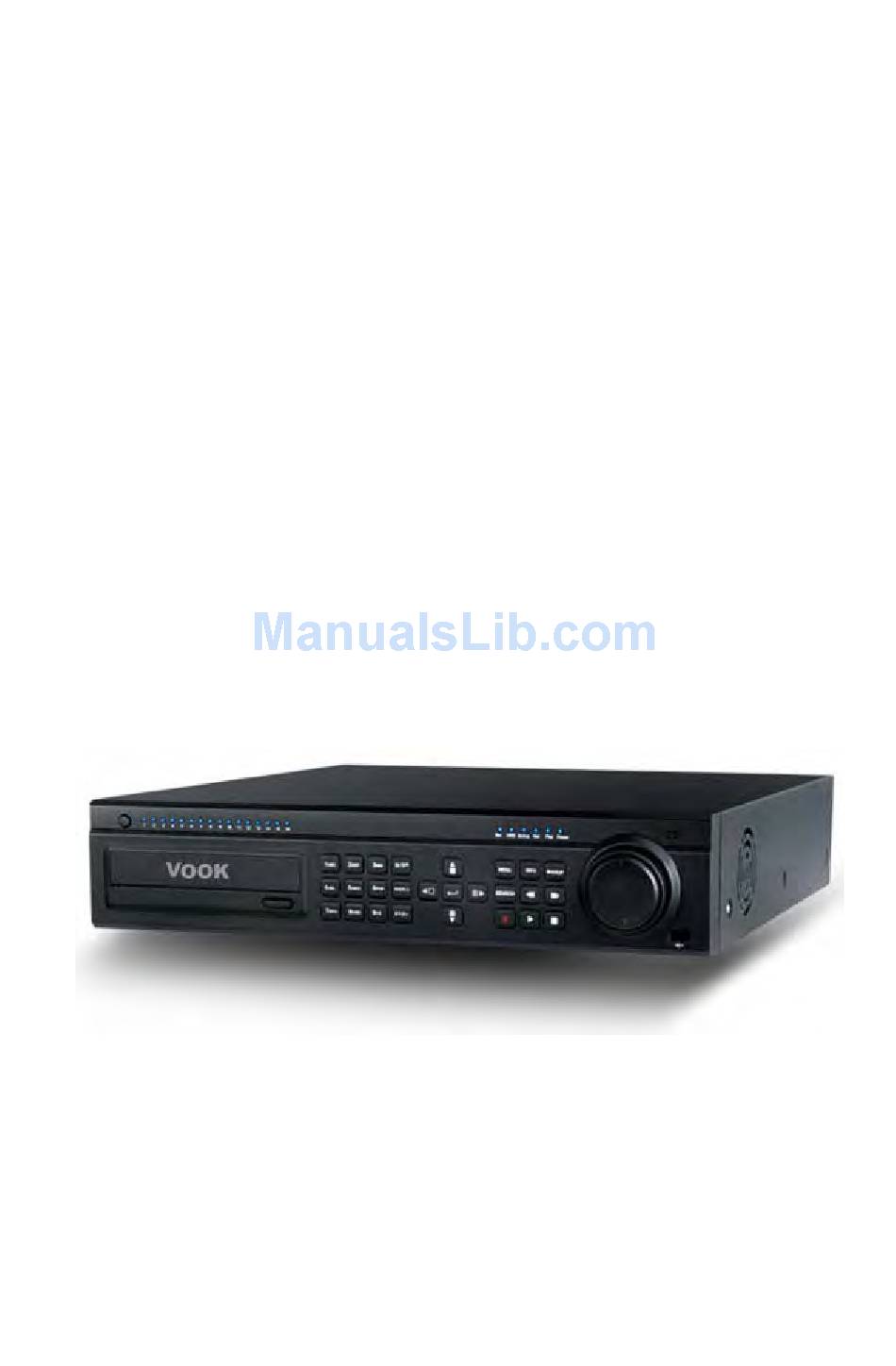

VOOK DVR QUICK START GUIDE VDT2304FD VDT2308FD VDT2316FD VOOK premium DVR... -
Page 2: Install Hard Drive &Dvd Writer
1.2 Install DVD Writer STEP1 Unscrew and Open the top cover, connect the power and data cables. Place the DVD writer onto the bottom case as below. Fig 1.2 Connect the DVD Writer STEP2 Screw the DVD writer. 2. Connections VOOK premium DVR... -
Page 3: Power Input
Fig 2.2 Rear view for 8-ch DVR Video out: Connect to monitor Audio output, connect to the sound box Connect to high-definition display 8 CH Audio input device Video input channels from 1-8 Loop out; for outputting 1-8ch image independently VOOK premium DVR... - Page 4 3. Power on STEP1 Step1: connect with the source power; switch on the power button near the power port on the rear panel STEP2 Step2: the device will be loaded, and the power indicator will display blue VOOK premium DVR...
-
Page 5: Basic Setup
Basic configuration: user can set video system, menu language, audio, time and authorization check. Live configuration：User can set name/time display, picture color and hide cameras. Record configuration：User can set record quality, frame rate, resolution, time stamp and recycle. VOOK premium DVR... - Page 6 The column means the seven days of a week from Monday to Sunday, the row means 24 hours of a day. Click the grid to do relevant setup. Blue means checked area, gray means unchecked area. Fig 4-3 Schedule record setup 4.2.3 Motion Detection Recording VOOK premium DVR...
- Page 7 Detection first, setup the device type. Fig 4-6 sensor alarm record Enter into Trigger configuration, select alarm out and recording cameras and linked PTZ; set Alarm out hold time and Buzzer hold time. Click OK to save VOOK premium DVR...
- Page 8 Click Play button. It will play from the time point where user set. Click the relative buttons on the screen to do fast forward/rewind, pause, stop, and change the screen mode and re-search. Fig 4-8 time search 4.3.3 Event search VOOK premium DVR...
- Page 9 Press Backup button, it will begin to write video from HDD inside DVR to backup device. Click Start button to start backup. Fig 4-10 Backup setup Remote Surveillance VOOK premium DVR...
- Page 10 Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number after IP address or domain name. IE will download ActiveX automatically. Then a window pops up and asks for VOOK premium DVR...
- Page 11 HTTP port is not 80, add the port number after IP address or domain name. IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view. VOOK premium DVR...
