Page 1: Quick Start Guide

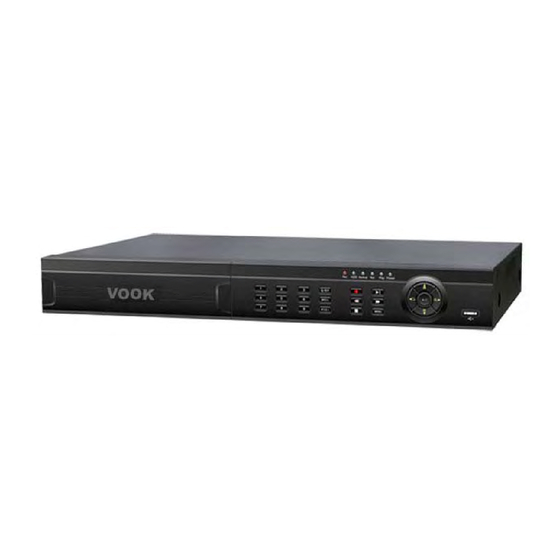

VOOK QUICK START GUIDE VDT2304ME VDT2308ME VDT2316ME VOOK premium DVR... -
Page 2: Install Hard Drive &Dvd Writer
1.2 Install DVD Writer ( not for VDT2300ME-A ) STEP1 Unscrew and Open the top cover, connect the power and data cables. Place the DVD writer onto the bottom case as below. Fig 1.3 Connect the DVD Writer VOOK premium DVR... - Page 3 POWER INPUT For cooling the device 2.2 Rear view for 8-ch DVR Fig 2.2 Rear view for 8-ch DVR Connect to monitor Connect to monitor as an AUX output channel by channel. Only video display, no menu show VOOK premium DVR...
- Page 4 ESC button to switch. Notice: this serial device can only display menu on VGA monitor or BNC monitor at one time, if there is live image display without menu display, please check up whether other VOOK premium DVR...
-
Page 5: Basic Setup
Record configuration：User can set record quality, frame rate, resolution, time stamp and recycle. Schedule configuration: users can set schedule for timer, motion detection, and sensor alarm respectively. Alarm configuration: users can set sensor type, alarm trigger and buzzer alarm. VOOK premium DVR... - Page 6 4.2.3 Motion Detection Recording Motion detection recording: when there is a motion event detected, the camera will be triggered to record and have an alarm out. Enter into main menu-alarm configuration-motion configuration (refer to Fig 4-4), enable Detection first; VOOK premium DVR...
- Page 7 Enter into Trigger configuration, select alarm out and recording cameras and linked PTZ; set Alarm out hold time and Buzzer hold time. Click OK to save settings. 4.3 Playback This unit supports live record playback, time search and event search. It VOOK premium DVR...
- Page 8 The selected time match the blue grid. Click Play button. It will play from the time point where user set. Click the relative buttons on the screen to do fast forward/rewind, pause, stop, and change the screen mode and re-search. VOOK premium DVR...
- Page 9 Fig 3-10), set the start & end time, select channels, click Search button; the searched data will be displayed in the data backup list box. Press Backup button, it will begin to write video from HDD inside DVR to backup device. Click Start button to start backup. VOOK premium DVR...
- Page 10 Enter Video to set network video parameters like resolution, frame rate etc. Open an IE browser on computer on the same LAN. Input the IP address of the DVR in IE address blank and enter. IE will download ActiveX automatically. Then a window pops up and asks for VOOK premium DVR...
- Page 11 HTTP port is not 80, add the port number after IP address or domain name. IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view. VOOK premium DVR...
