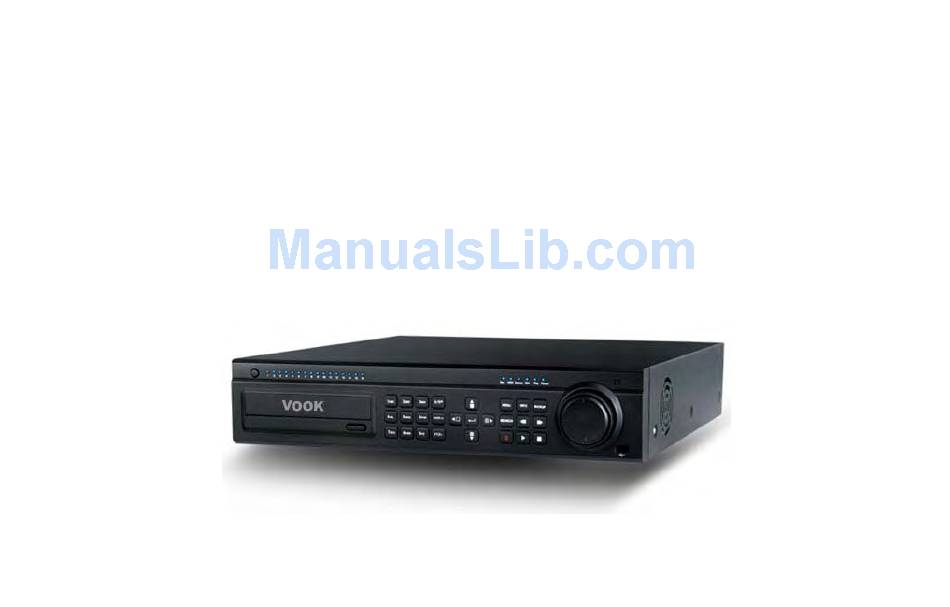

- Page 1 VOOK DVR USER MANUAL VDT2304HD VDT2308HD VDT2316HD For H.264 4/8/16-channel digital video recorder All rights reserved VOOK premium DVR...
- Page 2 Refer all servicing to qualified service personnel. No any parts repaired by yourself without technical aid or approval. This manual is suitable for 4/8/16-channel digital video recorders. All examples and pictures used in the manual are from 16-channel DVR. VOOK premium DVR...
-
Page 3: Table Of Contents
3 Basic Function Instruction ..........................14 3.1 Power On/Off..................................14 3.1.1 Power on..........................................14 3.1.2 Power off..........................................14 3.2 Login......................................15 3.3 Live preview ..................................15 3.3.1 Live playback ........................................16 4 Main menu setup guide ..........................17 VOOK premium DVR... - Page 4 4.4.2 Motion ..........................................27 4.4.3 Sensor ..........................................28 4.5 Alarm configuration................................28 4.5.1 Sensor ..........................................29 4.5.2 Motion ..........................................30 4.5.3 Video loss ........................................... 32 4.5.4 Other alarm ......................................... 33 4.5.5 Alarm out..........................................34 VOOK premium DVR...
- Page 5 6.1.1 System information ......................................52 6.1.2 Event information ........................................ 52 6.1.3 Log information ........................................52 6.1.4 Network information ......................................52 6.1.5 Online information....................................... 52 6.2 Manual alarm..................................53 6.3 Disk management..................................53 VOOK premium DVR...
- Page 6 8.5.1 Installation instruction for BlackBerry Mobile phone Client..........................90 8.5.2 Operation method for Blackberry mobile phone client ............................92 Appendix A FAQ…...................................91 Appendix B Calculate Recording Capacity...........................97 Appendix C Compatible Devices............................98 Appendix D 4-CH DVR Specifications...........................100 Appendix E 8-CH DVR Specifications...........................101 VOOK premium DVR...
- Page 7 Digital Video Recorder User Manual Appendix F 16-CH DVR Specifications..........................102 VOOK premium DVR...
-
Page 8: 1 Introduction
Display the local record state and basic information • Support USB to make full control RECORD MEDIA • Support four SATA HDDs to record for a longer time without any limitation BACKUP • Support USB 2.0 devices to backup VOOK premium DVR... - Page 9 • Support linked PTZ preset ，auto cruise and track of the corresponding channel PTZ CONTROL • Support various PTZ protocols • Support 128 PTZ presets and 8 auto cruise tracks • Support remote PTZ control through internet VOOK premium DVR...
- Page 10 • Support remote full menu setup, changing all the DVR parameters remotely • Support mobile surveillance by smart phones , symbian, WinCE, Iphone or Gphone, 3G network available • Support CMS to manage multi devices on internet VOOK premium DVR...
-
Page 11: 2 Hardware Installation
Step2: Connect the power and data cables. Place the HDD onto the bottom case as Fig 2.1. 2.2.2 Install DVD Writer Notice: 1. The writers must be the compatible devices we recommend. Please refer to “Appendix C Compatible Devices” VOOK premium DVR... -
Page 12: Front Panel Descriptions
When recording, the light is blue AUDIO/+ 1. Control voice 2. Increase the value in setup P.T.Z./ - 1. Enter PTZ mode in live 2. Decrease the value in setup MENU Enter menu in live INFO Check recording data VOOK premium DVR... -
Page 13: Rear Panel Instructions
To connect external USB devices like USB flash, USB HDD for backup or USB port update firmware; or connect to USB mouse 2.4 Rear Panel Instructions 2.4.1 Rear Panel Interface The rear Panel interface for 4-ch is shown as Fig 2.5: VOOK premium DVR... - Page 14 Network port ALARM IN Connect to external sensor1-4 ALARM OUT 4ch relay output. Connect to external alarm. Connect to speed dome Connect to keyboard Grounding For cooling the device POWER INPUT AC 110V-220V POWER SWITCH Switch on/off VOOK premium DVR...
- Page 15 Network port ALARM IN Connect to external sensor1-8 ALARM OUT 4ch relay output. Connect to external alarm. Connect to speed dome Connect to keyboard Grounding For cooling the device POWER INPUT AC 110V-220V POWER SWITCH Switch on/off VOOK premium DVR...
- Page 16 VGA port VGA output, connect to monitor Connect to monitor as an AUX output channel by channel. Only video display, Spot out no menu show Video in Video input channels from 1-16 Grounding For cooling the device VOOK premium DVR...
-
Page 17: Remote Controller
3. Check IR controller sensor is mask If it still doesn't work, Please change a new remote controller to try, or contact your dealers The interface of remote controller is shown in Fig2.8 Remote Controller. Fig 2.8 Remote Controller Item Name Function VOOK premium DVR... - Page 18 8 twice, then input device ID of the DVR to be controlled(Range from: 0-65535; the default device ID is 0.) After that, press ENTER button to confirm. Step2: User can check the device ID by enter into System configuration Basic configuration device ID. User also can set other VOOK premium DVR...
-
Page 19: Control With Mouse
In setup: Click left button to enter. Click right button to cancel setup, or return to the previous. If want to input the value, move cursor to the blank and click. An input window will appear as Fig2.9. It supports digitals, letters and symbols input. Fig 2.9 Digital Numbers and Letters Input Window VOOK premium DVR... - Page 20 In backup: Click left button to choose the options. Click right button to return to previous picture. In PTZ control: Click left button to choose the buttons to control the PTZ. Click right button to return to live. Notice: Mouse is the default tool in all the operation below unless Exceptional indication. VOOK premium DVR...
-
Page 21: 3 Basic Function Instruction
Step2: disconnect the power By keyboard and mouse: Step1: enter into Menu, then select “System Shut Down” icon, the Shut down window will appear Step2: click OK, the unit will power off after a while. Step3: disconnect the power VOOK premium DVR... -
Page 22: Login
The concrete operation steps for change password, add or delete user please refer to User management configuration for more details. 3.3 Live preview Symbol Meaning Green Manual record Motion detection record Yellow Sensor Alarm record Blue Schedule record Fig 3-2 live preview interface VOOK premium DVR... -
Page 23: Live Playback
Digital Video Recorder User Manual 3.3.1 Live playback Click Play button to playback the record. Refer to Figure3-3. User can do concrete operation by click the buttons on screen. Fig 3-3 live playback VOOK premium DVR... -
Page 24: 4 Main Menu Setup Guide
Fig 4-2; user can also press MENU button on the front panel or operate with remote controller to display the main menu. Click Setup icon will pop-up the configuration menu: VOOK premium DVR... -
Page 25: Basic Configuration
Video format: two modes: PAL and NTSC. User can select the video format according to that of camera. Fig 4-3 basic configuration-basic Password check: enable this option, user needs to input user name and password can do corresponding operations with the VOOK premium DVR... -
Page 26: Time & Date
Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface. Fig 4-4 basic configuration-time & date 4.1.3 DST Step1: enter into system configuration basic configuration DST; refer to Fig 4-5: VOOK premium DVR... -
Page 27: Live Configuration
Note: Click Camera Name, a soft keyboard will pop up. User can self-define the camera name. Click Shift button, user can input Capital letters; click Shift button again, user can input Chinese characters. Step2: tick off camera name; click “setting” button, a window will pop-up as Fig 4-7: VOOK premium DVR... -
Page 28: Main Monitor
Step3: dwell time: the time interval for a certain dwell picture display switching to next dwell picture display Step4: selected the split mode, then setup current picture group. Click button to setup the previous channel groups of dwell picture. Fig 4-8 live configuration-host monitor VOOK premium DVR... -
Page 29: Spot
Click Apply button to save the setting. Delete mask area: select a certain mask area and click left mouse to delete that mask area. Then click Apply Fig 4-10 live configuration-mask button to save the setting. VOOK premium DVR... -
Page 30: Record Configuration
Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap. 4.3.1 Enable Step1: enter into system configuration record configuration enable; refer to Fig 4-11: Parameter Meaning Record Record switch every channels Audio Enable live record audio Fig 4-11 record configuration-enable VOOK premium DVR... -
Page 31: Record Stream
Fig 4-12 record configuration-record bit rate 4.3.3 Time Step1: enter into system configuration record configuration time; refer to Fig 4-13: Pre-alarm record time: the record time before event happen i.e. record time before motion detection or sensor alarm is VOOK premium DVR... -
Page 32: Stamp
User can use cursor to drag the camera name and time stamp in random positions, referring to below Figures: Step3: user can setup all channels with same parameters. Tick off “all” to do relevant setup. Fig 4-14 record configuration-stamp VOOK premium DVR... -
Page 33: Recycle Record
The volume means the seven days of a week from Monday to Sunday and the row means 24 hours of a day. Click the grid to do relevant setup. Blue means checked area and gray means unchecked area. Step1: enter into system configuration schedule configuration schedule; referring to Fig 4-15: VOOK premium DVR... -
Page 34: Motion
② If the user wants to apply the schedule setting of certain channel to other or all channels, he needs to select channel and click “Copy” button. 4.4.2 Motion Step1: enter into system configuration schedule configuration motion; refer to Fig 4-17: Step2: the setup steps of motion are familiar with schedule; user can refer to 4.4.1 Schedule for details. VOOK premium DVR... -
Page 35: Sensor
Note: the default schedule of motion detection is full-selected, that is, the color of schedule setting interface is blue. Fig 4-18 schedule configuration-sensor 4.5 Alarm configuration Alarm configuration includes five sub menus: sensor, motion, video loss, other alarm and alarm out. VOOK premium DVR... -
Page 36: Sensor
Fig 4-19 alarm configuration-sensor-basic ② Alarm handling Step1: enter into system configuration alarm configuration sensor alarm handling; refer to Fig 4-20: Step2: select hold time, click Trigger button, and a dialog box will pop-up as Fig 4-21: VOOK premium DVR... -
Page 37: Motion
4.4.1 Schedule for details. Note: the default schedule of sensor is full-selected, that is, the color of schedule setting interface is blue. Fig 4-22 sensor-schedule 4.5.2 Motion Motion includes two sub menus: motion and schedule. ① Motion VOOK premium DVR... - Page 38 Click icon, to save the setting; click icon, exit current interface. VOOK premium DVR...
-
Page 39: Video Loss
Step2: the setup steps of video loss trigger are familiar with alarm handling; user can refer to Chapter 4.5.1 Sensor alarm handling for more details. Step3: user can also setup all channels with same parameters. Step4: click “apply” button to save the setting; click “exit” button to exit current interface. VOOK premium DVR... -
Page 40: Other Alarm
Step 2: select a hard disk in the pull down list box. When the disk capacity is lower than that value, there will appear some text information on the lower right of the live image. VOOK premium DVR... -
Page 41: Alarm Out
Step 2: HTTP port: the default value is 80. If the value changed, user needs to add the port number when typing IP address in IE address blank .i.e. set HTTP port to 82, IP address: http://192.168.0.25, user needs to input that address: http://192.168.0.25:82 VOOK premium DVR... -
Page 42: Sub Stream
Digital Video Recorder User Manual into IE browser. subnet mask, and gateway IP and DNS server. Step 4: enable PPPoE to directly connect the DVR to internet via ADSL, and then input the user name and password. Next, click TEST button to test the effectiveness of the relevant information. -
Page 43: Email
Digital Video Recorder User Manual Step 1: enter into system configuration network configuration sub stream; refer to Fig 4-30: Step 2: select fps, resolution, quality, encode and max bit rate Step 3: user can setup all channels with same parameters. Tick off “all” to do relevant setup. Fig 4-30 network configuration-sub stream Definitions and descriptions of Sub stream: Parameter... -
Page 44: Other Settings
Digital Video Recorder User Manual SMTP Server/Port: the name and port number of SMTP server. After selecting “This server requires a secure connection (SSL)”, user can setup mail servers (such as Gmail) according to actual needs. Send address/password: sender’s email address/password Receive address: receiver’s email address. - Page 45 “YES” button, “Windows Components Wizard” dialog box will pop up as shown as below picture, press “Next” to continue. After finished the installation of configuring components, the UPnP icons will display. Users can double-click certain icon and check the IP address of the device. VOOK premium DVR...
- Page 46 Note: Users can self-define the hostname, username and password. Input www.dyndns.com address bar, user access domain name registration interface. Click” ” ”Create Free Hostname” to register. For example: Hostname is “abc.dyndns.tv. The picture is shown as follows: VOOK premium DVR...
- Page 47 Digital Video Recorder User Manual After user fill in the blank, click “Add to cart”. Then Dynamic DNS Hosts dialog box will be displayed. Next, create user account. For example, the username is “bcd”, password is “123456”. Click” Create Account” button to create user account. 2．...
-
Page 48: User Management Configuration
The interval time of upgrading DVR IP address 4.7 User management configuration Step 1: enter into system configuration user management configuration; refer to Fig 4-33: Step 2: click Add button to display a dialog box as Fig 4-34: VOOK premium DVR... - Page 49 Step 4: select the user that user wants to delete in the user list box and then click Delete button to delete this user. Fig 4-35 add user-authority Step 5: click Change password button to modify the password; click Exit button to exit the current interface. VOOK premium DVR...
-
Page 50: Configuration
Digital Video Recorder User Manual 4.8 P.T.Z configuration P.T.Z configuration includes two submenus: serial port and advance ① Serial port Step 1: enter into system configuration P.T.Z configuration serial port; refer to Fig 4-36: Step 2: tick off Enable and then setup the value of address, baud rate and protocol according to the settings of the speed dome. - Page 51 OK button to save the setting; click Exit button to exit current interface. Step 3: in the Advance interface, while clicking cruise “Setting” button, a dialog box will pop-up as Fig 4-40: VOOK premium DVR...
- Page 52 OK button to save the setting; click Exit button to exit current interface. Step4: in the Advance interface, while clicking track “Setting” button, a dialog box will pop-up as Fig 4-42: Fig 4-42 track setting VOOK premium DVR...
-
Page 53: Advanced
Digital Video Recorder User Manual Fig 4-41 cruise set-modify cruise line a. user can control the dome rotates up, up left, down, right down, left, left down, right and up right and stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome; click Start Record button to record the move track of PTZ;... - Page 54 Digital Video Recorder User Manual users within a certain IP address segment to access DVR, they can tick off Allow-list, and then operate in the same way. VOOK premium DVR...
-
Page 55: 5 Record Search & Playback And Backup
Step2: select channel, screen display mode, the highlight date in the calendar means have record data Step3: select a date, press Search button, click the time grid to set the play start time or input play record time manually. The selected time match the blue grid. VOOK premium DVR... -
Page 56: Event Search
Step1: enter into Search configuration event search; refer to Fig 5-2: Fig 5-2 Search configuration-event search Step2: click Search button to display the searched event information in the event list box. User can select date and channel. VOOK premium DVR... -
Page 57: File Management
Delete: select an unlocked file and click Delete button to delete this file. Step3: after selecting “All” button; user can lock/unlock or delete all files in the file management column. Step4: double click an unlocked item to playback. VOOK premium DVR... -
Page 58: Image
Step2: set the start & end time, select channels, click Search button, the searched data will be displayed in the data backup list box Step3: select a data file or tick off “All” to select all data files. Click Backup button to display Backup information window. VOOK premium DVR... -
Page 59: 6 Manage Dvr
In this interface, user can check the details of the current connection of online users. Refresh: refresh the current interface. Disconnect: the administrator authorized to disconnect the client terminal. When disconnected, that PC will not be able to access the device within five minutes. VOOK premium DVR... -
Page 60: Manual Alarm
USB port. Enter Menu Upgrade, the upgrade software name is displayed in the upgrade list box, select that software and then click upgrade button. It will upgrade automatically. Please wait for a while when the system is rebooted. Never cut off power during upgrading. VOOK premium DVR... -
Page 61: Logoff
Click Log off icon, a log off dialogue box will popup, click OK button, the device will log off. If user wants to log in again, click icon to enter into user name and password to re-login. VOOK premium DVR... -
Page 62: 7 Remote Surveillance
DVR or router. Then add to the DVR or router. This unit supports www.dns2p.com，www.meibu.com，www.dyndns.com，and www.no-ip.com. Step 5: Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number VOOK premium DVR... - Page 63 Information Network interface to check IP address). The browser will download Active X control Step 3: The following setting steps are as the same as Step4, Step 5 and Step 6 in Point 1. Fig 7-1 View with IE browser VOOK premium DVR...
-
Page 64: Remote Surveillance Through Apple Pc
32-bit mode. If the browser is the earlier MACOS version, the default setting is 32-bit mode and the setting can be skipped. The Setting steps are as follows: First: Right click safari icon and select “Show in Finder”. Second: Select Applications Right click “Safari. App” Select “Get Info”. Third: Select “open in 32- bit mode”. VOOK premium DVR... -
Page 65: On Lan
Digital Video Recorder User Manual 7.2.1 On LAN Step 1: After starting Apple computer, click icon. The following window will pop up. Please select “System Preferences” ”Internet &Wireless” click “Network” VOOK premium DVR... - Page 66 PC. If using DHCP, please enable DHCP in the DVR and router. Step 4: After finishing the above information, users can enter LAN IP and http port in the Safari browser. For example: input VOOK premium DVR...
- Page 67 Step 6: After finishing installing the Active X control, please quit from the Safari browser. Right click icon on the desktop and then select “Quit” button to quit the browser. Then restart Safari browser. Input the IP address and http port to enter into the login interface of DVR. VOOK premium DVR...
-
Page 68: On Wan
Step 1: The network setups are the same as step one of point 2 on WAN of IE remote surveillance. Step 2: Enter WAN IP and http port in the Safari browser to install the Active control. The concrete steps are the same as step 5 and 6 of Chapter 7.2.1. VOOK premium DVR... -
Page 69: The Remote Live Preview Interface
Snapping picture Start manual record Start IE record ⑦ ⑧ ⑨ Bidirectional talk Playback Color ⑩ ⑪ PTZ control Master/sub stream status Note: click button to record manual and the record file will be saved in user’s PC. VOOK premium DVR... - Page 70 User can control the dome up, down, right, left or stop rotating on Control Center, adjust rotation speed, Iris and zoom, focus on the dome, and set the presets, etc. VOOK premium DVR...
- Page 71 'Focus' button to have short focus. Go to the Preset Select and do auto cruise Track Auto scan Wiper button Light button Click the right mouse on the live interface, a pull-down menu will appear as below VOOK premium DVR...
-
Page 72: Remote Playback & Backup
Fig 7-5: Select the record date and channels and double-click the file name in the record file list box. Then user can play that file and preview the picture. VOOK premium DVR... - Page 73 Digital Video Recorder User Manual Fig 7-5 Play record file interface This DVR supports remote time search, event search and file management. By Time Search: Step1: Enter into Search time search; refer to Fig 7-6: VOOK premium DVR...
- Page 74 Step4: Select certain item from the data information list box. Click “play” button to playback Step5: Click the relevant buttons in the interface and then user can do some operations such as: FF, pause, change channel mode, research, etc. refer to Fig 7-7: VOOK premium DVR...
- Page 75 Digital Video Recorder User Manual Fig 7-7 Time search playback By Event Search: Step1: Enter into Search event search; refer to Fig 7-8: VOOK premium DVR...
- Page 76 Step2: click the highlight date and select record channels and then tick off the event type: motion and sensor. Then click “search” button Step3: the events will be display in the event list box and then double-click certain item to playback File Management Step1: Enter into Search file management; refer to Fig 7-9: VOOK premium DVR...
- Page 77 Lock: select certain file item in the file list box and then click “Lock” button to lock this file that ca not be deleted or overlaid Unlock: select a locked file and then click “unlock” button to unlock this file Delete: select an unlock file and then click “delete” button to delete this file from file list VOOK premium DVR...
-
Page 78: Remote Backup
Step1: select channels, set the start and end time and then click “search’ button to display the file information in the file list box Step2: select backup files and click “browse” button to set the save path. Then click “backup” button to start backup. The backup files will be saved on user’s PC. VOOK premium DVR... -
Page 79: Remote System Configuration
The sub menu lists and the options in every item are similar with those on the DVR. Please refer to Chapter 3 Main Menu Setup Guide for more details. Click “Apply” button to save above settings; click “default” button will recover the original settings. VOOK premium DVR... -
Page 80: Remote Management
IP address and so on. Enter into INFO→Log. User can set the start time to view the log record as follows: Fig 7-12 Remote information search Note: There may be subtle differences with respect to functions of remote surveillance between through IE and through Apple PC. Here we only take IE remote access for example. VOOK premium DVR... -
Page 81: 8 Mobile Surveillance
Step3：Click “Yes” to start downloading and installing: Step4：PCam will be opened automatically after installed. Refer picture in the right: Step5：Input the server’s address, ID and password respectively in the columns of “Server”, “User” and “Password”, and click “Go” VOOK premium DVR... -
Page 82: By Phones With Symbian
Edition with FP 1-Symbian OS v9.2 support Symbian S60 3 Edition with FP2-Symbian OS v9.3 support Symbian S60 5 Edition-Symbian OS v9.4 support Symbian S60 5.1 Edition-Symbian OS v9.5 support Step1：Firstly enable the network access on mobile phone. Then run Web browser. VOOK premium DVR... - Page 83 Step7：Click System setting--->Login Setting to enter login interface. Refer picture in the right: Step8：Input the server’s address, ID and password respectively. Then save. Notice: About Access point, there may be different access points in different countries or from service providers. VOOK premium DVR...
-
Page 84: The Software Installation For Iphone Mobile Clients
Step10：In Live View, users can do snapshot, change channels and control PTZ. Refer picture in the right: 8.3 The Software installation for iPhone mobile clients 1. Install through iphone. Step 1. Open App Store function of iphone Step 2. Enable “search” function to search “SuperCam” VOOK premium DVR... - Page 85 Step 4: Input iTunes Store password and then click “OK”, the software will be installed automatically. Note: if it was the first time for user to operate, please enter user ID; if there is no Store account, user needs to apply one. 2. Install through PC. VOOK premium DVR...
- Page 86 Digital Video Recorder User Manual Step 1: Install iTunes store in PC and then login Step 2: Connect iPhone and PC Step 3: Enable “search” function to search “SuperCam” Step 4: Click “free application” button VOOK premium DVR...
- Page 87 Operation Instruction for SuperCam (iphone) Login interface Enter server’s IP address (or domain name), user name and password Click “Remember server” to save the setting; click button can quick input saved server address, user name and password. VOOK premium DVR...
- Page 88 【Information】 device information view 【Help】 software help center 【Logoff】 logoff and return to login interface Live View Interface Mark 1 Current viewing channel Mark 2 Channel status Switch channels PTZ, click to switch to Fig 2 interface VOOK premium DVR...
- Page 89 Group Set the cruise line Speed Rotate speed of the PTZ H-Reverse Horizontal- Reverse V-Reverse Vertical- Reverse Image view interface, refer below picture in the left: Record Playback interface, refer below picture in the right: VOOK premium DVR...
- Page 90 Display mode: User can select one live picture display or four live picture displays Remember display order: User can choose whether to remember display order or not. Alarm config：Select Audio Alarm. When Video Loss/Sensor/Motion happens，trigger sound alarm. Select shake Alarm. When Video Loss/Sensor/Motion happens，trigger vibrate alarm. Information View Interface VOOK premium DVR...
-
Page 91: The Installation & Operation Methods For Android Mobile Clients
Digital Video Recorder User Manual 8.4 The installation & operation methods for Android mobile clients Software Installation Step 1: run Google Market program Step 2: search”SuperCam” VOOK premium DVR... - Page 92 Digital Video Recorder User Manual Step 3: press “Install” button Step 4: click “OK” button Step 5: user can view the download and install process in notifications; finished download, the software will install automatically. VOOK premium DVR...
- Page 93 【Playback】 【Image】 playback record file image view 【Log】 【Server List】 device list log record 【Live】 【Settings】 live view software setting 【Information】 device information view 【Help】 software help center 【Logoff】 logoff and return to login interface Live view VOOK premium DVR...
- Page 94 Live audio Full screen Return Upward rotates the PTZ Downward rotates the PTZ Leftward rotates the PTZ Rightward rotates the PTZ Stop rotates the PTZ Zoom In/Focus In/Iris Add Zoom Out/Focus Out/Iris Sub Preset Select the preset point VOOK premium DVR...
- Page 95 Zoom out Delete Return to main Zoom in menu Record playback Play/pause Full screen stop Return to record file interface (Fig 3) （Fig 3） （Fig 4） Click the record file (Fig 3) to playback (Fig 4) Server list VOOK premium DVR...
- Page 96 Video clip size Single video size. When the video size is greater than setup value, change another video files Remove all recorder delete all current video files files before VOOK premium DVR...
-
Page 97: Installation And Operation Methods For Blackberry Mobile Phone Client
8.5.1 Installation instruction for BlackBerry Mobile phone Client 1. Open the browser of BlackBerry phone and enter sever address 2. Click “SuperCam” to link 3. Click “Download” button on the popup interface and the download progress will be shown. VOOK premium DVR... - Page 98 Check whether DVR server connect network normally or not Modify the option of Browser Configuration. (1) Enter into Menu->Option->Browser Configuration; configure referring to the following figure in the left. (2) Enter into Menu->Option->Cache Operations, clear up browser cache. Refer below picture in the right: VOOK premium DVR...
-
Page 99: Operation Method For Blackberry Mobile Phone Client
8.5.2 Operation method for Blackberry mobile phone client Login Enter server’s IP address (or domain name), user’s ID and password. Click “Remember server” to save the setting; click button can quick input saved server address, user name and password. VOOK premium DVR... - Page 100 Main interface Playback playback record file Image image view log record Server List device list Information device information Help software help view center Logoff logoff and return to Settings software setting login interface Live live view Live view VOOK premium DVR...
- Page 101 Stop rotating the PTZ Upward rotates the PTZ Downward rotates the PTZ Leftward rotates the PTZ Rightward rotates the PTZ Zoom In/Focus In/Iris Add Zoom Out/Focus Out/Iris Sub Preset Select the preset point Group Set the cruise line VOOK premium DVR...
- Page 102 Digital Video Recorder User Manual Server list Software configuration Information view VOOK premium DVR...
-
Page 103: Appendix A Faq
Q5. Cannot find HDD a. The power of the adapter is not enough. Please change an adapter to try. b. Connection problem. Please check the power and data cables. c. The HDD is damaged. Change a new one. VOOK premium DVR... -
Page 104: Appendix B Calculate Recording Capacity
Not detected. Plug/unplug several times. c. The mouse is incompatible. Please change a mouse. Q8. Cannot download ActiveX control. a. IE browser blocks ActiveX. Please do setup following below. ① Open IE browser. Click Tools-----Internet Options…. VOOK premium DVR... - Page 105 ③ Enable all the sub options under “ActiveX controls and plug-ins” refer to Fig 8-2 ④ Then click ok to finish setup. b. Other plug-ins or anti-virus block ActiveX. Please uninstall or close them. Fig8-1 Fig8-2 Q9: How to deal with when DVR starts, it displays “please wait…”all the time VOOK premium DVR...
- Page 106 In general, please do not try using more disks removed from different DVR into another one in case the data lose. Q12: What are the minimum configurations of PC for clients connecting? PC Module Parameters Intel Celeron 2.4G Motherboard Intel 845 VOOK premium DVR...
-
Page 107: Appendix D 4-Ch Dvr Specifications
If user gets this problem, may have two ways to fix it: a. Enter Control Panel User Account and Family Safety User Account Control(refer to below picture); click Turn User Account on or off. Cancel Use User Account Control (UAC) to help protect your computer. VOOK premium DVR... -
Page 108: Appendix E 8-Ch Dvr Specifications
Digital Video Recorder User Manual b. Right click IE browser (refer to Fig 14-2), select Run as administrator to run browser. VOOK premium DVR... - Page 109 He wants the unit to record continuously in a month. Below is the calculation: Total Recoding capacity =700 (mb/h) X 24(hours/day) X30(days) X4(channels)= 2016000(MB)≈2016(GB) Therefore, customers just install two SATA HDDs with 1000GB, it can almost record for one month. VOOK premium DVR...
-
Page 110: Appendix C Compatible Devices
512MB, 1G, 2GB Netac Kingston Aigo Smatter vider SanDisk Tab C.1 Compatible USB drive 2. Compatible SATA CD/DVD writers after test Brand Model TECLAST GH22NP20/TL-22XD BENQ DW220S-0K4 LITEON DH—20A6S01C LITEON DH-20A4P02C SAMSUNG TS-H653B Tab C.1 Compatible CD/DVD writers VOOK premium DVR... - Page 111 Seagate Pipeline HD.2 500G Seagate Barracuda 7200.10 320G Seagate Barracuda 7200.10 ST3250310AS 250G Seagate Barracuda 7200.11 ST3160813AS 160G Seagate Barracuda 7200.10 ST380815AS Maxtor Diamondmax 21 STM3160215AS 160G HITACHI Deskstar HDS721616PLA380 160G HITACHI Deskstar WD WD1600JS 160G Samsung HD161HJ 160G VOOK premium DVR...
- Page 112 Communication interface RS485, USB2.0 x 2(one for backup, another for USB mouse) Disk info SATA x 4+DVD-RW x 1 or SATA x 3 Remote controller Power supply 110V-220V Temperature 0℃-50℃ Humidity 10%-90% Average Operating Power （Excluding HDD） ≤30W VOOK premium DVR...
- Page 113 Communication interface RS485, USB2.0 x 2(one for backup, another for USB mouse) Disk info SATA x 4+DVD-RW x 1 or SATA x 3 Remote controller Power supply 110V-220V Temperature 0℃-50℃ Humidity 10%-90% Average Operating Power （Excluding HDD） ≤30W VOOK premium DVR...
- Page 114 Communication interface RS485, USB2.0 x 2(one for backup, another for USB mouse) Disk info SATA x 4+DVD-RW x 1 or SATA x 3 Remote controller Power Supply 110V-220V Temperature 0℃-50℃ Humidity 10%-90% Average Operating Power （Excluding HDD） ≤30W VOOK premium DVR...
- Page 115 450011000155 VOOK premium DVR...
