VOOK
QUICK START GUIDE

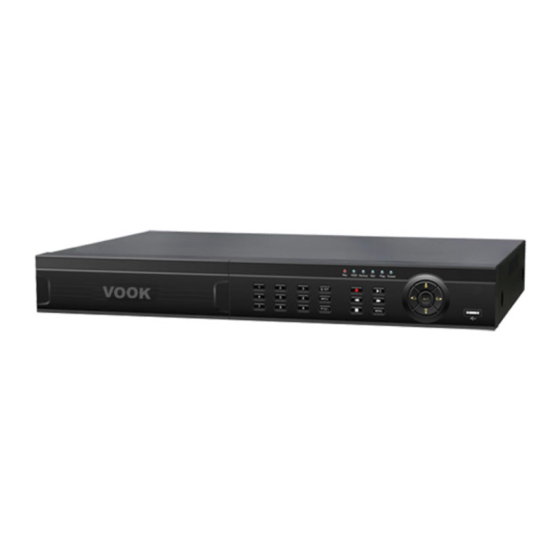

VDT23xxME-BH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDT23xxME-BH and is the answer not in the manual?

Questions and answers

Related Manuals for Vook VDT23xxME-BH

Summary of Contents for Vook VDT23xxME-BH

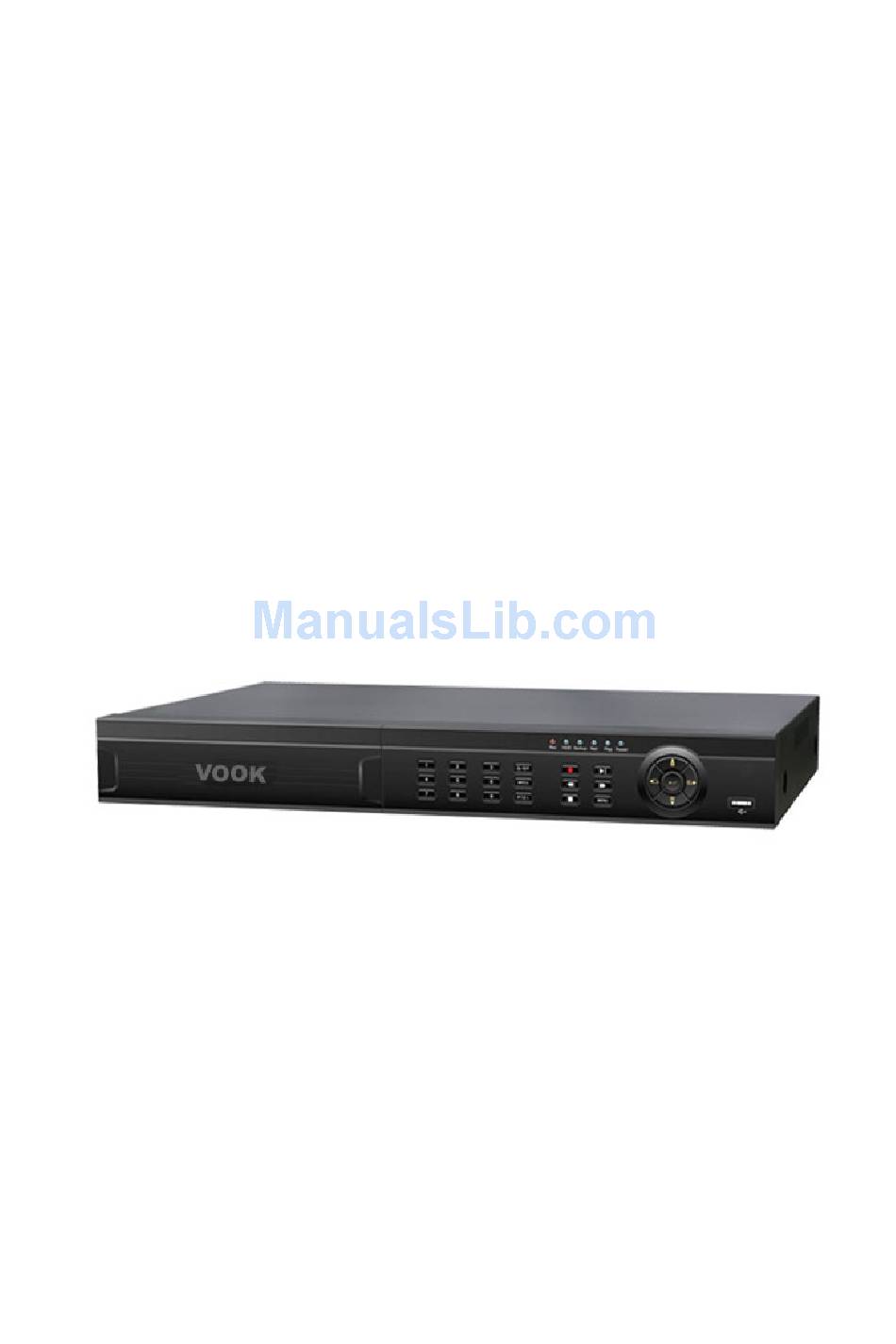

  • Page 1 VOOK QUICK START GUIDE VDT23xxME-BH...
  • Page 2 VOOK...

  • Page 3: Install Hard Drive

    VOOK 4/8/16-CH DVR Quick Start Guide 1. Install Hard Drive Notice: 1. This series supports two SATA hard drives. Please use the hard drive the manufacturers recommend specially for security and safe field. 2. Please disconnect the power before being connected to other devices. Don't hot plug in/out Step 1: Unscrew and Open the top cover to connect the power and data cables.
  • Page 4 VOOK 4/8/16-CH DVR Quick Start Guide Rear Panel Instruction for 8-CH Connect USB mouse or connect external USB Grounding devices Connect to speed dome or keyboard Power supply 1-ch relay output. Connect to external 4 CH Audio input alarm Connect to external sensor 1-8...

  • Page 5: Startup And Shutdown

    VOOK 4/8/16-CH DVR Quick Start Guide 3. Startup & Shutdown 3.1 Startup Step 1: Connect to cameras and monitor. Step 2: Connect with the source power. Step 3: The device will boot and the power indicator will display blue. Step 4: A WIZZARD window will pop up.
  • Page 6 VOOK 4/8/16-CH DVR Quick Start Guide Click „Next‟ button to bring up a network setup window.  The default HTTP port is 80. The default server port is 6036. You can check „Obtain an IP address automatically‟ to acquire network information or input IP address, subnet mask, gateway, preferred/alternate DNS server manually.

  • Page 7: Main Menu Setup

    VOOK 4/8/16-CH DVR Quick Start Guide point of time, if there is live image display without menu options，please check if there is display on other device/monitor, or long press Stop/ESC key to wait for login dialog box to appear. Long press Stop/ESC key can switch the output between BNC and VGA/HDMI.

  • Page 8: Recording Setup

    VOOK 4/8/16-CH DVR Quick Start Guide cruise track here. Advanced configuration: Users can reboot the device and import & export data into or from mobile storage medium. 7. Recording Setup A user needs to install and format a HDD, and set all the recording parameters before recording.
  • Page 9 VOOK 4/8/16-CH DVR Quick Start Guide 7.3 Motion Based Recording Motion detection based recording: when there is a motion event detected, the camera will be triggered to record. To Setup Motion Based Recording: Step 1: Enter into MenuSetupScheduleMotion tab. The setup steps for schedule for motion based recording are similar to normal schedule setup.

  • Page 10: Live Playback

    VOOK 4/8/16-CH DVR Quick Start Guide setup. You can refer to 7.2 Schedule Recording for details. Note: The timelines of the two schedules must match, otherwise you cannot get the record in some time. 7.4 Sensor Based Recording To Setup sensor Based Recording: Step 1: Enter into MenuSetupScheduleSensor tab.

  • Page 11: Playback By Time Search

    VOOK 4/8/16-CH DVR Quick Start Guide 8.2 Playback by Time Search Step 1: Enter into MenuSearchTime Search tab. Step 2: Select date and channels on the right hand side and press “Search” button. A date with highlighted borderline indicates presence of data.

  • Page 12: Back Up

    VOOK 4/8/16-CH DVR Quick Start Guide Step 1: Enter into MenuSearchEvent Search tab. Step 2: Select date and channels on the right hand side. A data with highlighted borderline indicates presence of data. Step 3: Then checkmark Motion, Sensor or All accordingly. You can search for motion based recording and sensor based recording.

  • Page 13: Remote Surveillance

    VOOK 4/8/16-CH DVR Quick Start Guide This unit supports backup by USB flash. Step 1：Enter into MenuBackup tab. Step 2: Set the start & end time, select channels and click Search button to display the searched data in the data backup list box Step 3: Select a required file or checkmark “All”...
  • Page 14 VOOK 4/8/16-CH DVR Quick Start Guide check the network settings of the DVR.  Enter into Record Setup to set network video parameters like resolution, frame rate etc.  Open IE on a computer on the same network. Input the IP address of the DVR in IE address bar and press enter.
