Page 1: Quick Start Guide

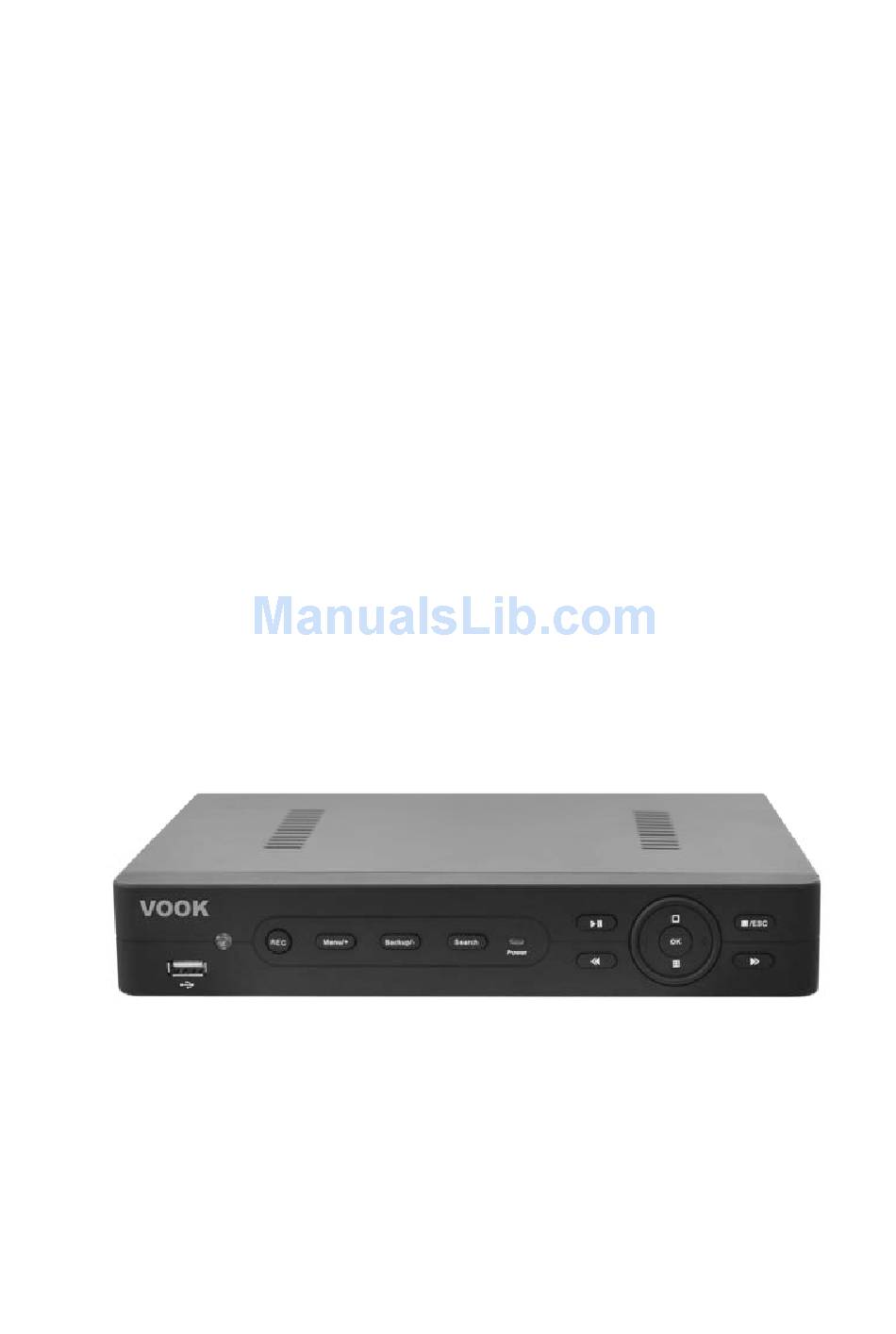

VOOK QUICK START GUIDE VDT2304SE VDT2308SE VDT2316SE VOOK premium DVR... -
Page 2: Install Hard Drive &Dvd Writer
Step3: Screw the HDD as below. Note: For the convenience to install, please connect the power and data cables firstly, and then screw to fix. Fig 1.2 Screw HDD 2. Connections 2.1 Rear view for 4-ch DVR VOOK premium DVR... -
Page 3: Power Input
POWER INPUT VGA output, connect to monitor Network port Connect USB mouse or connect external USB devices Connect to speed dome Connect to keyboard 1-ch relay output. Connect to +5 V and Grounding external alarm VOOK premium DVR... -
Page 4: Basic Setup
ESC key to wait for login dialog box to appear. Long press ESC key can switch the output between BNC and VGA. 4. Basic setup VOOK premium DVR... - Page 5 Network configuration: Users enable network function, and configure IP address, DDNS, transmission video parameters here. User configuration: Administrator can add, delete users, and change their authorization PTZ configuration: users can set protocol, baud rate, address, presets and VOOK premium DVR...
- Page 6 4.2.3 Motion Detection Recording Motion detection recording: when there is a motion event detected, the camera will be triggered to record and have an alarm out. Enter into main menu-alarm configuration-motion configuration (refer to Fig 4-4), enable Detection first; VOOK premium DVR...
- Page 7 PTZ; set Alarm out hold time and Buzzer hold time. Click OK to save settings. 4.3 Playback This unit supports live record playback, time search and event search. It displays full or 4 screens in playback. 4.3.1 Live playback VOOK premium DVR...
- Page 8 Click the relative buttons on the screen to do fast forward/rewind, pause, stop, and change the screen mode and re-search. Fig 4-8 time search 4.3.3 Event search Enter into Search configuration, select Event search (refer to Fig 4-9), and VOOK premium DVR...
- Page 9 Click Start button to start backup. Fig 4-10 Backup setup Remote Surveillance To making remote access, the DVR should be connecting to LAN or Internet. There are three kind of method for remote accessing. 5.1 Using DHCP to get IP address automatically VOOK premium DVR...
- Page 10 Input name and password correctly, and enter to view. 5.3 Connect the DVR to Internet through dial-up ADSL Input IP address, Subnet, Gateway gotten from your ISP. If using ADSL, please input user name and password, and click OK. The DVR will connect VOOK premium DVR...
- Page 11 HTTP port is not 80, add the port number after IP address or domain name. IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view. VOOK premium DVR...
