CW-C70YE / CW-C90YE

8 How to Install

8.1. Before installing air conditioner, please read the following:
8.1.1. Electrical Work.
• Always use at the rated voltage and with a specific air
conditioning circuit.
• Power supply point shall be the place where there is ease
for the power disconnection in case of emergency.
• Some installation locations may require installation of a
short-circuit breaker.
• A 16 Ampere time delay fuse or circuit breaker is required.
• Nominal cross sectional area of power supply wire must be
3 core x 1.0 mm2 or above.
• The power supply must be from an independent circuit.
• All electrical installation must be made in accordance with
local wiring and safety regulations wherever applicable.
• There must be a double pole switch with minimum of 3mm
contact gap in the fixed installation circuit (Applicable for
models without power supply plug only).

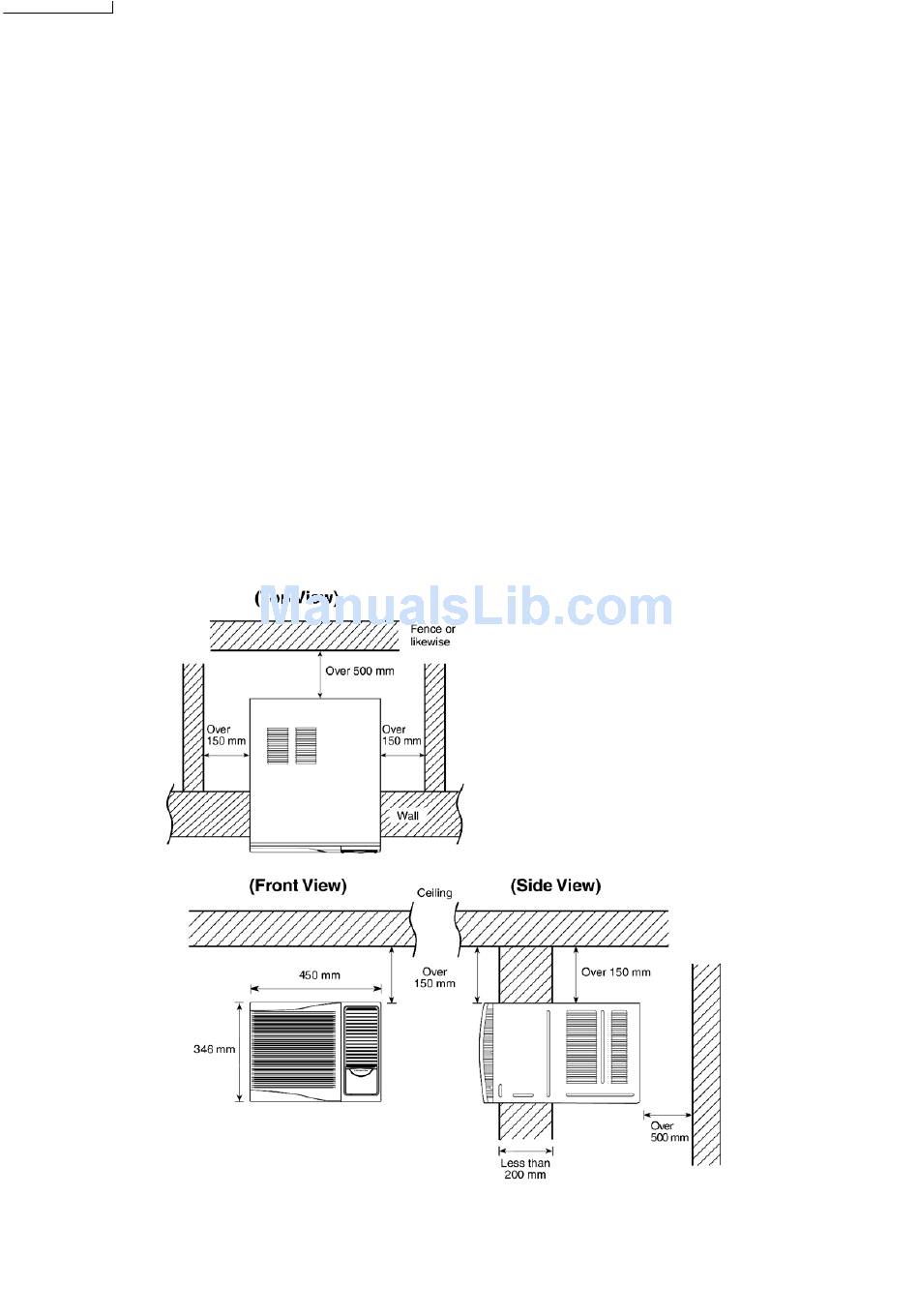

8.2. Preparation for Installation.
• There should not be any obstacles surrounding the unit.
• Prepare an installation hole that is only slightly bigger than the cabinet size.
8.1.2. Select the Best Location.
• Install the unit at the nearest power outlet.
• The air conditioner should be installed in a dry place where
there are no draughts.
• Condensation from the air conditioner must be drained into
an appropriate location.
• Do not install in a location where flammable gas leaks is a
possibility.
• Usage in locations where the air is salty such as coastal
areas or near hot spas, or where sulphurous gas is
generated, may lead to a malfunction.
• Do not install this appliance in a laundry room or other
locations where water may drip from the ceiling, etc.
• Select an installation location which is rigid and strong
enough to support or hold the unit and select a location for
easy maintenance.
