8.3.

Installation Procedure.

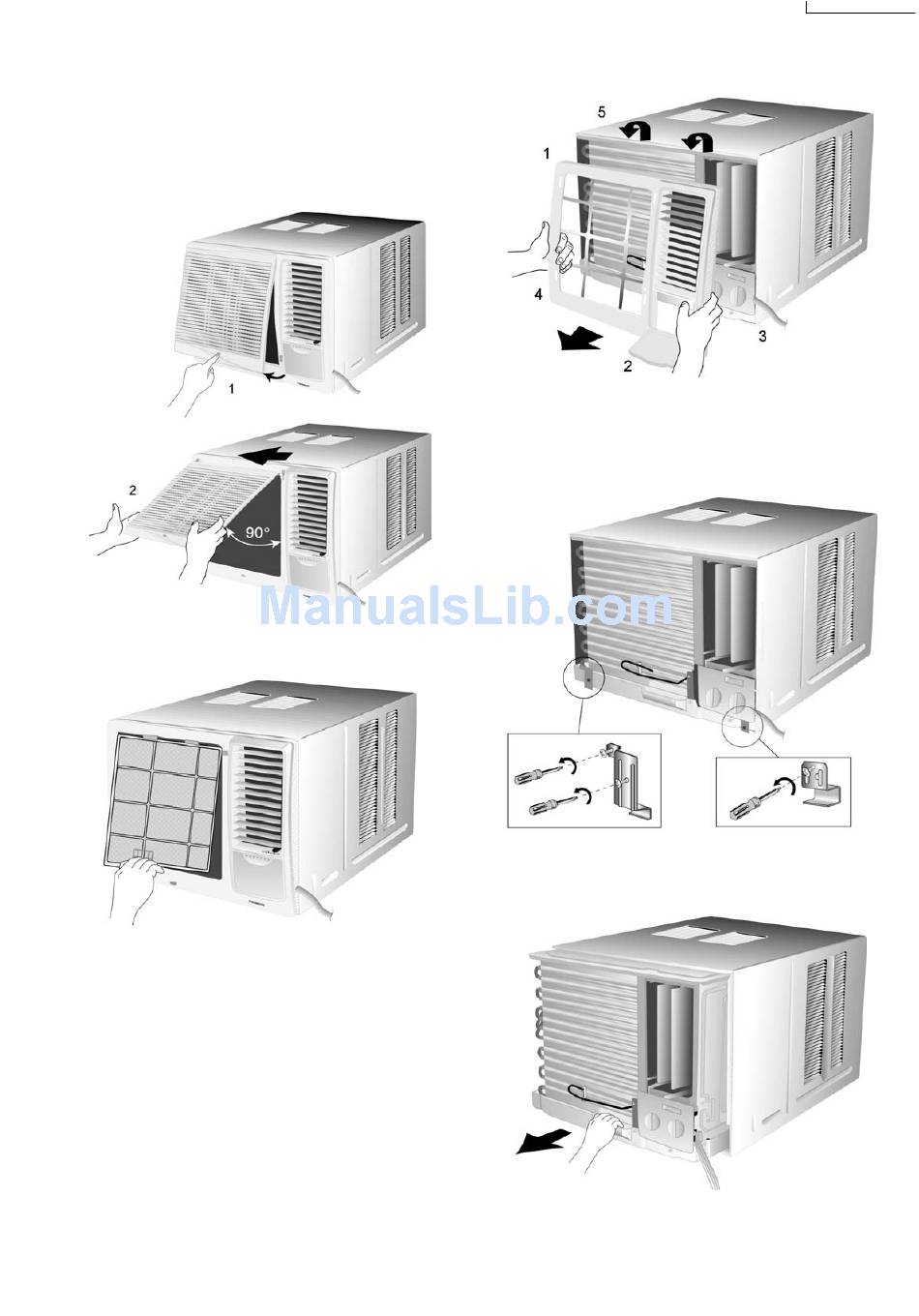

8.3.1. Remove the Front Intake Grille.
1. Push on the indication. Front Intake Grille will be
automatically released.
2. Pull up the Front Intake Grille to about 90°. Slide it slightly
to the left to unhook the tabs.
8.3.2. Remove the Air Filter.
• Tilt up and pull out the air filter by the holder.
8.3.3. Remove the Front Grille.
1. Remove the adhesive tapes from all sides of the Front
Grille.
2. Open the Control Panel cover.
3. At the bottom right side of the Front Grille, press inward on
the Cabinet near the Power Cord and pull the grille outward
to the right until the right tab releases.
4. At the bottom left side, push inward on the Cabinet and pull
the grille outward to the left to release the left tab. Do not
pull the bottom edge toward you more than 3 inches as to
prevent top two tabs from damage.
5. Slide the Front Grille upward to free the two top tabs from
slots at the top of the Cabinet.
8.3.4. Remove the Chassis Locking
Brackets from the Cabinet.
• Unscrew and remove both Chassis Locking Brackets. Keep
them for reinstallation.
8.3.5. Slide the Chassis out from the
Cabinet.
9
